Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano Dura-Ace Di2
Wheelset
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

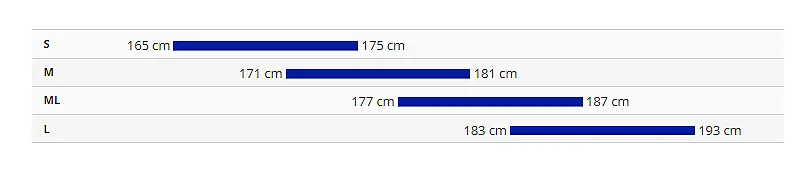

Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.

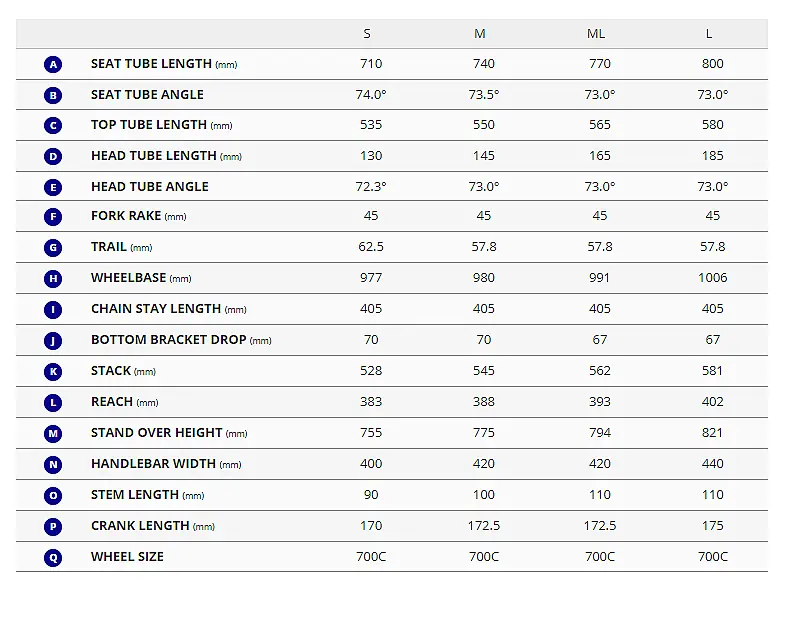

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 517 | 528 | 545 | 562 | 581 | 596 |
| Reach (mm) | 376 | 383 | 388 | 393 | 402 | 412 |
| Effective top tube (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| Seat tube (mm) | 680 | 710 | 740 | 770 | 800 | 830 |
| Head tube (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| Standover (mm) | 734 | 755 | 775 | 794 | 821 | 834 |
| Handling | ||||||
| Head angle (°) | 71 | 72.30 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 73.50 | 73 | 73 | 73 | 72.50 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 972 | 977 | 980 | 995 | 1,010 | 1,025 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| Trail (mm) | 68 | 60 | 56 | 56 | 56 | 56 |
Frame Details
Frame Weight
This frame weighs 845g
Frame Material
Carbon Fiber
Forks
Advanced SL-grade composite, full-composite OverDrive Aero steerer, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Dura-Ace Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura-Ace Di2 ST-R9270 2x12
Front Derailleur
Shimano Dura-Ace Di2 FD-R9250
Rear Derailleur
Shimano Dura-Ace Di2 ST-R9250
Cassette
Shimano Dura-Ace CS-R9200
Cranks
FC-R9200-P (170mm to 175mm splits)
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Shimano, press fit
Chain
Shimano Dura-Ace CN-M9100 (12-speed HG chain, shared with XTR platform)
Battery
Unknown
Wheel & Tire Details
Wheelset Name
CADEX 50 Ultra Disc
Front Wheel Depth
50mm
Rear Wheel Depth
50mm
Tires
CADEX Aero, tubeless, 700x25c (26.5mm), folding
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Dura-Ace Di2 hydraulic
Brake Rotors
160 mm front / 140 mm rear (Shimano RT-MT900 Centerlock rotors)
Other Components
Saddle
Giant Fleet SLR
Seatpost
Advanced SL - grade composite, integrated design, -5/+15mm offset
Handlebars
Giant Contact SLR Aero S:40cm, M:42cm, M/L:42cm, L:44cm
Bar Tape
Stratus Lite 2.0
