Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano Ultegra Di2
Wheelset
Reserve 37TA
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 34 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

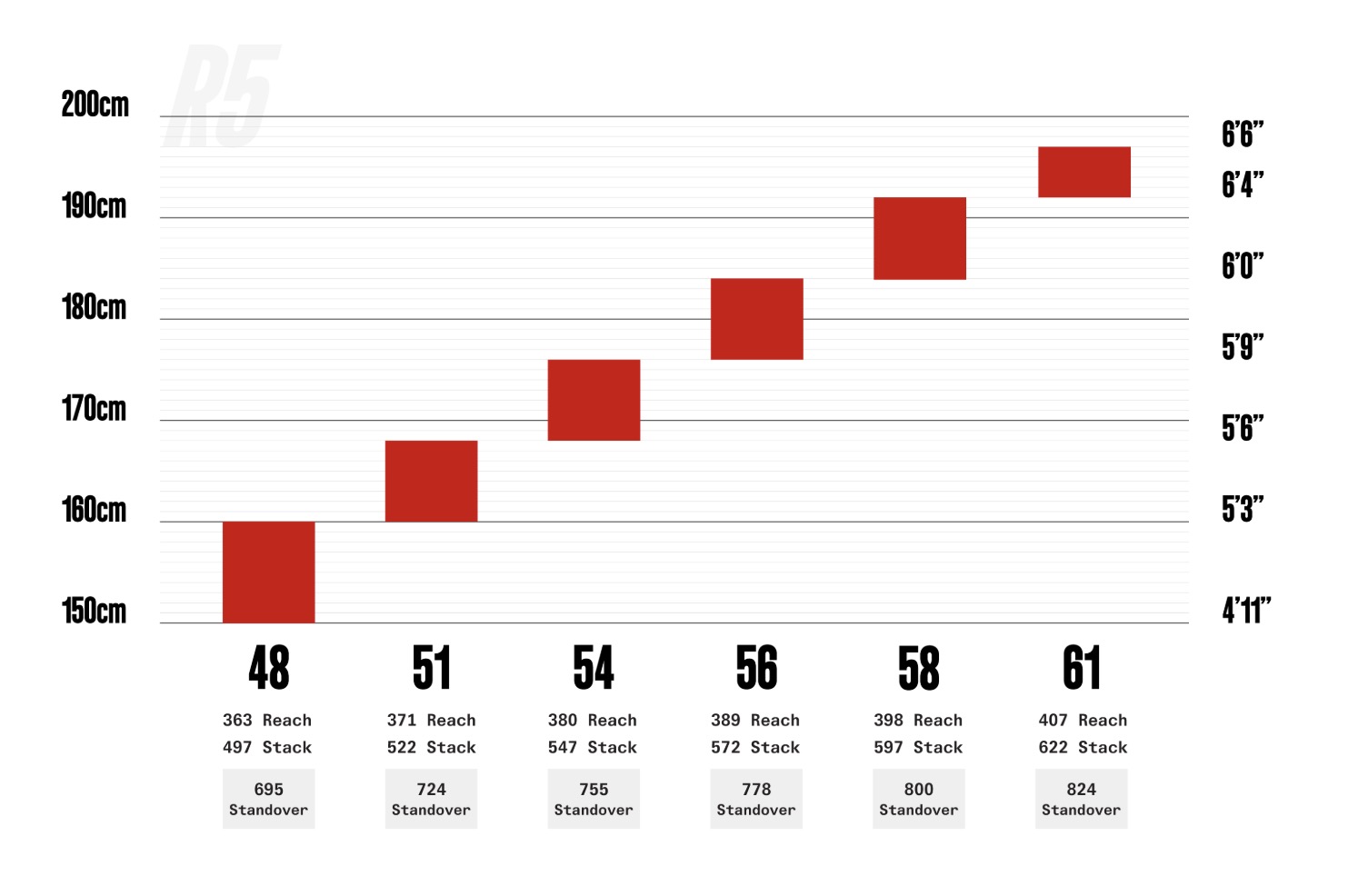

Sizing & Geometry
Frame Sizes
48 51 54 56 58 61This frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 48 cm | 51 cm | 54 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 150–160 cm | 160–165 cm | 165–173 cm | 173–178 cm | 178–185 cm | — |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 497 | 522 | 547 | 572 | 597 | 622 |
| Reach (mm) | 363 | 371 | 380 | 389 | 398 | 407 |
| Effective top tube (mm) | 515 | 531 | 548 | 564 | 581 | 598 |
| Seat tube (mm) | 433 | 465 | 494 | 523 | 552 | 582 |
| Head tube (mm) | 83 | 105 | 129 | 153 | 178 | 204 |
| Standover (mm) | 693 | 723 | 753 | 781 | 808 | 834 |
| Handling | ||||||
| Head angle (°) | 71 | 71.50 | 72 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 74 | 73 | 73 | 73 | 73 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 971 | 974 | 980 | 986 | 1,003 | 1,021 |
| Fork offset (mm) | 57.5 | 51.5 | 45.5 | 45.5 | 45.5 | 45.5 |
| Trail (mm) | 57.3 | 57.3 | 57.3 | 57.3 | 57.3 | 57.3 |
Frame Details
Frame Weight
This frame weighs 651g
Frame Material
Carbon Fiber
Forks
Cervélo All-Carbon, Tapered R5 Fork
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Ultegra Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Ultegra, R8170, 12 speed
Front Derailleur
Shimano Ultegra Di2 R8150.
Rear Derailleur
Shimano Ultegra, R8150, 12 speed
Cassette
Shimano Ultegra R8100.
Cranks
Shimano Ultegra R8100 (Size-scaled 165mm–172.5mm)
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Ceramic Speed, BBright for 24mm spindle
Chain
Shimano M8100 12-speed (XT/Ultegra level cross-compatibility).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Rear: Reserve 37TA, Zipp ZR1 SS, 12x142mm,Front: Reserve 34TA, Zipp ZR1 SS, 12x100mm
Front Wheel Depth
34mm
Rear Wheel Depth
37mm
Tires
Corsa Pro TLR 700x26mm
Tire Type
Tubeless
Max Tire Size: 34 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
Shimano Ultegra
Brake Rotors
Shimano RT-CL800 Centerlock rotors featuring advanced Ice Technologies Freeza heat dissipation management | 160 mm front / 160 mm rear standard sizing
Other Components
Saddle
Prologo Scratch M5 PAS TiRox
Seatpost
Cervélo SP24 Carbon
Handlebars
Cervélo HB13 Carbon, 31.8mm clamp
