Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
SRAM RED AXS
Wheelset
HollowGram R-SL 50
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
44 48 51 54 56 58 60 61 62This frame comes in 9 sizes, this is 3.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 44 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Rider height | 157–165 cm | 160–170 cm | 165–175 cm | 170–180 cm | 177–185 cm | 182–193 cm | 187–198 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 505 | 520 | 535 | 555 | 575 | 595 | 625 |
| Reach (mm) | 370 | 374 | 378 | 384 | 389 | 395 | 403 |
| Effective top tube (mm) | 512 | 520 | 528 | 546 | 562 | 578 | 603 |
| Seat tube (mm) | 397 | 438 | 477 | 515 | 534 | 567 | 600 |
| Head tube (mm) | 100 | 114 | 130 | 154 | 165 | 188 | 220 |
| Standover (mm) | 694 | 724 | 755 | 788 | 806 | 834 | 862 |
| Handling | |||||||
| Head angle (°) | 70.90 | 71.20 | 71.20 | 71.20 | 73 | 73 | 73 |
| Seat angle (°) | 74.30 | 74.30 | 74.30 | 73.70 | 73.30 | 72.90 | 72.30 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 973 | 975 | 984 | 992 | 989 | 1,002 | 1,019 |
| Fork offset (mm) | 55 | 55 | 55 | 55 | 45 | 45 | 45 |
| Trail (mm) | 60 | 58 | 58 | 58 | 58 | 58 | 58 |
Frame Details
Frame Weight
This frame weighs 810g
Frame Material
Carbon Fiber
Forks
SuperSix EVO Hi-MOD
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM RED AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM RED eTap AXS HRD, 2x12
Front Derailleur
SRAM RED eTap AXS, braze-on, wireless electronic (Official).

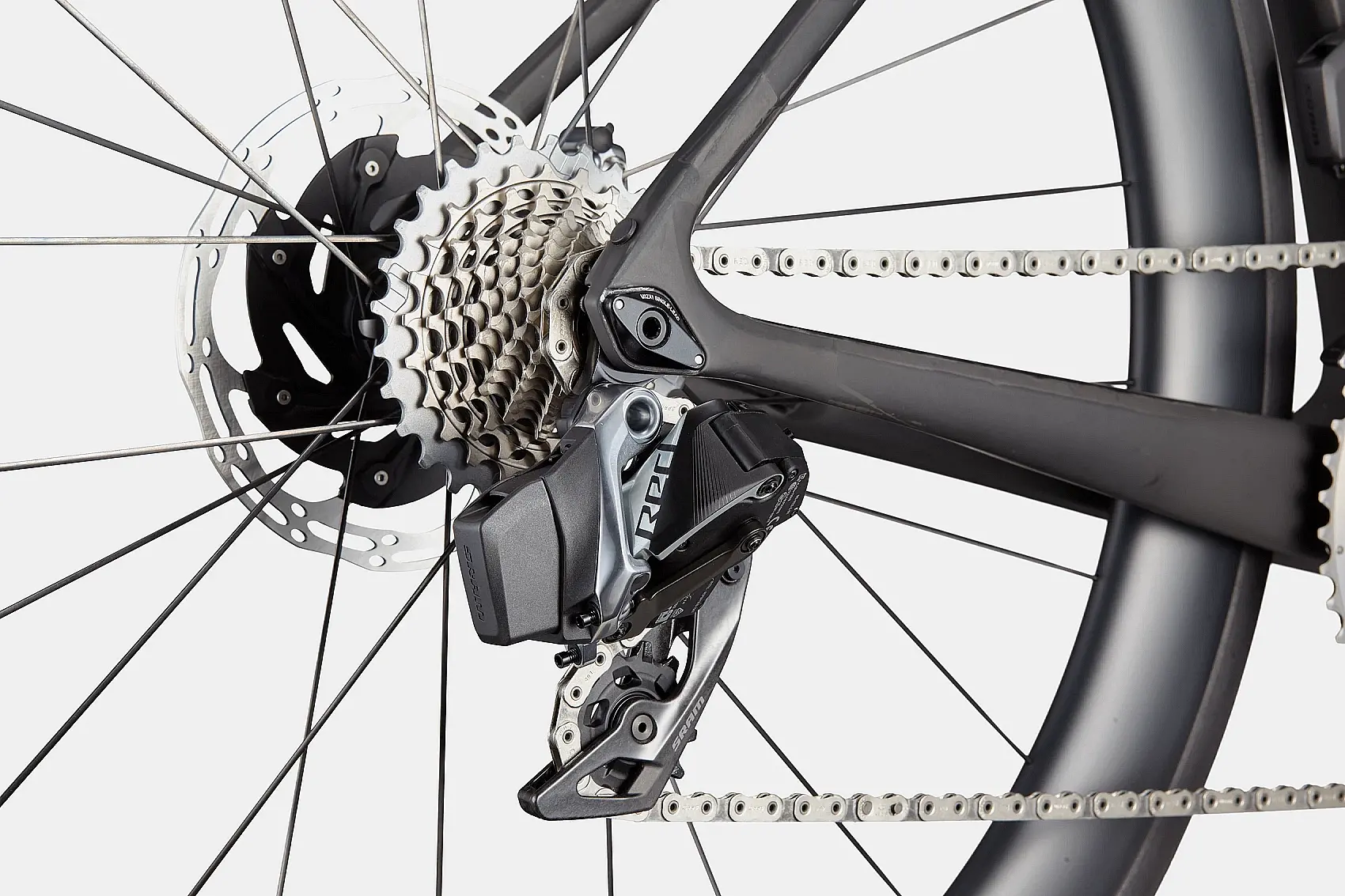

Rear Derailleur
SRAM RED AXS
Cassette
SRAM RED XG-1290, 10-28T, 12-Speed

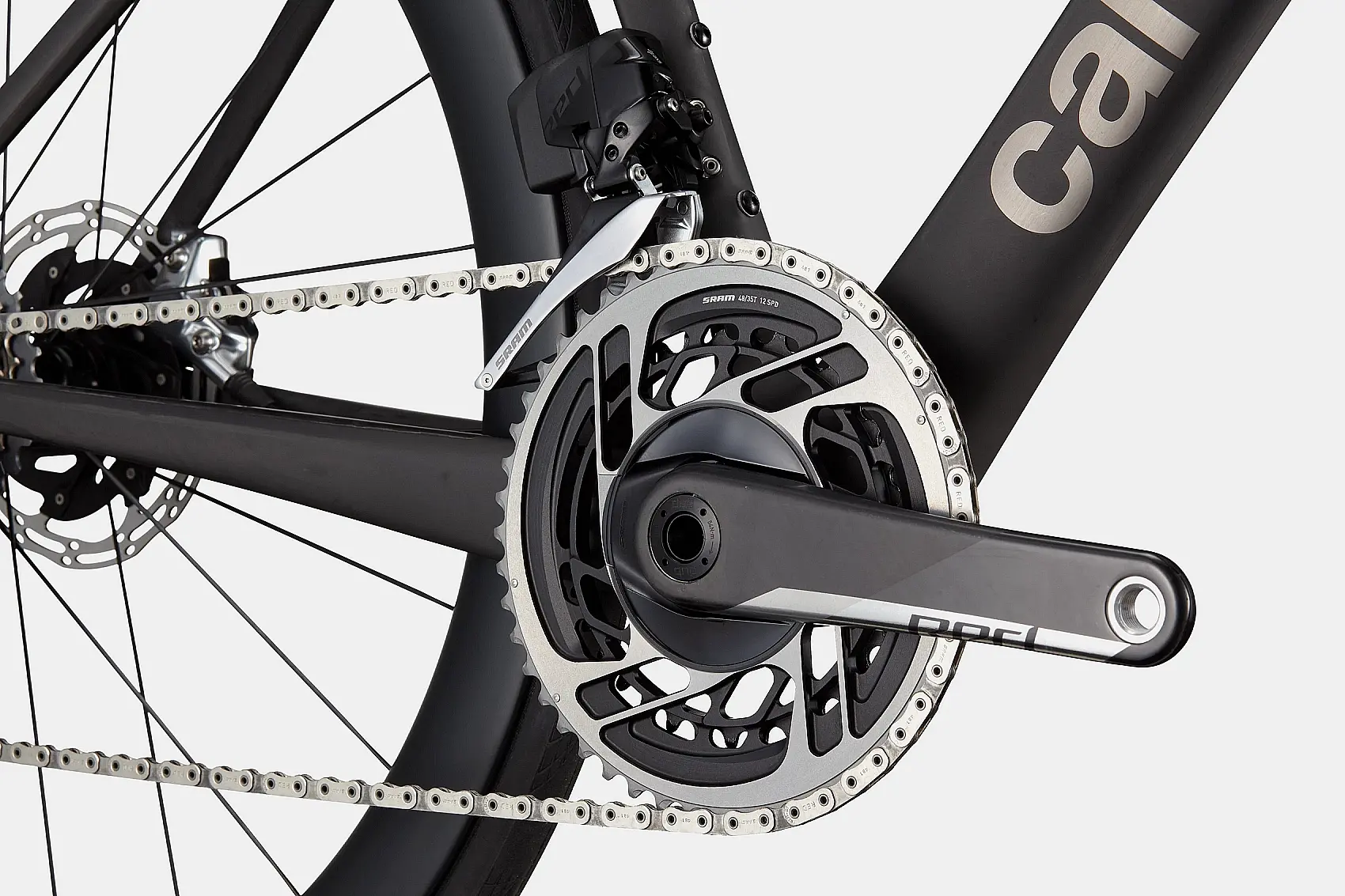

Cranks
SRAM RED AXS Carbon DUB
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM DUB BSA
Chain
SRAM RED Flattop 12-Speed
Battery
Unknown
Wheel & Tire Details
Wheelset Name
HollowGram R-SL 50
Front Wheel Depth
50mm
Rear Wheel Depth
50mm
Tires
Continental Grand Prix 5000, 700x25c
Tire Type
Clincher
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM RED eTap AXS HRD, 160 Rotor
Brake Rotors
160 mm front / 160 mm rear Centerlock configurations. Stock builds typically utilize SRAM Paceline or SRAM RED CenterLock structural rotors
Other Components
Saddle
Prologo Dimension NACK NDR, Carbon Rails
Seatpost
Cannondale C1 Aero 40 Carbon

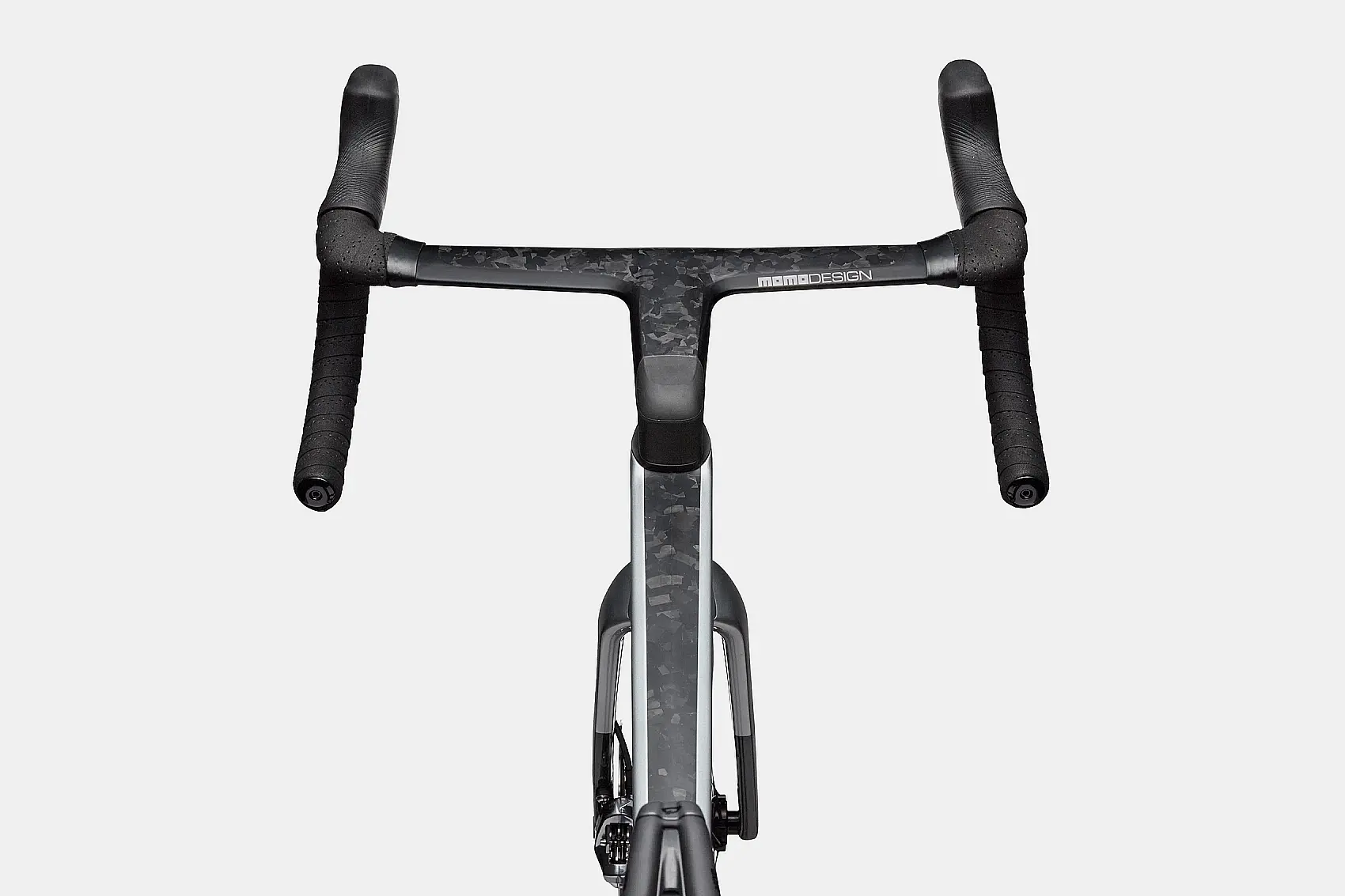

Handlebars
Cannondale SystemBar R-One
Bar Tape
Fizik Tempo Bondcush Soft, 3mm
