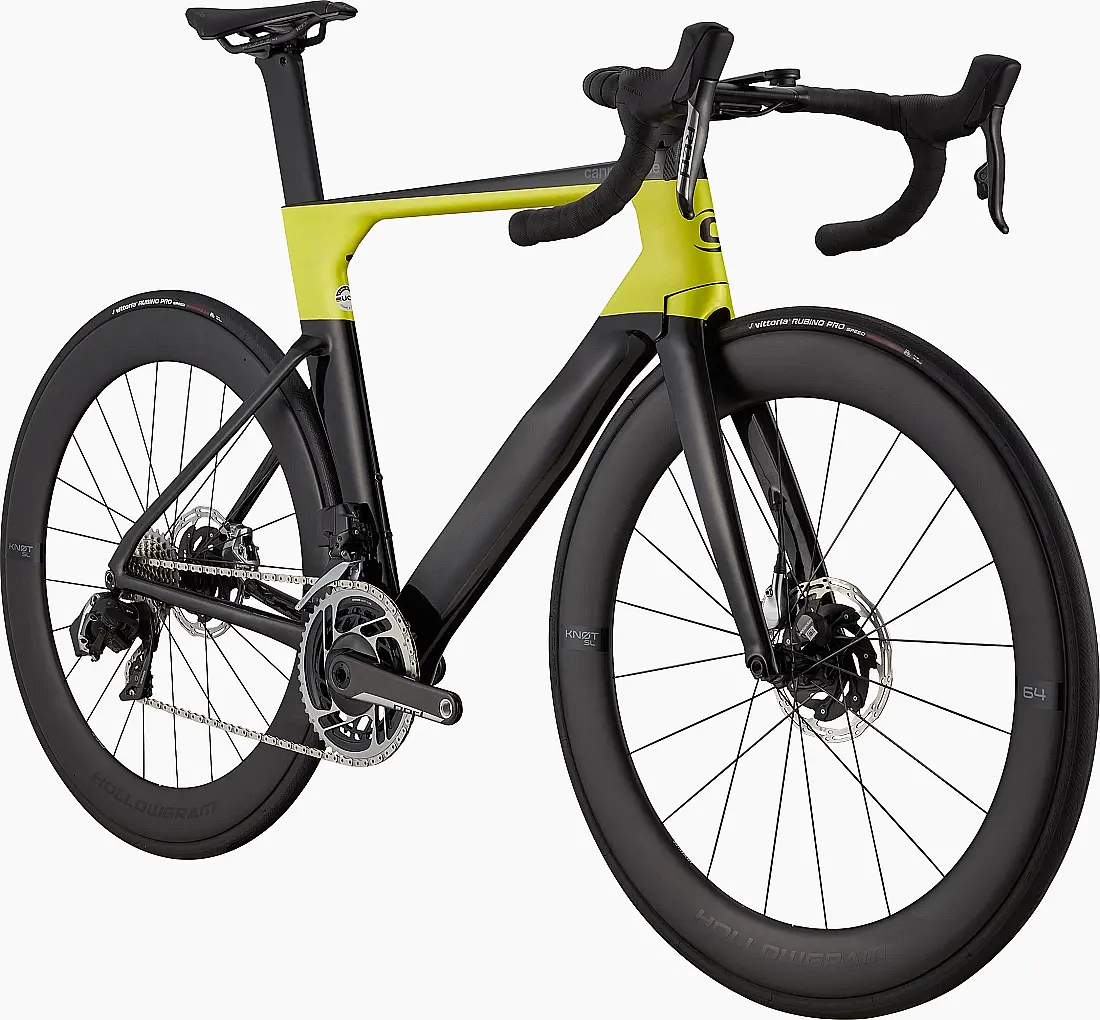

Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.9 kg
The website average for Road bikes is 8.56 kg. This bike is 0.66 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Red eTap AXS
Wheelset
HollowGram 64 SL KN¯T
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
47 51 54 56 58 60 62This frame comes in 7 sizes, this is 1.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 47 | 51 | 54 | 56 | 58 | 60 | 62 |
|---|---|---|---|---|---|---|---|
| Frame geometry | |||||||
| Stack (mm) | 500 | 520 | 540 | 560 | 580 | 600 | 620 |
| Reach (mm) | 375 | 381 | 386 | 392 | 398 | 403 | 409 |
| Effective top tube (mm) | 512 | 528 | 544 | 562 | 576 | 591 | 606 |
| Seat tube (mm) | 397 | 443 | 482 | 521 | 553 | 585 | 616 |
| Head tube (mm) | 88 | 114 | 128 | 149 | 172 | 193 | 214 |
| Standover (mm) | 717 | 749 | 762 | 794 | 818 | 845 | 871 |
| Handling | |||||||
| Head angle (°) | 71.20 | 71.20 | 73 | 73 | 73 | 72.90 | 72.90 |
| Seat angle (°) | 74.70 | 74.30 | 73.70 | 73.50 | 73.50 | 73.50 | 73.50 |
| Wheelbase (mm) | 974 | 989 | 975 | 987 | 1,000 | 1,012 | 1,024 |
Frame Details
Frame Weight
This frame weighs 915g
Frame Material
Carbon Fiber
Forks
BallisTec Hi-MOD Carbon
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
SRAM Red eTap AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM RED eTap AXS HRD, 12-speed
Front Derailleur
SRAM RED eTap AXS, braze-on.

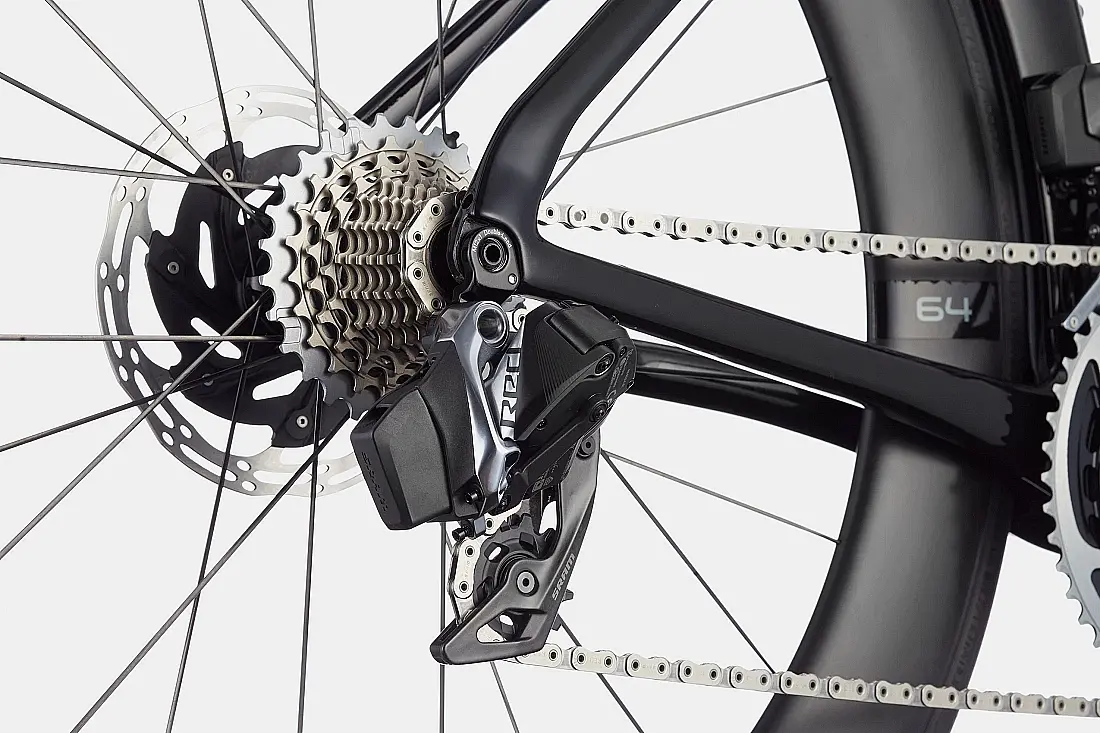

Rear Derailleur
SRAM Red eTap AXS
Cassette
SRAM XG-1290.

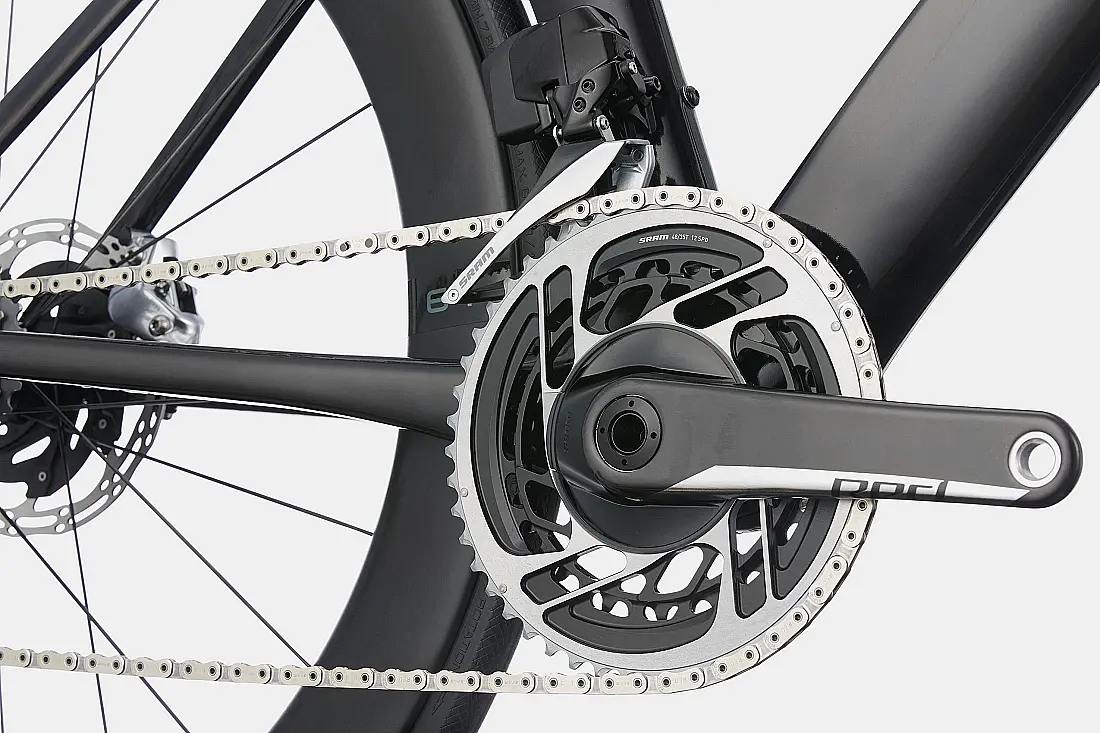

Cranks
SRAM RED AXS Carbon, DUB spindle
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM DUB PF30 ROAD73-A
Chain
SRAM RED, 12-speed.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
HollowGram 64 SL KNØT
Front Wheel Depth
64mm
Rear Wheel Depth
64mm
Tires
Vittoria Rubino Pro Speed, 700x25c
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Red hydraulic disc
Brake Rotors
SRAM Centerline XR, Centerlock | 160 mm front / 160 mm rear
Other Components
Saddle
Fizik Tempo Argo R3, 150mm width, K:ium rails
Seatpost
HollowGram 60 KNØT Carbon

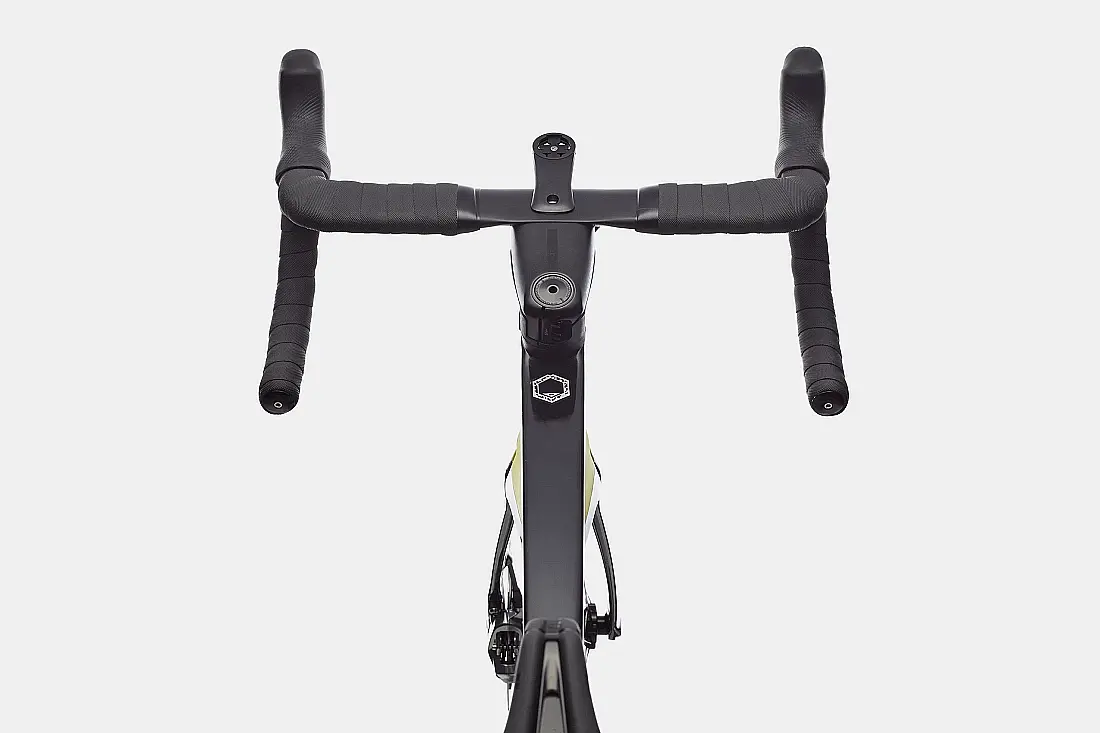

Handlebars
HollowGram KNØT SystemBar
Bar Tape
Cannondale Bar Tape, 3.5mm
