Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 6 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Gravel
The style of riding intended for this bike
Bike Spec
Weight: 7.5 kg
The website average for Gravel bikes is 9.25 kg. This bike is 1.76 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Dura-Ace Di2 FD-R9250, Weight: 0.21 lbs
Wheelset
DT Swiss CRC 1100 Spline
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

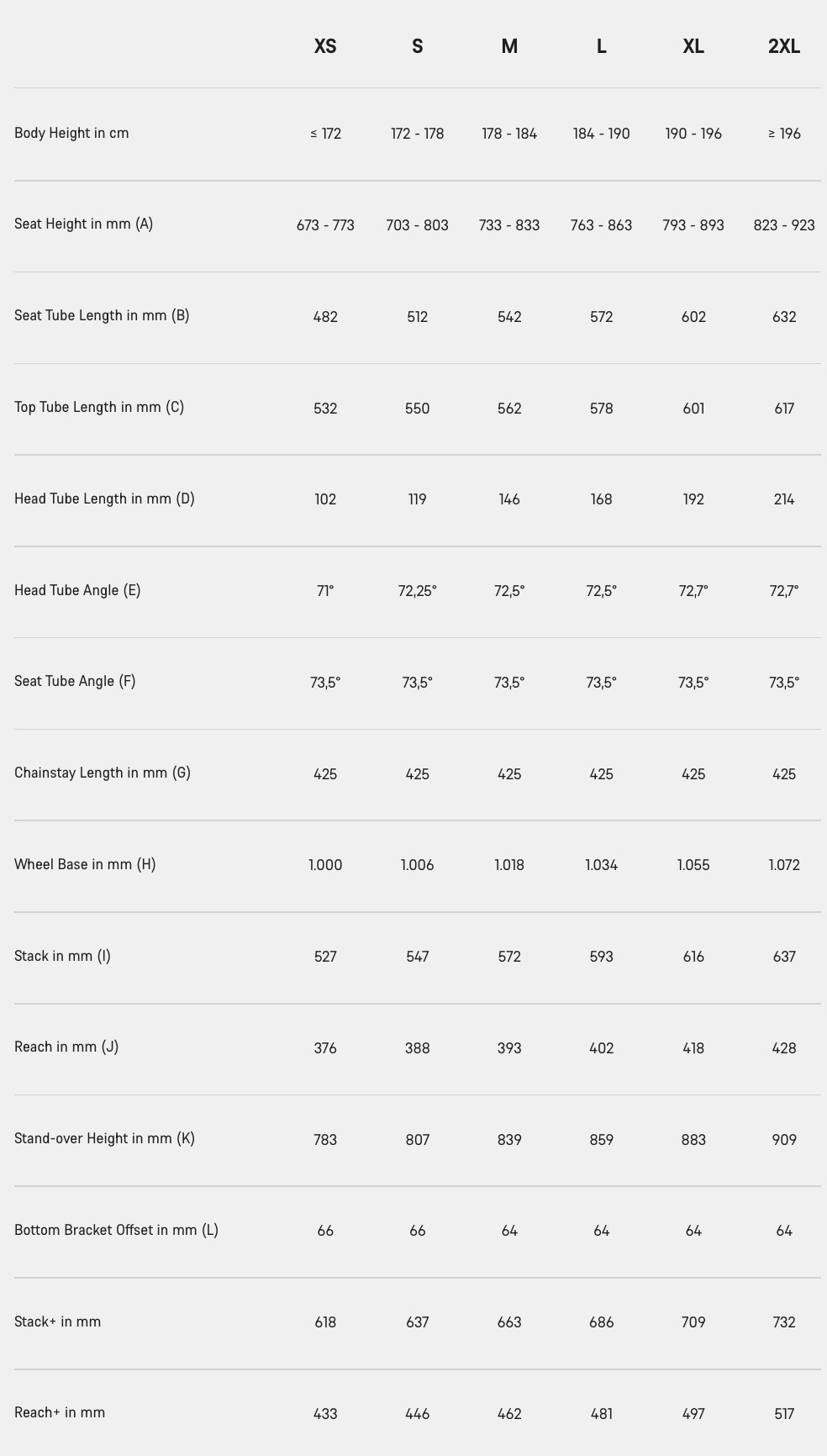

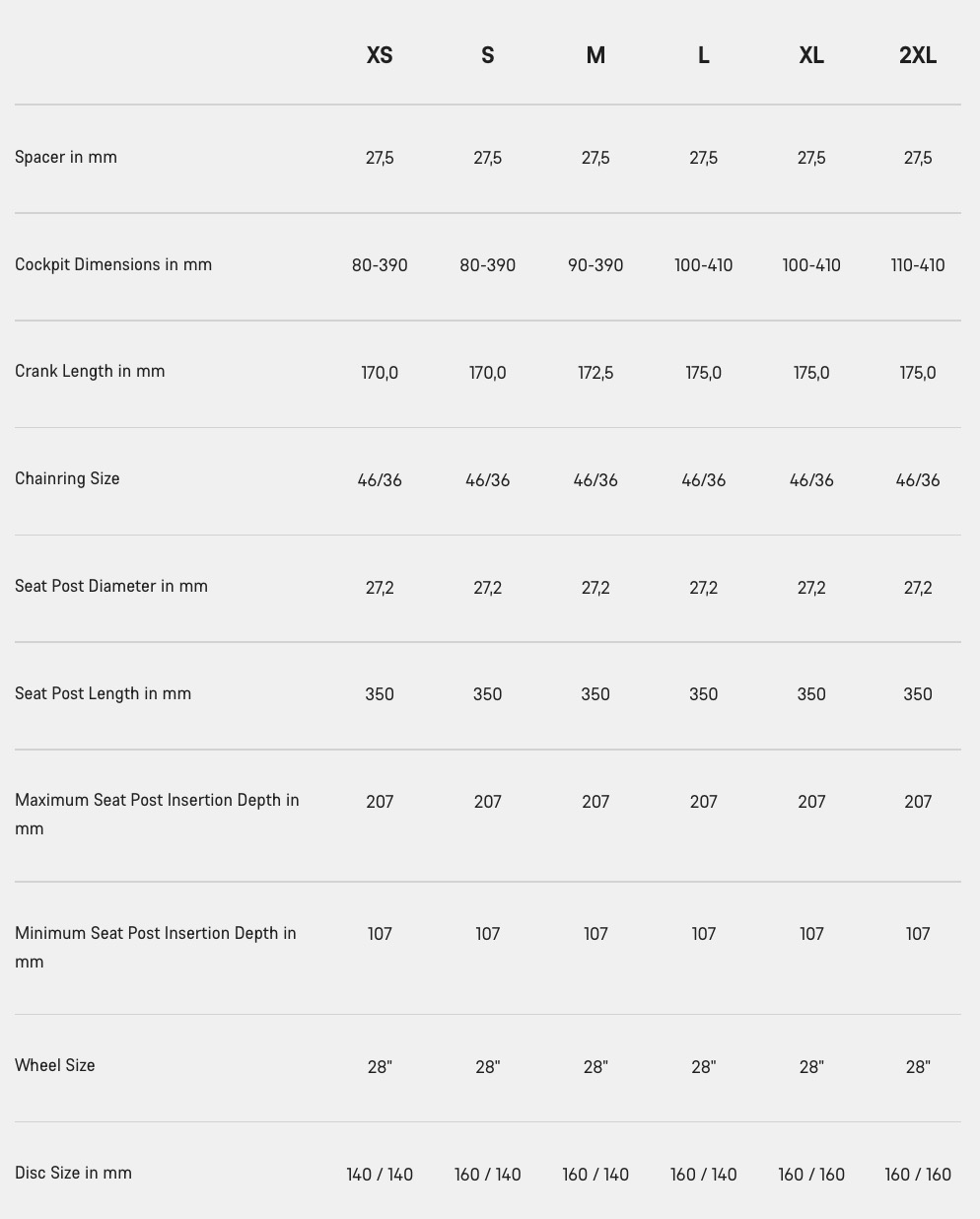

Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
Canyon Inflite CFR, Superlight build of the latest-generation Inflite cyclocross race bike. With World Championship-winning geometry, mud-shedding tube forms, and shoulder-friendly seat tube kink., Axle dimension: 12x142 mm, Tyre clearance: 35 mm, Material: Carbon (CF), Weight: 2.36 lbs
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano Dura-Ace Di2 FD-R9250, Weight: 0.21 lbs
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura-Ace Di2 R9270, 12-speed, Number of pistons: 2, Weight: 0.73 lbs | Shimano Dura Ace R9270 2s, Number of pistons: 2, Weight: 0.75 lbs
Front Derailleur
Shimano Dura-Ace Di2 FD-R9250, Weight: 0.21 lbs
Rear Derailleur
Shimano Dura-Ace Di2 RD-R9250, 12-speed, Cage length: long, Weight: 0.48 lbs
Cassette
Shimano Dura-Ace R9200, 12-speed, 11-34, Number of sprockets: 12, Range: 11-34
Cranks
Rotor Aldhu Inspider, Number of chainrings: 2
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Ceramicspeed BB86 Coated, PF 86,5, Weight: 0.18 lbs
Chain
Shimano CN-M9100 12s
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss CRC 1100 Spline, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 45 mm, Weight: 1.55 lbs | DT Swiss CRC 1100 Spline, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 45 mm, Weight: 1.88 lbs
Front Wheel Depth
45mm
Rear Wheel Depth
45mm
Tires
Schwalbe X-One R Evo, Width: 33 mm, Weight: 0.92 lbs
Tire Type
Unknown
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
Shimano Dura-Ace Di2 R9270, 12-speed, Number of pistons: 2, Weight: 0.73 lbs | Shimano Dura Ace R9270 2s, Number of pistons: 2, Weight: 0.75 lbs
Brake Rotors
Shimano XTR RT-MT900 Size: 140 mm Weight: 106 g
Other Components
Saddle
Selle Italia SLR KC Boost, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 0.30 lbs
Seatpost
Canyon S14 VCLS 2.0 CF Material: Carbon Setback: -2 mm / 10 mm Technology: VCLS 2.0 | Fliphead Weight: 220 g
Handlebars
Canyon CP0018 Cockpit CF Aero design, 3-position width adjustment, Material: Carbon
Bar Tape
Canyon Ergospeed Gel
