Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.4 kg
The website average for Road bikes is 8.56 kg. This bike is 0.83 kg over the average. Total bike weight may vary depending on frame size.
Groupset
SRAM GX Eagle AXS
Wheelset
DT Swiss G1800 Spline
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber

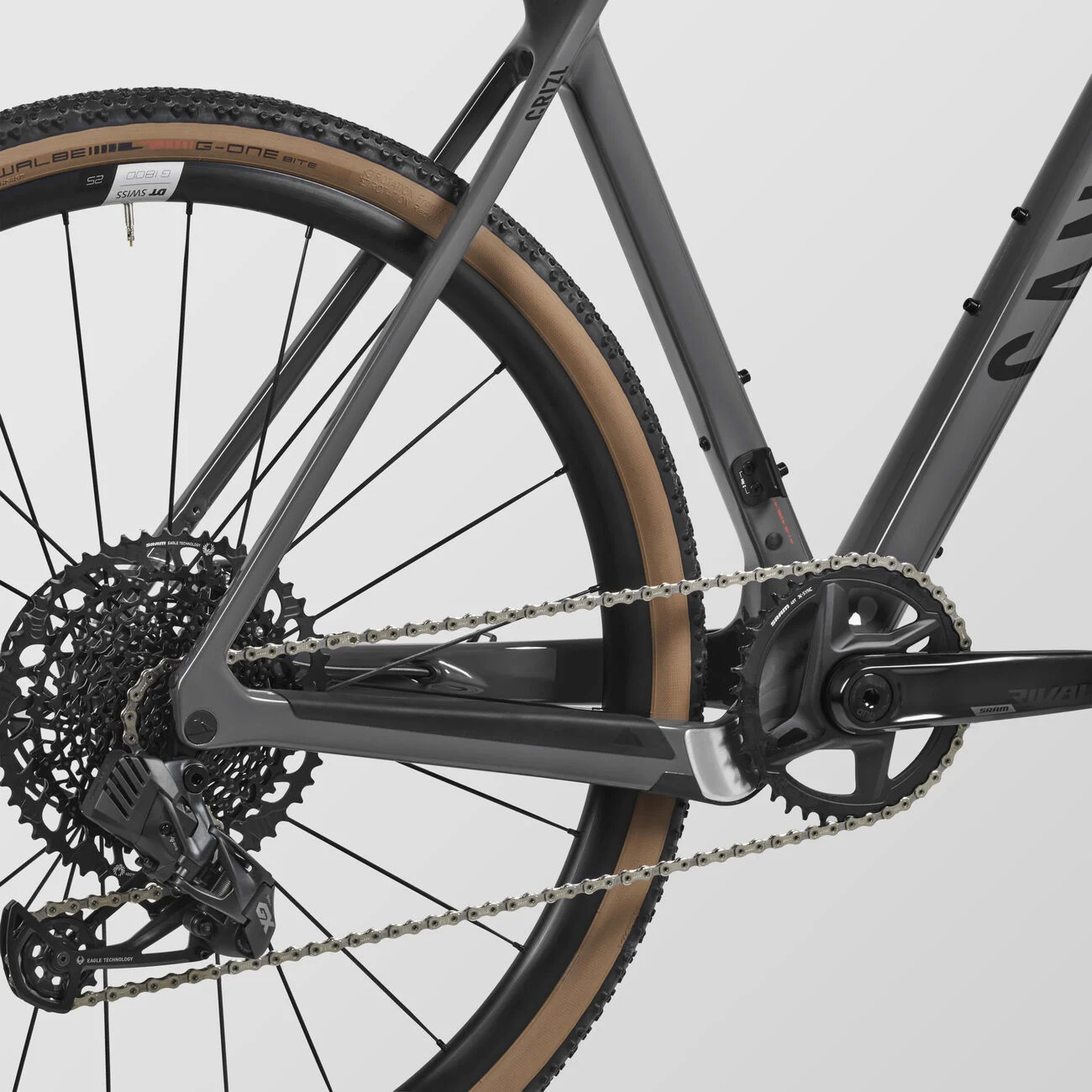

Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races

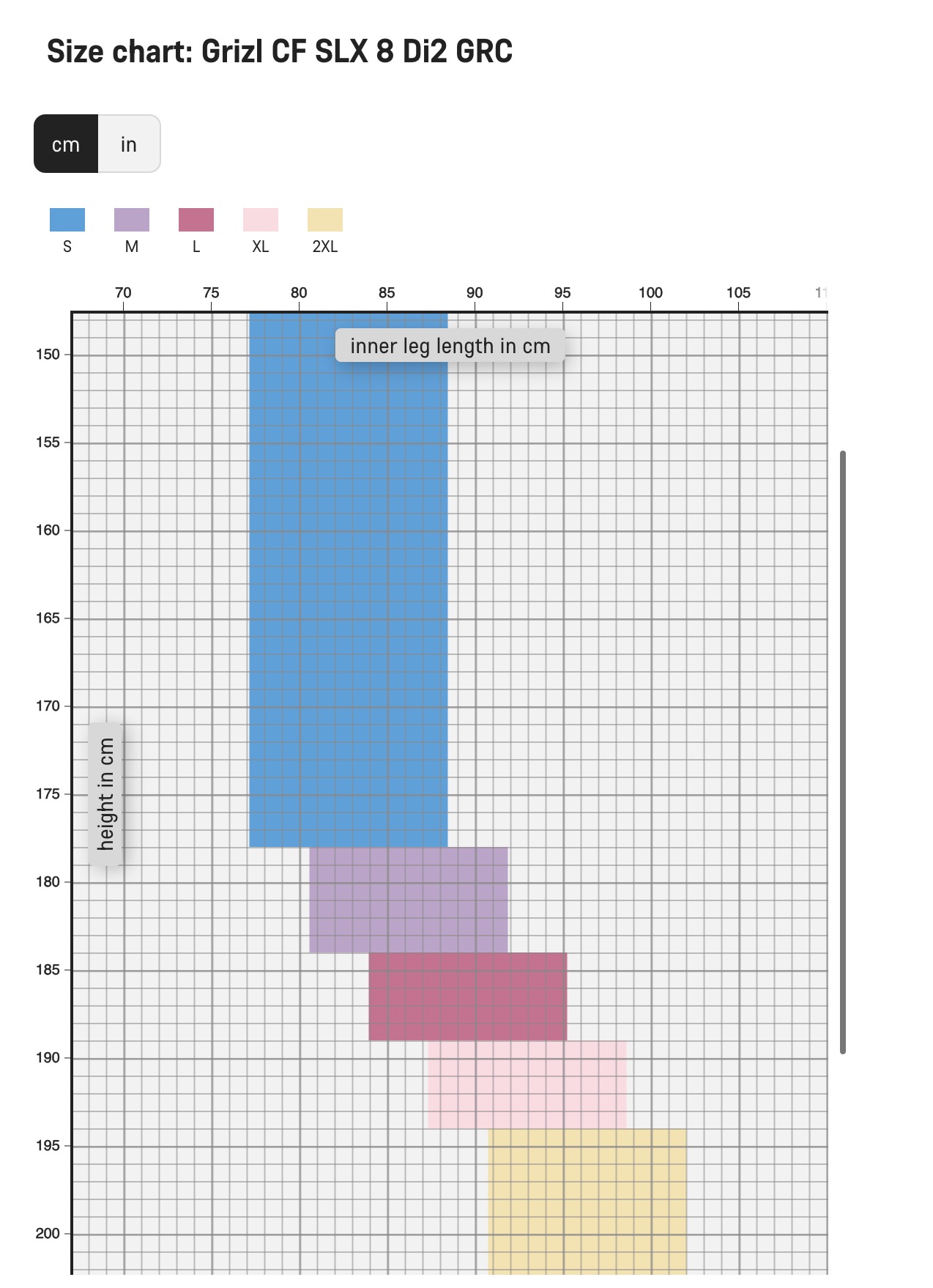

Sizing & Geometry
Frame Sizes
2XS XS S M L XL XXLThis frame comes in 7 sizes, this is 1.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Rider height | Up to 166 cm | 166–172 cm | 172–178 cm | 178–184 cm | 184–190 cm | 190–196 cm | — |
| Wheel size | 650b | 650b | 650b | — | — | — | — |
| Frame geometry | |||||||
| Stack (mm) | 522 | 535 | 556 | 579 | 605 | 626 | 647 |
| Reach (mm) | 365 | 375 | 388 | 402 | 415 | 427 | 440 |
| Effective top tube (mm) | 522 | 541 | 562 | 584 | 605 | 625 | 647 |
| Seat tube (mm) | 437 | 467 | 497 | 522 | 552 | 582 | 612 |
| Head tube (mm) | 92 | 105 | 123 | 144 | 169 | 191 | 213 |
| Standover (mm) | 744 | 772 | 799 | 820 | 846 | 871 | 896 |
| Handling | |||||||
| Head angle (°) | 70 | 71 | 72.25 | 72.25 | 72.25 | 72.75 | 72.75 |
| Seat angle (°) | 74 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 420 | 420 | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1,007 | 1,013 | 1,029 | 1,051 | 1,073 | 1,090 | 1,112 |
| Fork offset (mm) | 50 | 50 | 45 | 45 | 45 | 45 | 45 |
Frame Details
Frame Weight
This frame weighs 1050g
Frame Material
Carbon Fiber
Forks
Canyon Grizl CF SL, Light robust carbon frame with Gravel Pro geometry, 50 mm tyre clearance, and extended wheelbase for extra off-road stability., Axle dimension: 12x142 mm, Tyre clearance: 50 mm, Material: Carbon (CF), Weight: 1,030 g
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
SRAM GX Eagle AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Rival eTap AXS HRD 12s, Number of pistons: 2, Weight: 479 g | SRAM Rival eTap AXS HRD 12s, Number of pistons: 2, Weight: 283 g
Front Derailleur
None
Rear Derailleur
SRAM GX Eagle AXS, Weight: 340 g
Cassette
SRAM GX Eagle (Confirmed stock component).
Cranks
SRAM Rival 1x Wide
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM Pressfit DUB Wide, Bottom bracket standard: PF 86,5, Weight: 65 g
Chain
SRAM Eagle 12-speed (Inferred from groupset family compatibility requirements).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss G1800 Spline, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 25 mm, Inner width: 24 mm, Rim material: Aluminium, Weight: 880 g | DT Swiss G1800 Spline XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 25 mm, Free hub: SRAM XDR, Inner width: 24 mm, Rim material: Aluminium, Weight: 999 g
Front Wheel Depth
25mm
Rear Wheel Depth
25mm
Tires
Schwalbe G-One Bite 45mm, Width: 45 mm, Weight: 540 g
Tire Type
Clincher
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Rival eTap AXS HRD 12s, Number of pistons: 2, Weight: 479 g | SRAM Rival eTap AXS HRD 12s, Number of pistons: 2, Weight: 283 g
Brake Rotors
160 mm front / 160 mm rear Center Lock disc rotors
Other Components
Saddle
Fizik Argo Terra X5, Gender: Unisex, Weight: 271 g
Seatpost
Canyon S15 VCLS 2.0 CF
Handlebars
Canyon HB0064 Ergo, Robust aluminium handlebar with flared drops for enhanced off-road control., Clamping diameter: 31,8 mm, Width: 440 mm
Bar Tape
Canyon Ergospeed Gel
