Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.76 kg
The website average for Road bikes is 8.56 kg. This bike is 0.19 kg over the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Rival
Wheelset
DT Swiss Endurance LN
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber

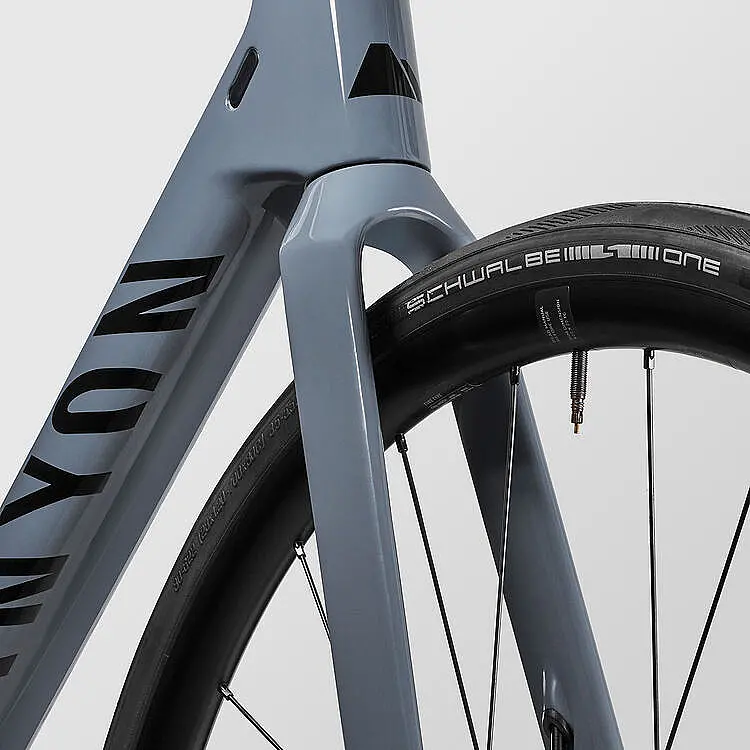

Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races

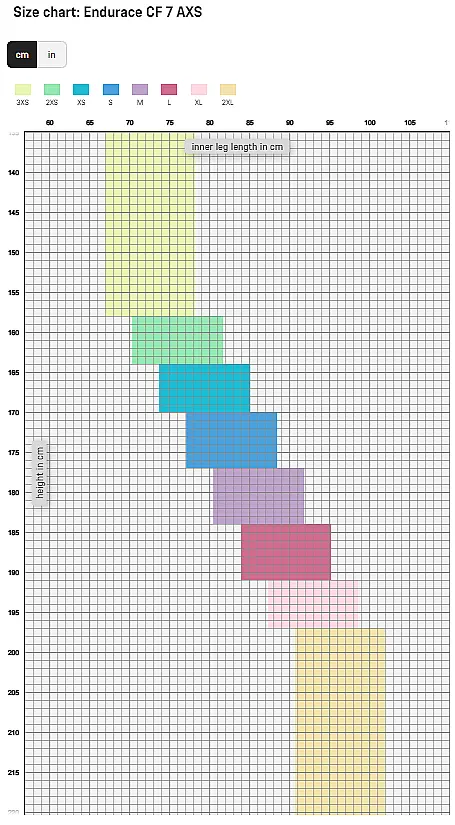

Sizing & Geometry
Frame Sizes
3XS 2XS XS S M L XL XXLThis frame comes in 8 sizes, this is 2.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 3XS | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|---|
| Sizing | ||||||||
| Rider height | Up to 158 cm | 158–164 cm | 164–170 cm | 170–177 cm | 177–184 cm | 184–191 cm | 191–197 cm | 197+ cm |
| Wheel size | 650b | 650b | 650b | 650b | — | — | — | — |
| Frame geometry | ||||||||
| Stack (mm) | 510 | 529 | 548 | 568 | 590 | 611 | 637 | 656 |
| Reach (mm) | 350 | 354 | 370 | 375 | 378 | 387 | 405 | 414 |
| Effective top tube (mm) | 491 | 511 | 522 | 533 | 543 | 558 | 584 | 599 |
| Seat tube (mm) | 402 | 432 | 462 | 492 | 522 | 552 | 582 | 612 |
| Head tube (mm) | 122 | 139 | 128 | 145 | 164 | 186 | 213 | 232 |
| Standover (mm) | 714 | 741 | 768 | 794 | 820 | 847 | 875 | 901 |
| Handling | ||||||||
| Head angle (°) | 70.50 | 71.50 | 71 | 72 | 73 | 73 | 73.25 | 73.25 |
| Seat angle (°) | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 405 | 405 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (mm) | 957 | 958 | 989 | 991 | 990 | 1,006 | 1,029 | 1,044 |
| Fork offset (mm) | 53 | 53 | 48 | 48 | 44 | 44 | 44 | 44 |

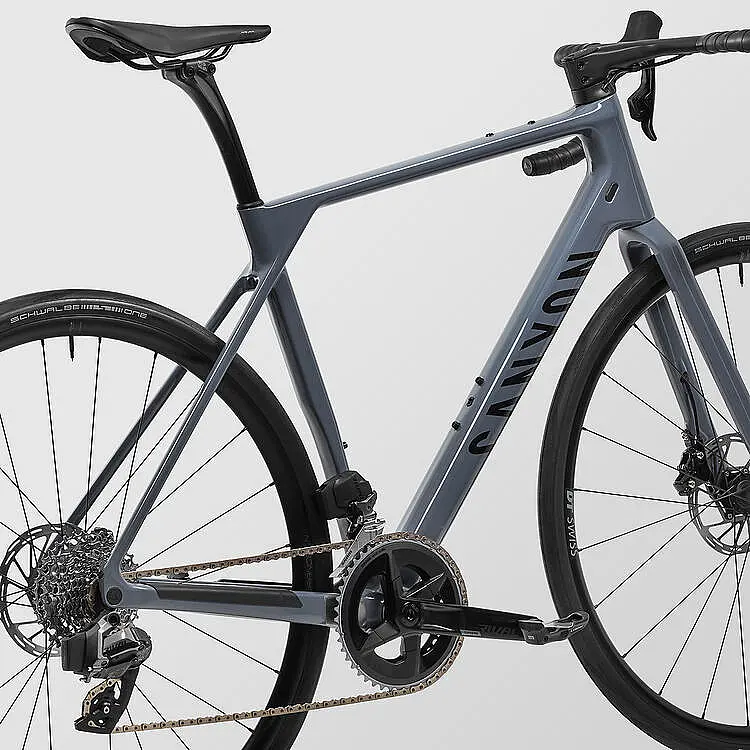

Frame Details
Frame Weight
This frame weighs 980g
Frame Material
Carbon Fiber
Forks
Canyon FK0110 CF Disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Rival
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Rival eTap AXS
Front Derailleur
SRAM Rival eTap AXS, braze-on mount configuration.
Rear Derailleur
SRAM Rival eTap AXS
Cassette
SRAM Rival XG-1250.
Cranks
SRAM Rival D1 (Length ranges from 165mm to 175mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM DUB Pressfit
Chain
SRAM Rival D1 Flattop 12-speed chain.
Battery
SRAM Powerpack
Wheel & Tire Details
Wheelset Name
DT Swiss Endurance LN
Front Wheel Depth
22mm
Rear Wheel Depth
22mm
Tires
Schwalbe One, 30mm
Tire Type
Clincher
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Rival eTap AXS
Brake Rotors
SRAM Paceline utilizing a Center Lock hub interface | 160 mm front and 160 mm rear
Other Components
Saddle
Fizik Argo Tempo R5
Seatpost
Canyon S15 VCLS 2.0 CF

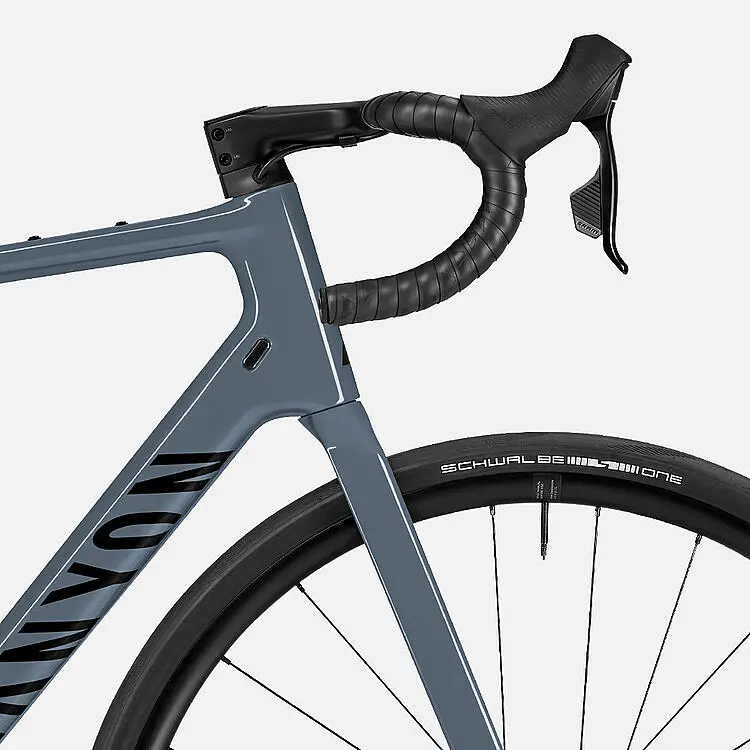

Handlebars
Canyon CP0030 Aerocockpit
Bar Tape
Canyon Ergospeed Gel
