Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.1 kg
The website average for Road bikes is 8.56 kg. This bike is 0.46 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105 Di2 FD-R7150, Weight: 0.30 lbs
Wheelset
Reynolds AR46
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
3XS 2XS XS S M L XL XXLThis frame comes in 8 sizes, this is 2.44 more sizes than the website average.

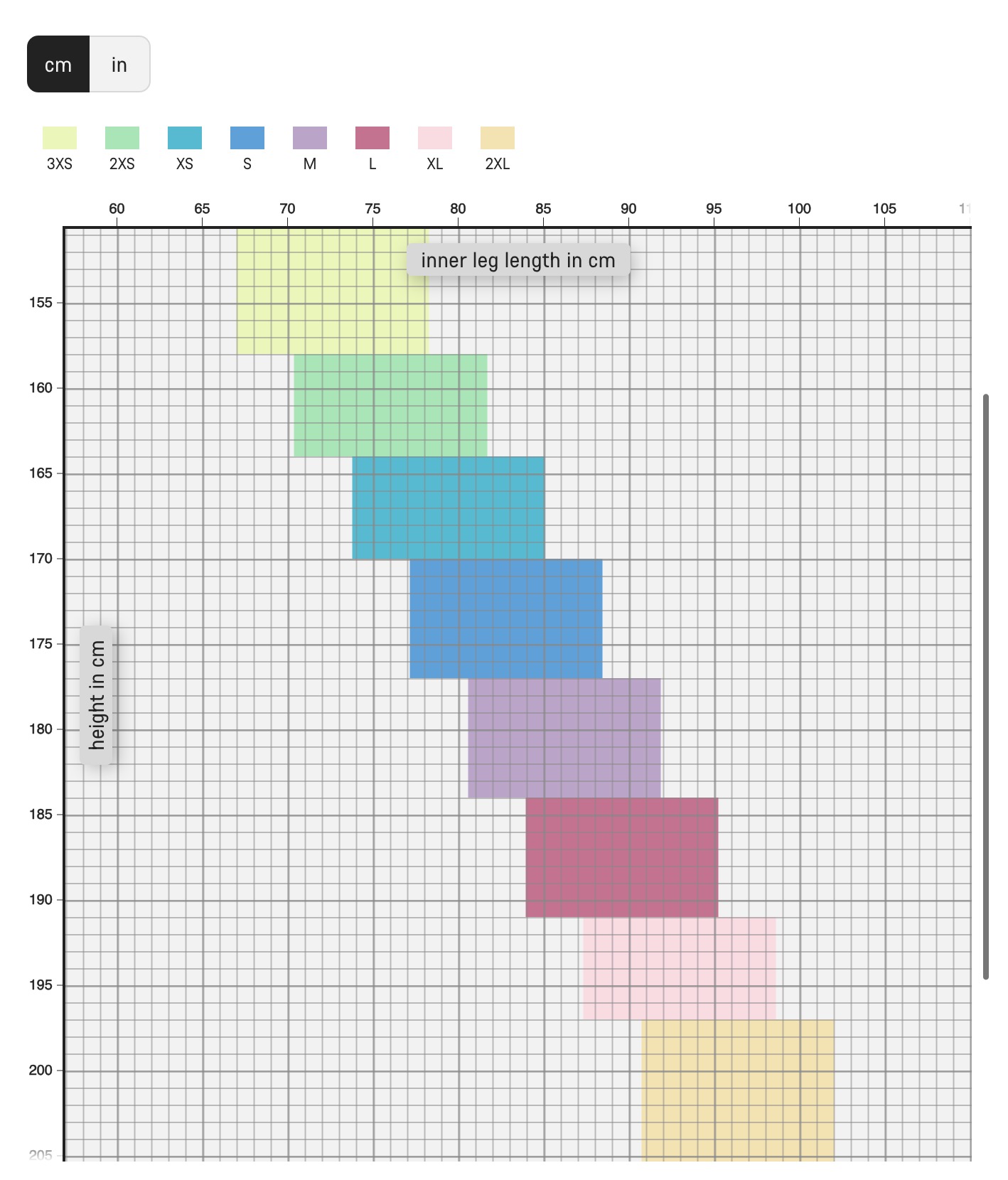

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 3XS | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|---|
| Sizing | ||||||||
| Rider height | Up to 158 cm | 158–166 cm | 164–172 cm | 170–179 cm | 177–186 cm | 184–193 cm | 191–199 cm | 199+ cm |
| Wheel size | 650b | 650b | 650b | 650b | — | — | — | — |
| Frame geometry | ||||||||
| Stack (mm) | 510 | 529 | 548 | 568 | 586 | 611 | 637 | 656 |
| Reach (mm) | 350 | 354 | 370 | 375 | 388 | 387 | 405 | 415 |
| Effective top tube (mm) | 501 | 511 | 533 | 544 | 553 | 577 | 592 | 612 |
| Seat tube (mm) | 402 | 432 | 462 | 492 | 515 | 545 | 575 | 605 |
| Head tube (mm) | 83 | 103 | 114 | 134 | 154 | 183 | 208 | 228 |
| Standover (mm) | 695 | 723 | 752 | 779 | 800 | 827 | 853 | 878 |
| Handling | ||||||||
| Head angle (°) | 69.80 | 70.50 | 71 | 71.80 | 72.50 | 72.50 | 73.20 | 73.20 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 415 | 415 | 415 | 415 | 415 | 415 | 415 | 415 |
| Wheelbase (mm) | 973 | 977 | 990 | 996 | 1,010 | 1,025 | 1,031 | 1,051 |
| Fork offset (mm) | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 | 41.5 |
| Trail (mm) | — | — | — | — | 60 | 60 | — | — |

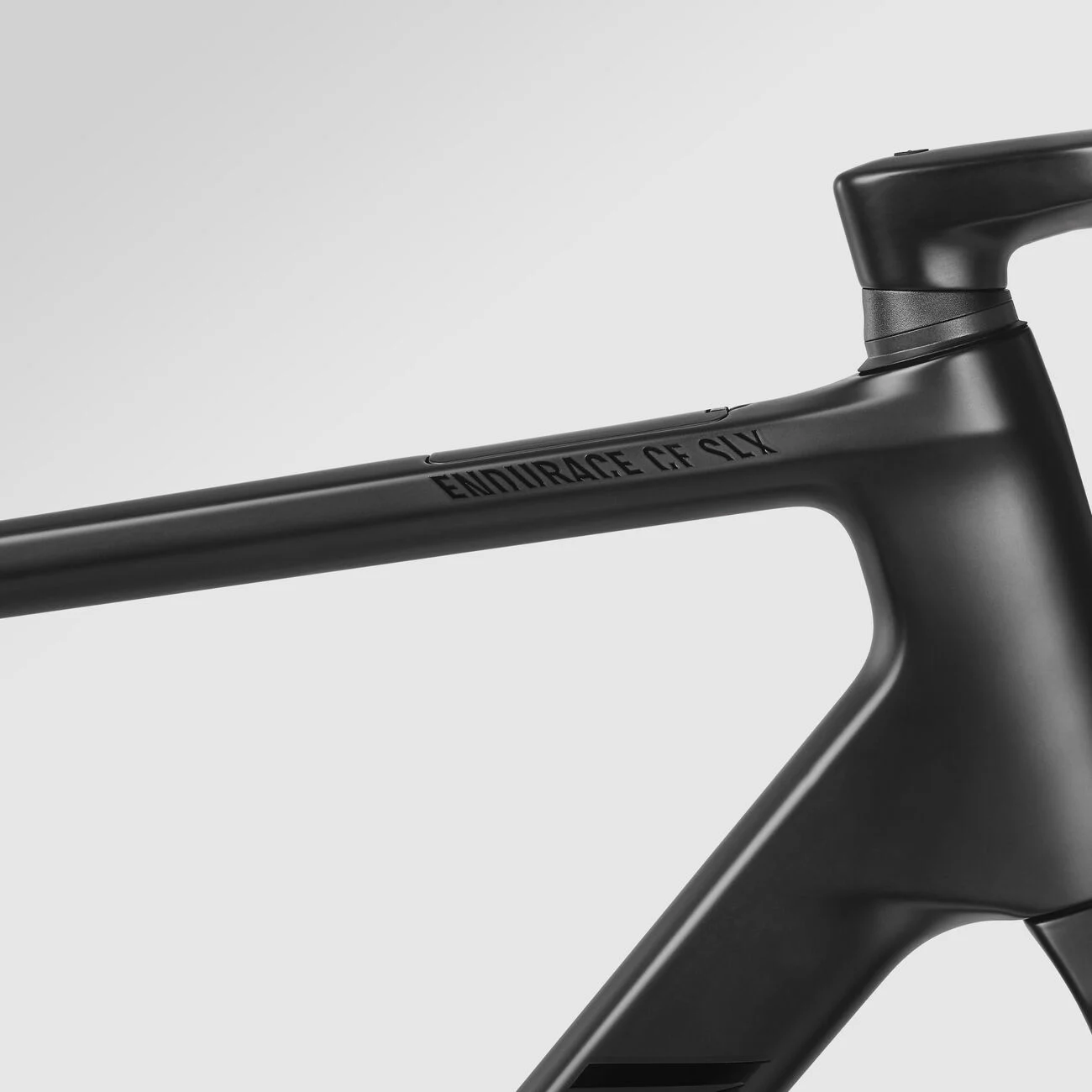

Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
Canyon Endurace CF SLX, Lightweight endurance road bike frame manufactured from high-grade carbon. Featuring integrated storage solutions and aero-optimised tube forms., Axle dimension: 12x142 mm, Tyre clearance: 35 mm, Material: Carbon (CF), Weight: 2.35 lbs
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano 105 Di2 FD-R7150, Weight: 0.30 lbs
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano 105 Di2 R7170, 2-speed, Number of pistons: 2, Weight: 0.86 lbs | Shimano 105 Di2 R7170, 12-speed, Number of pistons: 2, Weight: 0.85 lbs
Front Derailleur
Shimano 105 Di2 FD-R7150, Weight: 0.30 lbs
Rear Derailleur
Shimano 105 Di2 RD-R7150 12s, Weight: 0.66 lbs
Cassette
Shimano 105 R7100, 12-speed, 11-34T, Number of sprockets: 12, Range: 11-34
Cranks
Shimano 105 R7100 4iiii Precision Powermeter, Number of chainrings: 2
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 0.19 lbs
Chain
Shimano CN-M7100 12s
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Reynolds AR46, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 46 mm, Rim material: Carbon | Reynolds AR46, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 46 mm, Rim material: Carbon
Front Wheel Depth
46mm
Rear Wheel Depth
46mm
Tires
Schwalbe Pro One TLE, 30mm, High-end road tyre that combines suppleness, speed, and control at the highest level., Tech: tubeless-ready, v-guard puncture protection, Compound: Addix Race, On certain models, this tire may be substituted for an alternate, equivalent Schwalbe model., Potentially affected models include:, Endurace CF SLX 9 Di2 (Model #3369) | Schwalbe Pro One TLE, 32mm, On certain models, this tire may be substituted for an alternate, equivalent Schwalbe model., Potentially affected models include:, Endurace CF SLX 9 Di2 (Model #3369)
Tire Type
Tubeless
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Flat Mount Adapter +20mm
Brake Rotors
160 mm front / 160 mm rear (Shimano Center Lock rotors)
Other Components
Saddle
Fizik Tempo Argo R3, Gender: Unisex, Weight: 0.50 lbs
Seatpost
Canyon S15 VCLS 2.0 CF

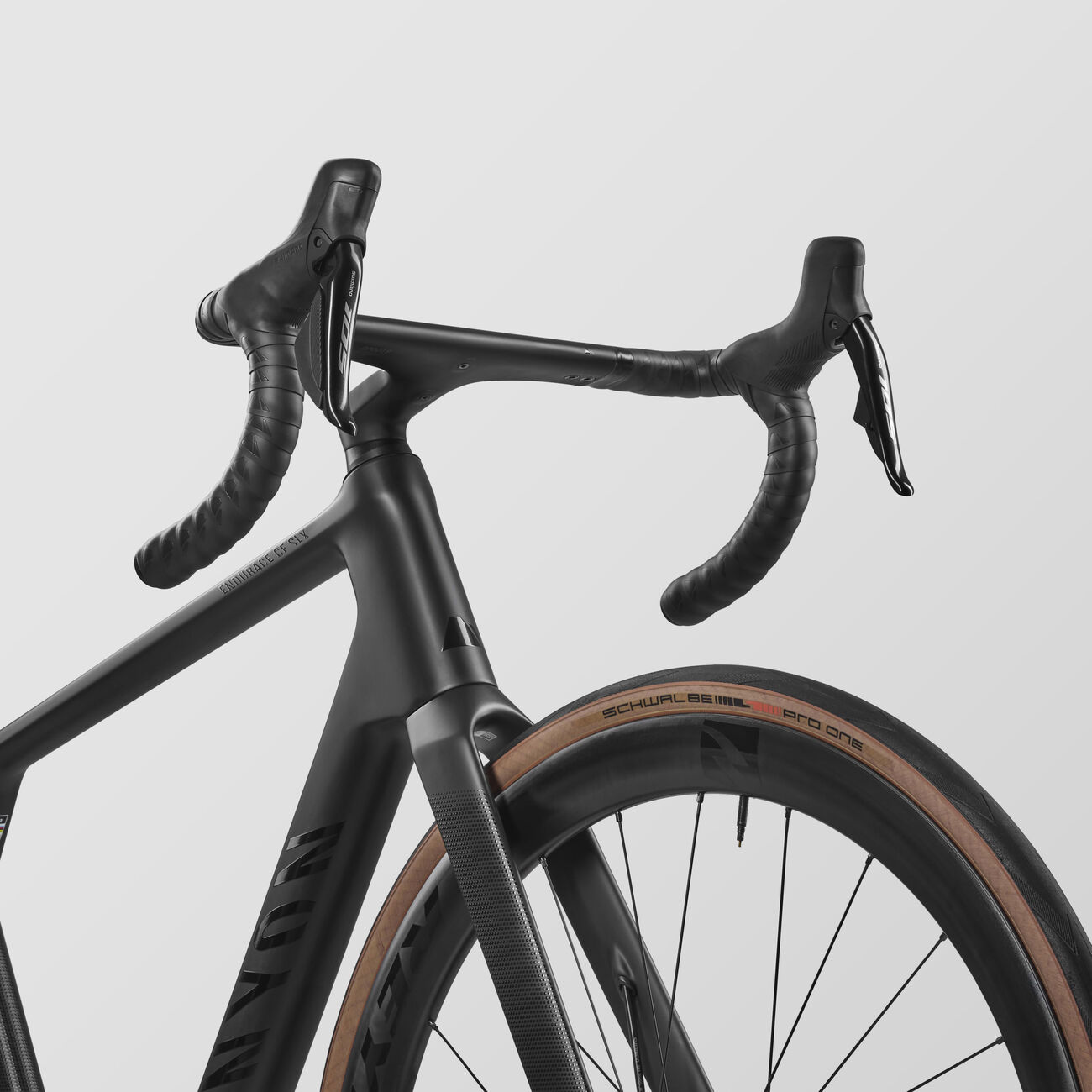

Handlebars
Canyon CP0018 Aerocockpit
Bar Tape
Canyon Ergospeed Gel
