Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.6 kg
The website average for Road bikes is 8.56 kg. This bike is 0.03 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano GRX Di2 FD-RX825, Weight: 0.29 lbs
Wheelset
Reynolds ATR700
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
S M L XLThis frame comes in 4 sizes, this is 1.56 less sizes than the website average.
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
Canyon Grail CF SLX, Lightweight build of the latest-generation Grail gravel race bike. More capable geometry, aero tube forms, integrated LOAD down tube storage, top tube mounts and strapless bag compatibility., Axle dimension: 12x142 mm, Tyre clearance: 42 mm, Material: Carbon (CF), Weight: 2.50 lbs
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted

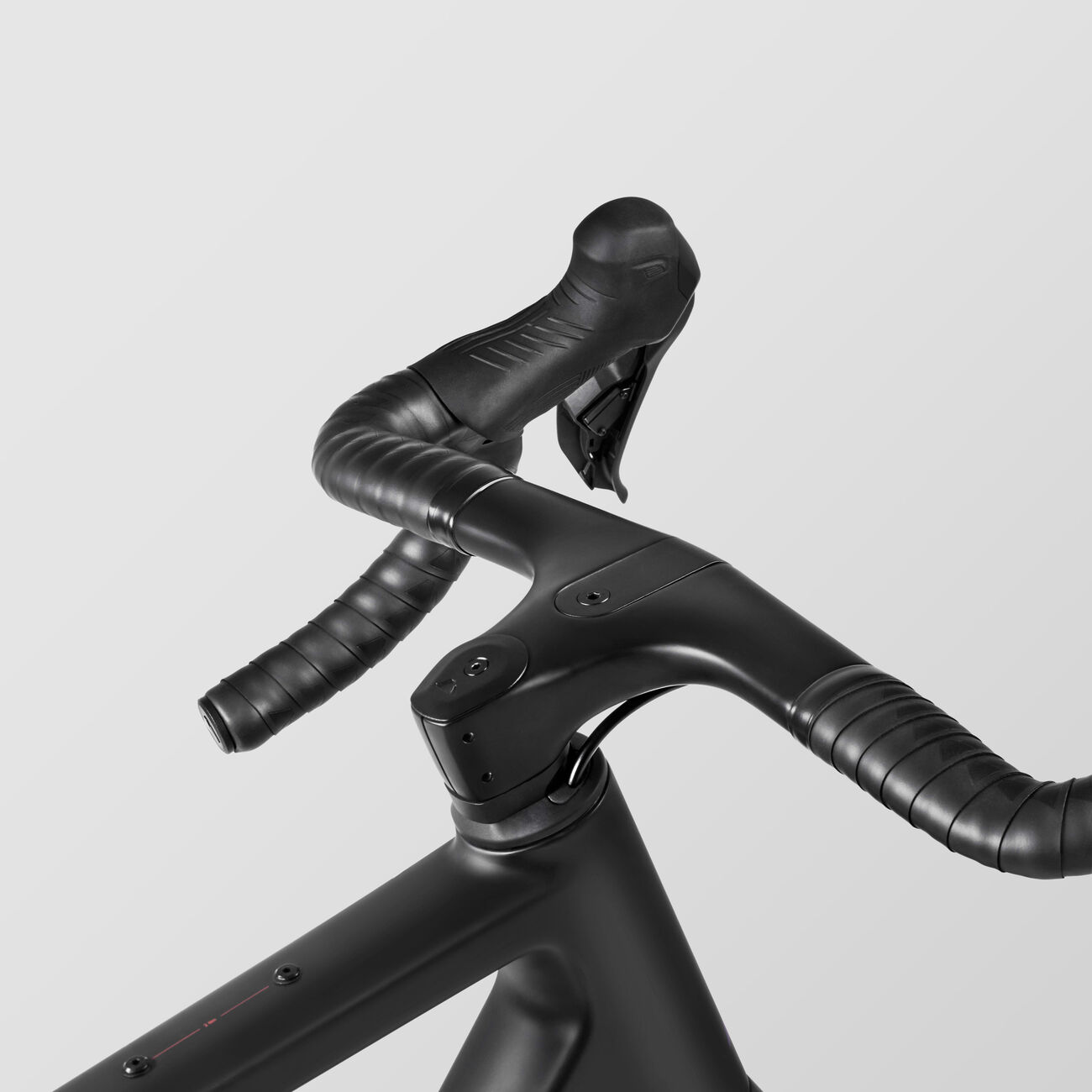

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano GRX Di2 FD-RX825, Weight: 0.29 lbs
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano GRX Di2 Dual Control ST-RX825, Number of pistons: 2, Weight: 0.86 lbs
Front Derailleur
Shimano GRX Di2 FD-RX825, Weight: 0.29 lbs
Rear Derailleur
Shimano GRX Di2 RD-RX825, Weight: 0.64 lbs
Cassette
Shimano Ultegra R8100, 12-speed, 11-34T, Number of sprockets: 12, Range: 11-34
Cranks
Shimano GRX FC-RX820-2, Number of chainrings: 2
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 0.19 lbs
Chain
Shimano CN-M8100 12s
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Reynolds ATR700, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Weight: 1.71 lbs | Reynolds ATR700, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Weight: 2.01 lbs
Front Wheel Depth
Unknown
Rear Wheel Depth
Unknown

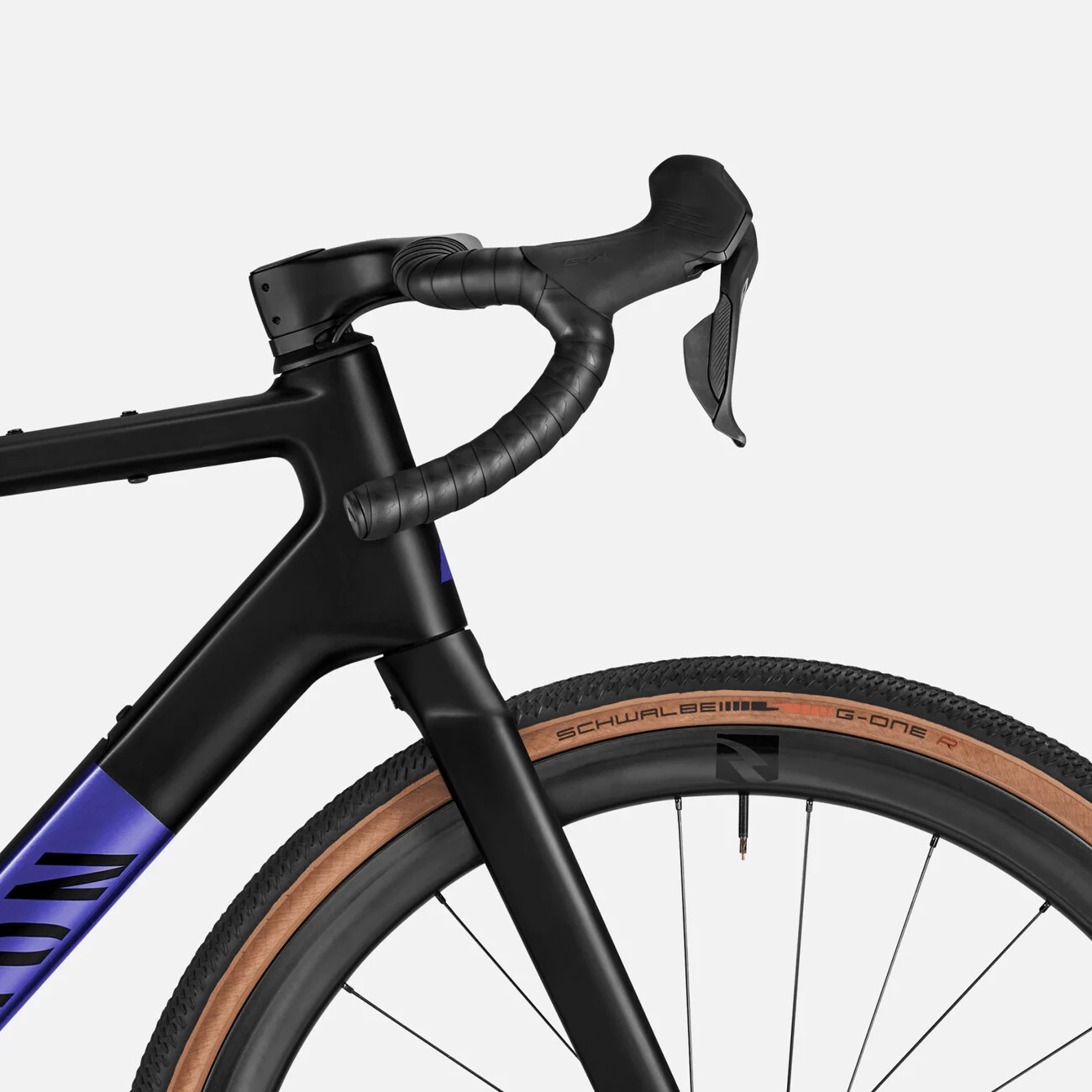

Tires
Schwalbe G-One R, 40mm, Width: 40 mm, Weight: 1.06 lbs
Tire Type
Unknown
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano GRX Di2 Dual Control ST-RX825, Number of pistons: 2, Weight: 0.86 lbs
Brake Rotors
Shimano Deore XT MT800
Other Components
Saddle
Fizik Vento Argo X3, Gender: Unisex, Weight: 0.47 lbs
Seatpost
Canyon SP0072

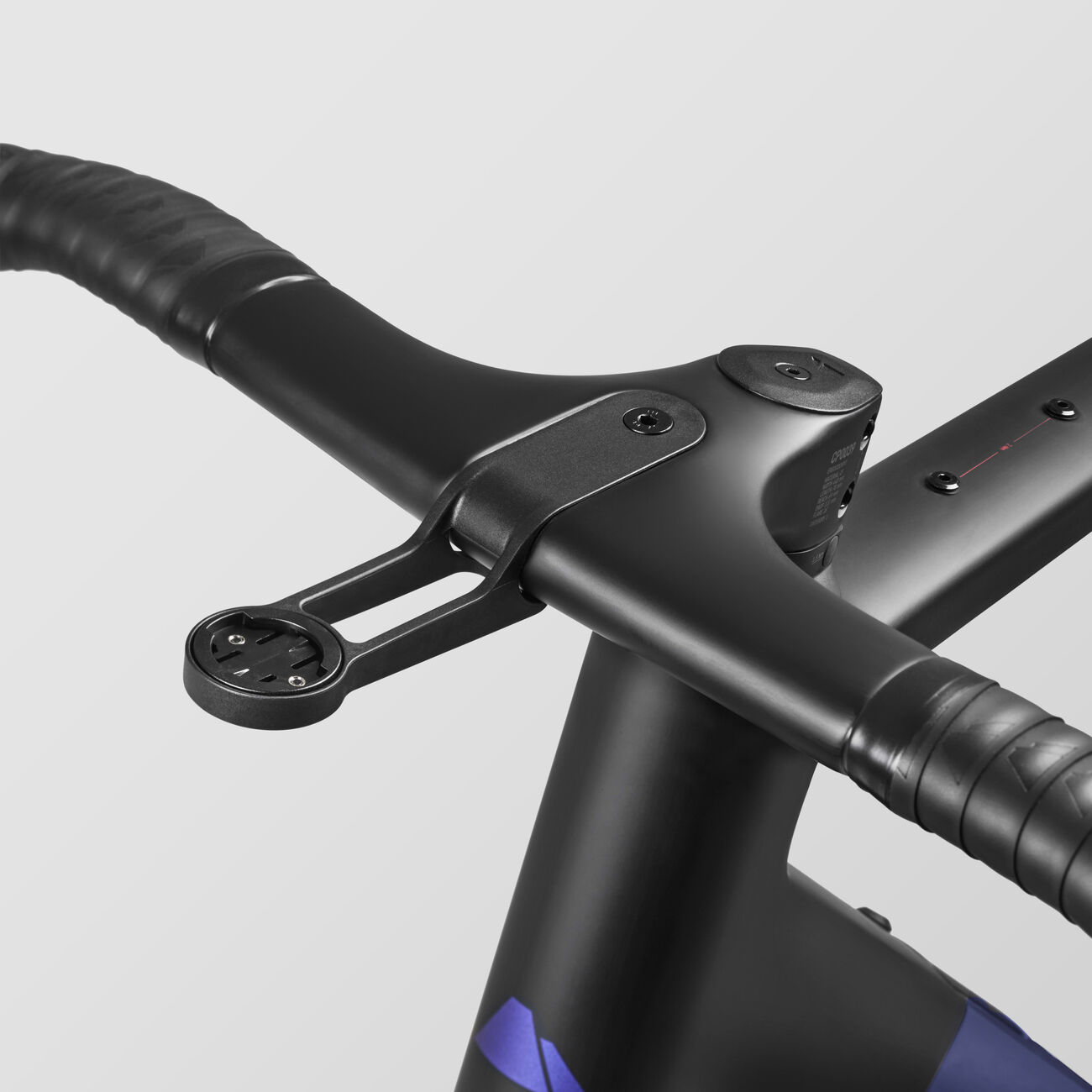

Handlebars
Canyon Cockpit CP0039
Bar Tape
Canyon Ergospeed Gel

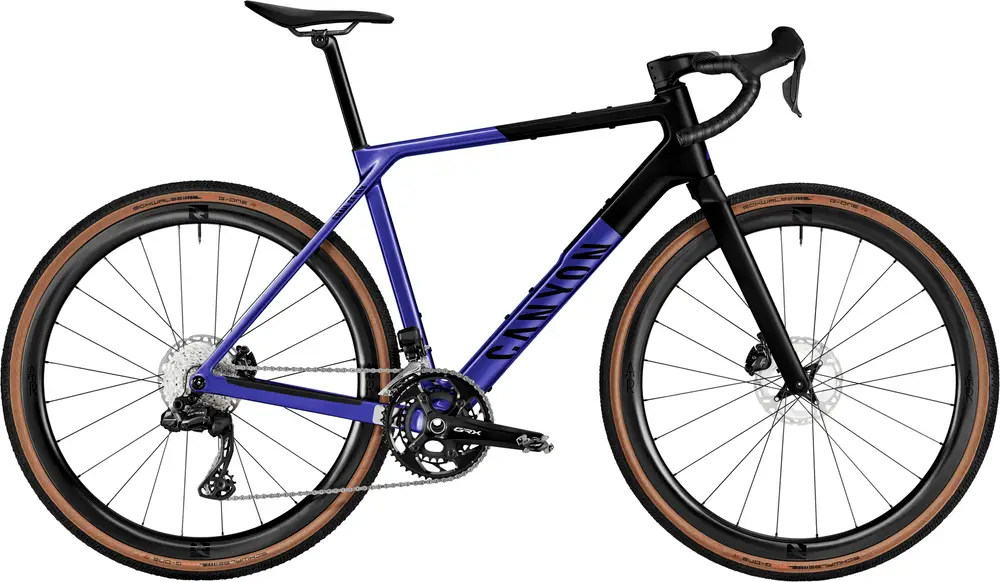

Manufactures Description
Uniting the Grail CF SLX's class-leading speed and lightness with Shimano's new wireless GRX Di2 shifting and efficient, compliant Reynolds gravel wheels, this bike has the speed to mix it up at the fastest gravel races.
