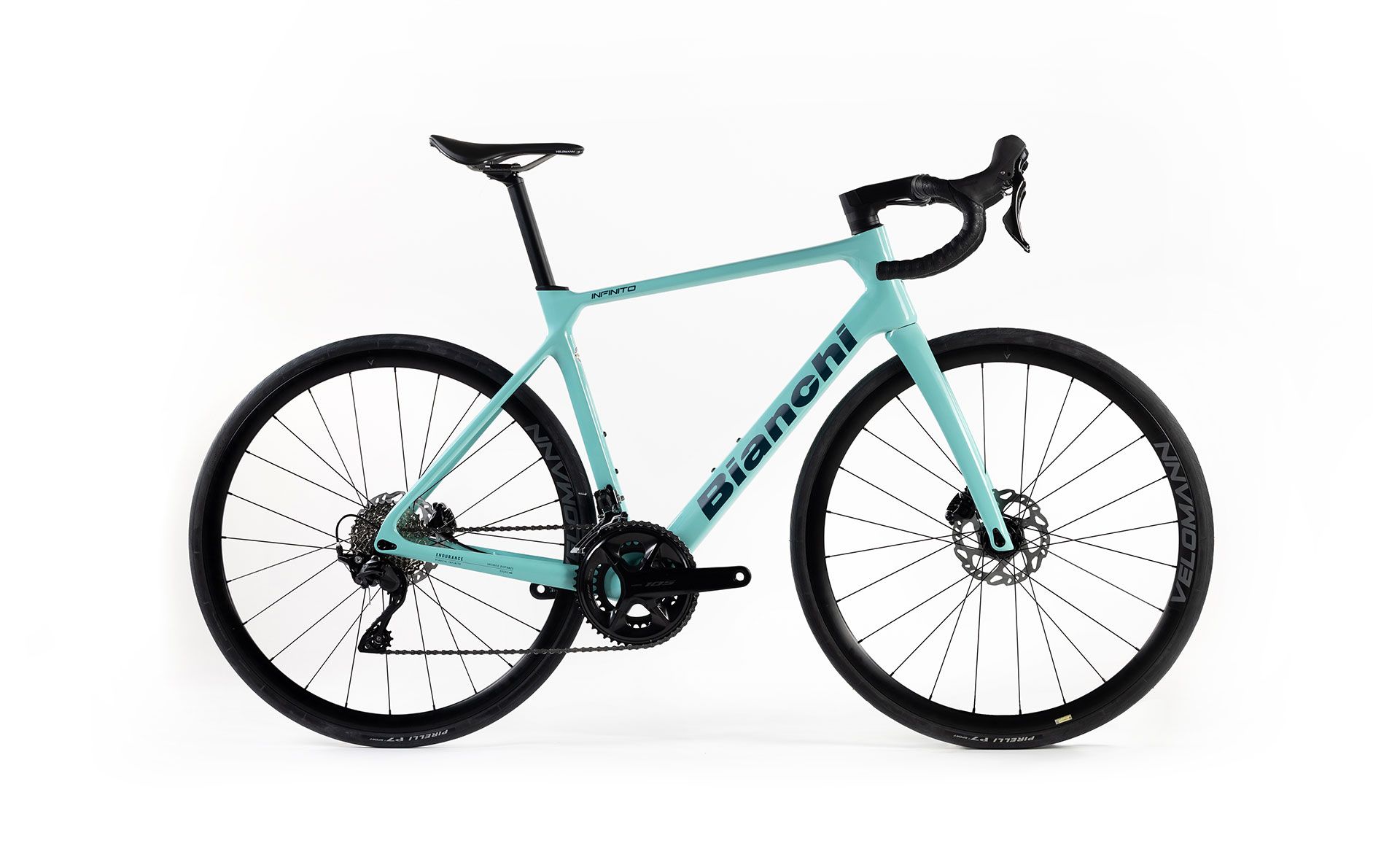

Bianchi Infinito 105 2025 bike details 02
Bianchi Infinito 105 2025 bike details 01

Related bikes from Bianchi

Bianchi Infinito XE Rival eTap AXS

Bianchi Infinito XE Rival eTap AXS - 2025

Price: £3,449.00 (+£350.00)

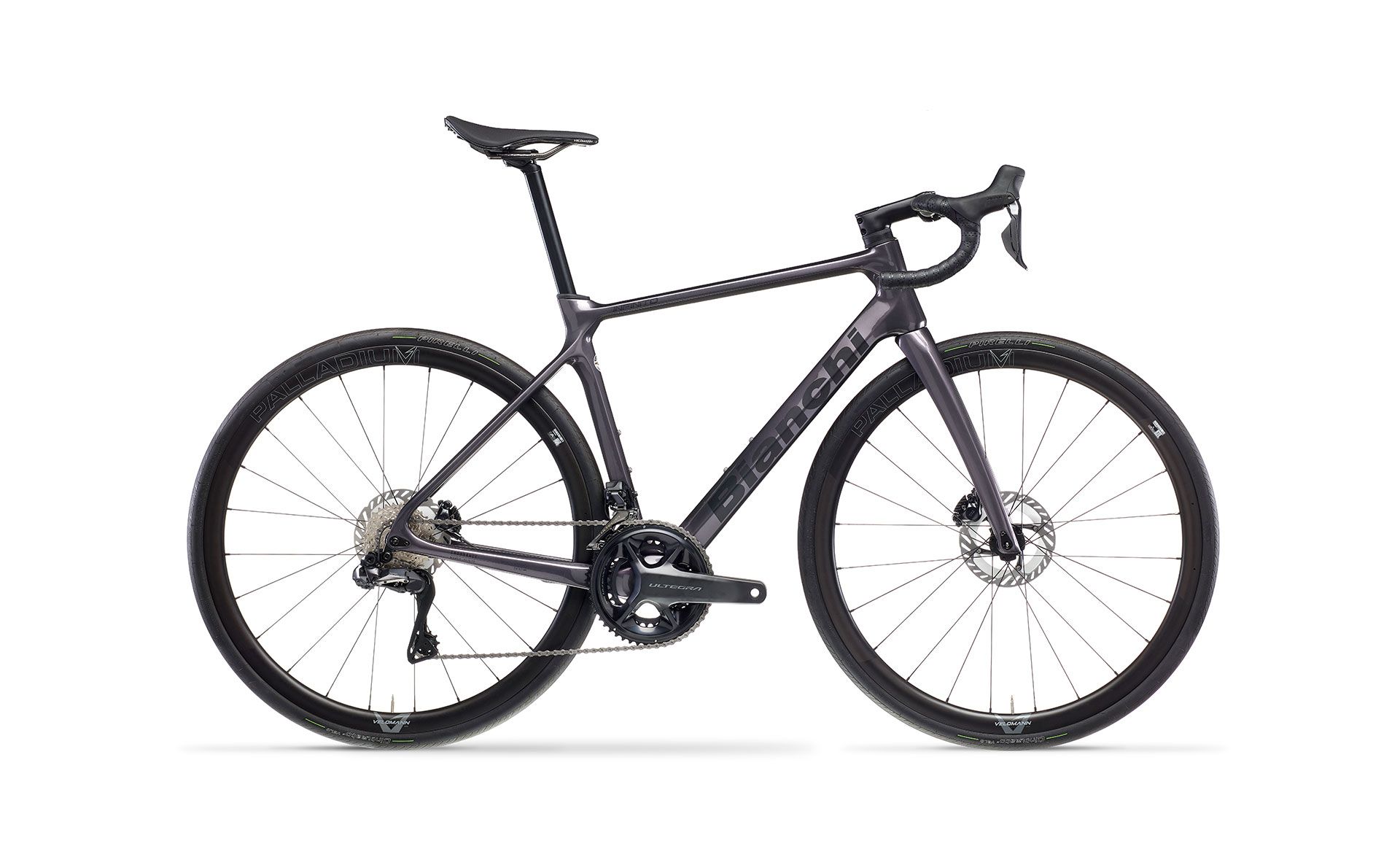

Bianchi Infinito 105 Di2

Bianchi Infinito 105 Di2 - 2025

Price: £2,528.00 (-£571.00)

Bianchi Infinito ULTEGRA DI2

Bianchi Infinito ULTEGRA DI2 - 2025

Price: £4,649.00 (+£1,550.00)

Quick Compare Bianchi Infinito 105 to:

Bike Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 5 Years

Limited warranty website average: 3.12 years

Icon 1

Released: 2025

The bike was released this year

Icon 1

Bike Type: Road

The style of riding intended for this bike

Bike Spec

Bracket Icon

Weight

The weight of this bike is unknown

Icon 1

Groupset

Shimano 105, FD-R7150, top gear 50-52T

Icon 1

Wheelset

Vision Trimax 30 disc brake 700X19c, Hubs SC,clincher

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Frameset Material

Carbon Fiber

Icon 1

Max Tire Size: 32 mm

This is the max tire size you can use

Icon 1

UCI Approved: Yes

You can use for official races

Sizing & Geometry

Frame Sizes

47 50 53 55 57 59 61

This frame comes in 7 sizes, this is 1.48 more sizes than the website average.

Handebar Sizes Available

40 42 44

Crank Arm Sizes Available

170 172.5 175

Frame Details

Icon 1

Frame Weight

Unknown

Icon 1

Frame Material

Carbon Fiber

Icon 1

Forks

INFINITO Carbon-CV, Disc Brake, Shimano 105 Mechanical 12sp, TC19, compatible with 32" tire, BBset pressfit 86,5x41, rear dropout 12 x 142mm thru axle, sizes 47-50-53-55-57-59-61cm

Icon 1

Fork Material

The forks are made from Carbon Fiber

Icon 1

Cables: Internally Routed

Routed through bars, stem and frame

Icon 1

Axel Type: Thru-axle

How the wheels are secured to the frame

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How the calipers are mounted

No

Integrated bar and stem: No

You can use any bar and stem

Drivechain Details

Icon 1

Groupset name

Shimano 105, FD-R7150, top gear 50-52T

Icon 1

Electric Groupset: Yes

This bike has electric gears

Icon 1

Shifters

Shimano 105 hydraulic disc brake for road

Icon 1

Front Derailleur

Shimano 105, FD-R7150, top gear 50-52T

Icon 1

Rear Derailleur

Shimano 105, RD-R7150, W/TL-EW300

Icon 1

Cassette

105 12sp 11-34T CS-R7100, 12-SPEED,11-12-13-14-15-17-19-21-24-27- 30-34T

Icon 1

Cranks

Shimano 105 12sp, FC-R7100, Ultegra hollowtech 2, 170-172,5-175mm, 50x34T, crank length: 170mm-47/53cm, 172.5mm-55/59cm, 175-61cm

Icon 1

Power Meter: No

This bike doesn't have a power meter

Icon 1

Bottom Bracket

Shimano SM-BB72-41B, press fit for road

Icon 1

Chain

Shimano CN-M6100, 12sp

Icon 1

Battery

Unknown

Wheel & Tire Details

Icon 1

Wheelset Name

Vision Trimax 30 disc brake 700X19c, Hubs SC,clincher

Front Wheel Depth Icon

Front Wheel Depth

33mm

Rear Wheel Depth Icon

Rear Wheel Depth

33mm

Icon 1

Tires

Pirelli P7, 700 x 28c, 60TPI

Tire Type Icon

Tire Type

Unknown

Icon 1

Max Tire Size: 32 mm

This is the max tire size you can use

Brakes

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How these disc brakes are mounted

Icon 1

Brakes

Shimano BR-R8170 Hydraulic disc brake, included in the shifter

Icon 1

Brake Rotors

Unknown

Other Components

Icon 1

Saddle

Fi'zi:k Argo Tempo R5 150mm black wing flex, rail S alloy

Icon 1

Seatpost

Velomann, custom D-shape, alloy shaft 2014, head alloy 6061, Setback 25mm L350mm =47>57cm; L380mm= 59>61cm

Icon 1

Handlebars

Reparto Corse Compact Flat Top, alloy 2014 diam. 31,8mm, reach 80mm, drop 130mm, Sizes: 40-42-44, Size: 400mm-47/50cm, 420mm-53/57cm, 440mm-59/61cm

Icon 1

Bar Tape

Bianchi Hexagon tape, 2.5mm thickness

Manufactures Description
