eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2025
The bike was released 1 years ago
Screen
Bosch System Controller with Mini Remote
Lights Included
Yes
Weight (inc battery): 19.1 kg
The website average for electric bikes is 22.99 kg. This electric bike is 3.9 kg under the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
50 | 54 | 58
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
Unknown

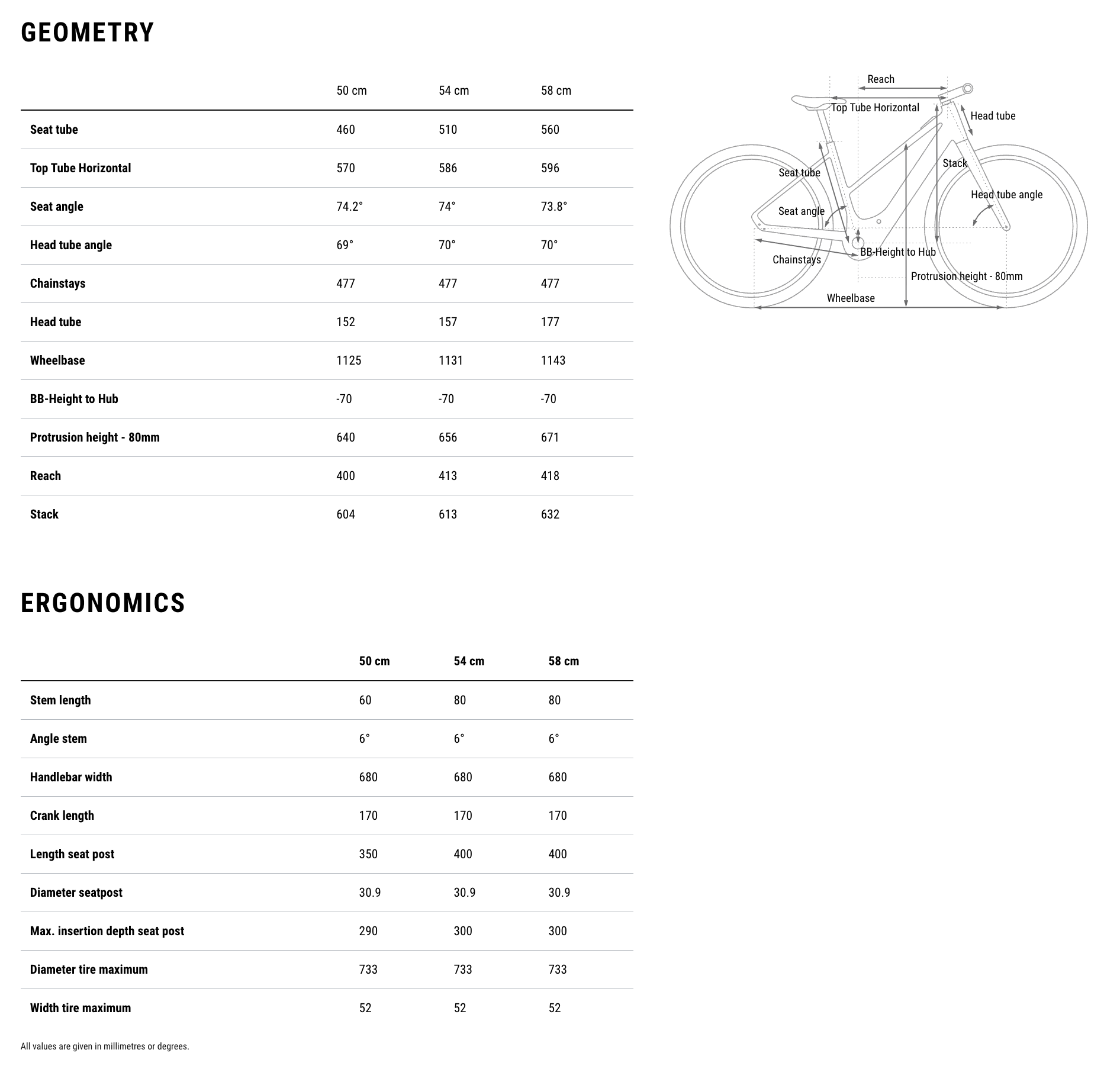

Sizing Chart
Wheel & Tire Details
Wheelset Name
CUBE EX 25, 32 H, Disc, Tubeless Ready rims with Shimano HB-QC 300 (Front) and Shimano Alfine SG-S 7001-8 (Rear) hubs
Wheelset Size
700c
Tires
Schwalbe Big Apple 50-622
Frame Info
Frame Material
Aluminium
Suspension Type
No suspension
Foldable Frame
No
Max Payload
140 kg (308.6 lbs)
Drivechain Details
Groupset details
Shimano Alfine 8-Speed Hub
Drivechain type
Chain drive
Shifters
Shimano Alfine SL-S 7000-8
Amount of gears
8 Gears
Rear Derailleur
None
Front Derailleur
None
Cassette
None

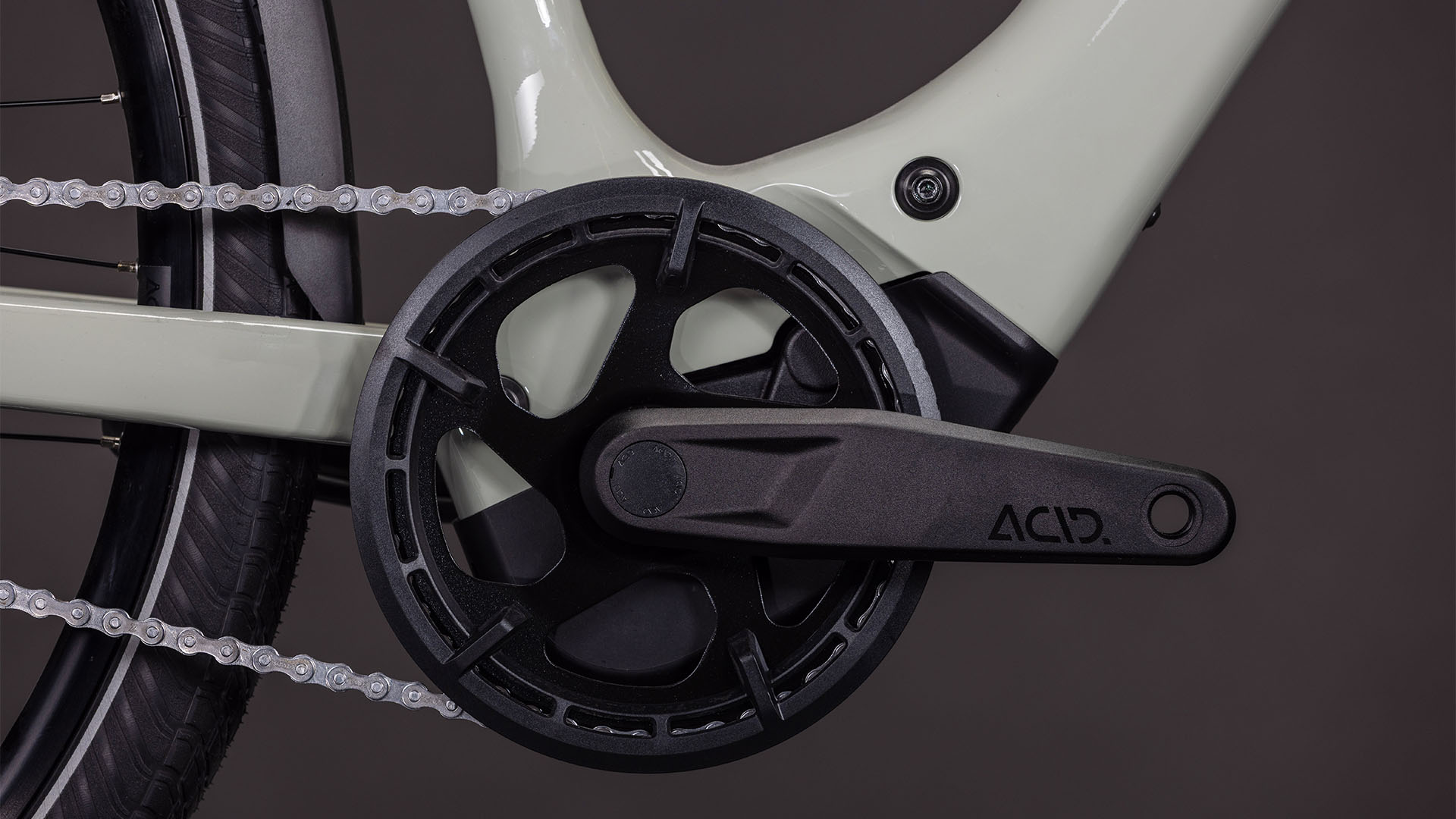

Cranks
ACID E-Crank, 170 mm, 44 T
Chain
KMC Z 610
Bottom Bracket
None
Brakes
Brakes
Shimano BR-MT200 (180/180)
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
Shimano RT 10 Centerlock 180mm
Shifters
Shimano Alfine SL-S 7000-8
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: No
Only delivered to specific countries
Warranty: 2 Years
Limited warranty website average: 3.12 years

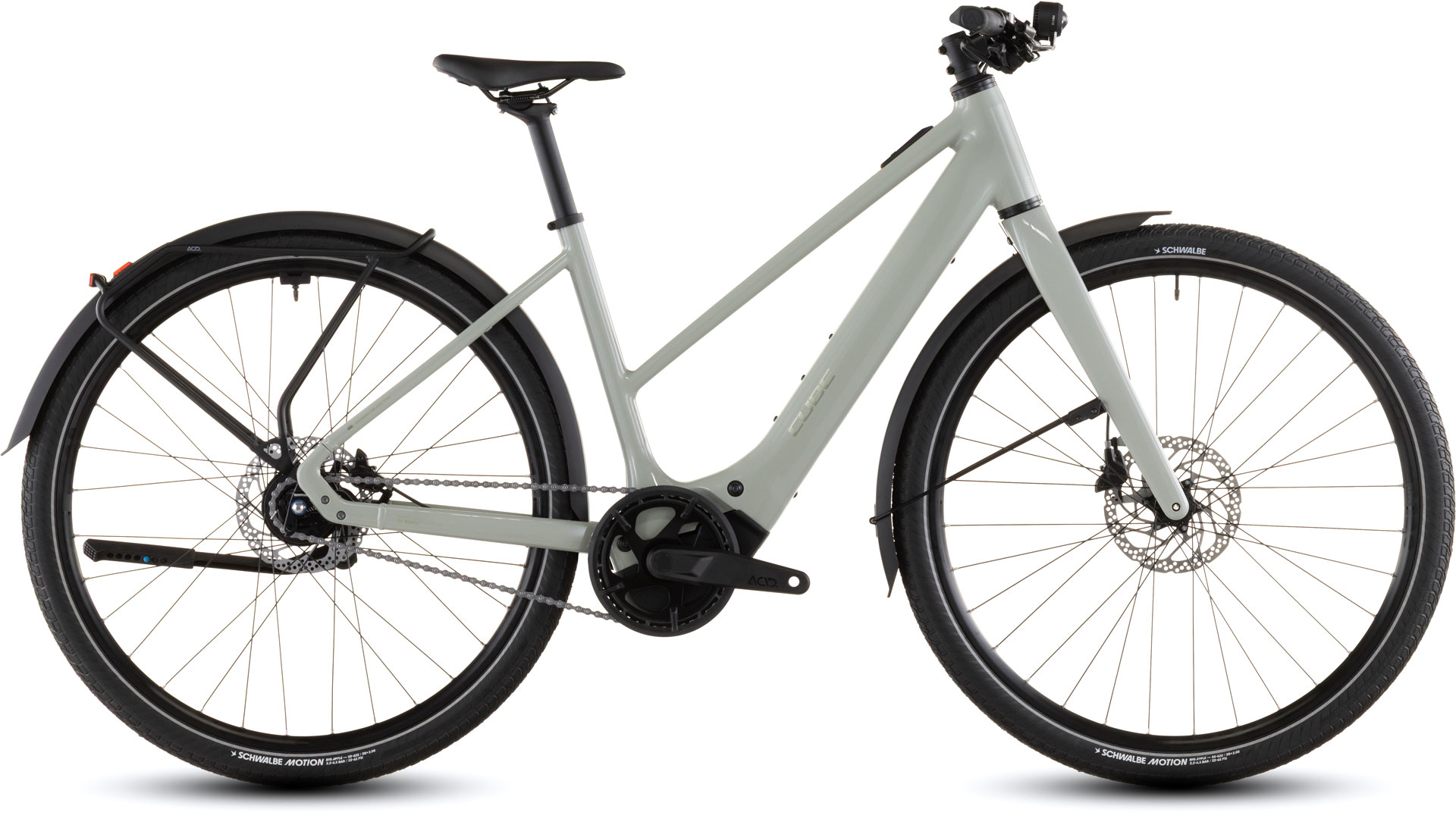

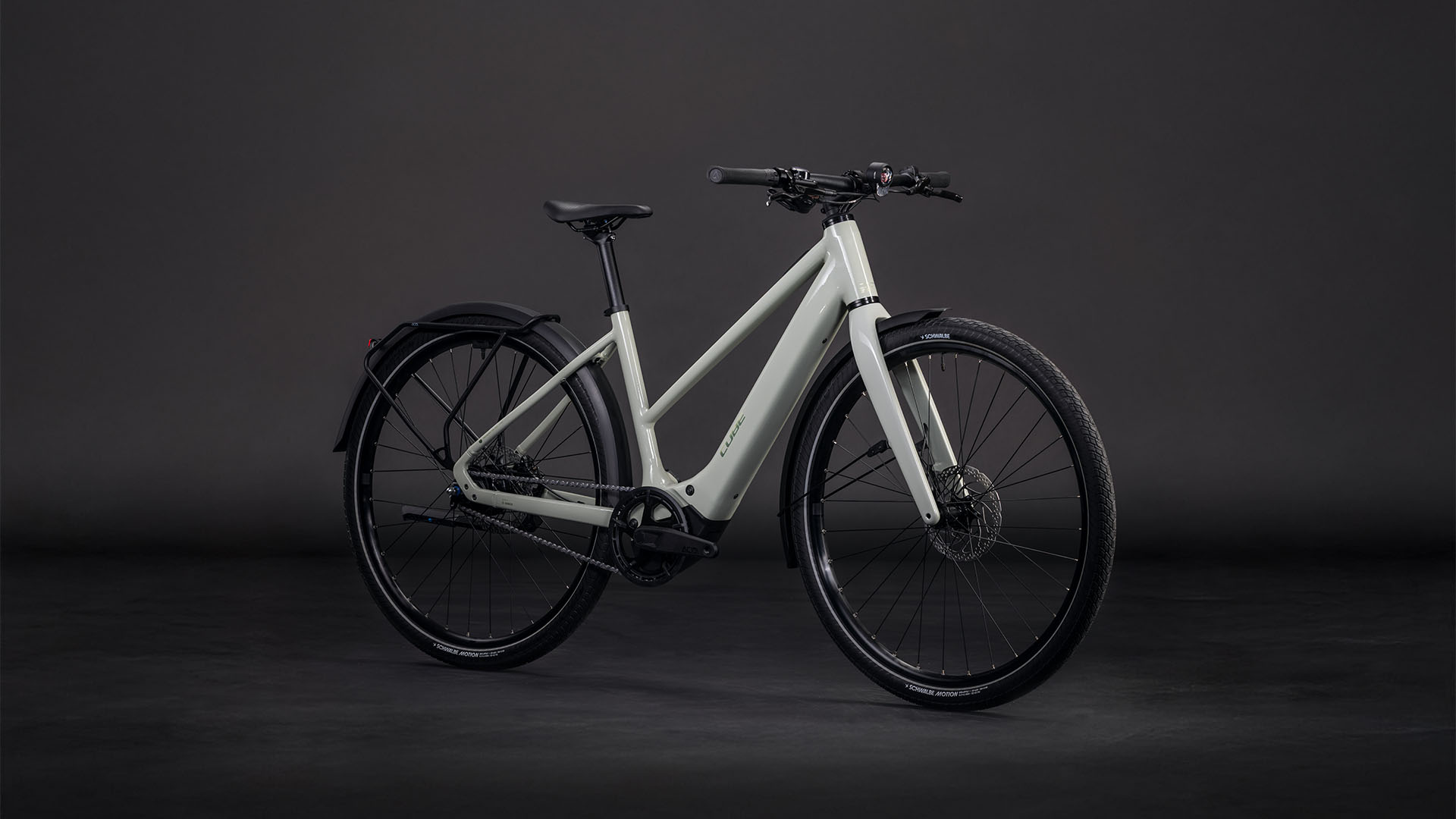

Mid-step Bosch SX commuter e-bike with integrated lighting.
