Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.3 kg
The website average for Road bikes is 8.56 kg. This bike is 0.26 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Ultegra R8150 Di2, braze-on, down swing
Wheelset
Bontrager Aeolus Pro 37
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 38 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

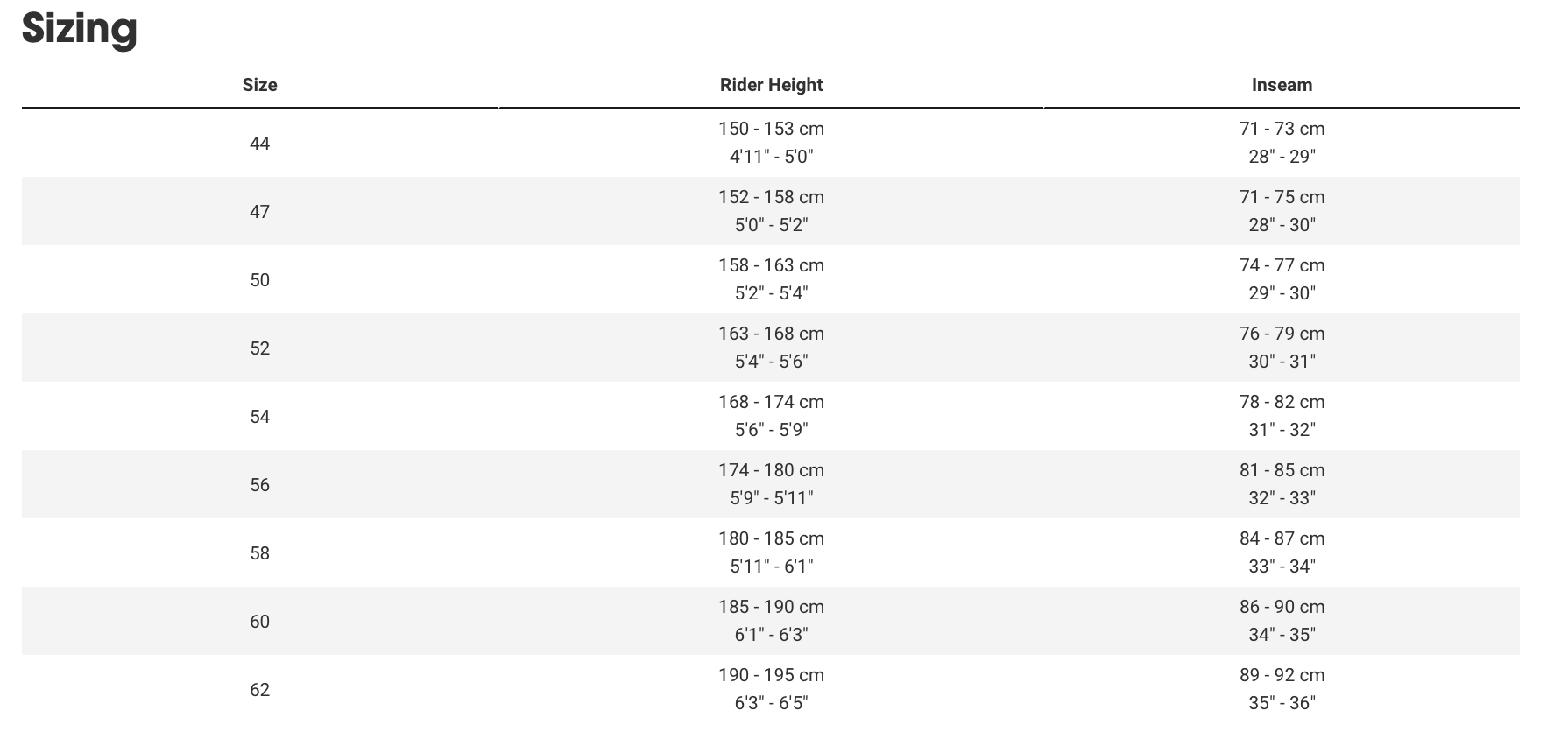

Sizing & Geometry
Frame Sizes
44 47 50 52 54 56 58 60 62This frame comes in 9 sizes, this is 3.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 52 cm | 54 cm | 56 cm | 58 cm |
|---|---|---|---|---|
| Sizing | ||||
| Rider height | 163–168 cm | 168–174 cm | 174–180 cm | 180–185 cm |
| Rider inseam | 76–79 cm | 78–82 cm | 81–85 cm | 84–88 cm |
| Wheel size | 700c | 700c | 700c | 700c |
| Frame geometry | ||||
| Stack (mm) | 561 | 575 | 591 | 611 |
| Reach (mm) | 371 | 374 | 377 | 380 |
| Effective top tube (mm) | 530 | 542 | 554 | 567 |
| Seat tube (mm) | 475 | 496 | 525 | 548 |
| Head tube (mm) | 145 | 160 | 175 | 195 |
| Standover (mm) | 746 | 765 | 785 | 805 |
| Handling | ||||
| Head angle (°) | 71.30 | 71.30 | 71.90 | 72 |
| Seat angle (°) | 74.20 | 73.70 | 73.30 | 73 |
| Chainstay (mm) | 420 | 420 | 420 | 425 |
| Wheelbase (mm) | 1,003 | 1,010 | 1,015 | 1,022 |
| Fork offset (mm) | 53 | 53 | 48 | 48 |
| Trail (mm) | 61 | 61 | 59 | 58 |
Frame Details
Frame Weight
This frame weighs 1365g
Frame Material
Carbon Fiber
Forks
500 Series OCLV Carbon, IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, fender mounts, flat mount disc, 142x12mm thru axle
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Ultegra R8150 Di2, braze-on, down swing
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Ultegra R8170 Di2, 12 speed
Front Derailleur
Shimano Ultegra R8150 Di2, braze-on, down-swing type.
Rear Derailleur
Shimano Ultegra R8150 Di2, 34T max cog
Cassette
Shimano Ultegra R8100.
Cranks
Shimano Ultegra R8100 (165 to 175 mm by size)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Praxis, T47 threaded, internal bearing
Chain
Shimano XT M8100 12-speed hyperglide+ (Stock variation uses this highly durable mountain/road cross-compatible chain).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Front: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle, Rear: Bontrager Aeolus Pro 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11 speed freehub, 142x12mm thru axle
Front Wheel Depth
37mm
Rear Wheel Depth
37mm
Tires
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32mm
Tire Type
Tubeless
Max Tire Size: 38 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano CL800, centerlock, 160mm
Brake Rotors
160 mm front and rear. Operates on Shimano RT-CL800 CenterLock rotors
Other Components
Saddle
Size: 44, 47, 50, 52, Verse Short Elite, hollow magnesium rails, 155mm width; Size: 54, 56, 58, 60, 62, Verse Short Elite, hollow magnesium rails, 145mm width
Seatpost
KVF aero carbon seat post, 20 mm offset
Handlebars
Size: 44, 47, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 36cm width; Size: 50, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 38cm width; Size: 52, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 40cm width; Size: 54, 56, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 42cm width; Size: 58, 60, 62, Bontrager Elite IsoZone VR-SF, alloy, 31.8mm, internal Di2 routing, 75mm reach, 128mm drop, 44cm width
Bar Tape
Bontrager Supertack Perf tape
