Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.48 kg
The website average for Road bikes is 8.56 kg. This bike is 0.08 kg under the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105
Wheelset
Shimano 106
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 522 | 546 | 567 | 586 | 605 | 624 |
| Reach (mm) | 370 | 374 | 377 | 381 | 390 | 398 |
| Effective top tube (mm) | 515 | 530 | 545 | 560 | 575 | 595 |
| Seat tube (mm) | 410 | 445 | 480 | 515 | 535 | 565 |
| Head tube (mm) | 120 | 140 | 160 | 185 | 205 | 225 |
| Standover (mm) | 731 | 756 | 786 | 816 | 835 | 861 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71.80 | 72.50 | 72.50 | 72.50 | 72.50 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | 420 | 420 | 420 | 420 | 420 | 420 |
| Wheelbase (mm) | 995 | 999 | 1,002 | 1,018 | 1,034 | 1,050 |
Frame Details
Frame Weight
This frame weighs 785g
Frame Material
Carbon Fiber
Forks
Advanced SL-grade composite, full-composite OverDrive Aero steerer, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem

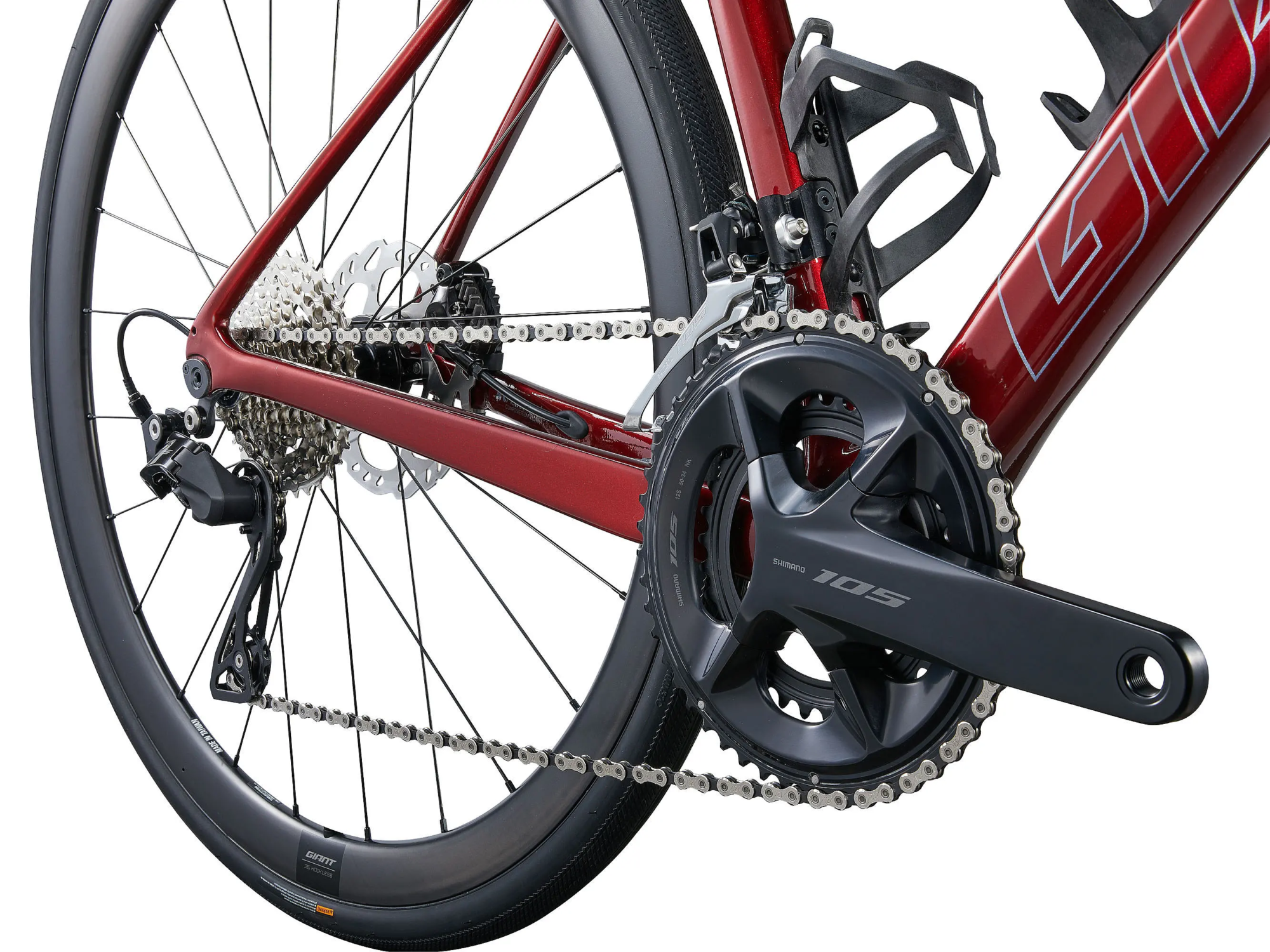

Drivechain Details
Groupset name
Shimano 105
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105
Front Derailleur
Shimano 105 Di2 FD-R7150 or SRAM Rival eTap AXS (Official)
Rear Derailleur
Shimano 105
Cassette
Shimano 105 CS-R7100 or SRAM Rival XG-1250 (Official)
Cranks
Shimano 105 FC-R7100
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano, press fit
Chain
KMC X12 (on Shimano builds) or SRAM Rival D1 12-speed Flattop (Official)
Wheel & Tire Details
Wheelset Name
Shimano 105
Front Wheel Depth
36mm
Rear Wheel Depth
36mm
Tires
Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
Tire Type
Clincher
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105 hydraulic
Brake Rotors
160mm front rotor and 140mm rear rotor
Other Components
Saddle
Giant Fleet SL
Seatpost
Giant SL D-Fuse, composite, -5/+15mm offset
Handlebars
Giant Contact SL D-Fuse S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Bar Tape
Stratus Lite 3.0
