Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.6 kg
The website average for Road bikes is 8.56 kg. This bike is 1.03 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Tiagra
Wheelset
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 38 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 539 | 559 | 574 | 595 | 614 | 638 |
| Reach (mm) | 371 | 375 | 380 | 383 | 392 | 400 |
| Effective top tube (mm) | 515 | 530 | 545 | 560 | 575 | 595 |
| Seat tube (mm) | 410 | 445 | 480 | 515 | 535 | 565 |
| Head tube (mm) | 115 | 135 | 150 | 170 | 190 | 215 |
| Standover (mm) | 727 | 759 | 783 | 810 | 829 | 856 |
| Handling | ||||||
| Head angle (°) | 70.50 | 71.20 | 72 | 72.50 | 72.50 | 72.50 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | 422 | 422 | 422 | 422 | 422 | 422 |
| Wheelbase (mm) | 994 | 999 | 1,002 | 1,010 | 1,025 | 1,040 |
| Fork offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 |

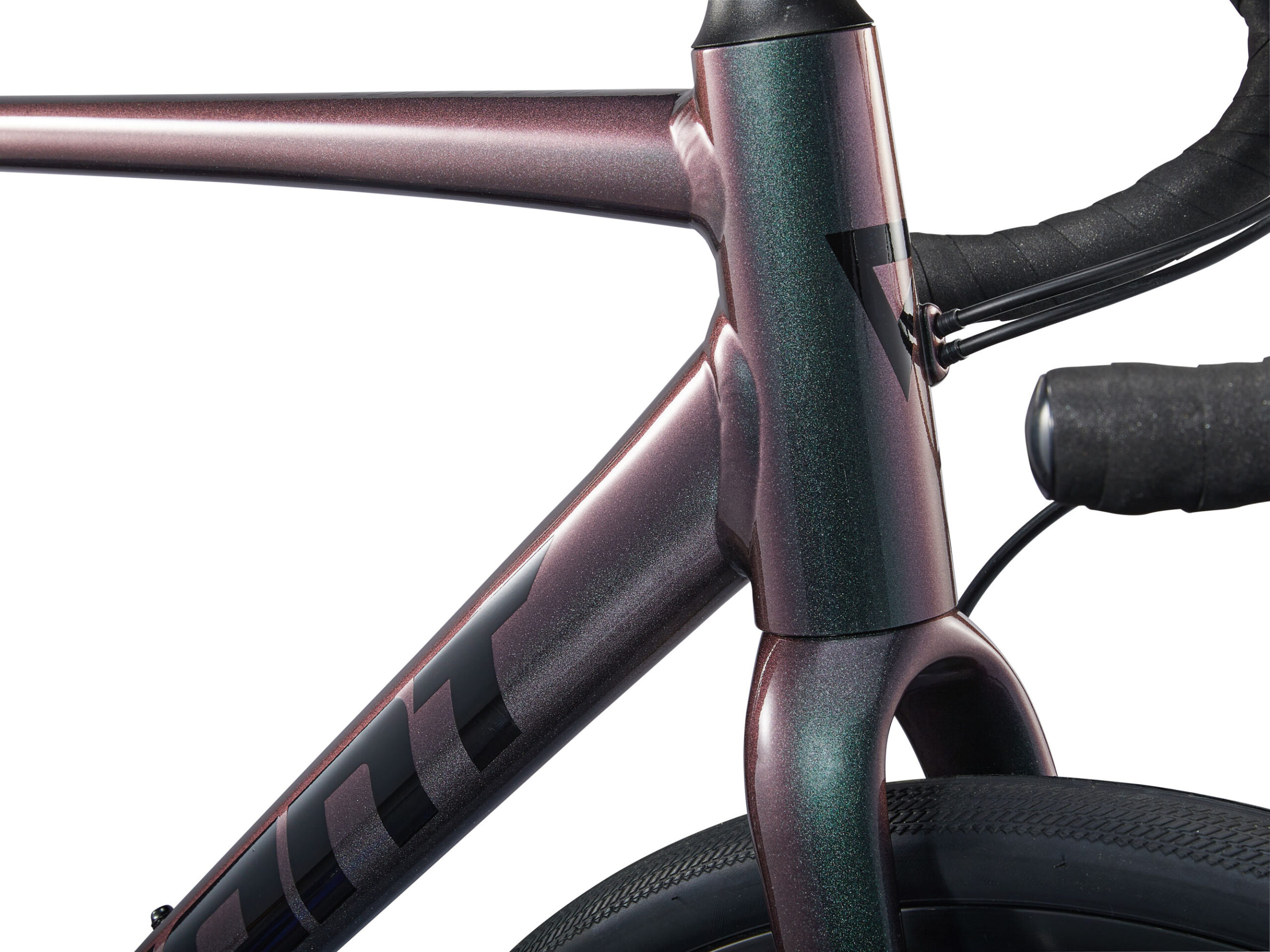

Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
ALUXX-grade Aluminium, 12x142mm thru-axle, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem

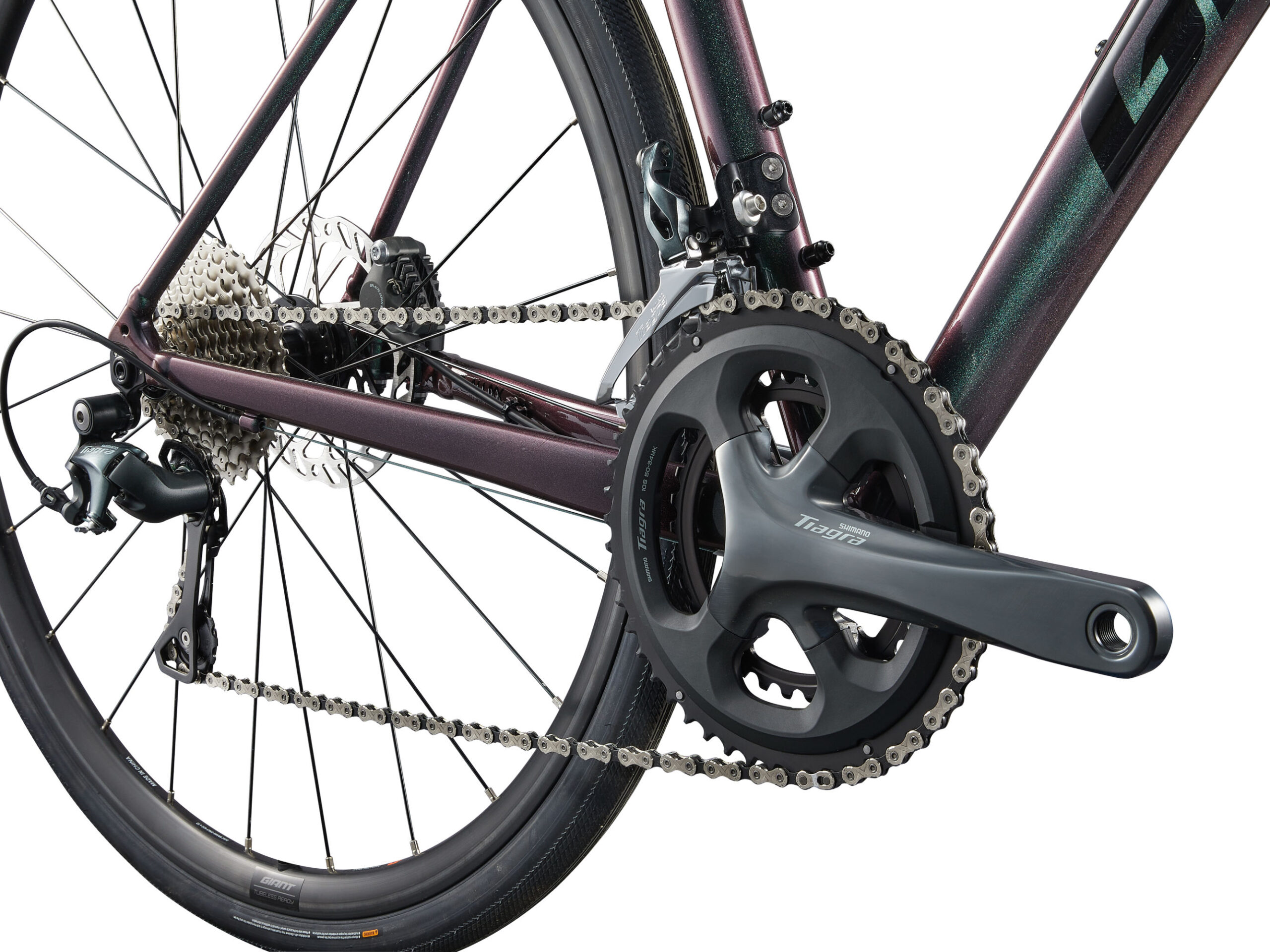

Drivechain Details
Groupset name
Shimano Tiagra
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Tiagra
Front Derailleur
Shimano Tiagra FD-R4700 (braze-on with band adapter)
Rear Derailleur
Shimano Tiagra GS
Cassette
Shimano Tiagra CS-HG500-10 (Inferred from standard groupset implementation; alternative market batches spec equivalent Shimano CS-HG50-10 or CS-HG400-10)
Cranks
Shimano Tiagra (170mm to 175mm)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
cartridge
Chain
KMC X10-1 with reusable MissingLink
Wheel & Tire Details
Wheelset Name
Giant S-R2 Disc wheelset, alloy
Front Wheel Depth
22mm
Rear Wheel Depth
22mm
Tires
Giant Gavia Fondo 2, tubeless, 700x32c (34mm)
Tire Type
Tubeless
Max Tire Size: 38 mm
This is the max tire size you can use

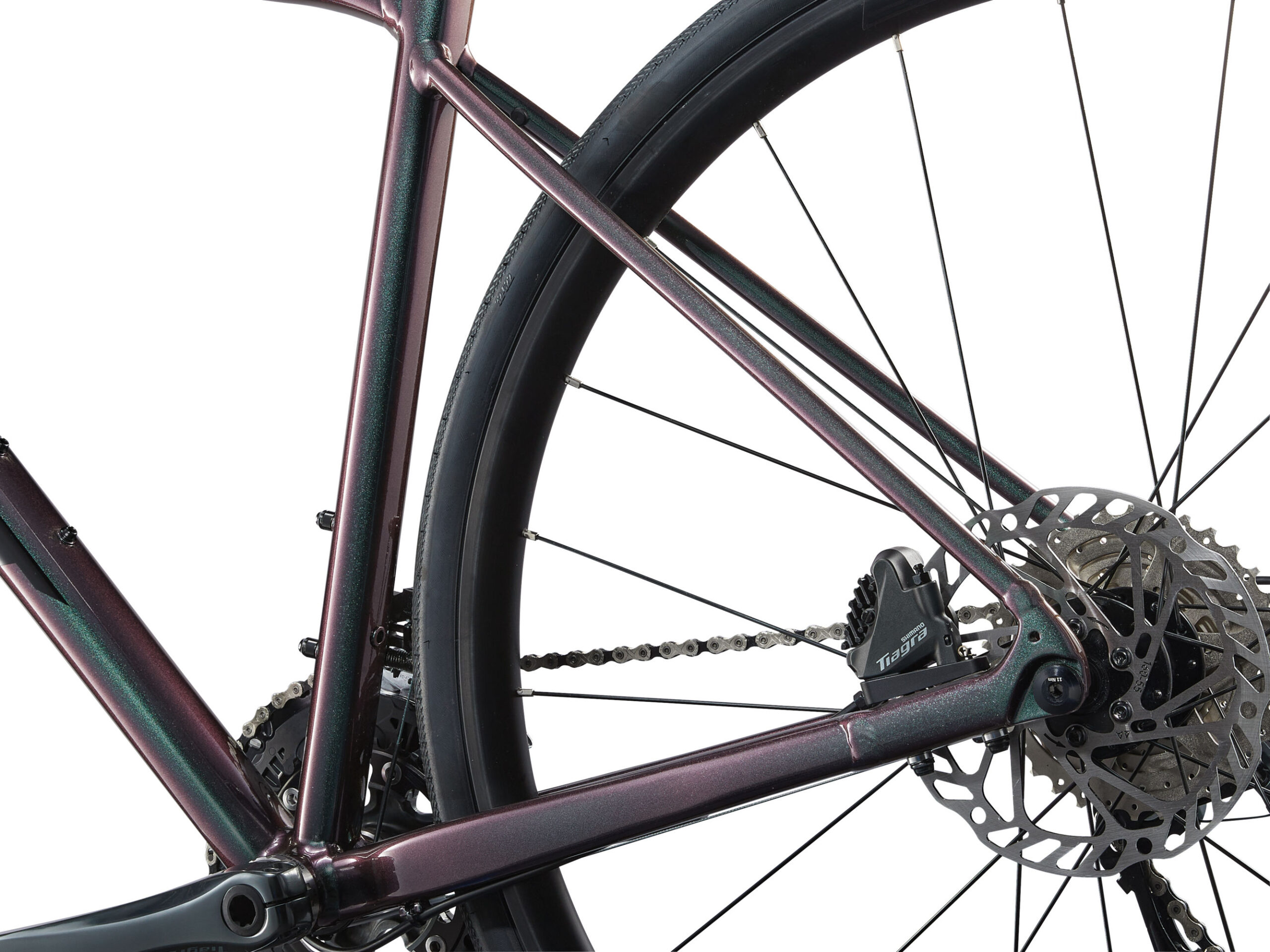

Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Tiagra
Brake Rotors
160 mm front and 160 mm rear using Giant MPH six-bolt or Centerlock disc configurations
Other Components
Saddle
Giant Approach
Seatpost
Giant D-Fuse, composite, 14mm offsetType: Rigid

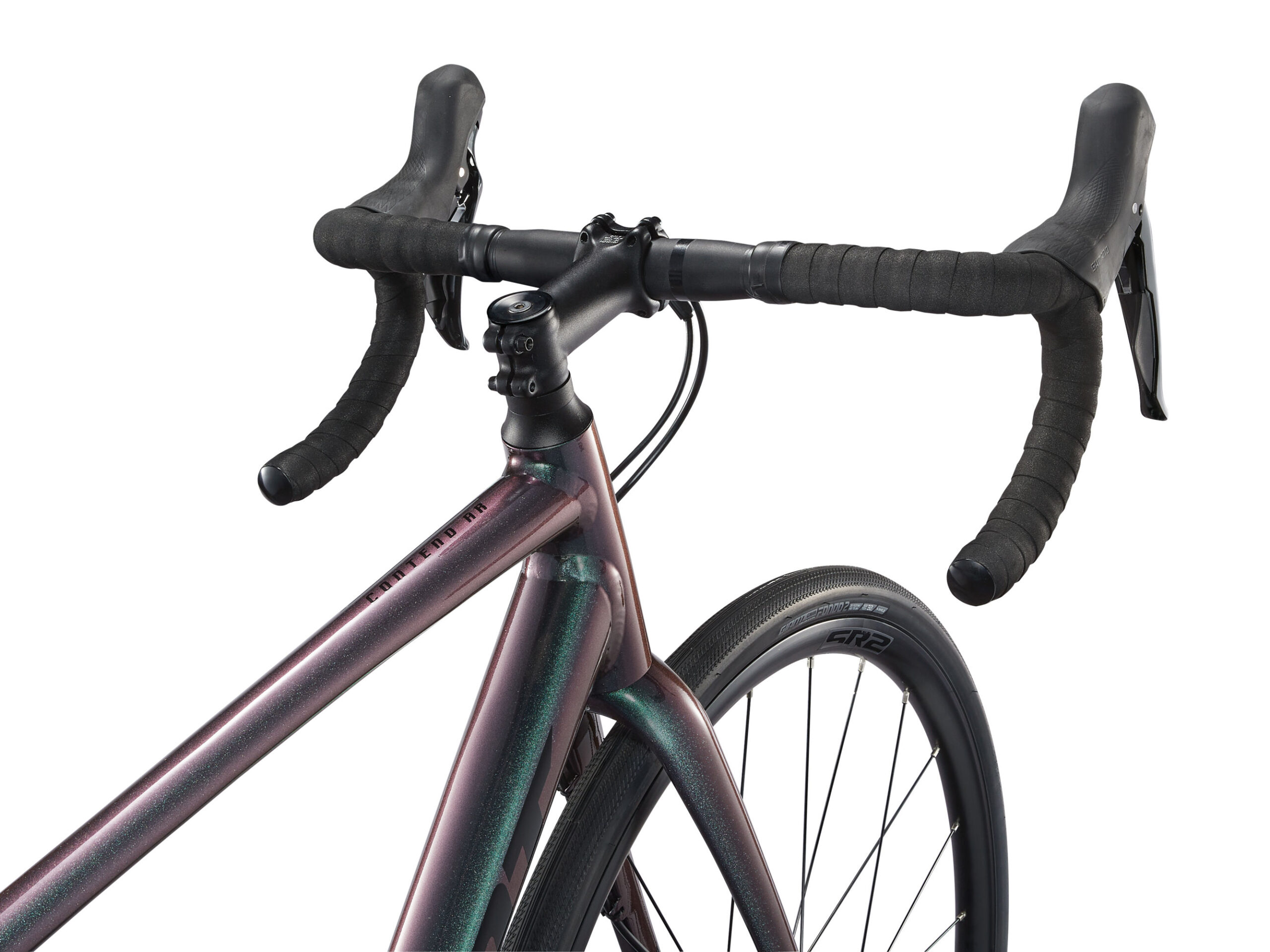

Handlebars
Giant Connect XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Bar Tape
Velo cork tape with gel
