Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano Claris
Wheelset
Giant S-R3 wheelset
Brake Type: Rim Brake
That old school attraction!
Frameset Material
Aluminium
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M M/L L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | ML | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 524 | 541 | 563 | 577 | 596 | 615 |
| Reach (mm) | 372 | 375 | 378 | 384 | 393 | 401 |
| Effective top tube (mm) | 515 | 530 | 545 | 560 | 575 | 595 |
| Seat tube (mm) | 430 | 465 | 500 | 535 | 555 | 585 |
| Head tube (mm) | 120 | 138 | 160 | 175 | 195 | 215 |
| Standover (mm) | 719 | 747 | 777 | 805 | 823 | 848 |
| Handling | ||||||
| Head angle (°) | 71 | 71.80 | 72.50 | 72.50 | 72.50 | 72.50 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73 | 73 | 73 |
| Chainstay (mm) | 412 | 412 | 412 | 412 | 415 | 415 |
| Wheelbase (mm) | 983 | 990 | 995 | 1,007 | 1,025 | 1,044 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
ALUXX-grade Aluminium
Fork Material
The forks are made from Aluminium
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: QR Skewer
How the wheels are secured to the frame
Brake Type: Rim Brake
That old school attraction!
Integrated bar and stem: No
You can use any bar and stem

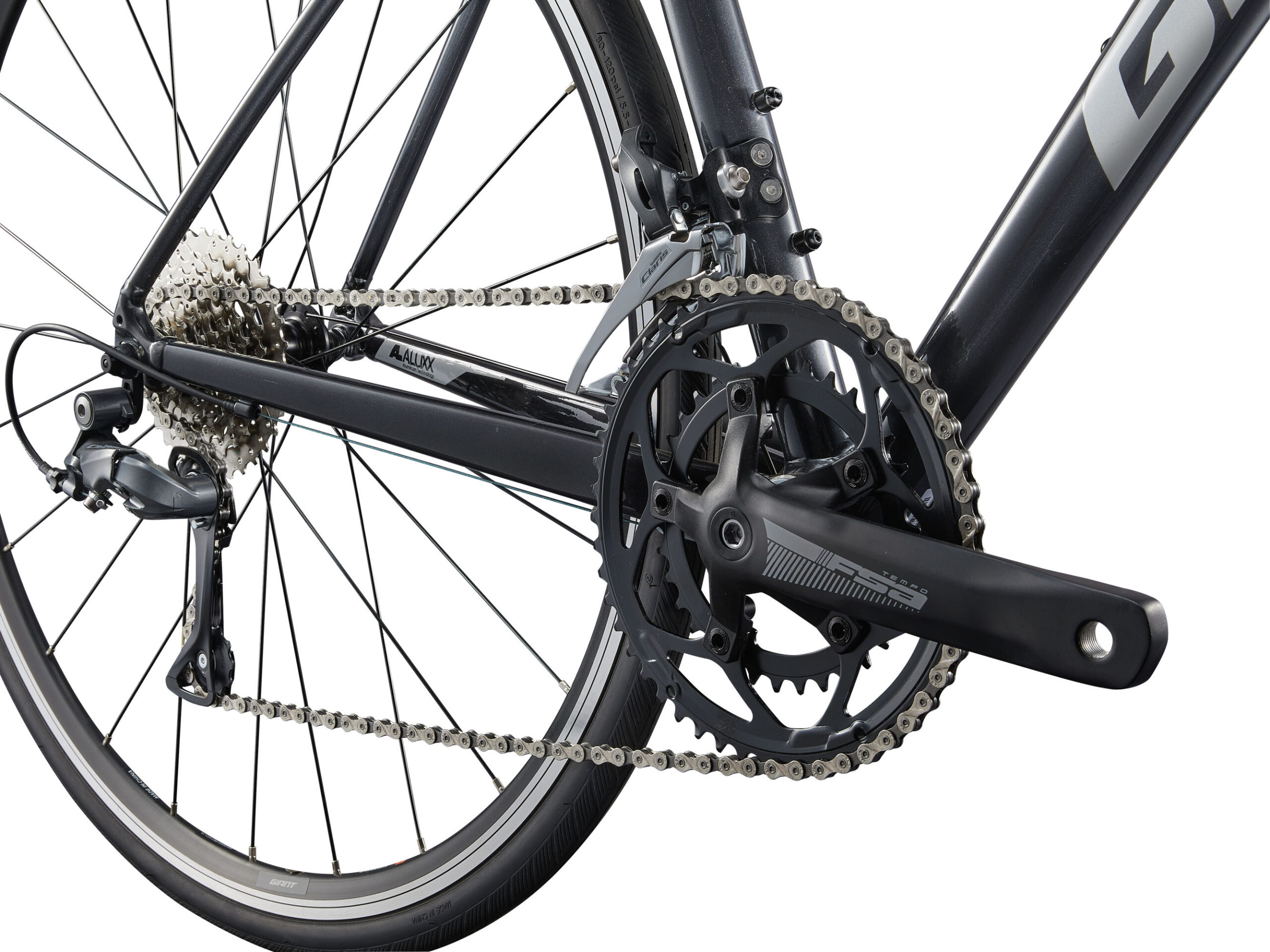

Drivechain Details
Groupset name
Shimano Claris
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Claris
Front Derailleur
Shimano Claris FD-R2000.
Rear Derailleur
Shimano Claris
Cassette
Shimano CS-HG50-8 or matching third-party 8-speed sprocket block.
Cranks
FSA Tempo (or non-series alloy)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
cartridge
Chain
KMC Z8 or Shimano 8-speed index chain.
Wheel & Tire Details
Wheelset Name
Giant S-R3 wheelset, alloy
Front Wheel Depth
24mm
Rear Wheel Depth
24mm
Tires
CST Sprint, 700x28c (30mm)
Tire Type
Clincher
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Rim Brake
That old school attraction!
Brakes
Tektro TK-B177
Brake Rotors
Unknown
Other Components
Saddle
Giant Approach
Seatpost
Giant D-Fuse, alloy, 14mm offsetType: Rigid

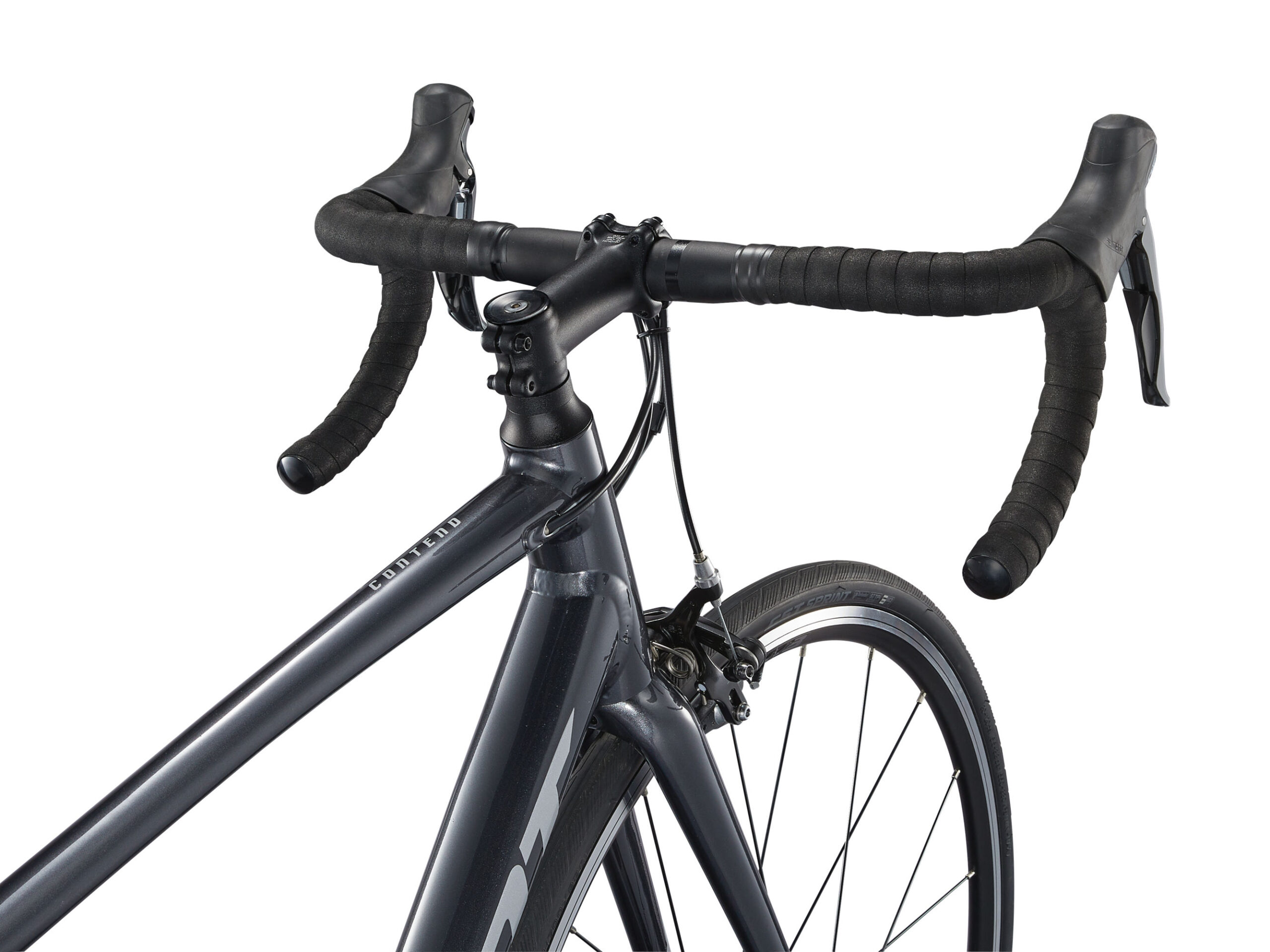

Handlebars
Giant Connect XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Bar Tape
Velo cork tape
