Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 3 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 10.3 kg
The website average for Road bikes is 8.56 kg. This bike is 1.73 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Cues
Wheelset
Cube OR 2.5 Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
50 53 56 59 62This frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 528 | 548 | 571 | 595 | 619 |
| Reach (mm) | 388 | 391 | 395 | 406 | 416 |
| Effective top tube (mm) | 536 | 549 | 566 | 583 | 601 |
| Seat tube (mm) | 460 | 490 | 520 | 550 | 580 |
| Head tube (mm) | 112 | 132 | 157 | 182 | 207 |
| Standover (mm) | 748 | 774 | 801 | 828 | 856 |
| Handling | |||||
| Head angle (°) | 70 | 70.50 | 71.50 | 72 | 72 |
| Seat angle (°) | 74 | 73.50 | 73 | 73 | 73 |
| Chainstay (mm) | 442 | 442 | 442 | 442 | 442 |
| Wheelbase (mm) | 1,025 | 1,034 | 1,044 | 1,056 | 1,074 |
Frame Details
Frame Weight
Unknown
Frame Material
Aluminium
Forks
Aluminium Superlite Trekking Sport, Flat Mount Disc, 12x142mm, AXH
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Cues
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Cues SL-U4010- Rapidfire-Plus
Front Derailleur
None

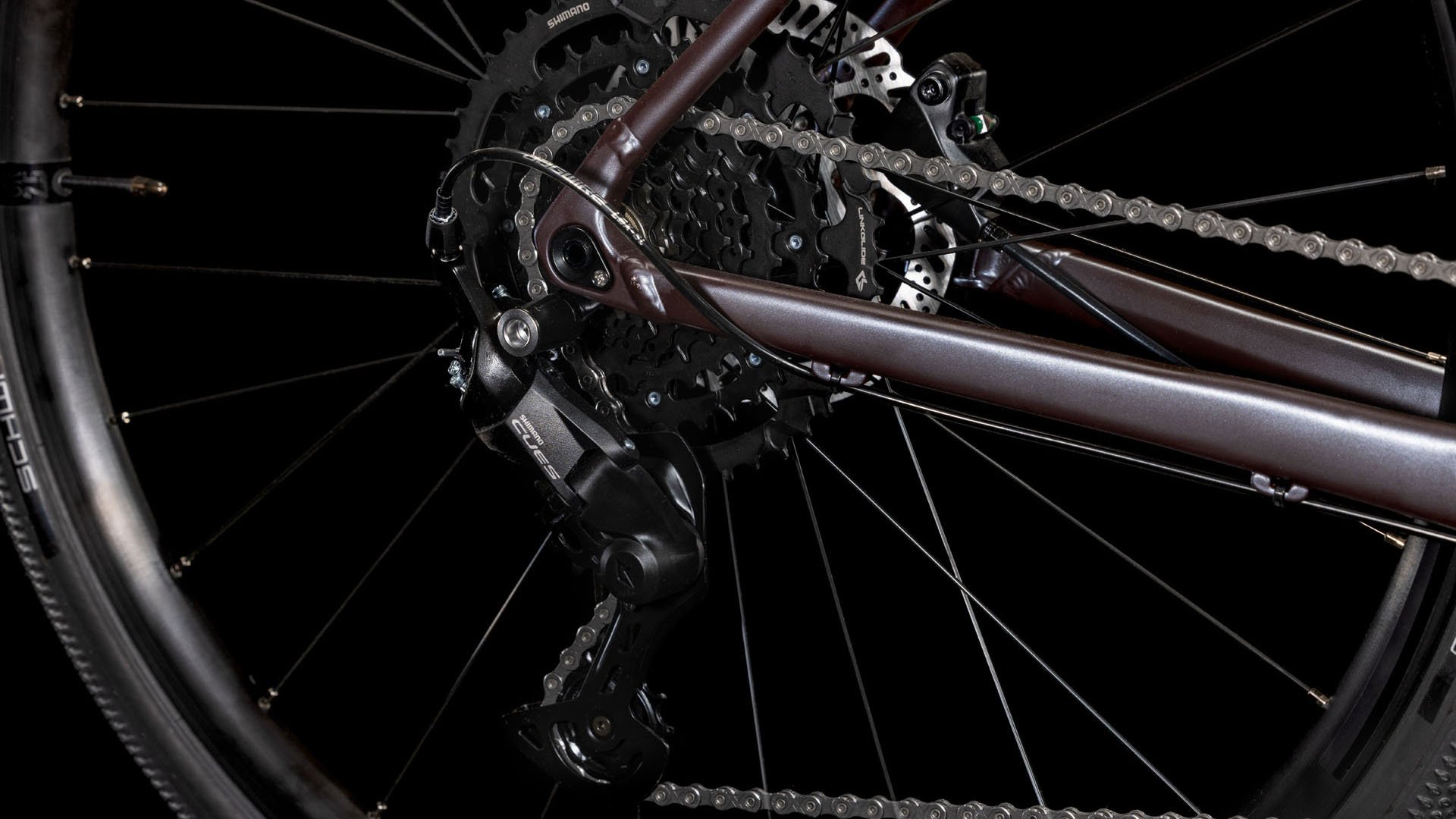

Rear Derailleur
Shimano Cues RD-U4000-GS, 9-Speed
Cassette
Shimano CUES CS-LG300
Cranks
ACID Gravel Pro (170mm to 175mm by size)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano BB-MT500PA, 92mm Pressfit
Chain
KMC xGlide
Wheel & Tire Details
Wheelset Name
CUBE OR 2.5 Disc, Tubeless Ready
Front Wheel Depth
22mm
Rear Wheel Depth
22mm
Tires
Schwalbe G-One Allround, Kevlar, 40-622
Tire Type
Clincher
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Tektro HD-R280, Hydr. Disc, Flat Mount (160/160)
Brake Rotors
160mm front / 160mm rear standard 6-bolt or Centerlock disc configurations
Other Components
Saddle
ACID Nuance Lite
Seatpost
CUBE Performance Post, 27.2mmType: Rigid
Handlebars
CUBE Flat Race Bar, 660mm
Bar Tape
ACID Travel
