Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 13.6 kg
The website average for Road bikes is 8.56 kg. This bike is 5.03 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Claris FD-R2000-BM, 31.8mm
Wheelset
Cube GR 2.5 Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: No
You can't use for official races
Sizing & Geometry
Frame Sizes
47 50 53 55 58This frame comes in 5 sizes, this is 0.56 less sizes than the website average.

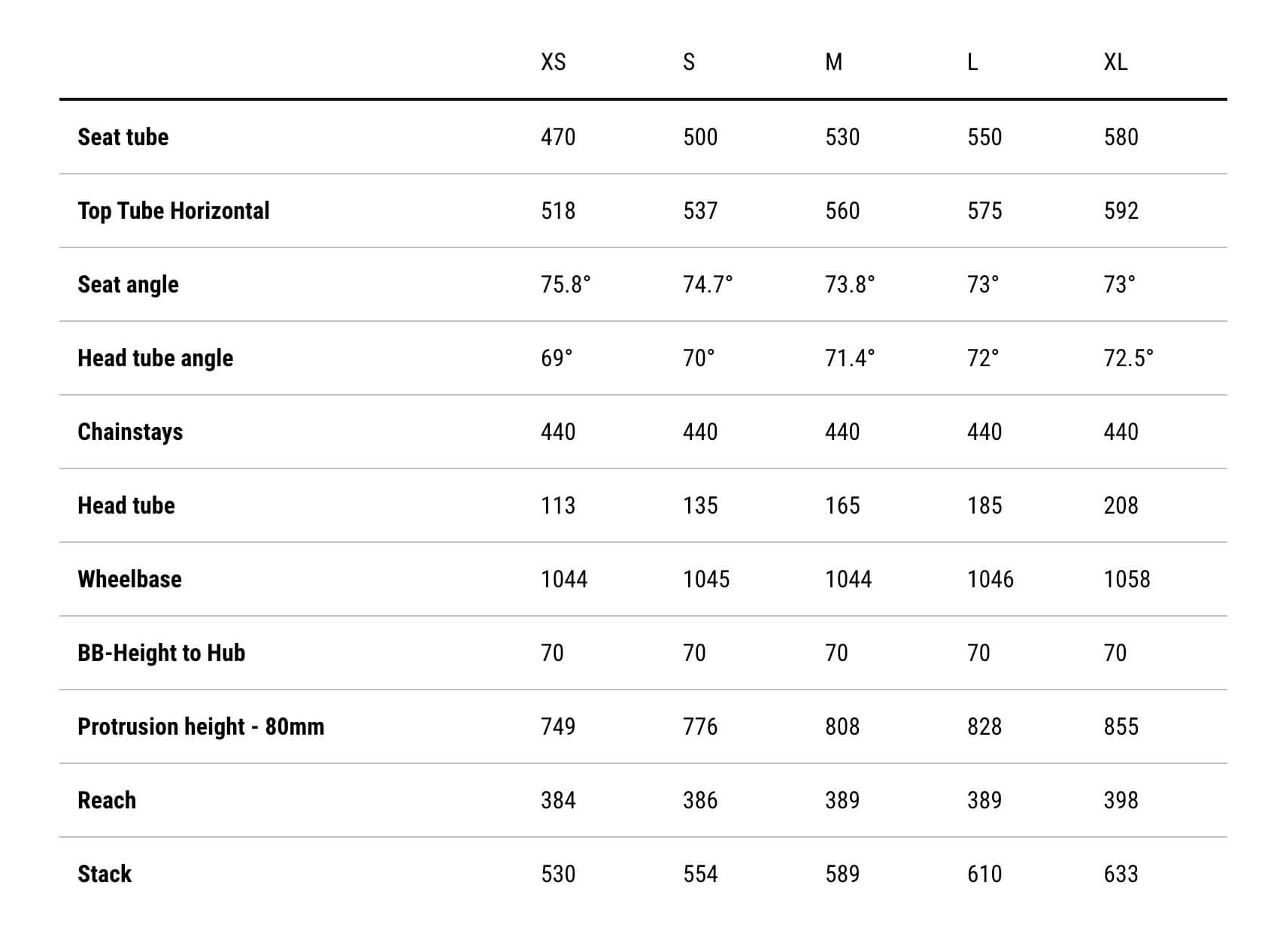

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | 158–166 cm | 166–174 cm | 174–182 cm | 182–190 cm | 190–193 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 530 | 554 | 589 | 610 | 633 |
| Reach (mm) | 384 | 386 | 389 | 389 | 398 |
| Effective top tube (mm) | 518 | 537 | 560 | 575 | 592 |
| Seat tube (mm) | 470 | 500 | 530 | 550 | 580 |
| Head tube (mm) | 113 | 135 | 165 | 185 | 208 |
| Handling | |||||
| Head angle (°) | 69 | 70 | 71.40 | 72 | 72.50 |
| Seat angle (°) | 75.80 | 74.70 | 73.80 | 73 | 73 |
| Wheelbase (mm) | 1,044 | 1,045 | 1,044 | 1,046 | 1,058 |
| Fork offset (mm) | 45.8 | 45.5 | 43.5 | 44.8 | — |
| Trail (mm) | 85.7 | 79.3 | 72.2 | 66.9 | 62.6 |
Frame Details
Frame Weight
Unknown

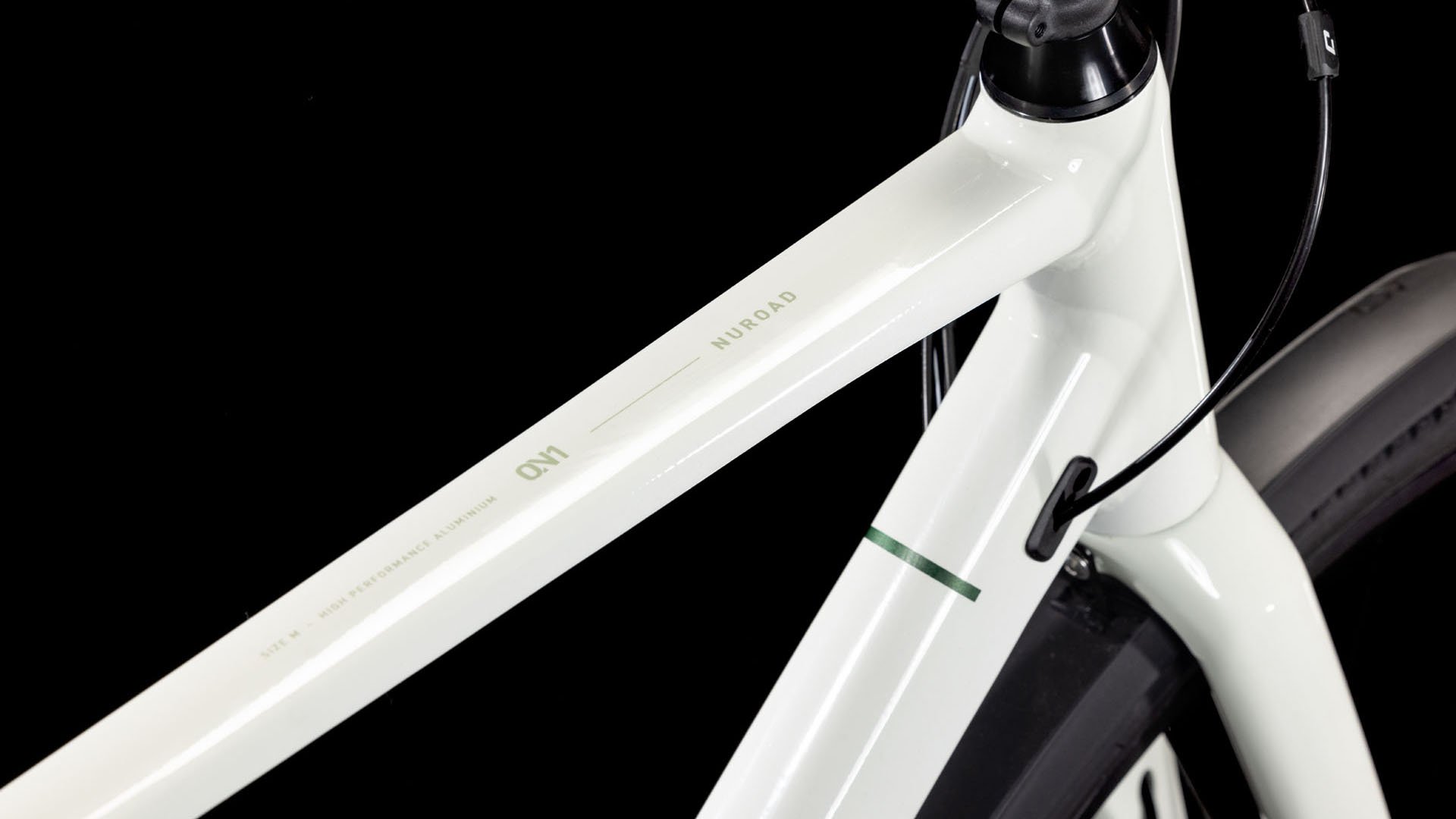

Frame Material
Aluminium
Forks
Aluminium 6061 T6 Superlite, Gravel Comfort Geometry, Flat Mount Disc, QR
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: QR Skewer
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Claris FD-R2000-BM, 31.8mm
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Claris ST-R2000
Front Derailleur
None
Rear Derailleur
Shimano Claris RD-R2000-GS, 8-Speed
Cassette
Shimano Cues CS-LG300 featuring high-durability Linkglide technology.

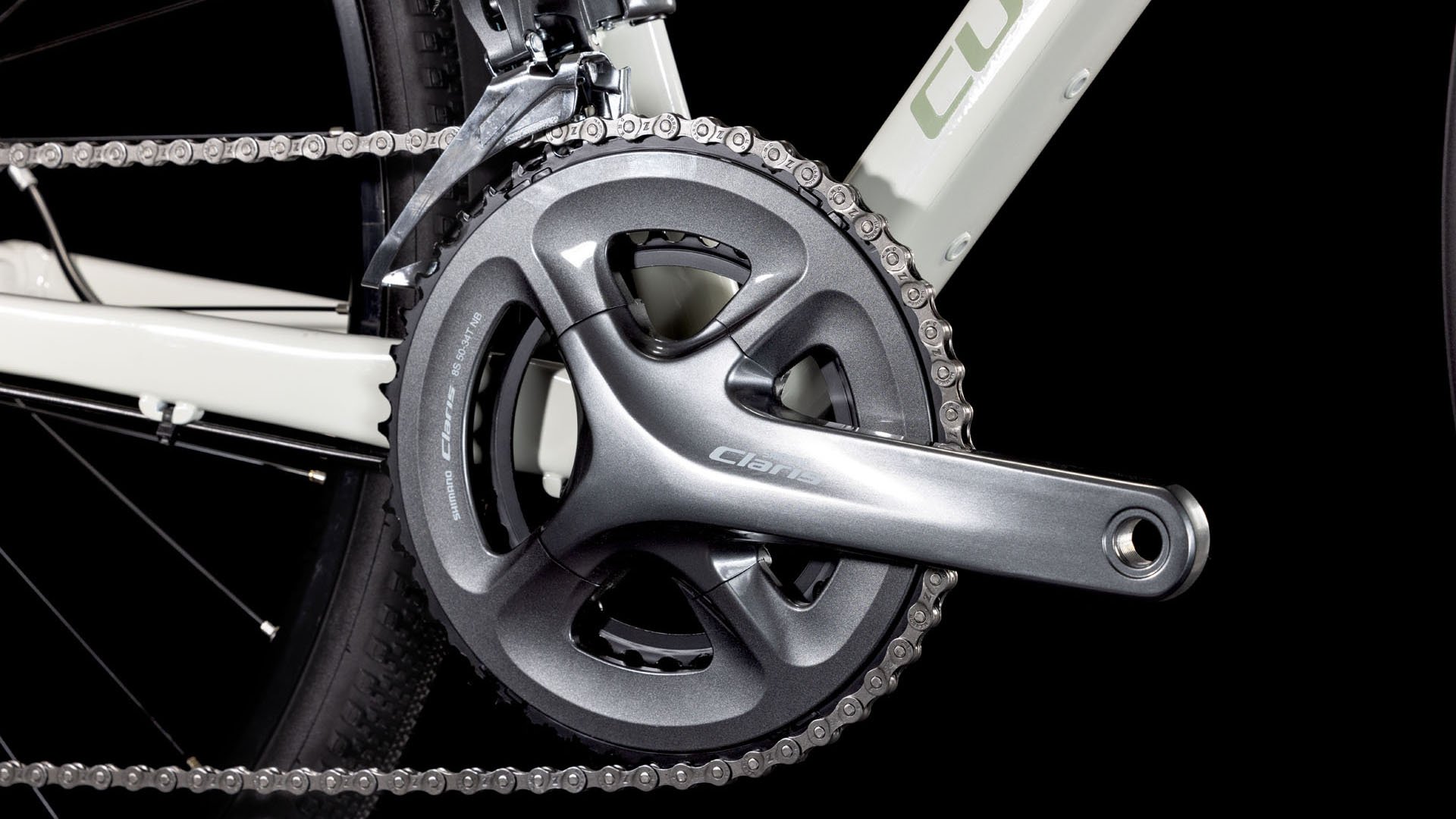

Cranks
ACID Gravel Pro (or Shimano Cues FC-U6030-1)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano BB-RS500PB, Pressfit
Chain
Shimano CN-LG500 Linkglide-optimized chain (Alternatively shipped with KMC xGlide 9-speed chain on variant component builds).
Wheel & Tire Details
Wheelset Name
CUBE GR 2.5 Disc
Front Wheel Depth
24mm
Rear Wheel Depth
24mm
Tires
Schwalbe G-One Comp, ActiveLine, K-Guard, 40-622
Tire Type
Clincher
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Tektro MD-C510, Flat Mount (160/160)
Brake Rotors
160 mm front / 160 mm rear, 6-bolt interface configuration
Other Components
Saddle
Natural Fit Venec Lite
Seatpost
CUBE Performance Post

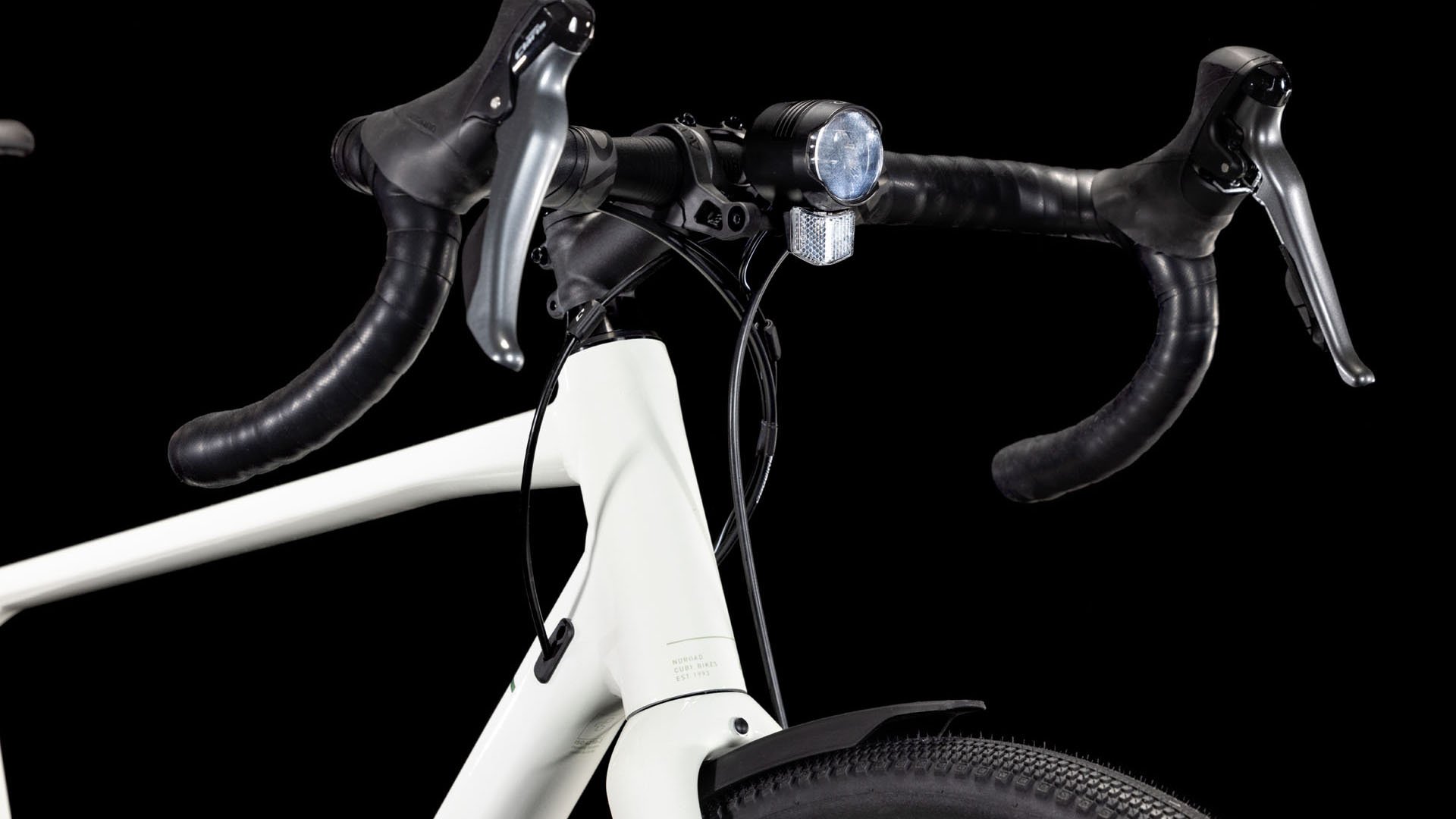

Handlebars
CUBE Gravel Race Bar
Bar Tape
ACID Bartape CX
