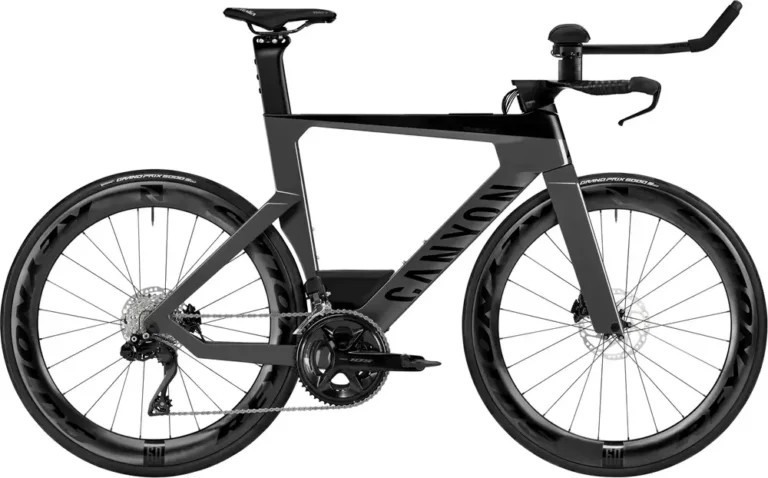

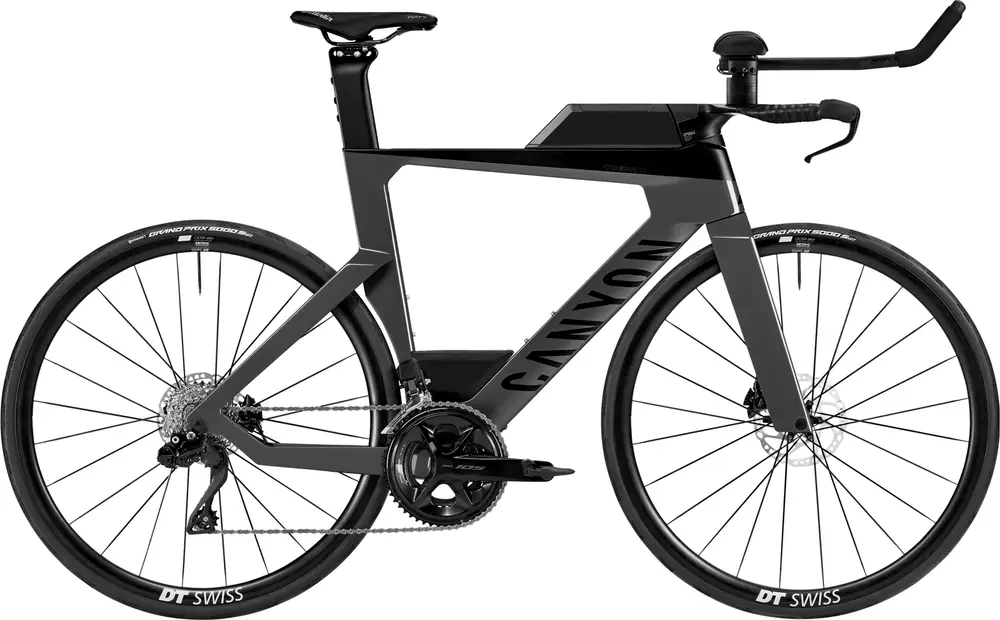

The CanyonCanyon Speedmax CF 7 Di2 AR1600, a TT bike released in 2025, priced at £3719. It weighs approximately 9.5kg (size dependant). The frame is Carbon Fiber and a fork is Carbon Fiber. The bike is equipped with a Shimano 105 Di2 FD-R7150, Weight: 138 g groupset (Electric Shifting: Yes) and uses Disc Brakes. Rolling on a DT Swiss AR1600 wheelset, it features a Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 85 g bottom bracket. It uses Internally Routed cable routing and supports tires up to 28 mm. It comes with a limited 2-year warranty. Curious how it stacks up against similar bikes? Compare below...
The website average for TT bikes is 9.12 kg. This bike is 0.37 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105 Di2 FD-R7150, Weight: 138 g
Wheelset
DT Swiss AR1600
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 28 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

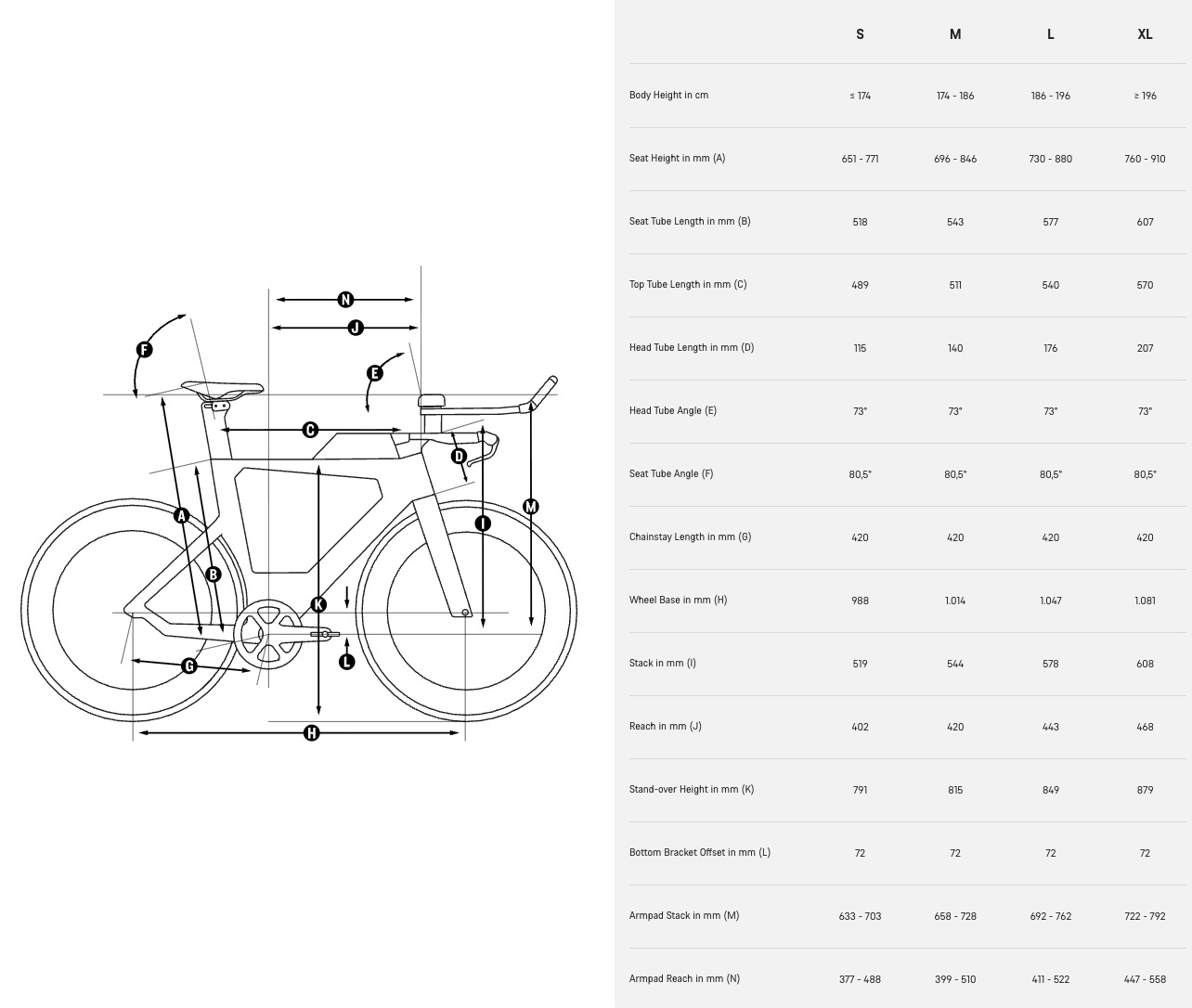

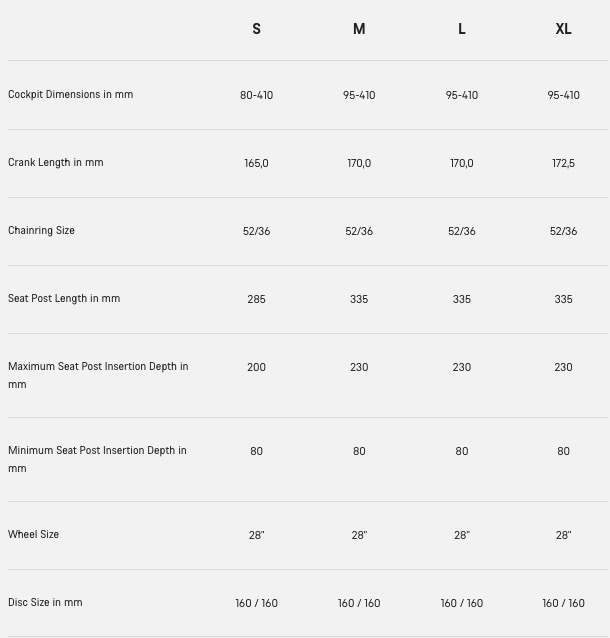

Sizing & Geometry
Frame Sizes
SMLXL
This frame comes in 4 sizes, this is 1.56 less sizes than the website average.
Handebar Sizes Available
41
Crank Arm Sizes Available
170172.5
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
Canyon Speedmax CF Disc, Aero frame shaped by extensive computational fluid dynamics analysis, validated in the wind tunnel with our aero partners Swiss Side. Internal cable routing, 12x142 mm through axle (rear), flat-mount disc standard., Material: Carbon (CF), Weight: 1380 g
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted

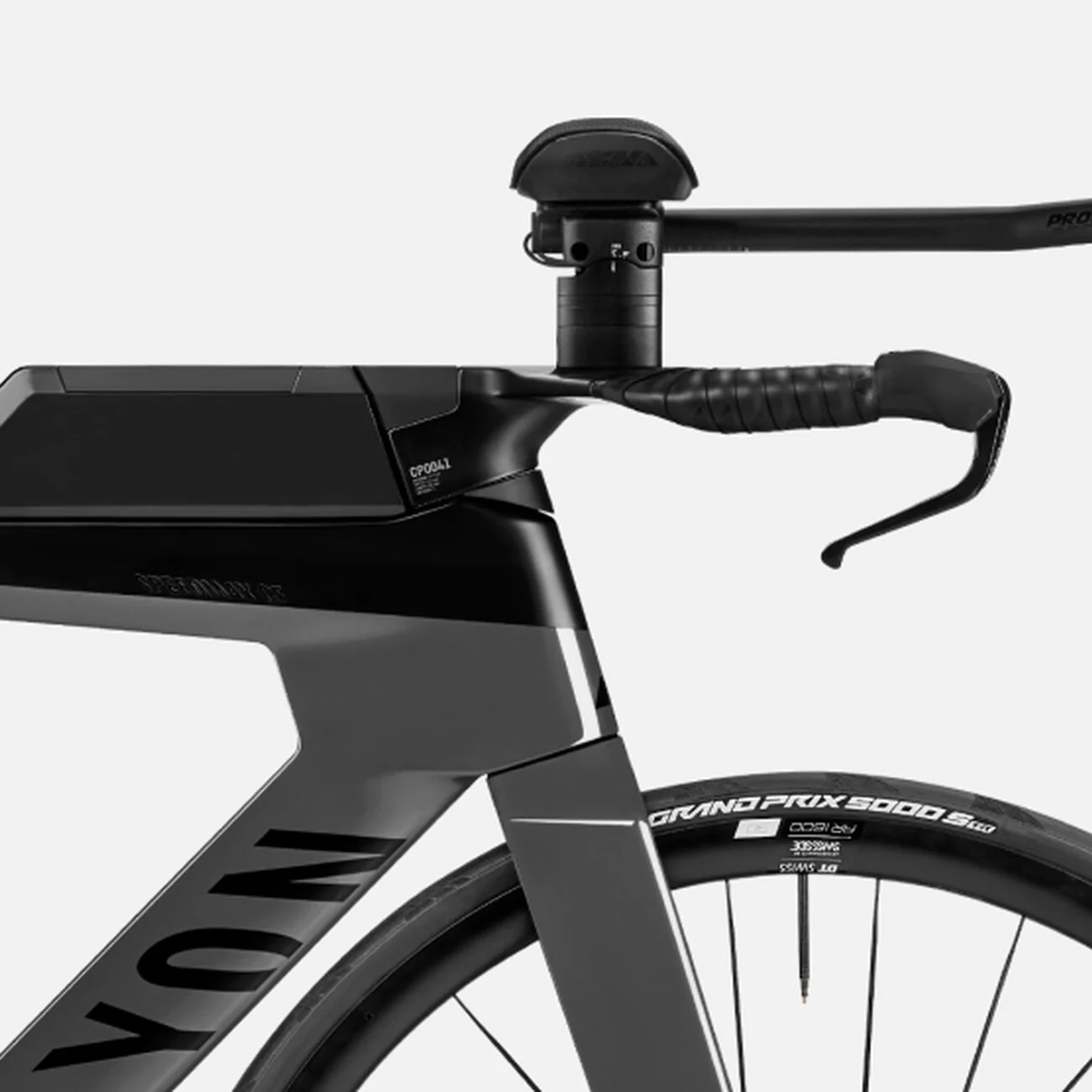

Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano 105 Di2 FD-R7150, Weight: 138 g
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano Dura-Ace Di2 R9160 Remote TT, Weight: 19 g
Front Derailleur
Shimano 105 Di2 FD-R7150, Weight: 138 g
Rear Derailleur
Shimano 105 Di2 RD-R7150 12s, Weight: 301 g
Cassette
Shimano 105 R7100, 12-speed, 11-34T, Number of sprockets: 12, Range: 11-34
Cranks
Shimano 105 R7100, Number of chainrings: 2
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Token Ninja Lite BB4124, Bottom bracket standard: PF 86,5, Weight: 85 g
Chain
Shimano CN-M7100 12s
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss AR1600, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim material: Aluminium | DT Swiss AR1600, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim material: Aluminium
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Continental Grand Prix 5000 S TR, 25mm, Width: 25 mm, Weight: 246 g | Continental Grand Prix 5000 S TR, 28mm, Width: 28 mm, Weight: 294 g
Tire Type
Unknown
Max Tire Size: 28 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano Flat Mount Adapter +20mm
Brake Rotors
Shimano SM-RT64 Size: 160 mm Weight: 140 g
Other Components
Saddle
Selle Italia Watt Superflow, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 248 g
Seatpost
Canyon SP0048 Aero Seatpost
Handlebars
Profile Design Extension
Bar Tape
Manufactures Description
Making the World Championship-winning design DNA of the Speedmax CFR available to more athletes, this Speedmax CF offers superb speed and adjustability with advanced aerodynamics, a tuneable fit, and electronic Shimano shifting.
Making the World Championship-winning design DNA of the Speedmax CFR available to more athletes, this Speedmax CF offers superb speed and adjustability with advanced aerodynamics, a tuneable fit, and electronic Shimano shifting.
