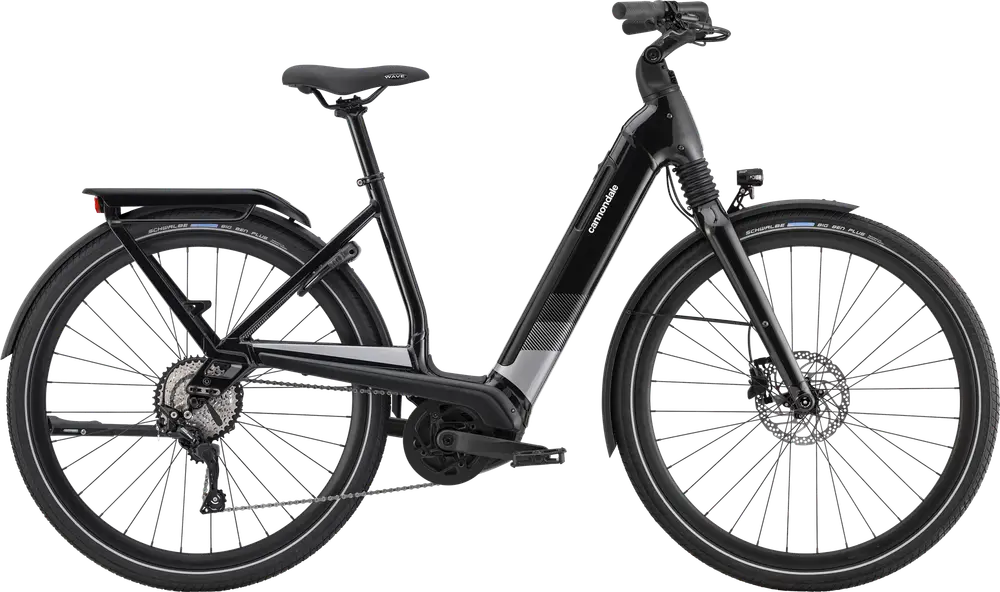

eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2025
The bike was released 1 years ago
Screen
Bosch Purion
Lights Included
No
Weight (inc battery): 27 kg
The website average for electric bikes is 22.99 kg. This electric bike is 4.00 kg over the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
XS: <167 cm, SM: 165–175 cm, MD: 173–184 cm, LG: 182–192 cm, XL: 190+ cm
Folded Dimensions
Unknown
Wheel & Tire Details
Wheelset Name
Alloy double-wall rims (32-hole, 25 mm internal width) laced to a Shimano MT 400 B thru-axle front hub and a Shimano Nexus rear hub
Wheelset Size
700c
Tires
Schwalbe Big Ben, 28x2.00" (50-622), GreenGuard puncture protection, reflective sidewalls
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
Deore
Drivechain type
Chain drive
Shifters
Shimano Nexus Revoshift (twist-style handlebar shifter)
Amount of gears
10 Gears
Rear Derailleur
None
Front Derailleur
None
Cassette
No traditional cassette is used; it features a single Gates CDX Rear Cog (34 T or 26 T depending on hub variation)
Cranks
FSA for Bosch e-bike crankarms
Chain
Gates CDX Carbon Belt
Bottom Bracket
None (The spindle mechanism is integrated completely inside the sealed casing of the Bosch motor drive unit)
Brakes
Brakes
Shimano hydraulic disc brakes
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm front and 180 mm rear
Shifters
Shimano Nexus Revoshift (twist-style handlebar shifter)
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping:
Warranty: None
Limited warranty website average: 3.12 years
