Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 10 kg
The website average for Road bikes is 8.56 kg. This bike is 1.43 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano GRX RX400, braze-on
Wheelset
Axis Elite Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Aluminium
Max Tire Size: 47 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
44 49 52 54 56 58 61This frame comes in 7 sizes, this is 1.44 more sizes than the website average.

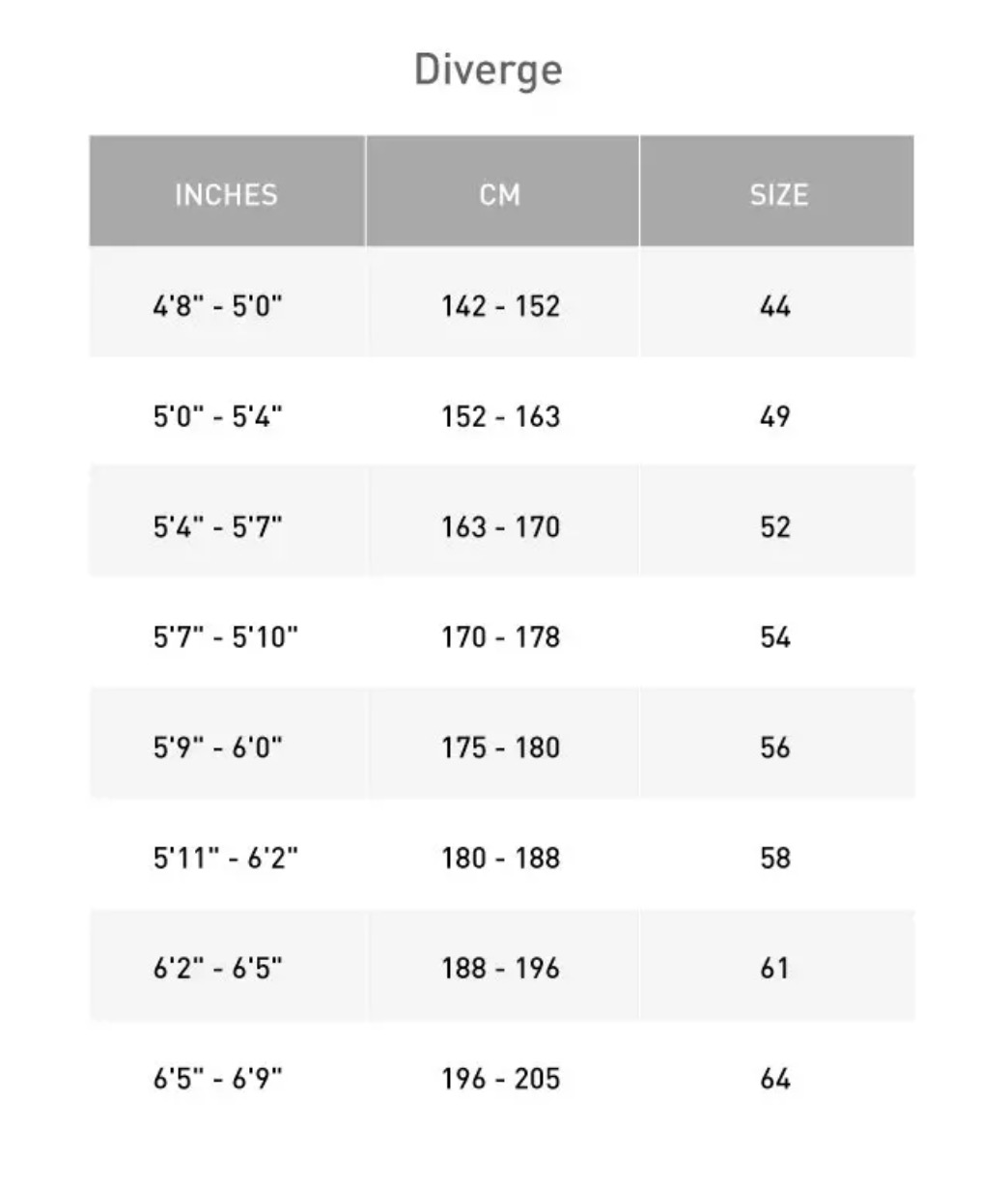

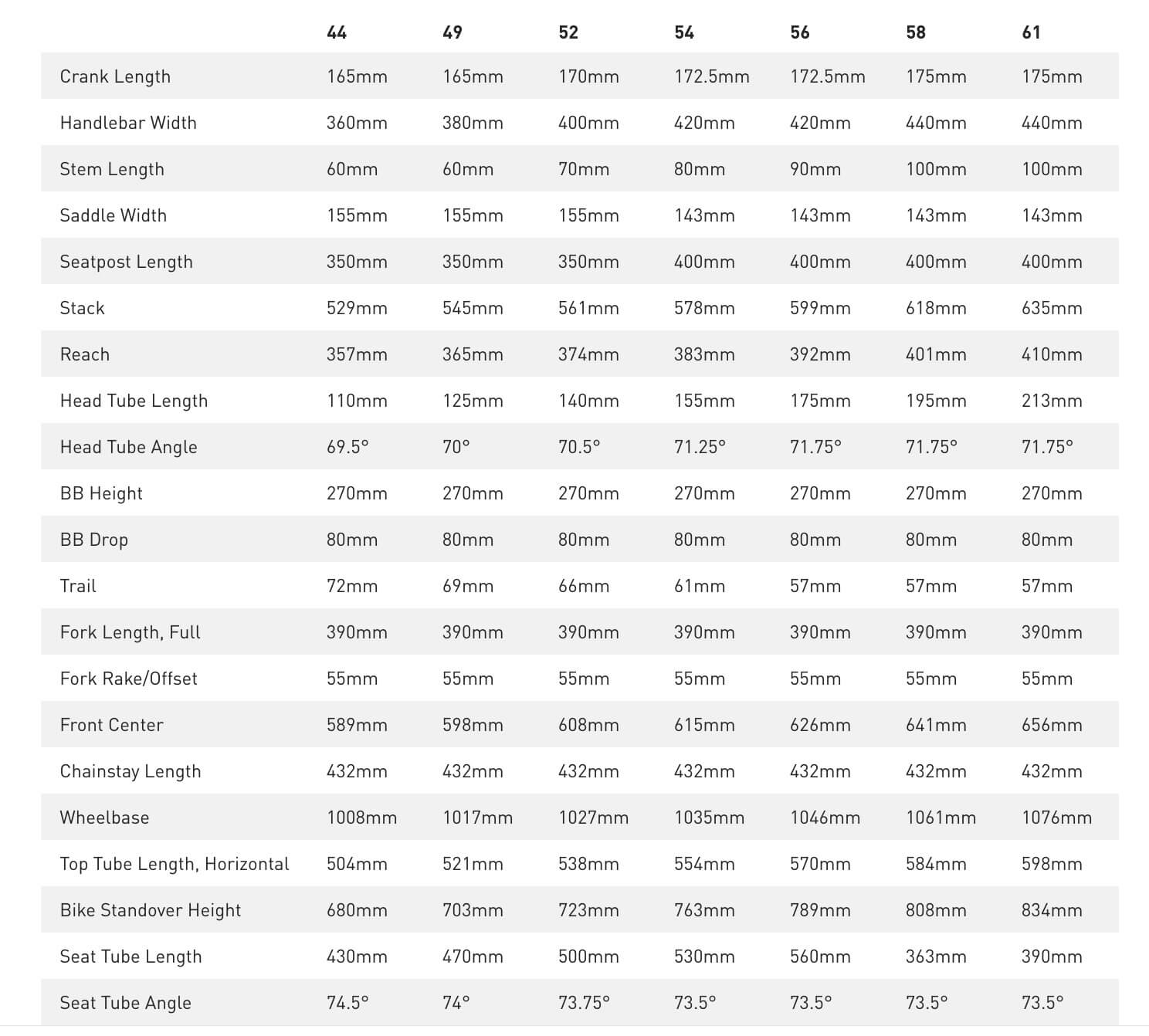

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 44 | 49 | 52 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Rider height | 147–152 cm | 152–163 cm | 163–170 cm | 170–178 cm | 175–183 cm | 183–191 cm | 191–198 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 529 | 545 | 561 | 578 | 599 | 618 | 635 |
| Reach (mm) | 357 | 365 | 374 | 383 | 392 | 401 | 410 |
| Effective top tube (mm) | 504 | 521 | 537 | 553 | 573 | 592 | 611 |
| Seat tube (mm) | 430 | 470 | 490 | 510 | 530 | 560 | 590 |
| Head tube (mm) | 110 | 125 | 140 | 157 | 178 | 197 | 215 |
| Standover (mm) | 680 | 719 | 743 | 768 | 792 | 820 | 846 |
| Handling | |||||||
| Head angle (°) | 69.50 | 70 | 71 | 71.25 | 71.75 | 72 | 72 |
| Seat angle (°) | 74.50 | 74 | 74 | 73.75 | 73.50 | 73.25 | 73 |
| Chainstay (mm) | 432 | 432 | 432 | 432 | 432 | 432 | 432 |
| Wheelbase (mm) | 1,008 | 1,017 | 1,022 | 1,032 | 1,047 | 1,061 | 1,079 |
| Fork offset (mm) | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Trail (mm) | 72 | 69 | 62 | 61 | 57 | 56 | 56 |
Frame Details
Frame Weight
This frame weighs 1475g
Frame Material
Aluminium
Forks
Specialized Diverge E5 Premium Aluminium, threaded BB, internal routing, 12x142mm thru-axle, flat-mount disc
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano GRX RX400, braze-on
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano GRX RX400 hydraulic brake levers, 2x10 speed mechanical shifting
Front Derailleur
Shimano GRX RX400, braze-on type.
Rear Derailleur
Shimano GRX RX400, 10-speed
Cassette
Shimano CS-HG50-10, 10-speed.
Cranks
Shimano GRX RX600-10
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano 68mm threaded
Chain
KMC X10, 10-speed with a reusable Missing Link™.
Wheel & Tire Details
Wheelset Name
Front: AXIS Elite Disc, Rear: AXIS Elite Disc
Front Wheel Depth
23mm
Rear Wheel Depth
23mm
Tires
Front: Specialized Pathfinder Sport, 700x38c, Rear: Specialized Pathfinder Sport, 700x38c
Tire Type
Clincher
Max Tire Size: 47 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Front: Shimano GRX, Hydraulic disc, Rear: Shimano GRX, Hydraulic disc
Brake Rotors
160mm front and 160mm rear
Other Components
Saddle
Body Geometry Bridge Saddle, steel rails
Seatpost
Alloy, 2-bolt Clamp, 12mm offset, 27.2mm, anti-corrosion hardware
Handlebars
Specialized Shallow Drop, 6061, 70x125mm, 31.8mm clamp
Bar Tape
Supacaz Suave
