Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 7.77 kg
The website average for Road bikes is 8.56 kg. This bike is 0.79 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Rival eTap AXS
Wheelset
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
44 49 52 54 56 58 61This frame comes in 7 sizes, this is 1.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.

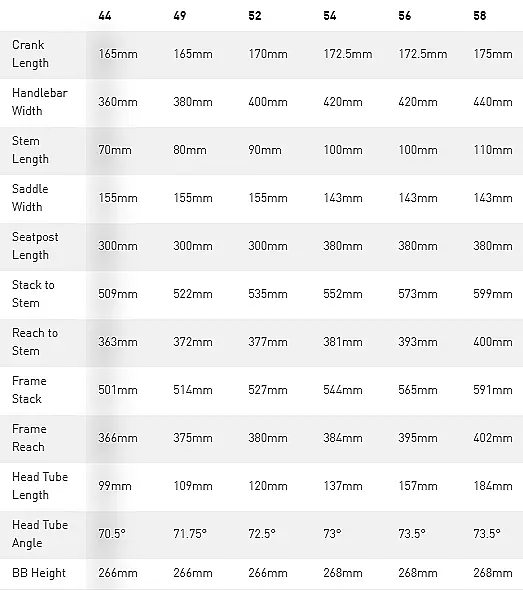

| Geometry | 44cm | 49cm | 52cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||

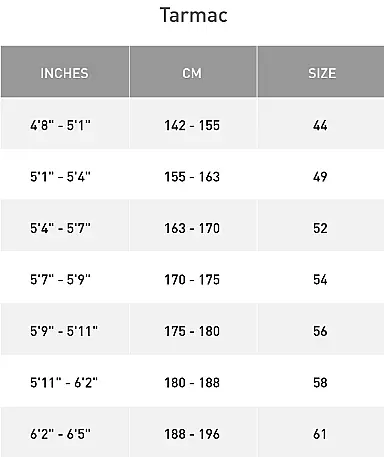

| Rider height | 142–155 cm | 155–163 cm | 163–170 cm | 170–175 cm | 175–180 cm | 180–188 cm | 188–196 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 501 | 514 | 527 | 544 | 565 | 591 | 612 |
| Reach (mm) | 366 | 375 | 380 | 384 | 395 | 402 | 408 |
| Effective top tube (mm) | 496 | 517 | 531 | 541 | 562 | 577 | 595 |
| Seat tube (mm) | 433 | 458 | 483 | 496 | 515 | 536 | 565 |
| Head tube (mm) | 99 | 109 | 119 | 131 | 151 | 178 | 198 |
| Standover (mm) | 723 | 742 | 766 | 775 | 796 | 826 | 851 |
| Handling | |||||||
| Head angle (°) | 70.50 | 71.75 | 72.50 | 73 | 73.50 | 73.50 | 74 |
| Seat angle (°) | 75.50 | 75.50 | 74 | 74 | 73.50 | 73.50 | 73 |
| Chainstay (mm) | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase (mm) | 970 | 974 | 975 | 978 | 991 | 1,006 | 1,013 |
| Fork offset (mm) | 47 | 47 | 44 | 44 | 44 | 44 | 44 |
| Trail (mm) | 71 | 63 | 64 | 58 | 55 | 55 | 52 |
Frame Details
Frame Weight
This frame weighs 780g
Frame Material
Carbon Fiber
Forks
Tarmac SL8 FACT 10r Carbon
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
SRAM Rival eTap AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Rival eTap AXS
Front Derailleur
Shimano Ultegra Di2 R8150, braze-on.
Rear Derailleur
SRAM Rival eTap AXS, 12-speed
Cassette
Shimano Ultegra R8100, 12-speed.
Cranks
Shimano Ultegra R8100
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB BSA 68
Chain
Shimano Ultegra M8100, 12-speed.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Roval C38
Front Wheel Depth
38mm
Rear Wheel Depth
38mm
Tires
S-Works Turbo, folding bead, 700x26mm
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Rival eTap AXS, hydraulic disc
Brake Rotors
160mm front (all) / 140mm rear (Shimano) or 160mm rear (SRAM)
Other Components
Saddle
Body Geometry Power Expert
Seatpost
S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset
Handlebars
Specialized Expert Shallow Drop
Bar Tape
Supacaz Super Sticky Kush
