Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2026
The bike was released this year
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.6 kg
The website average for Road bikes is 8.56 kg. This bike is 0.03 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano 105 Di2
Wheelset
Vision SC55 Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races

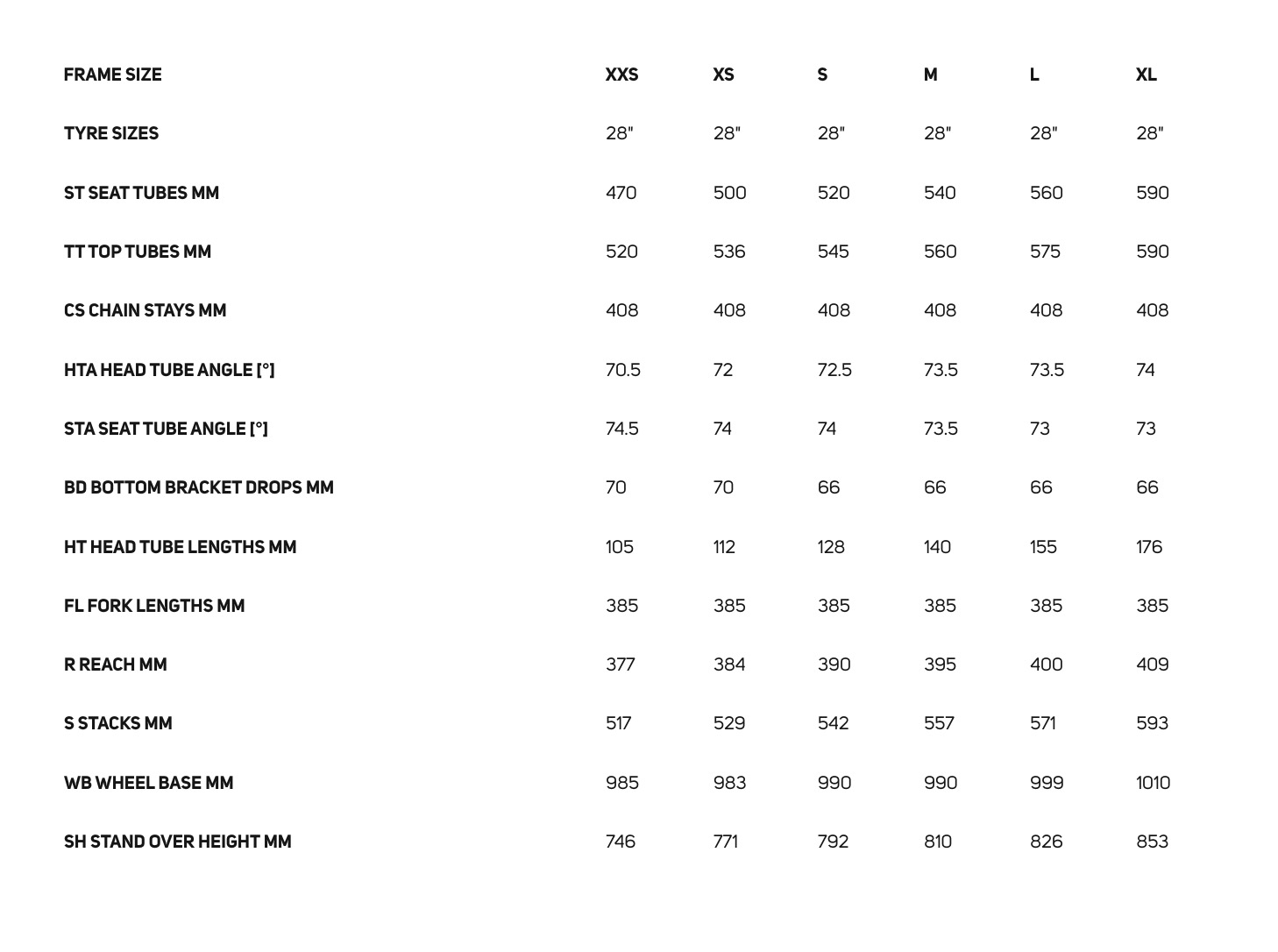

Sizing & Geometry
Frame Sizes
XXS XS S M L XLThis frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Frame Details
Frame Weight
This frame weighs 1150g
Frame Material
Carbon Fiber
Forks
REACTO CF3 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, BB86,5 bottom bracket standard
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano 105 disc Di2
Front Derailleur
Shimano 105 Di2
Rear Derailleur
Shimano 105 Di2
Cassette
Shimano 105 R7101, 11-34 teeth, 12 speed
Cranks
Shimano 105 R7100, 52-36 teeth, 165 mm-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm (XL),
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB72-41B, Pressfit 86.5
Chain
Shimano M6100-12
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Vision SC55 Disc brake, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 55mm height, Centerlock, material: carbon
Front Wheel Depth
55mm
Rear Wheel Depth
55mm
Tires
Front: Maxxis Highroad, 700x28C, fold *tubeless ready, Rear: Maxxis Highroad, 700x28C, fold *tubeless ready
Tire Type
Unknown
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
Shimano 105, Hydraulic disc
Brake Rotors
Shimano RT64 160mm
Other Components
Saddle
MERIDA EXPERT SL, 6% recycled and 23% nature material, V-mount, incl. MERIDA minitool
Seatpost
MERIDA TEAM CW Aero shape 15mm setback Carbon
Handlebars
MERIDA EXPERT CW, material: aluminium, 380mm (3XS-XXS-XS-S), 400mm (M-L-XL)
Bar Tape
MERIDA ROAD Expert
