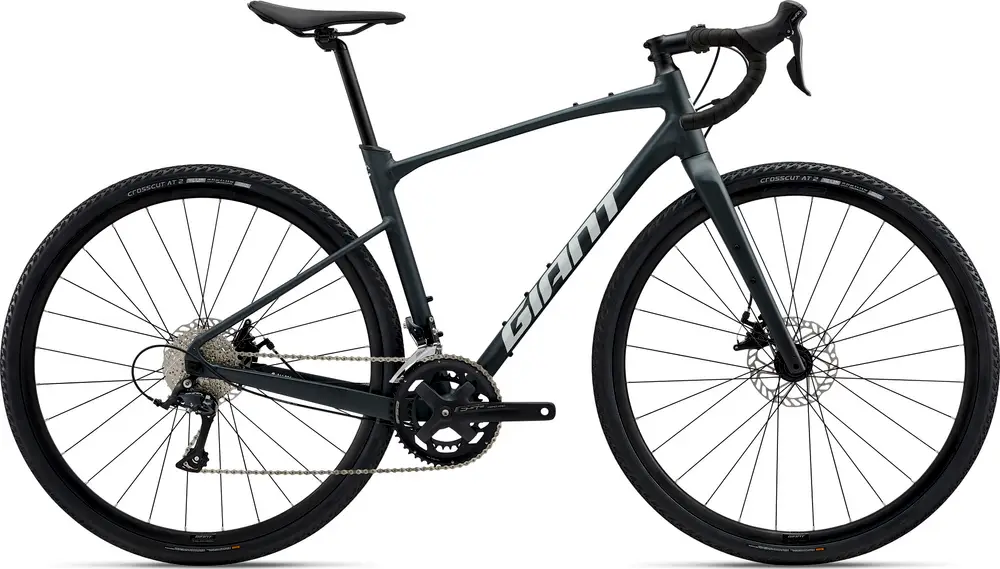

Giant Revolt 2 2025 bike details 02
Giant Revolt 2 2025 bike details 03
Giant Revolt 2 2025 bike details 04
Giant Revolt 2 2025 bike details 05
Giant Revolt 2 2025 bike details 01

Related bikes from Giant

Giant TCR Advanced Pro 1 Di2 - 2025

Price: £4,127.14 (+£3,021.14)

Giant TCR Advanced Pro 0 Di2 - 2025

Price: £5,589.14 (+£4,483.14)

Giant TCR Advanced SL 0 DA - 2025

Price: £10,577.14 (+£9,471.14)

Quick Compare Giant Revolt 2 to:

Bike Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: Lifetime

Limited warranty website average: 3.12 years

Icon 1

Released: 2025

The bike was released this year

Icon 1

Bike Type: Road

The style of riding intended for this bike

Bike Spec

Bracket Icon

Weight

The weight of this bike is unknown

Icon 1

Groupset

Shimano Sora

Icon 1

Wheelset

Giant S-X2 Disc wheelset, alloy

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Frameset Material

Aluminium

Icon 1

Max Tire Size: 53 mm

This is the max tire size you can use

Icon 1

UCI Approved: Unknown

You can't use for official races

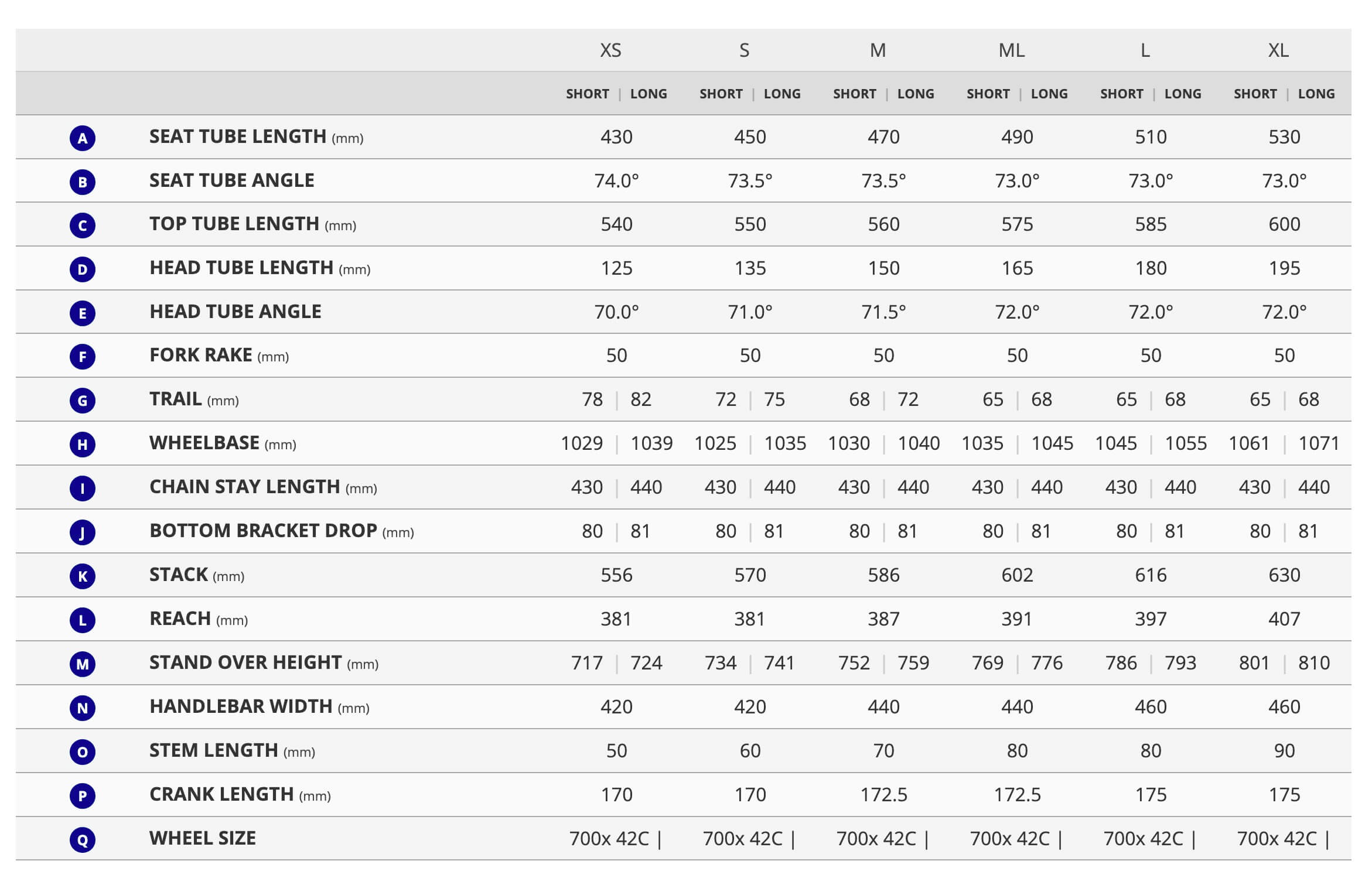

Sizing & Geometry

Frame Sizes

XS S M M/L L XL

This frame comes in 6 sizes, this is 0.48 more sizes than the website average.

Handebar Sizes Available

42 44 46

Crank Arm Sizes Available

170 172.5 175

Frame Details

Icon 1

Frame Weight

Unknown

Icon 1

Frame Material

Aluminium

Icon 1

Forks

ALUXX-grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout

Icon 1

Fork Material

The forks are made from Carbon Fiber

Icon 1

Cables: Semi Routed

Routed through the frame, not the bars

Icon 1

Axel Type: Thru-axle

How the wheels are secured to the frame

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How the calipers are mounted

No

Integrated bar and stem: No

You can use any bar and stem

Drivechain Details

Icon 1

Groupset name

Shimano Sora

Icon 1

Electric Groupset: No

This bike doesn't have electric gears

Icon 1

Shifters

Shimano Sora, 2x9

Icon 1

Front Derailleur

Shimano Sora

Icon 1

Rear Derailleur

Shimano Sora, long cage

Icon 1

Cassette

Shimano HG400, 11x34

Icon 1

Cranks

FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

Icon 1

Power Meter: No

This bike doesn't have a power meter

Icon 1

Bottom Bracket

cartridge

Icon 1

Chain

KMC X9 with Missing Link

Wheel & Tire Details

Icon 1

Wheelset Name

Giant S-X2 Disc wheelset, alloy

Front Wheel Depth Icon

Front Wheel Depth

24mm

Rear Wheel Depth Icon

Rear Wheel Depth

24mm

Icon 1

Tires

Giant CrossCut AT 2, 700x38c, tubeless

Tire Type Icon

Tire Type

Unknown

Icon 1

Max Tire Size: 53 mm

This is the max tire size you can use

Brakes

Disc Brake

Brake Type: Disc Brake

Welcome to the future!

Icon 1

Brake Mount:

How these disc brakes are mounted

Icon 1

Brakes

Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm

Icon 1

Brake Rotors

Unknown

Other Components

Icon 1

Saddle

Giant Approach

Icon 1

Seatpost

Giant D-Fuse, alloy, 14mm offsetType: Rigid

Icon 1

Handlebars

Giant Contact XR Ergo-Control, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

Icon 1

Bar Tape

cork tape with gel

Manufactures Description

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance. Key Performance Factors Confident handling Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain. Tuned compliance Dro ... Read More
