Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
N/A
Wheelset
Giant SLR 1 50 Carbon Disc WheelSystem
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||
| Rider height | 157–169 cm | 165–175 cm | 171–181 cm | — | 183–193 cm | 189–199 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | — | 530 | 546 | 565 | 582 | 596 |
| Reach (mm) | — | 383 | 388 | 392 | 402 | 412 |
| Effective top tube (mm) | — | 535 | 550 | 565 | 580 | 600 |
| Seat tube (mm) | — | 505 | 528.5 | 554 | 576 | 595 |
| Head tube (mm) | — | 127 | 145 | 165 | 185 | 200 |
| Standover (mm) | — | 764 | 787 | 808 | 832 | 847 |
| Handling | ||||||
| Head angle (°) | — | 72.50 | 73 | 73 | 73 | 73 |
| Seat angle (°) | — | 74 | 73.50 | 73 | 73 | 72.50 |
| Chainstay (mm) | — | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | — | 973 | 980 | 990 | 1,006 | 1,020 |
| Fork offset (mm) | — | 45 | 45 | 45 | 45 | 45 |
| Trail (mm) | — | 61.4 | 58.3 | 58.3 | 58.3 | 58.3 |
Frame Details
Frame Weight
This frame weighs 1120g
Frame Material
Carbon Fiber
Forks
Advanced-Grade Composite, 12x142mm thru-axle, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
N/A
Electric Groupset: No
This bike doesn't have electric gears
Shifters
SRAM Force AXS, 1x12
Front Derailleur
None

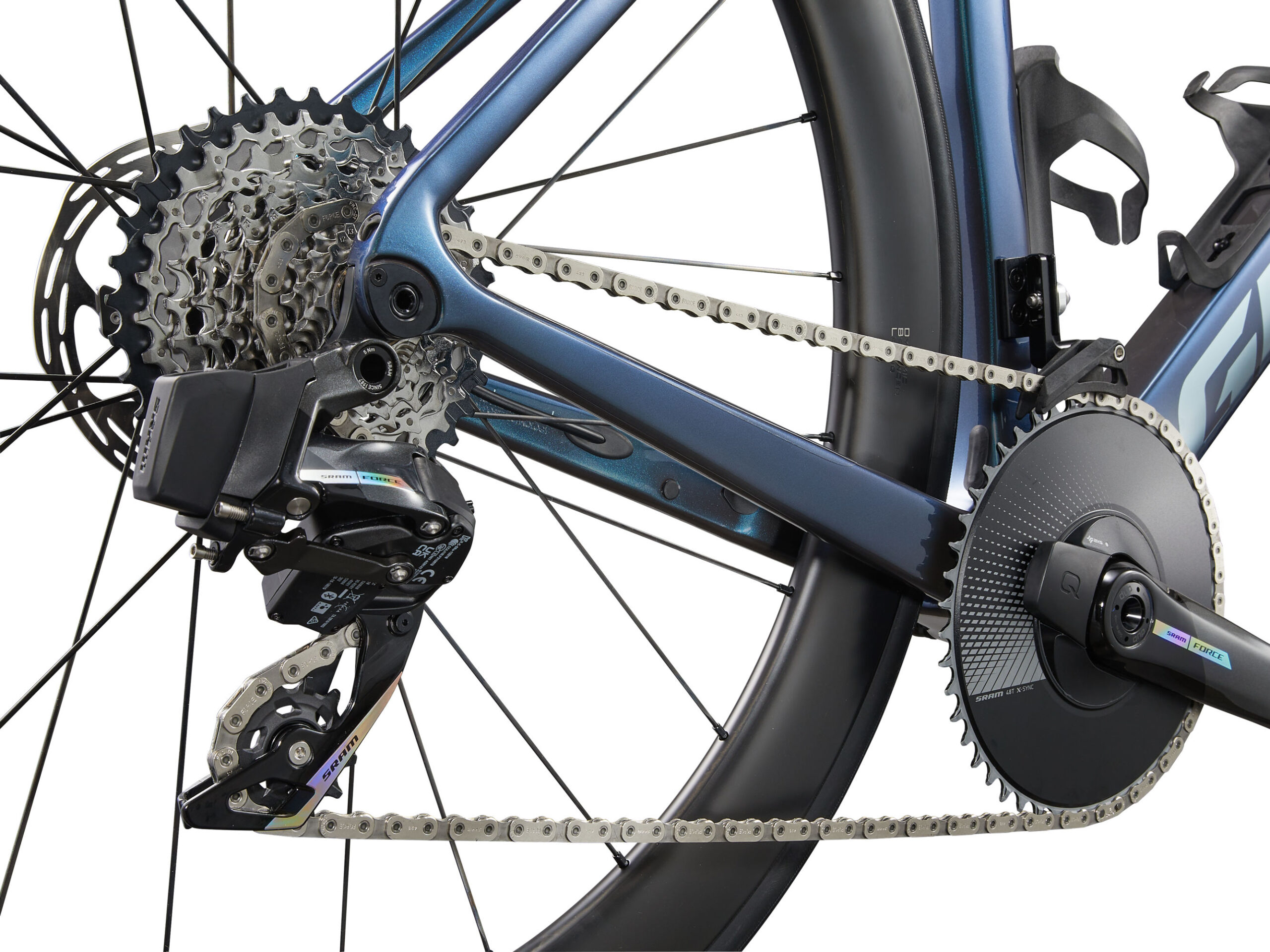

Rear Derailleur
SRAM Force AXS
Cassette
SRAM Force XG-1270 or closely related 12-speed level cassette (Inferred from groupset family).

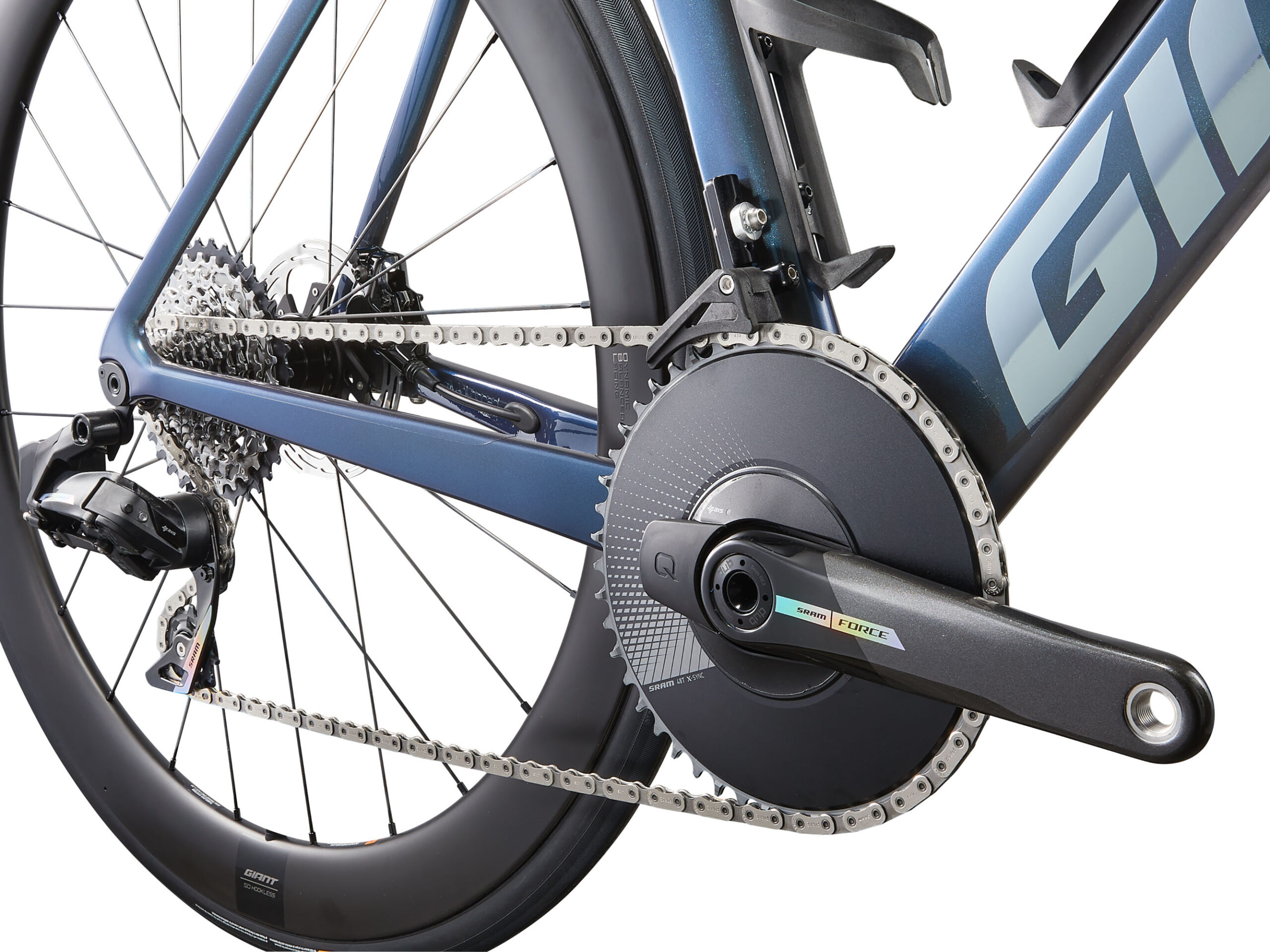

Cranks
SRAM Force DUB carbon crankarms
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Force D1/E1 Flattop 12-speed chain (Inferred from groupset family) .
Wheel & Tire Details
Wheelset Name
Giant SLR 1 50 Carbon Disc WheelSystem, [F]50mm, [R]50mm
Front Wheel Depth
50mm
Rear Wheel Depth
50mm
Tires
CADEX Road Race, tubeless, 700x25c (26.5mm), folding
Tire Type
Tubeless
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Force hydraulic
Brake Rotors
160 mm Front / 140 mm Rear configuration using SRAM PaceLine X center-lock disc rotors
Other Components
Saddle
Giant Fleet SL
Seatpost
Giant Vector, composite, -5/+15mm offsetType: Rigid
Handlebars
Giant Contact SLR Aero, composite
Bar Tape
Stratus Lite 2.0
