Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano 105 Di2
Wheelset
Giant SLR 2 50 Carbon Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.

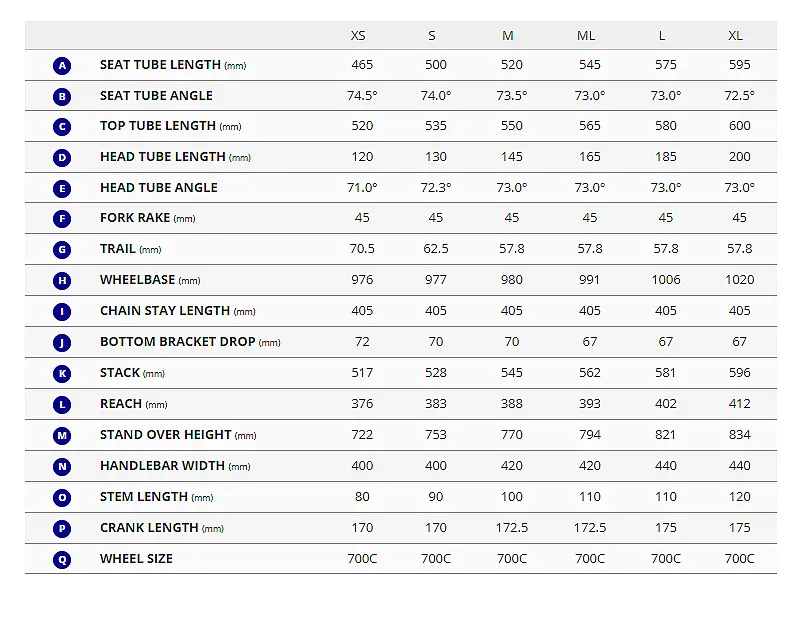

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | M/L | L | XL |
|---|---|---|---|---|---|---|
| Sizing | ||||||

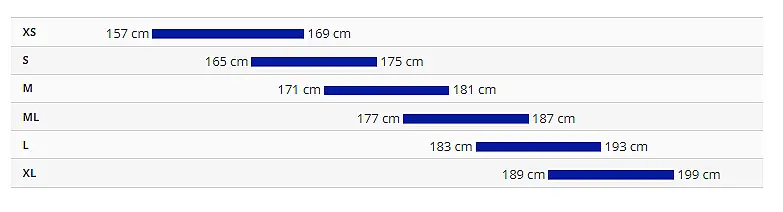

| Rider height | 157–169 cm | 165–175 cm | 171–181 cm | — | 183–193 cm | 189–199 cm |
| Wheel size | 700c | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | ||||||
| Stack (mm) | 517 | 529 | 545 | 562 | 581 | 595 |
| Reach (mm) | 372 | 378 | 383 | 398 | 402 | 412 |
| Effective top tube (mm) | 520 | 535 | 550 | 565 | 580 | 600 |
| Seat tube (mm) | 465 | 500 | 520 | 545 | 575 | 595 |
| Head tube (mm) | 120 | 130 | 145 | 165 | 185 | 200 |
| Standover (mm) | 744 | 769 | 787 | 807 | 829 | 843 |
| Handling | ||||||
| Head angle (°) | 71 | 72.50 | 73 | 73 | 73 | 73 |
| Seat angle (°) | 74.50 | 73.50 | 73 | 73 | 73 | 72 |
| Chainstay (mm) | 405 | 405 | 405 | 405 | 405 | 405 |
| Wheelbase (mm) | 972 | 970 | 976 | 997 | 1,007 | 1,021 |
| Fork offset (mm) | 45 | 45 | 45 | 45 | 45 | 45 |
| Trail (mm) | 70 | 60 | 57 | 57 | 57 | 57 |

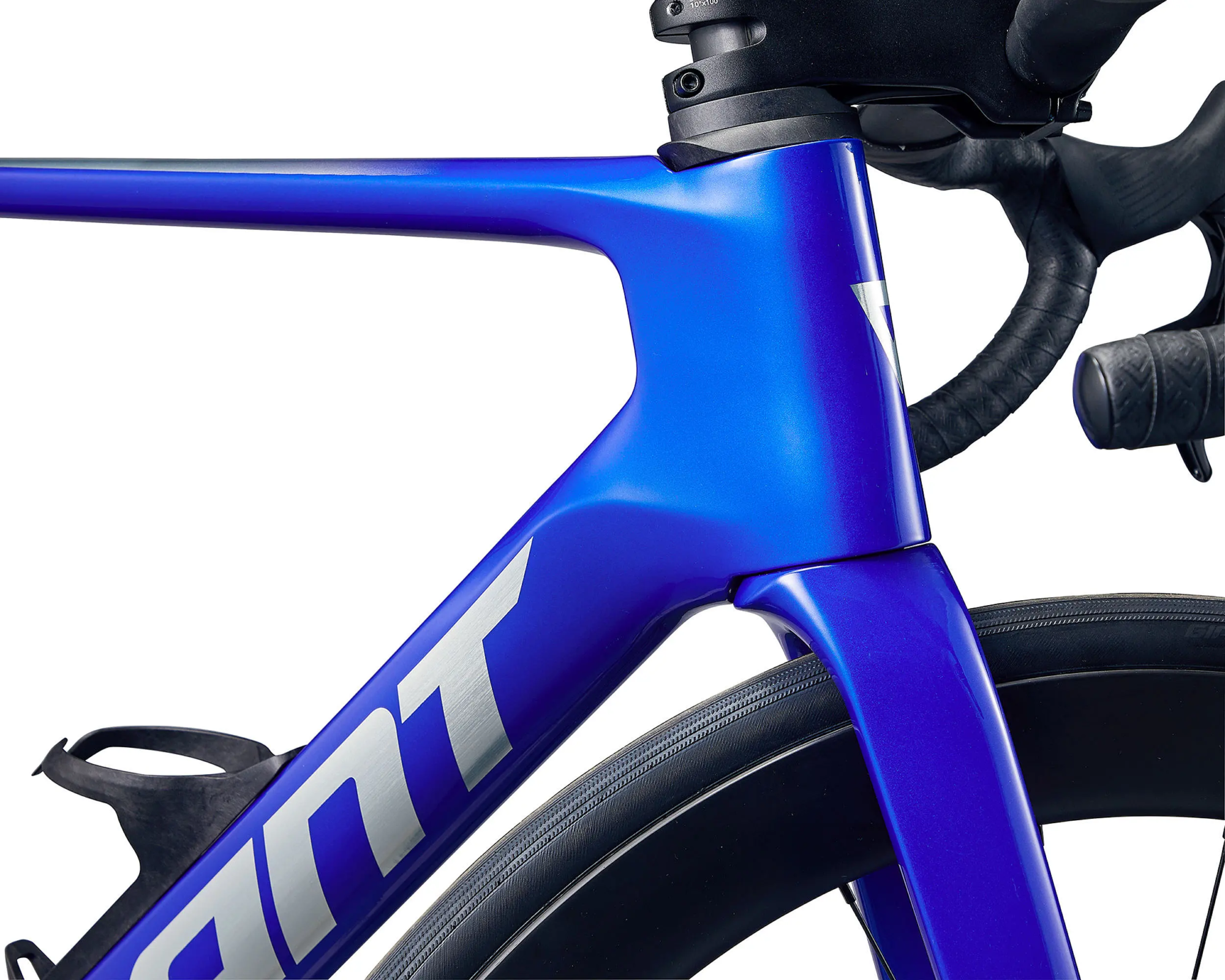

Frame Details
Frame Weight
This frame weighs 845g
Frame Material
Carbon Fiber
Forks
Advanced-grade composite, full-composite OverDrive Aero steerer, disc
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 Di2
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Rival eTap AXS 2x12
Front Derailleur
SRAM Rival eTap AXS
Rear Derailleur
SRAM Rival eTap AXS
Cassette
SRAM Rival XG-1250, 10-30T
Cranks
[170.0
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM DUB, press fit
Chain
SRAM Rival D1 Flattop
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Giant SLR 2 50 Carbon Disc
Front Wheel Depth
50mm
Rear Wheel Depth
50mm
Tires
Giant Gavia Course 1, tubeless,700x25c (28mm), folding
Tire Type
Tubeless
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Rival eTap AXS hydraulic
Brake Rotors
160 mm Front rotor / 140 mm Rear rotor (Using SRAM PaceLine CenterLock rotors)
Other Components
Saddle
Giant Fleet SL
Seatpost
Giant Vector, composite, -5/+15mm offset

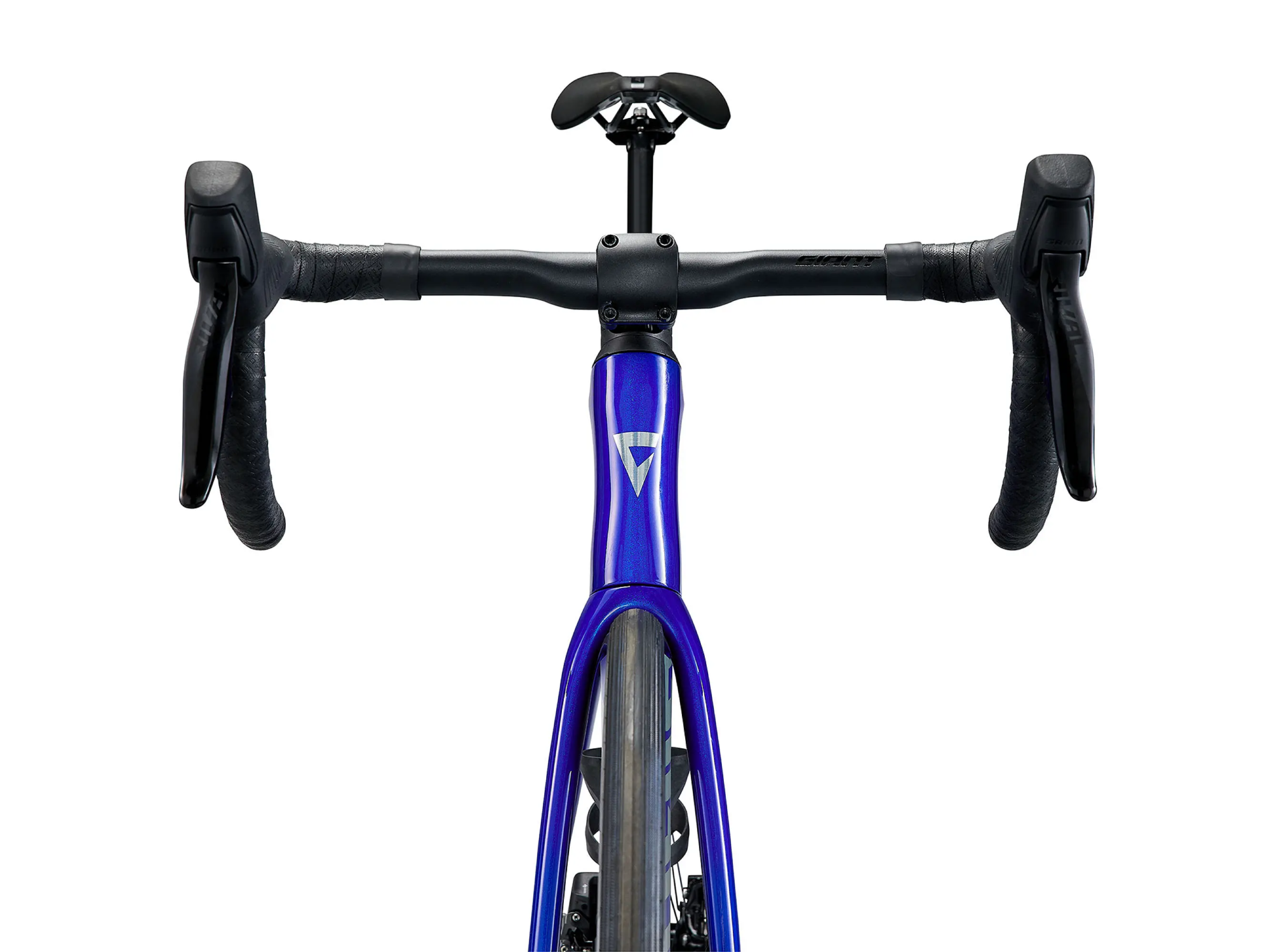

Handlebars
Giant Contact SL Aero S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Bar Tape
Stratus Lite 2.0
