Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 3 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano GRX, FD-RX820, Brazed-On
Wheelset
Devox WheelRDS.A1, Tubeless ready
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry

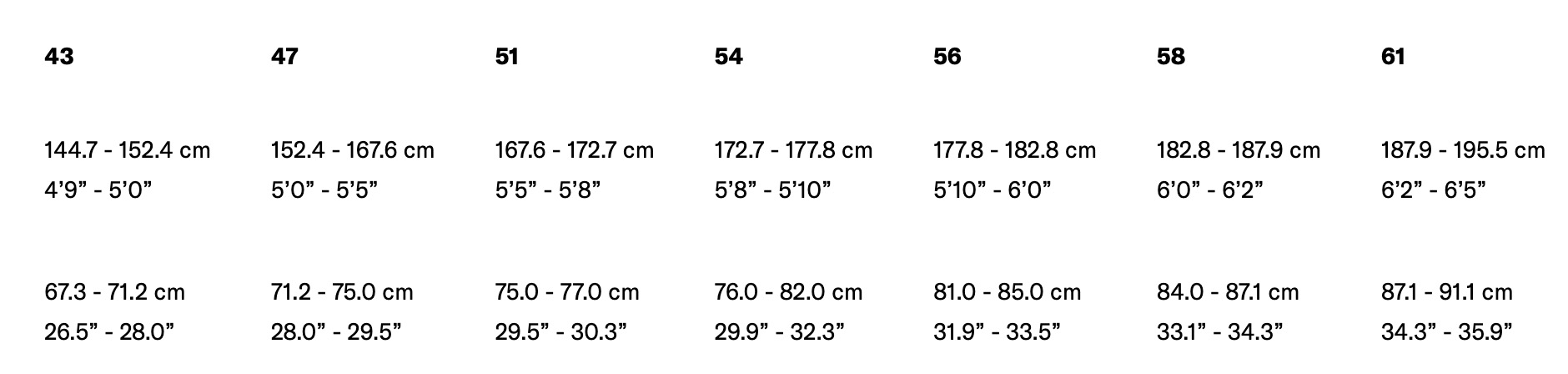

Frame Sizes
47 51 54 56 58 61This frame comes in 6 sizes, this is 0.44 more sizes than the website average.

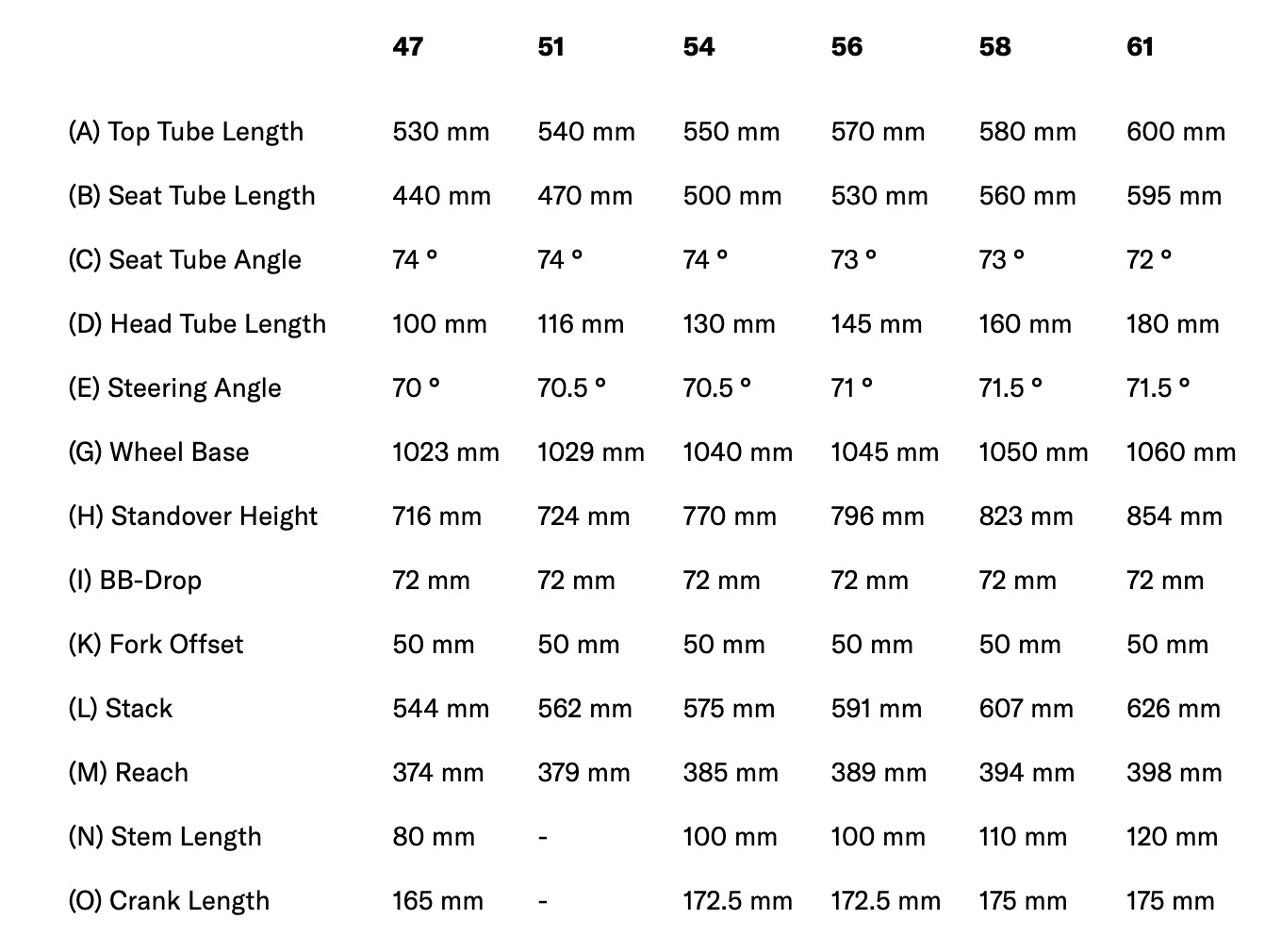

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 47cm | 51cm | 54cm | 56cm | 58cm | 61cm |
|---|---|---|---|---|---|---|
| Frame geometry | ||||||
| Stack (mm) | 544 | 562 | 575 | 591 | 607 | 626 |
| Reach (mm) | 374 | 379 | 384 | 394 | 399 | 398 |
| Effective top tube (mm) | 530 | 540 | 550 | 570 | 580 | 600 |
| Seat tube (mm) | 440 | 470 | 500 | 530 | 560 | 595 |
| Head tube (mm) | 100 | 116 | 130 | 145 | 160 | 180 |
| Standover (mm) | 716 | 724 | 770 | 796 | 823 | 854 |
| Handling | ||||||
| Head angle (°) | 70 | 70.50 | 70.50 | 71 | 71.50 | 71.50 |
| Seat angle (°) | 74 | 74 | 74 | 73 | 73 | 72 |
| Chainstay (mm) | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase (mm) | 1,023 | 1,029 | 1,040 | 1,045 | 1,050 | 1,060 |
| Fork offset (mm) | 50 | 50 | 50 | 50 | 50 | 50 |
| BB drop (mm) | 72 | 72 | 72 | 72 | 72 | 72 |
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
Felt BREED 1.0, UHC Advanced carbon
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem

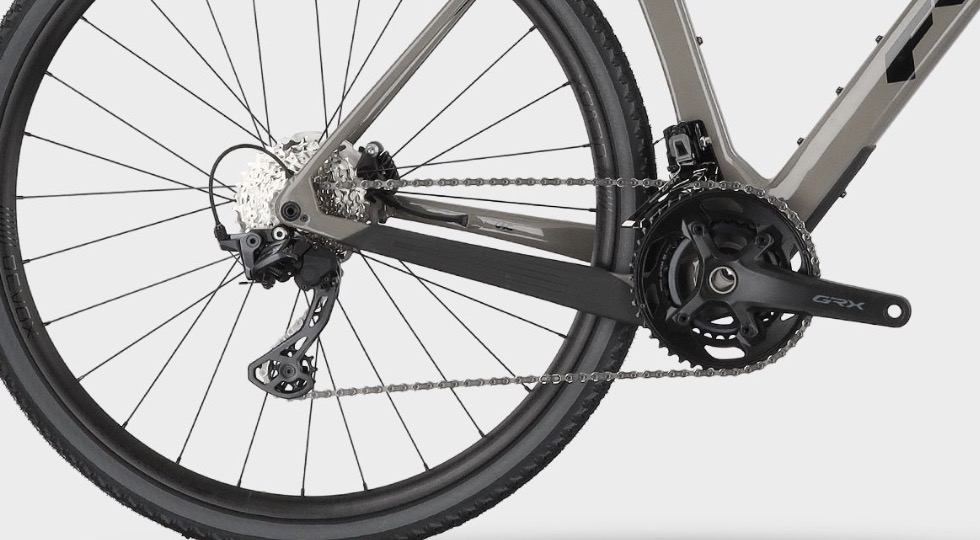

Drivechain Details
Groupset name
Shimano GRX, FD-RX820, Brazed-On
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano GRX, ST-RX610
Front Derailleur
Shimano GRX RX822
Rear Derailleur
Shimano GRX, RD-RX820, 24-S
Cassette
SunRace 11-50T (1x) / Shimano 11-34T (2x)
Cranks
Shimano GRX FC-RX610
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Token T47 Asymmetric threaded bottom bracket
Chain
Shimano 12-Speed.
Wheel & Tire Details
Wheelset Name
Devox WheelRDS.A1, Tubeless ready, Center lock, 12x100/12x142 mm
Front Wheel Depth
22mm
Rear Wheel Depth
22mm

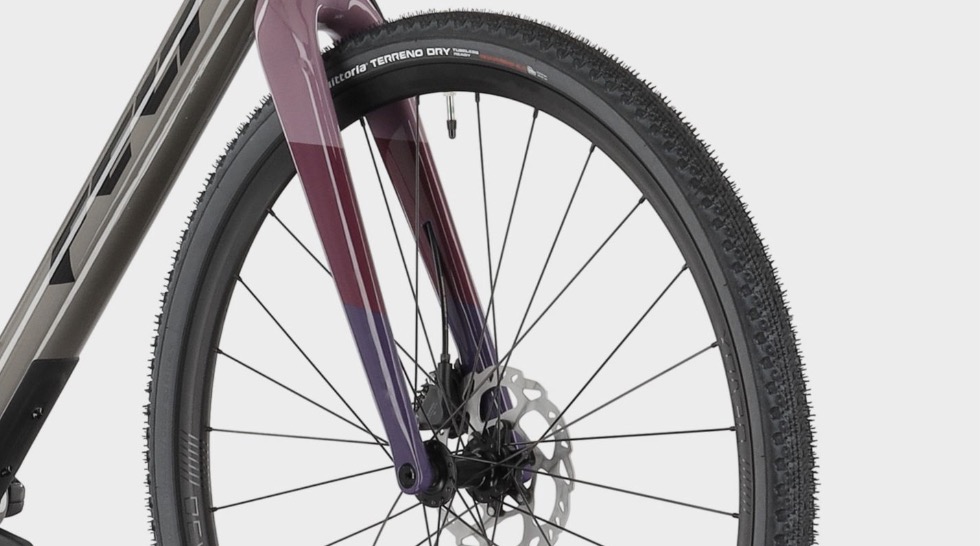

Tires
Vittoria Terreno Dry, 700x38
Tire Type
Tubeless
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Front: Shimano BR-RX400, 2-piston, Hydraulic disc brake, Rear: Shimano BR-RX400, 2-piston, Hydraulic disc brake
Brake Rotors
160mm front / 160mm rear (Inferred from standard 12-speed platform builds). Frame flat-mount standards can support an upgrade to a 180mm front rotor layout if desired
Other Components
Saddle
Prologo Dimension NDR STN
Seatpost
Devox Post.C2,
Handlebars
47, 47 cm: Devox DBar.A1 GXA 31.8 mm, 400 mm, 51, 51 cm: Devox DBar.A1 GXA 31.8 mm, 420 mm, 54, 54 cm: Devox DBar.A1 GXA 31.8 mm, 440 mm, 56, 58, 61, 56, 58, 61 cm: Devox DBar.A1 GXA 31.8 mm, 460 mm
Bar Tape
Felt VelvetGel tape with 3M reflective base
