Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 3 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 9.4 kg
The website average for Road bikes is 8.56 kg. This bike is 0.83 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Shimano Cues
Wheelset
Cube OR 2.5 Disc
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 45 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
50 53 56 58 61This frame comes in 5 sizes, this is 0.56 less sizes than the website average.

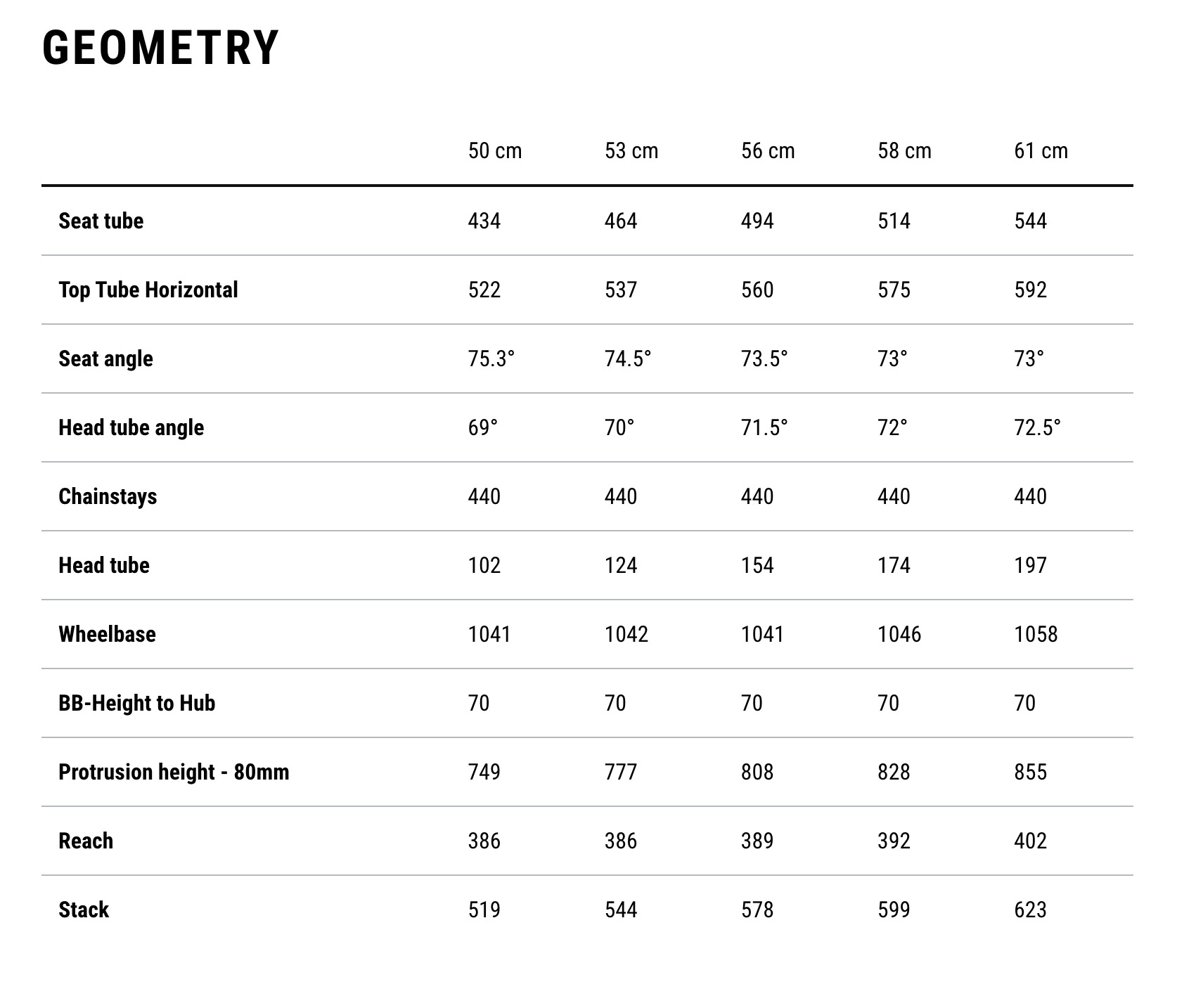

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 50 cm | 53 cm | 56 cm | 58 cm | 61 cm |
|---|---|---|---|---|---|
| Sizing | |||||
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 520 | 544 | 579 | 599 | 623 |
| Reach (mm) | 388 | 388 | 393 | 392 | 402 |
| Seat tube (mm) | 430 | 460 | 490 | 510 | 540 |
| Head tube (mm) | 102 | 124 | 155 | 174 | 197 |
| Standover (mm) | 743 | 771 | 805 | 824 | 851 |
| Handling | |||||
| Head angle (°) | 69 | 70 | 71.50 | 72 | 72.50 |
| Seat angle (°) | 75.50 | 74.70 | 73.90 | 73 | 73 |
| Chainstay (mm) | 440 | 440 | 440 | 442 | 442 |
| Wheelbase (mm) | 1,043 | 1,044 | 1,046 | 1,048 | 1,060 |
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
C:62® Advanced Twin Mold, Internal Cable Routing, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, AXH
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano Cues
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano Cues SL-U6000, Rapidfire Plus
Front Derailleur
None
Rear Derailleur
Shimano Cues RD-U8000, 11-Speed
Cassette
Shimano Cues CS-LG400 Linkglide.

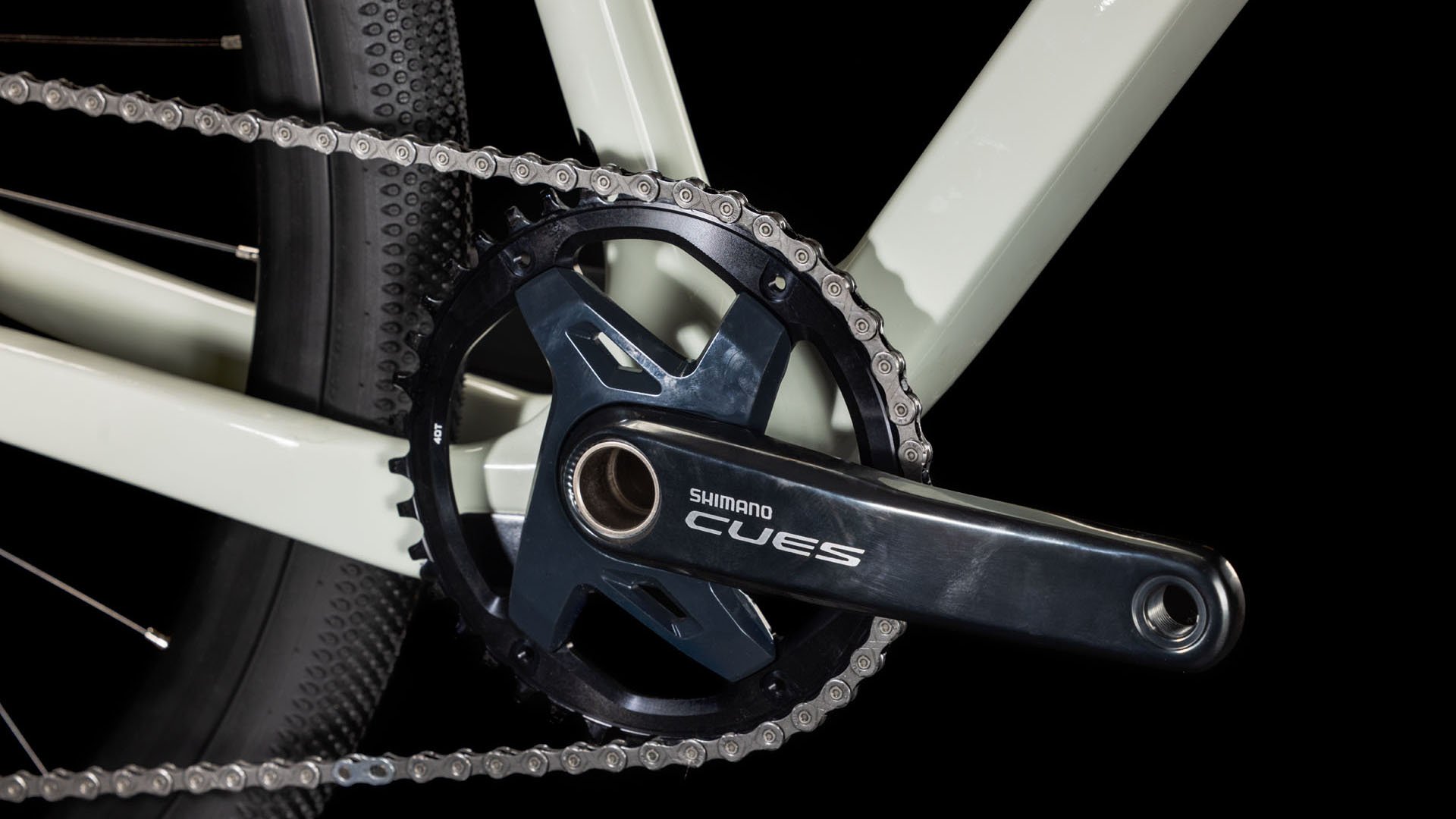

Cranks
Shimano Cues FC-U8000-1
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano BB-MT500PA, 92mm Pressfit
Chain
KMC xGlide Linkglide-compatible chain.
Wheel & Tire Details
Wheelset Name
CUBE OR 2.5 Disc, Tubeless Ready
Front Wheel Depth
Unknown
Rear Wheel Depth
Unknown
Tires
Schwalbe G-One Allround, Kevlar, 40-622
Tire Type
Clincher
Max Tire Size: 45 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano BL-RS600/405, Hydr. Disc Brake, FM (160/160)
Brake Rotors
160mm front / 160mm rear. Utilizes Flat Mount (FM) calliper hardware configurations on both frame ends
Other Components
Saddle
ACID Nuance Lite
Seatpost
CUBE Performance Post, 27.2mmType: Rigid

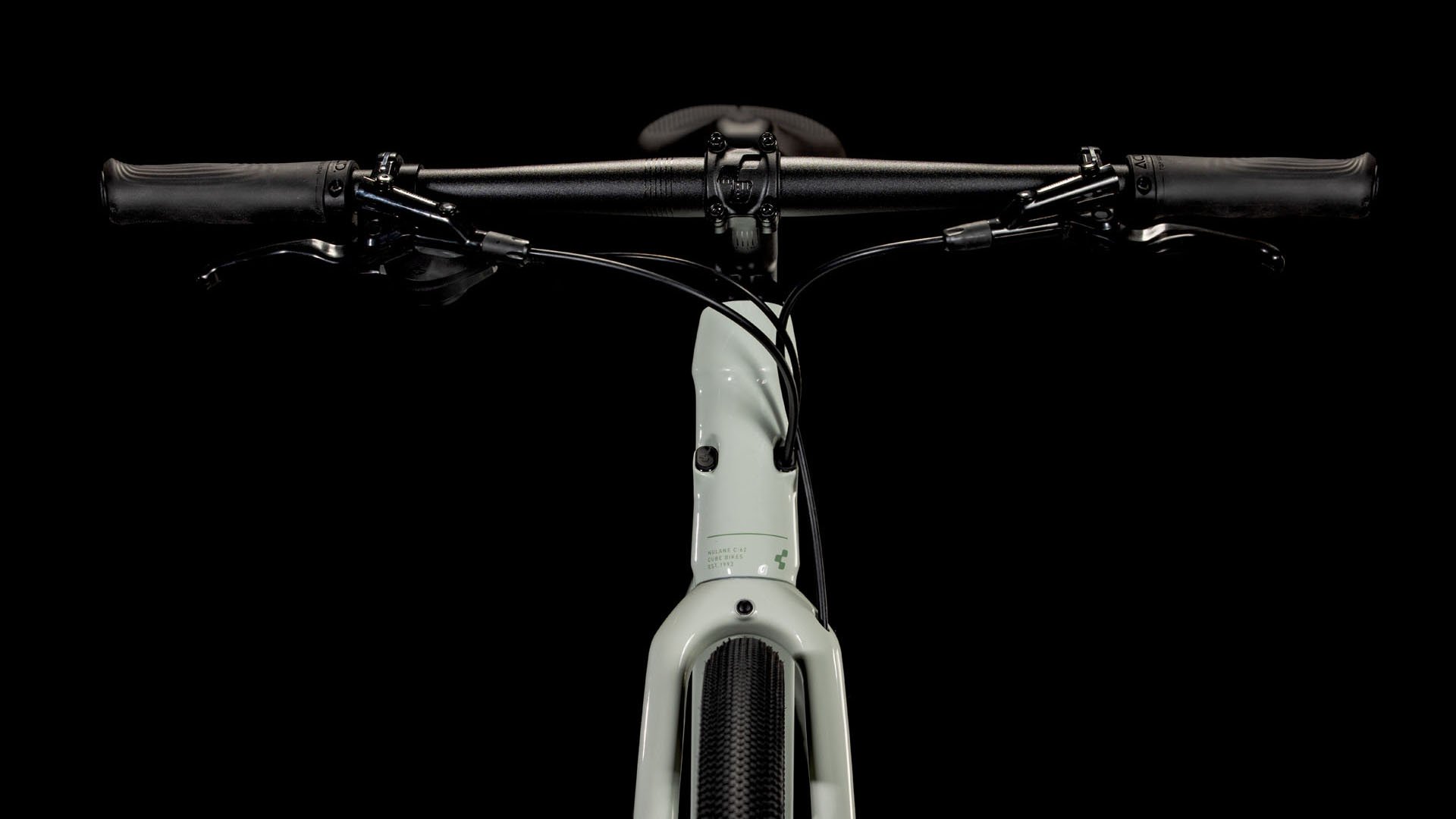

Handlebars
CUBE Flat Race Bar, 660mm
Bar Tape
ACID Travel
