Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Weight: 8.7 kg
The website average for Road bikes is 8.56 kg. This bike is 0.13 kg over the average. Total bike weight may vary depending on frame size.
Groupset
Sram Rival eTap AXS™
Wheelset
Newmen Advanced G.34 Carbon
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 50 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
XS S M L XLThis frame comes in 5 sizes, this is 0.56 less sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Sizing | |||||
| Rider height | 160–170 cm | 170–178 cm | 178–185 cm | 185–193 cm | — |
| Wheel size | 700c | 700c | 700c | 700c | 700c |
| Frame geometry | |||||
| Stack (mm) | 520 | 544 | 579 | 599 | 623 |
| Reach (mm) | 388 | 388 | 393 | 392 | 402 |
| Effective top tube (mm) | 521 | 544 | 569 | 585 | 606 |
| Seat tube (mm) | 450 | 480 | 510 | 540 | 580 |
| Head tube (mm) | 103 | 124 | 157 | 179 | 205 |
| Standover (mm) | 734 | 759 | 788 | 815 | 851 |
| Handling | |||||
| Head angle (°) | 70 | 71 | 71.50 | 71.50 | 71.50 |
| Seat angle (°) | 74.50 | 74 | 73.50 | 73.50 | 73 |
| Chainstay (mm) | 425 | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 1,018 | 1,032 | 1,052 | 1,069 | 1,092 |
Frame Details
Frame Weight
This frame weighs 1150g
Frame Material
Carbon Fiber
Forks
C:62® Advanced Twin Mold Technology, Internal Cable Routing, Integrated Seat Post Clamp, Flat Mount Disc, Fender/Rack & Kickstand Option, 12x142mm, UDH™
Fork Material
The forks are made from Carbon Fiber
Cables: Semi Routed
Routed through the frame, not the bars
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Sram Rival eTap AXS™
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Rival eTap AXS™
Front Derailleur
None

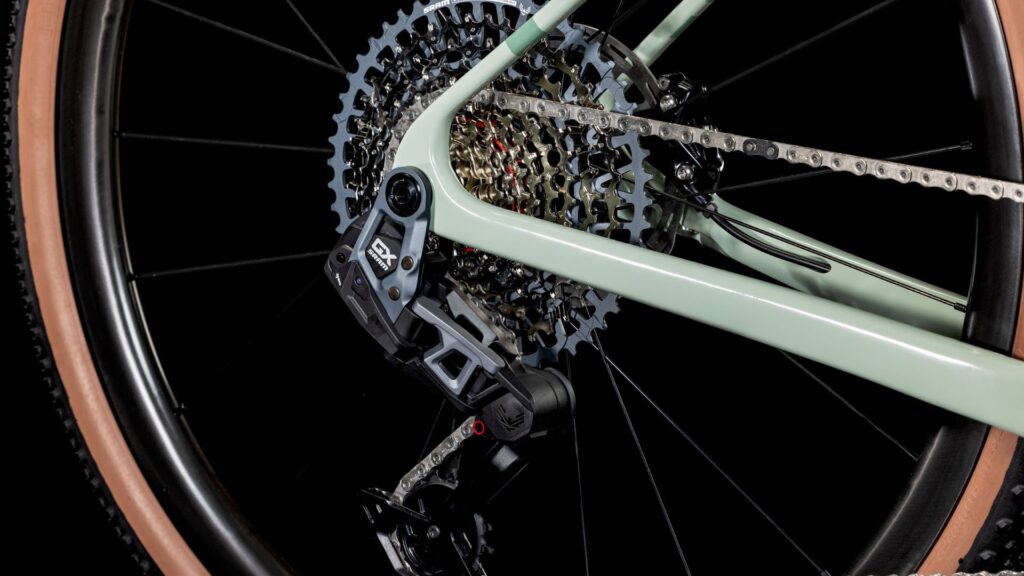

Rear Derailleur
SRAM GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System
Cassette
SRAM XS-1275 T-Type Eagle, 10-52T range (Official spec).
Cranks
SRAM Rival 1 Wide DUB
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
SRAM DUB Road Wide, Pressfit
Chain
SRAM GX Eagle Transmission Flattop (Official spec).
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Newmen Advanced G.34 Carbon, 21/21 Spokes, 12x100mm/12x142mm, Tubeless Ready
Front Wheel Depth
34mm
Rear Wheel Depth
34mm
Tires
Conti Terra Trail, ShieldWall, 45-622
Tire Type
Clincher
Max Tire Size: 50 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Rival AXS™ (160/160)
Brake Rotors
160 mm Front / 160 mm Rear
Other Components
Saddle
ACID Nuance Pro
Seatpost
Newmen Advanced
Handlebars
Newmen Advanced Gravel Bar 318, Carbon, 31.8mm
Bar Tape
ACID Bartape CX
