Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 5 Years
Limited warranty website average: 3.12 years
Released: 2023
The bike was released 3 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano 105 12 Speed Mechanical
Wheelset
Elves Orome BH45D T800 Carbon
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 30 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
47 50 53 56 59 62This frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 47 cm |
|---|---|
| Sizing | |
| Rider height | 155–165 cm |
| Frame geometry | |
| Seat tube (mm) | 470 |
Frame Details
Frame Weight
This frame weighs 870g
Frame Material
Carbon Fiber
Forks
Full Carbon, 430g
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
Shimano 105 12 Speed Mechanical
Electric Groupset: No
This bike doesn't have electric gears
Shifters
Shimano 105 12 Speed Mechanical

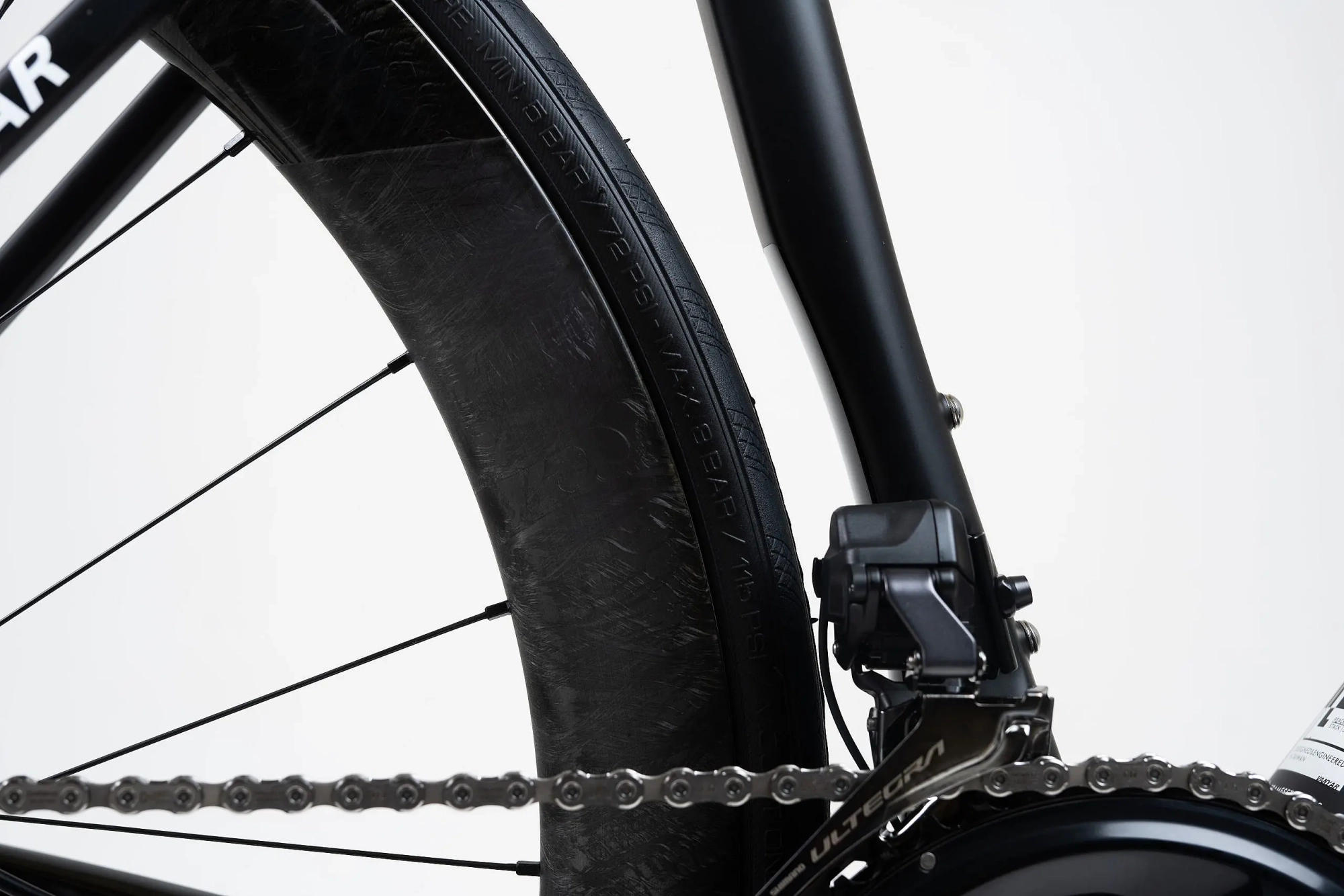

Front Derailleur
Shimano Ultegra Di2 FD-R8150 (Confirmed)
Rear Derailleur
Shimano 105 12 Speed Mechanical
Cassette
Shimano Ultegra CS-R8100 (Inferred from groupset family)
Cranks
Shimano FC-R8100 (Size-scaled by buyer)
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
BB386
Chain
Shimano XT/Ultegra CN-M8100 (Inferred from groupset family)
Wheel & Tire Details
Wheelset Name
ELVES OROME BH45D T800 CARBON FIBRE WHEELS (1660g)
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Vittoria Zaffiro Wired (Black)
Tire Type
Clincher
Max Tire Size: 30 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
Shimano 105 12 Speed Mechanical

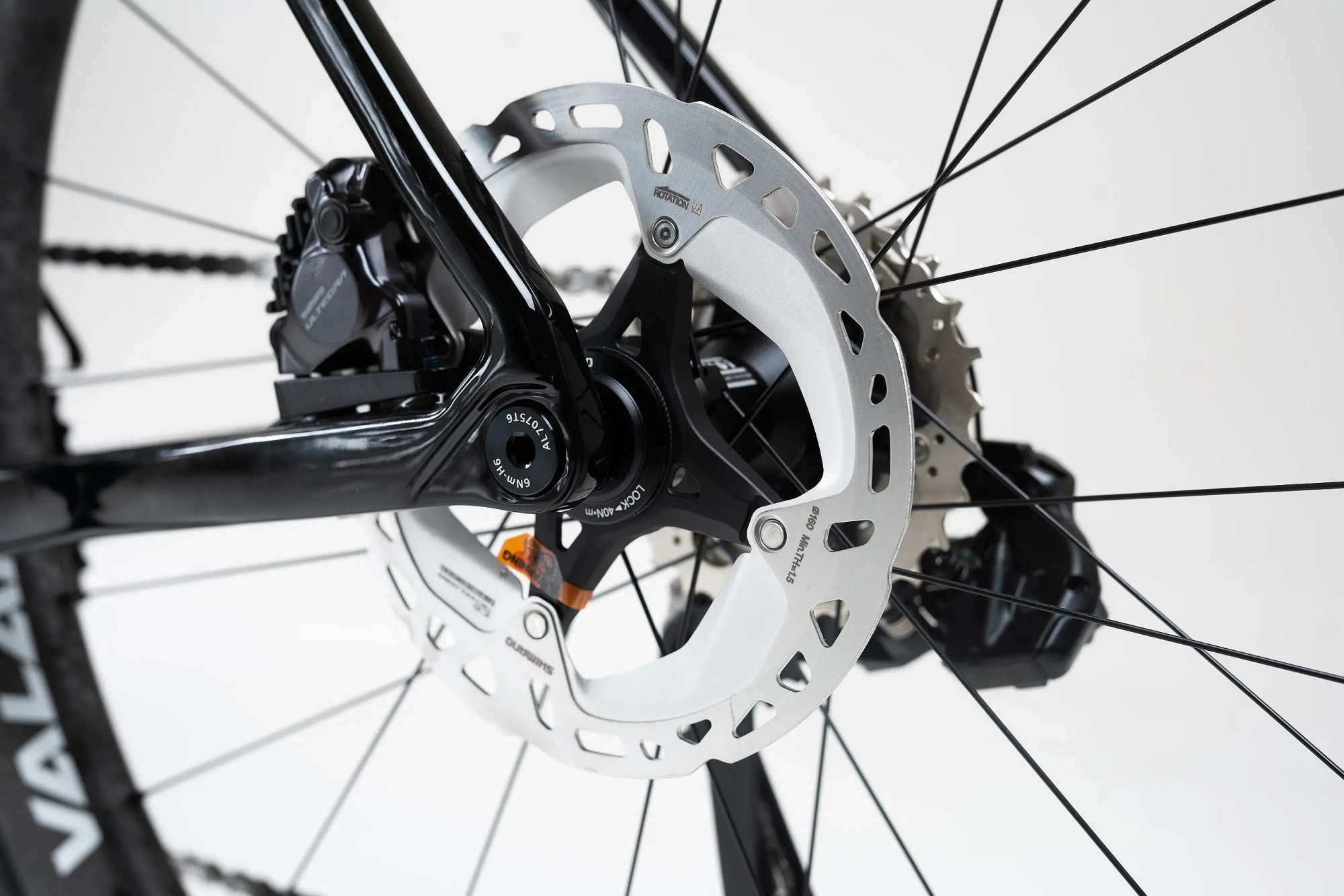

Brake Rotors
Supports up to a 160 mm rotor max via flat mount adapter spacing. Typical stock builds utilize a 160 mm rotor on the front wheel and a 140 mm rotor on the rear wheel for optimized cooling and modulate bias
Other Components
Saddle
Pro Stealth Sport (267g)
Seatpost
215g
Handlebars
ELVES Falath EVO Frame One Piece
Bar Tape
Cork Black, Cork Blue, Cork Red, Cork Yellow, Cork White, Lizard Skin Black, Lizard Skin Blue, Lizard Skin, Lizard Skin Red, Lizard Skin Yellow, Lizard Skin White
