Bike Info

Worldwide Shipping: No
Only delivered to specific countries

Warranty: Lifetime
Limited warranty website average: 3.12 years

Released: 2020
The bike was released 5 years ago

Bike Type: Road
The style of riding intended for this bike
Bike Spec

Weight: 10.5 kg
The website average for Road bikes is 8.22 kg. This bike is 2.27 kg over the average. Total bike weight may vary depending on frame size.

Groupset
Claris

Wheelset
700c Aluminum

Brake Type: Disc Brake
Welcome to the future!

Frameset Material
Aluminium

Max Tire Size: mm
This is the max tire size you can use

UCI Approved: Unknown
You can't use for official races
Sizing & Geometry
Frame Sizes
S M LThis frame comes in 3 sizes, this is 2.47 less sizes than the website average.

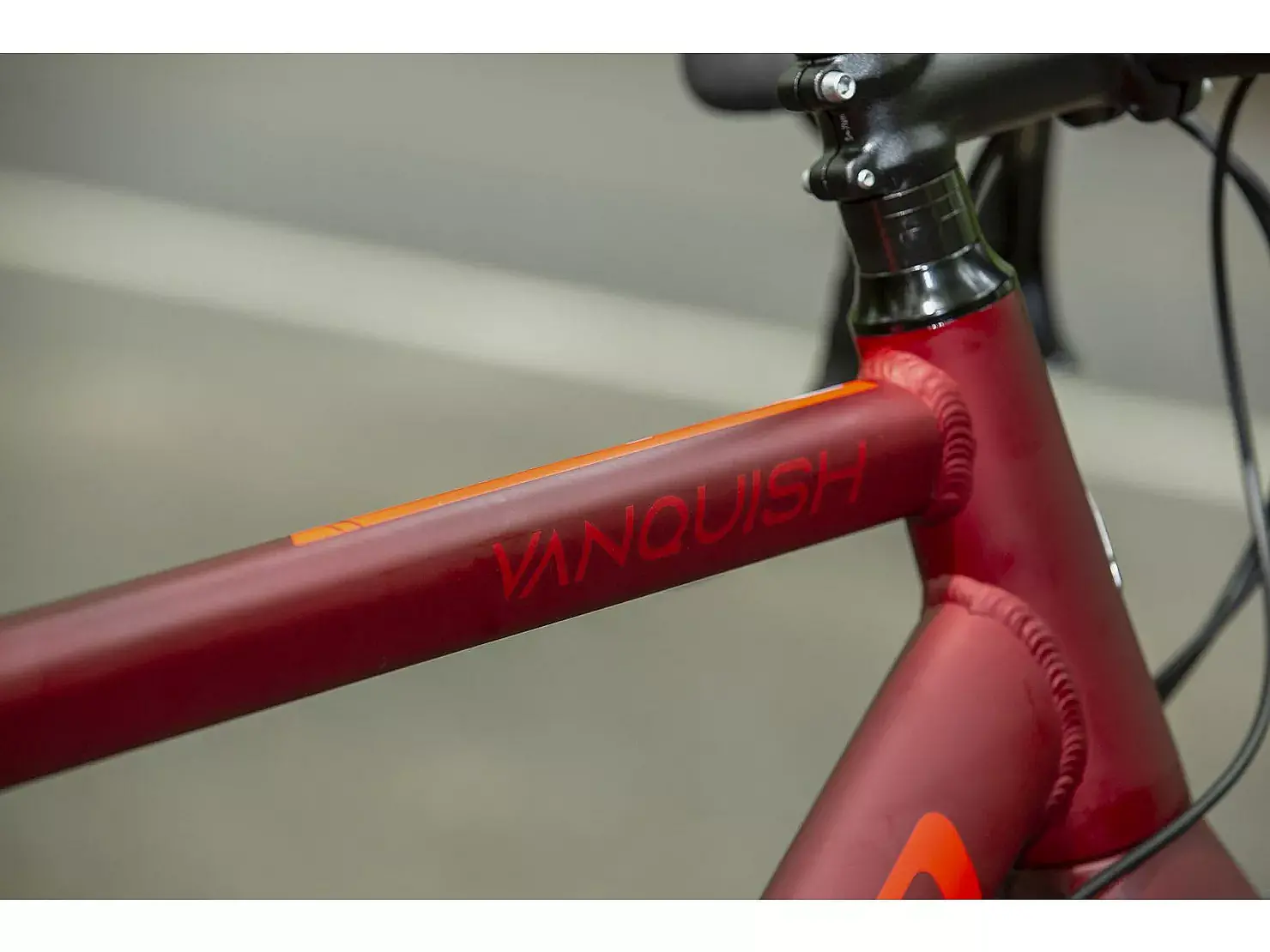

Frame Details

Frame Weight
Unknown

Frame Material
Aluminium

Forks
Full Carbon fork, tapered

Fork Material
The forks are made from Carbon Fiber

Cables: Externally Routed
Routed outside the bars, stem and frame

Axel Type:
How the wheels are secured to the frame

Brake Type: Disc Brake
Welcome to the future!

Brake Mount: Flat Mount
How the calipers are mounted

Integrated bar and stem: No
You can use any bar and stem
Drivechain Details

Groupset name
Claris

Electric Groupset: No
This bike doesn't have electric gears

Shifters
Shimano ST-R2000, integrated

Front Derailleur
Shimano FD-R200, 31.8mm clamp

Rear Derailleur
Shimano RD-R2000, 8 Speed

Cassette
Shimano CS-HG50 8 Speed, 11-28t

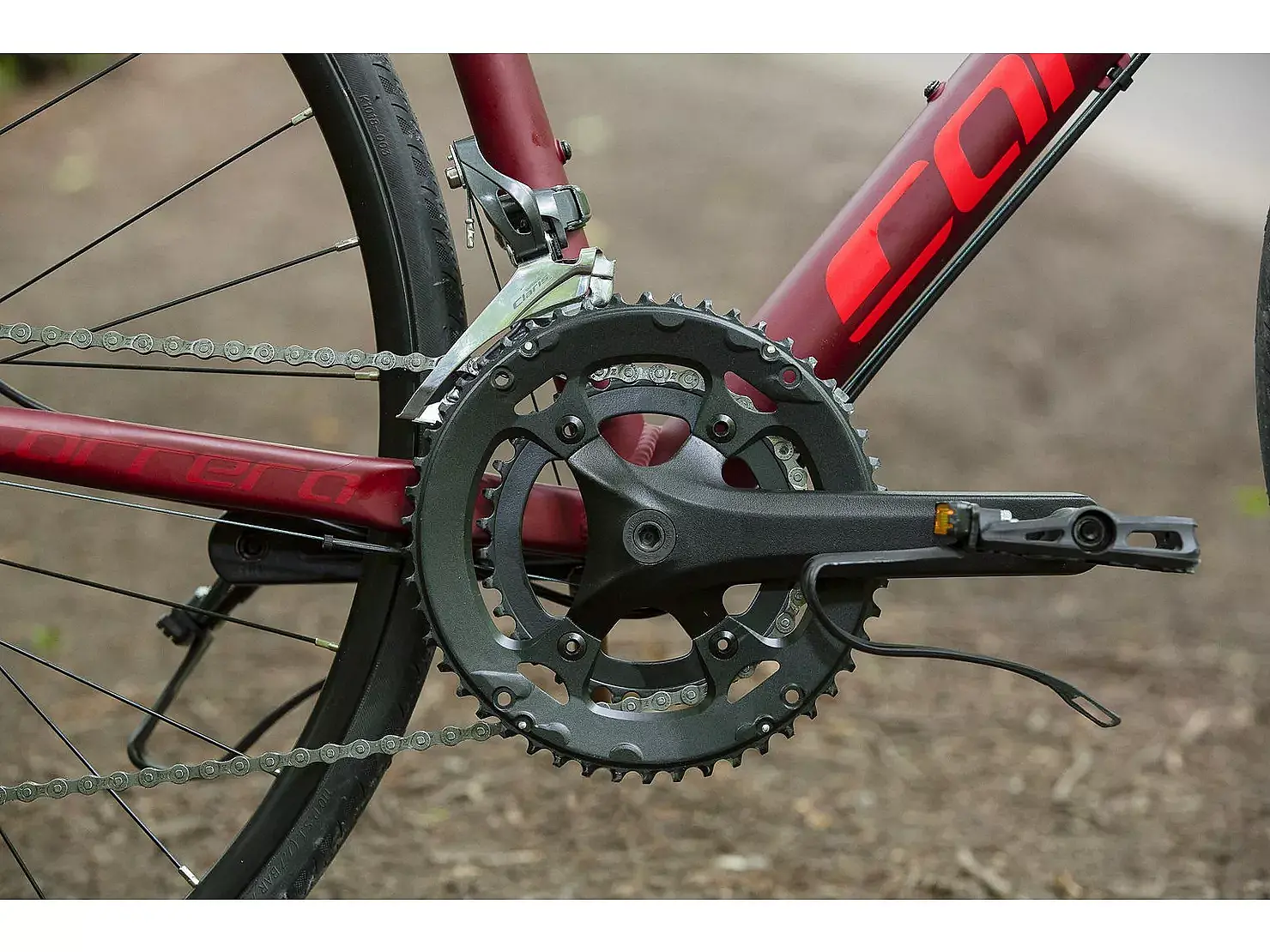

Cranks
Prowheel, 50/34T, square taper, 170mm

Power Meter: No
This bike doesn't have a power meter

Bottom Bracket
Sealed bearing

Chain
KMC Z8 8-speed
Wheel & Tire Details

Wheelset Name
700c Aluminum

Front Wheel Depth
mm

Rear Wheel Depth
mm

Tires

Tire Type

Max Tire Size: mm
This is the max tire size you can use
Brakes

Brake Type: Disc Brake
Welcome to the future!

Brake Mount: Flat Mount
How these disc brakes are mounted

Brakes
Front: Tektro MD-C511 Flat Mount, 160mm rotor, Rear: Tektro MD-C511 Flat Mount, 160mm rotor

Brake Rotors
Unknown
Other Components

Saddle

Seatpost
Carrera Alloy, 27.2 x 300mm, 31.8mm clampType: Rigid

Handlebars

Bar Tape
Velo Cork tape
Manufactures Description
Carrera Carrera Vanquish at a Glance Carrera Frame: Triple butted, light Alloy frame with dropped seat stays for extra comfort Fork: Carbon fork reduces road vibration Gears: 2x8 Shimano Claris gears for slick gear changes Brakes: Flat mounted Mechanical disc brakes for controlled stopping power Wheels: 700c double walled rims for extra durability Saddle: Carrera Memory Foam Saddle for ultimate comfort on your ride Lifetime Frame Gu ... Read More
