Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 6 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Gravel
The style of riding intended for this bike
Bike Spec
Weight: 7.8 kg
The website average for Gravel bikes is 9.44 kg. This bike is 1.64 kg under the average. Total bike weight may vary depending on frame size.
Groupset
SRAM Force AXS
Wheelset
DT Swiss CRC 1400 Spline
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 35 mm
This is the max tire size you can use
UCI Approved: Yes
You can use for official races
Sizing & Geometry
Frame Sizes
2XS XS S M L XL XXLThis frame comes in 7 sizes, this is 1.44 more sizes than the website average.

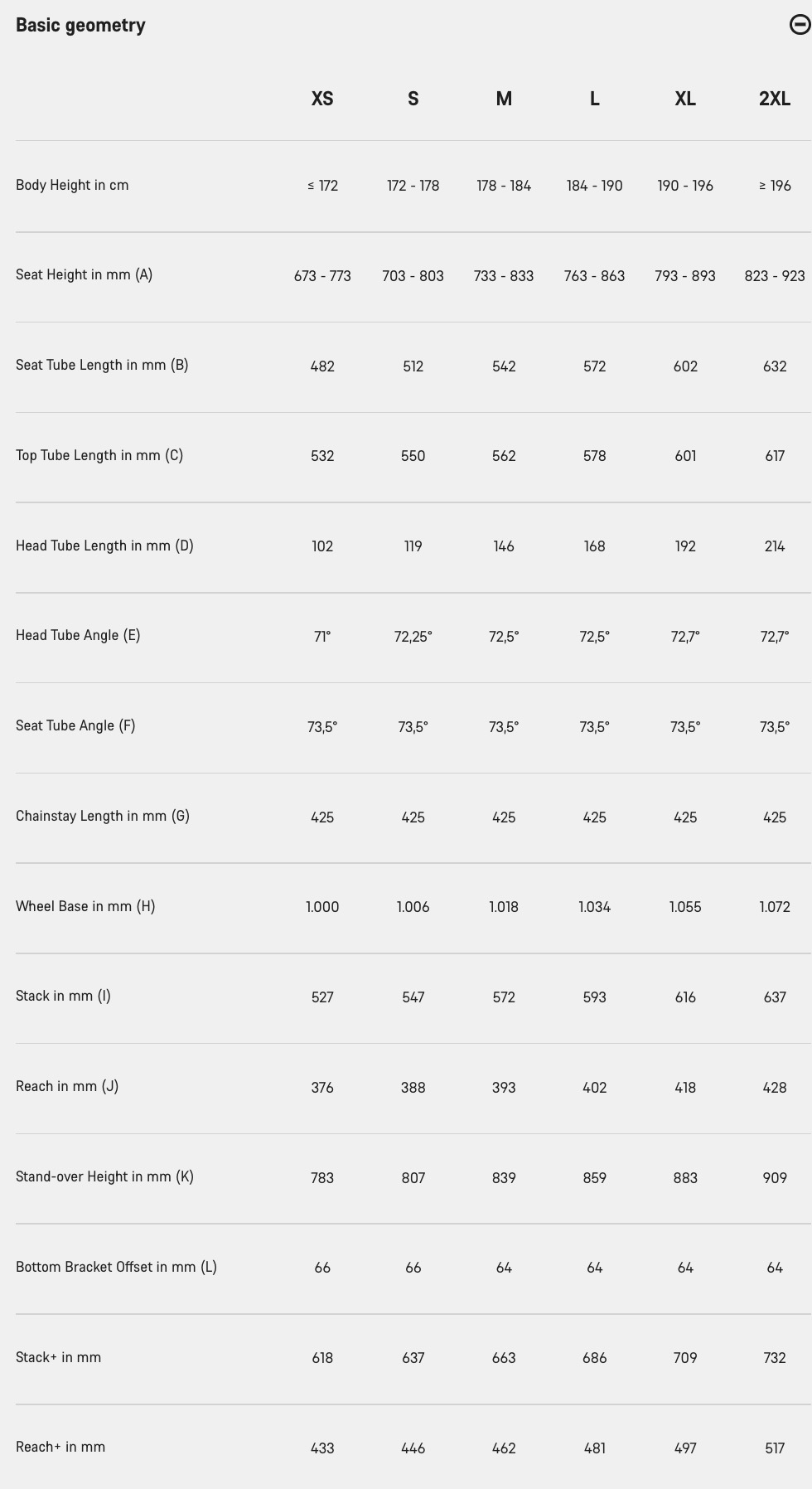

Sizing & Geometry
Frame measurements and sizing vary by bike size. Measurements are shown for each available frame size.
Swipe across to view all sizes.
| Geometry | 2XS | XS | S | M | L | XL | 2XL |
|---|---|---|---|---|---|---|---|
| Sizing | |||||||
| Rider height | 160–166 cm | 166–172 cm | 172–178 cm | 178–184 cm | 184–190 cm | 190–196 cm | 196–198 cm |
| Wheel size | 650b | 650b | 650b | 700c | 700c | 700c | 700c |
| Frame geometry | |||||||
| Stack (mm) | 510 | 527 | 547 | 572 | 593 | 616 | 637 |
| Reach (mm) | 371 | 376 | 388 | 393 | 402 | 418 | 428 |
| Effective top tube (mm) | 522 | 532 | 550 | 562 | 578 | 601 | 617 |
| Seat tube (mm) | 452 | 482 | 512 | 542 | 572 | 602 | 632 |
| Head tube (mm) | 113 | 102 | 119 | 146 | 168 | 192 | 214 |
| Standover (mm) | 749 | 783 | 807 | 839 | 859 | 883 | 909 |
| Handling | |||||||
| Head angle (°) | 71.50 | 71 | 72.25 | 72.50 | 72.50 | 72.70 | 72.70 |
| Seat angle (°) | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 | 73.50 |
| Chainstay (mm) | 415 | 425 | 425 | 425 | 425 | 425 | 425 |
| Wheelbase (mm) | 980 | 1,000 | 1,006 | 1,018 | 1,034 | 1,055 | 1,072 |
| BB drop (mm) | — | 66 | 66 | 64 | 64 | 64 | 64 |
Frame Details
Frame Weight
This frame weighs 940g
Frame Material
Carbon Fiber
Forks
Canyon FK0114 Axle dimension: 12x100 mm Weight: 975 g
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Integrated bar and stem: Yes
The bar and stem are integrated
Drivechain Details
Groupset name
SRAM Force AXS
Electric Groupset: Yes
This bike has electric gears
Shifters
SRAM Force AXS HRD, 12-speed, Number of pistons: 2, Weight: 401 g | SRAM Force AXS HRD D2, Number of pistons: 2, Weight: 405 g
Front Derailleur
None
Rear Derailleur
SRAM Force AXS RD 12s, Weight: 306 g
Cassette
SRAM Force XG-1270, 10-36T
Cranks
SRAM Force DUB
Power Meter: Yes
This bike comes with a power meter
Bottom Bracket
SRAM DUB Pressfit, PF 86,5, Weight: 67 g
Chain
SRAM Force Flattop 12-speed
Battery
Unknown
Wheel & Tire Details
Wheelset Name
DT Swiss CRC 1400 Spline, Axle dimension: 12x100 mm, Rotor mount: Center Lock, Rim height: 45 mm, Weight: 671 g | DT Swiss CRC 1400 Spline XDR, Axle dimension: 12x142 mm, Rotor mount: Center Lock, Rim height: 45 mm, Weight: 854 g
Front Wheel Depth
45mm
Rear Wheel Depth
45mm
Tires
Schwalbe X-One R Evo, Width: 33 mm, Weight: 418 g
Tire Type
Tubeless
Max Tire Size: 35 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How these disc brakes are mounted
Brakes
SRAM Force AXS HRD, 12-speed, Number of pistons: 2, Weight: 401 g | SRAM Force AXS HRD D2, Number of pistons: 2, Weight: 405 g
Brake Rotors
140 mm Front / 140 mm Rear standard flat-mount setups using SRAM Paceline Center Lock rotors. (Note: Some regional markets feature a step-up 160 mm front rotor configuration for sizing tiers above Medium, but the standard race build focuses on the 140 mm platform configuration for weight parity)
Other Components
Saddle
Selle Italia SLR Boost, Gender: Unisex, Max. Rider Weight: 100 kg, Weight: 195 g
Seatpost
Canyon S14 VCLS 2.0 CF Material: Carbon Setback: -2 mm / 10 mm Technology: VCLS 2.0 | Fliphead Weight: 220 g

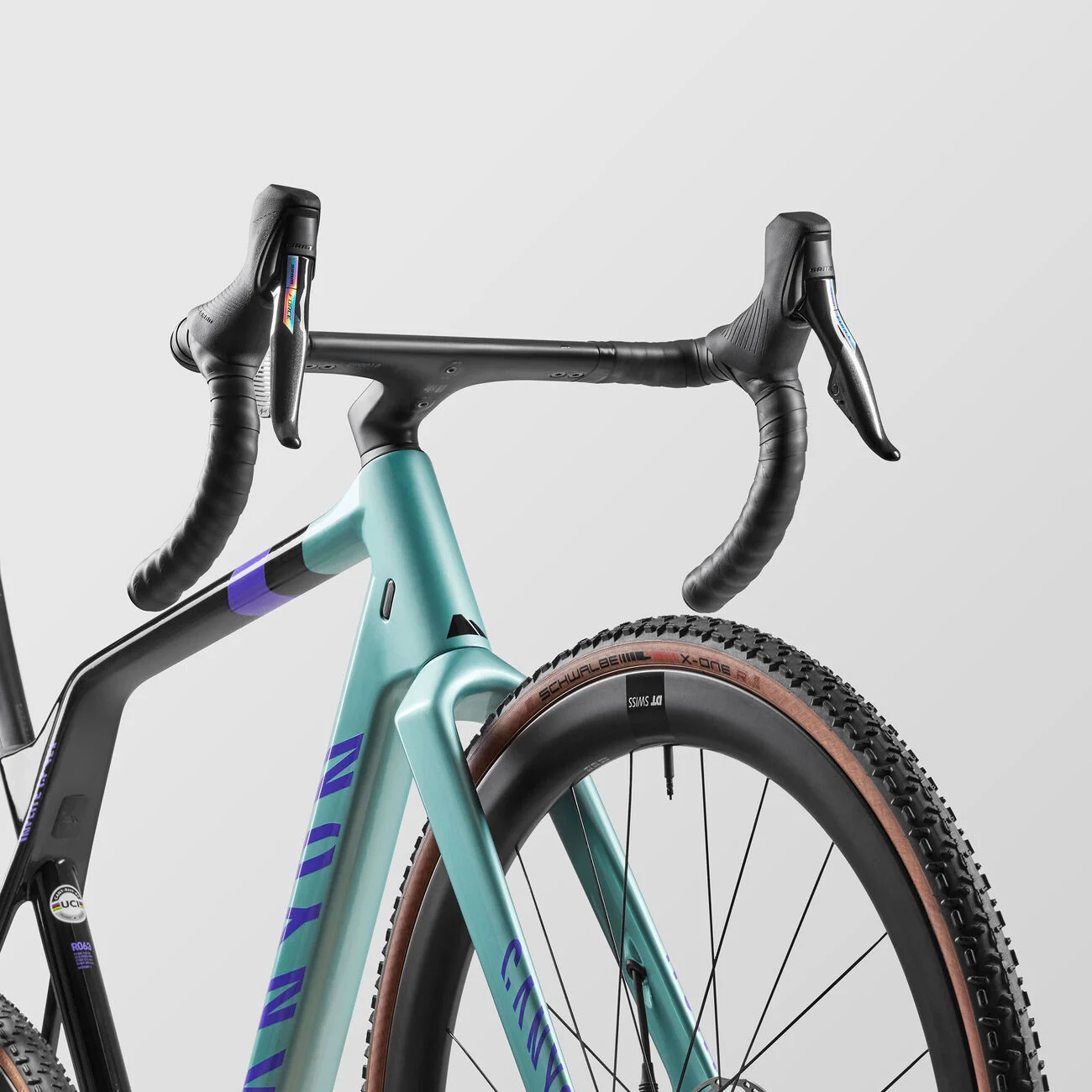

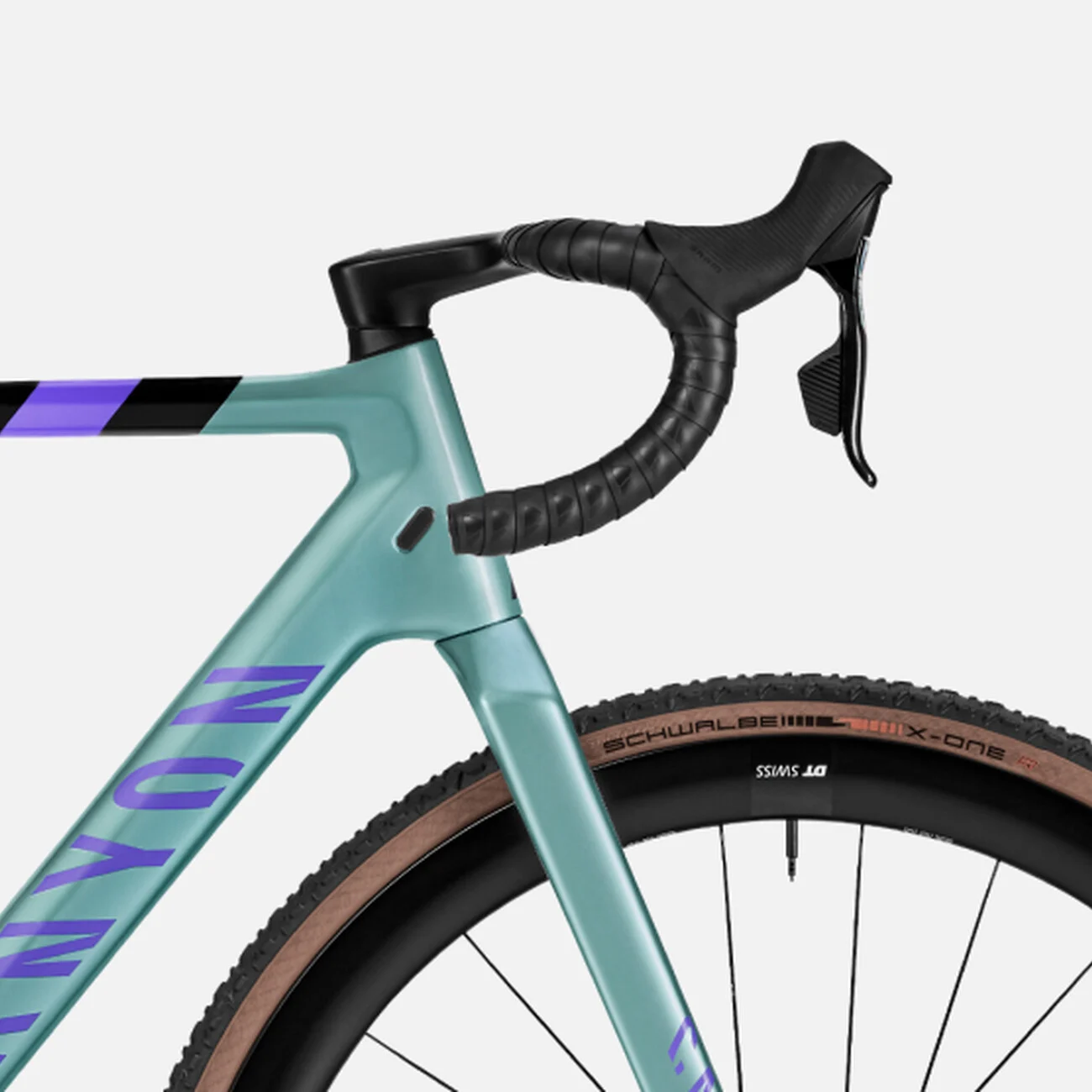

Handlebars
Canyon CP0018 Cockpit CF (Carbon)
Bar Tape
Canyon Ergospeed Gel
