Bike Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 5 Years
Limited warranty website average: 3.12 years
Released: 2025
The bike was released 1 years ago
Bike Type: Road
The style of riding intended for this bike
Bike Spec
Groupset
Shimano 105 Di2, FD-R7150, top gear 50-52T
Wheelset
Vision Trimax 30 Disc Brake
Brake Type: Disc Brake
Welcome to the future!
Frameset Material
Carbon Fiber
Max Tire Size: 32 mm
This is the max tire size you can use
UCI Approved: Unknown
You can't use for official races

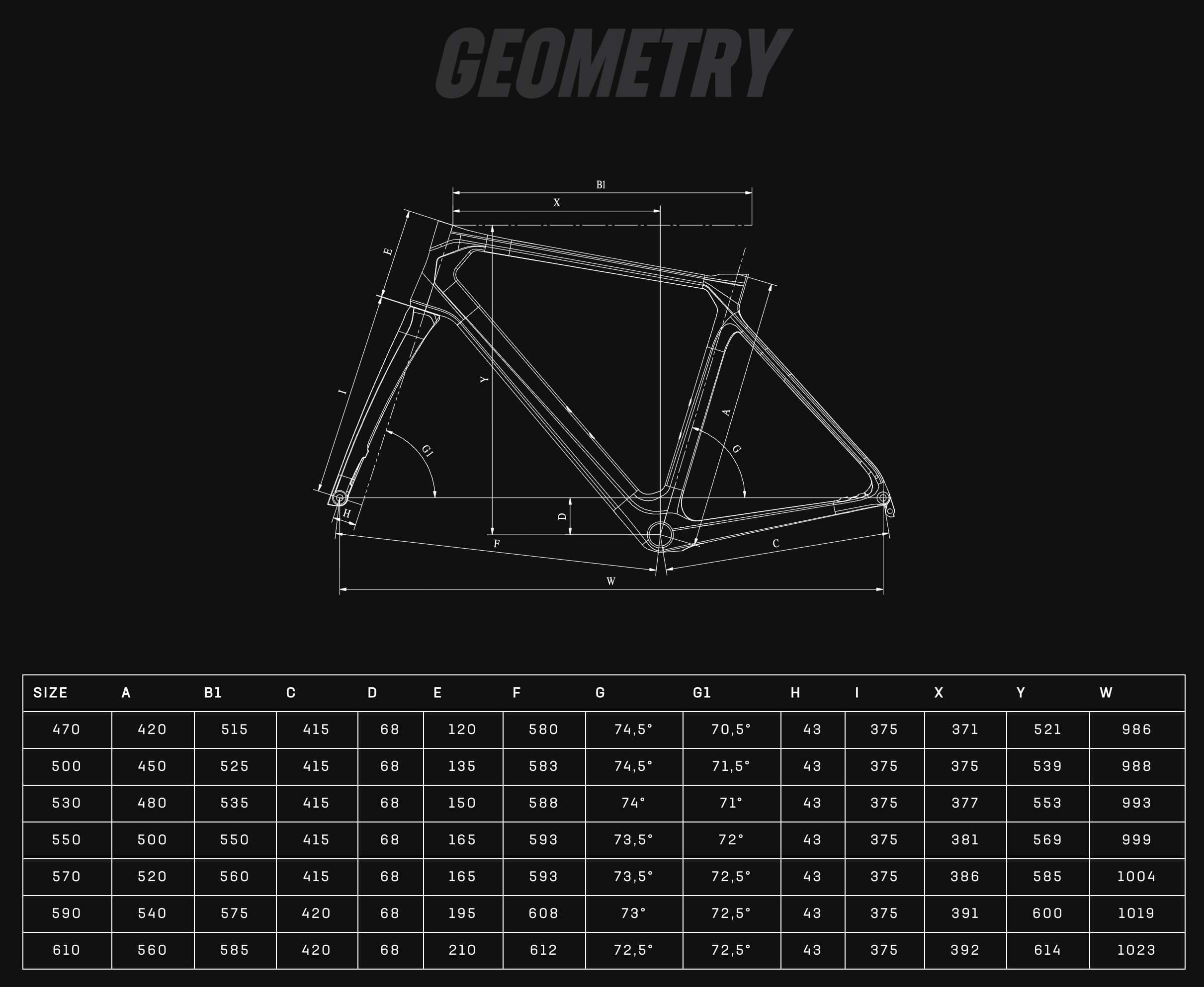

Sizing & Geometry
Frame Sizes
47 50 53 55 57 59 61This frame comes in 7 sizes, this is 1.44 more sizes than the website average.
Frame Details
Frame Weight
Unknown
Frame Material
Carbon Fiber
Forks
INFINITO Carbon engineered with CV vibration cancelling system, Disc Brake, Mechanical/Electronic Di2/EPS, TC19, compatible with 32" tire, BBset pressfit 86,5x41, rear dropout 12 x 142mm thru axle, sizes 47-50-53-55-57-59-61cm
Fork Material
The forks are made from Carbon Fiber
Cables: Internally Routed
Routed through bars, stem and frame
Axel Type: Thru-axle
How the wheels are secured to the frame
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Integrated bar and stem: No
You can use any bar and stem
Drivechain Details
Groupset name
Shimano 105 Di2, FD-R7150, top gear 50-52T
Electric Groupset: Yes
This bike has electric gears
Shifters
Shimano 105 hydraulic disc brake for road
Front Derailleur
Shimano 105 Di2 FD-R7150 (Brazed-on type).
Rear Derailleur
Shimano 105 Di2, RD-R7150, W/TL-EW300
Cassette
Shimano 105 CS-R7101-12.
Cranks
Shimano 105 FC-R7100 Hollowtech II
Power Meter: No
This bike doesn't have a power meter
Bottom Bracket
Shimano SM-BB72-41B, press fit for road
Chain
Shimano CN-M6100 (Deore/105 tier 12-speed) or CN-R7100.
Battery
Unknown
Wheel & Tire Details
Wheelset Name
Vision Trimax 30 disc brake 700X19c, Hubs SC,clincher, front 12X100 - rear 12X142 HG
Front Wheel Depth
30mm
Rear Wheel Depth
30mm
Tires
Pirelli P7, 700 x 28c, 60TPI
Tire Type
Clincher
Max Tire Size: 32 mm
This is the max tire size you can use
Brakes
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How these disc brakes are mounted
Brakes
Shimano BR-R8170 Hydraulic disc brake, included in the shifter
Brake Rotors
Shimano SM-RT70 rotors with Center Lock locking ring interface | 160mm front and 160mm rear
Other Components
Saddle
Fi'zi:k Argo Tempo R5 150mm black wing flex, rail S alloy
Seatpost
Reparto Corse Full Carbon special dimension; lenght: 350mm-47 /57cm; 380mm-59/61cm
Handlebars
Reparto Corse Compact Flat Top, alloy 2014 diam. 31,8mm, reach 80mm, drop 130mm, Sizes: 40-42-44, Size: 400mm-47/50cm, 420mm-53/57cm, 440mm-59/61cm
Bar Tape
Velo Black soft Microfiber tapes+EVA-139 Shockproof 200*3cm with 4 line hole Black/Celeste color and VLP-56 BK plug
