Frame Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 6 Years
Limited warranty website average: 3.12 years
Released: 2022
The frame was released 4 years ago
Frame Type: Road
This is the style of frame
Frame Spec
Weight: 792 grams (Avg)
Website average: 1006g
Material: Carbon Fiber
The material the frame is constructed from
Max Tire Size: 32 mm
This is the max tire size you can use
Bottom Bracket: Pressfit 86.5 mm
The type of bottom bracket to install
Cables: Internally Routed
Cables are completely hidden in the frame
UCI Approved: Unknown
You can't use for official races
Brake Type: Disc Brake
Welcome to the future!
Brake Mount: Flat Mount
How the calipers are mounted
Colours Available: 2
The Amount of colours to choose from
Custom Paint: No
No custom paint option available
Integrated Bar and Stem: Yes
Included with the frame
Axel Type: Thru-axle
How the wheels are secured to the frame

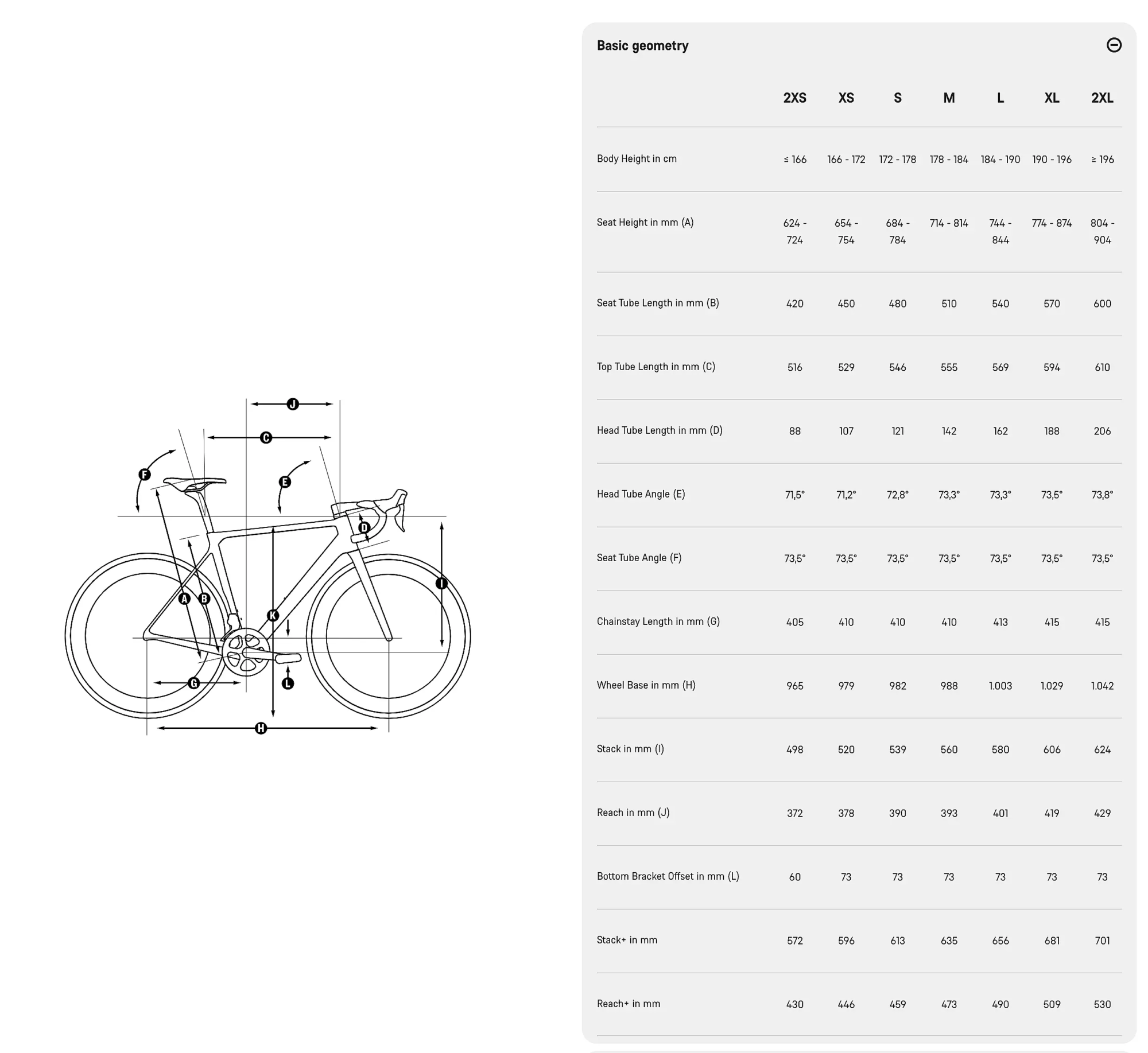

Sizes
This frame comes in 7 sizes, this is 1.44 more sizes than the website average.

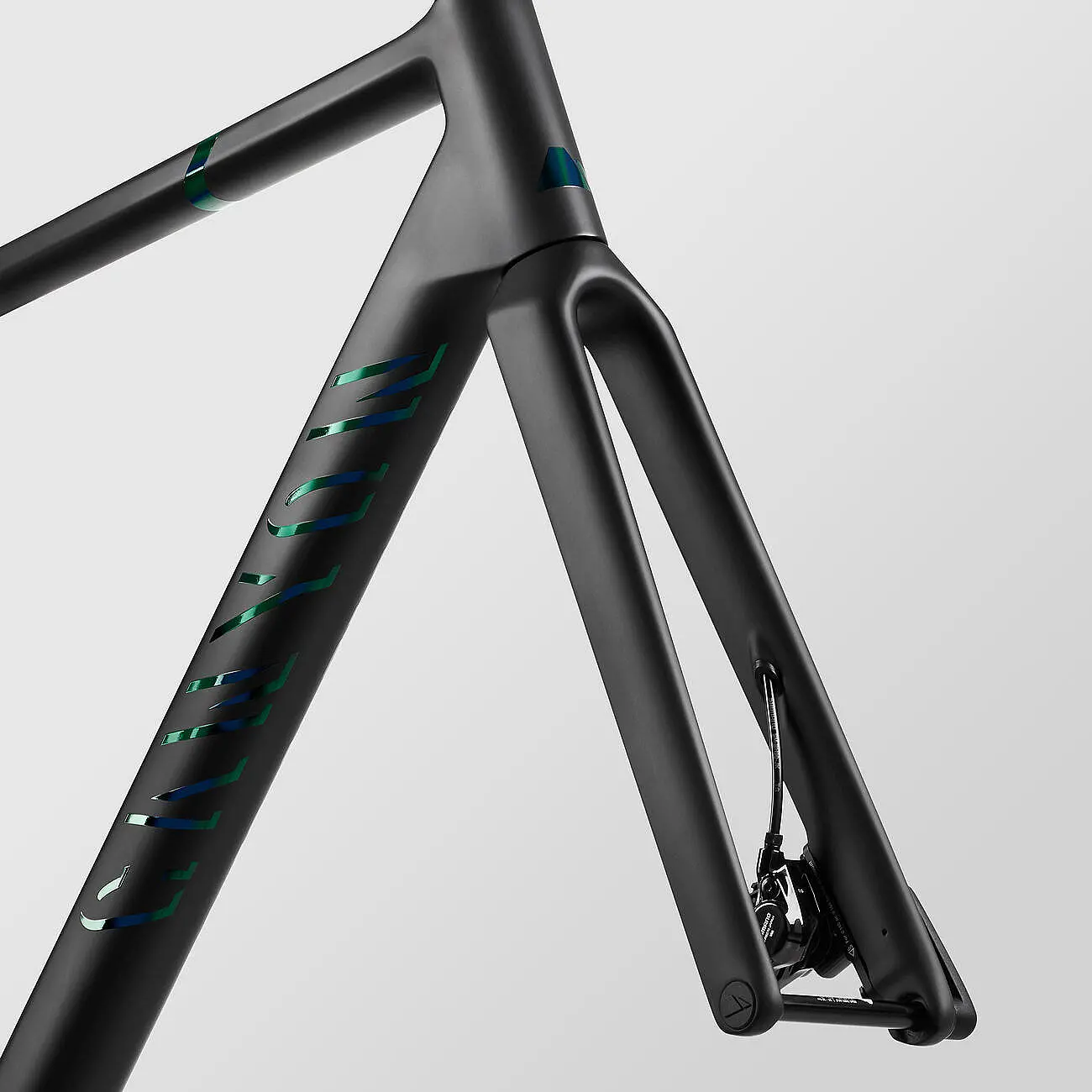

Fork Details
Fork Material: Carbon Fiber
The material the forks are constructed from
Fork Weight: 331g
The weight of your forks
Fork Steerer length: Unknown
Fork steerer tube length unknown

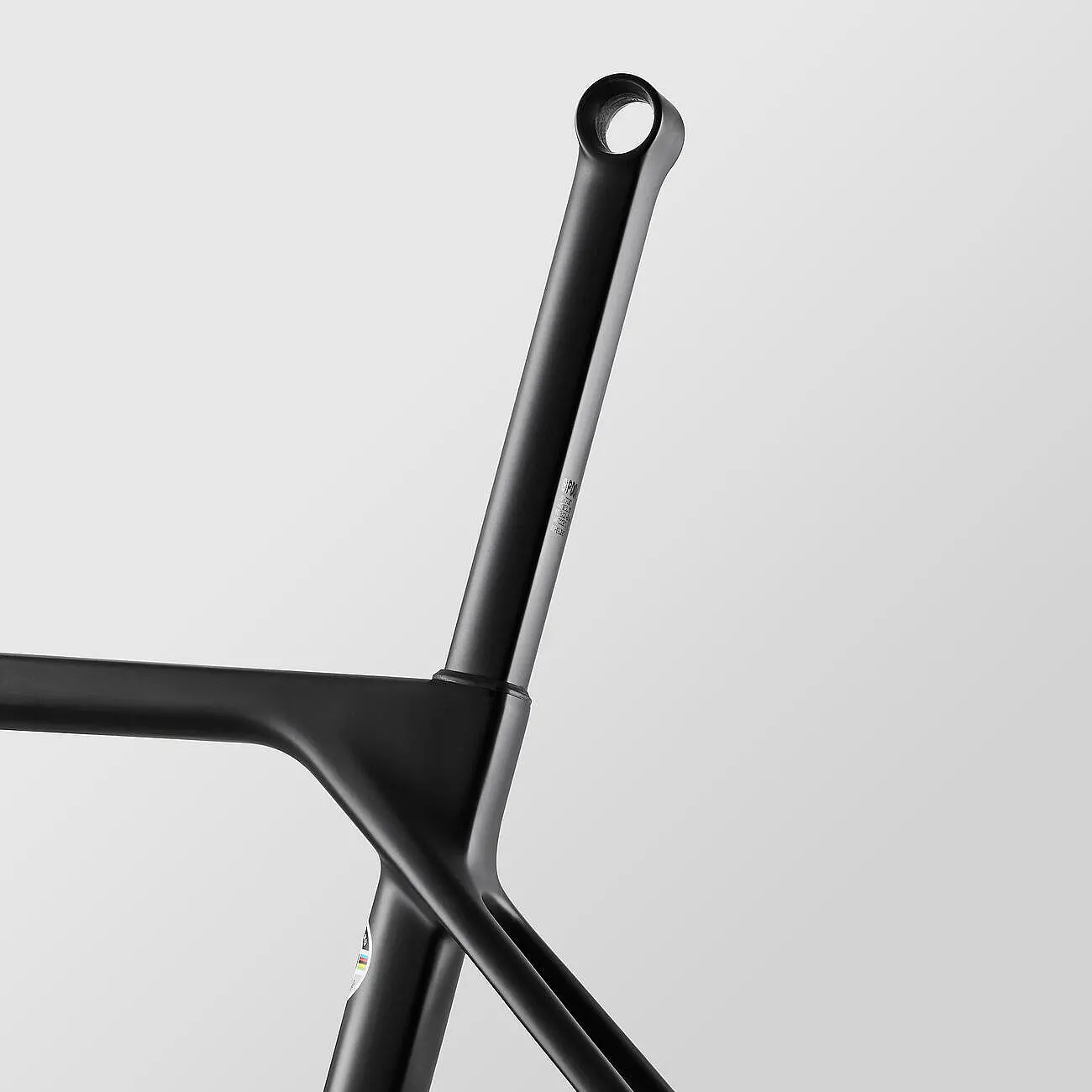

Seat Post
Seat Post
Material: Carbon Fiber
The material the seat post is constructed from
Weight: Unknowng
Seat post weight unknown
Seat Tube Length: 316 mm
Length for size medium frame
Manufactures Description

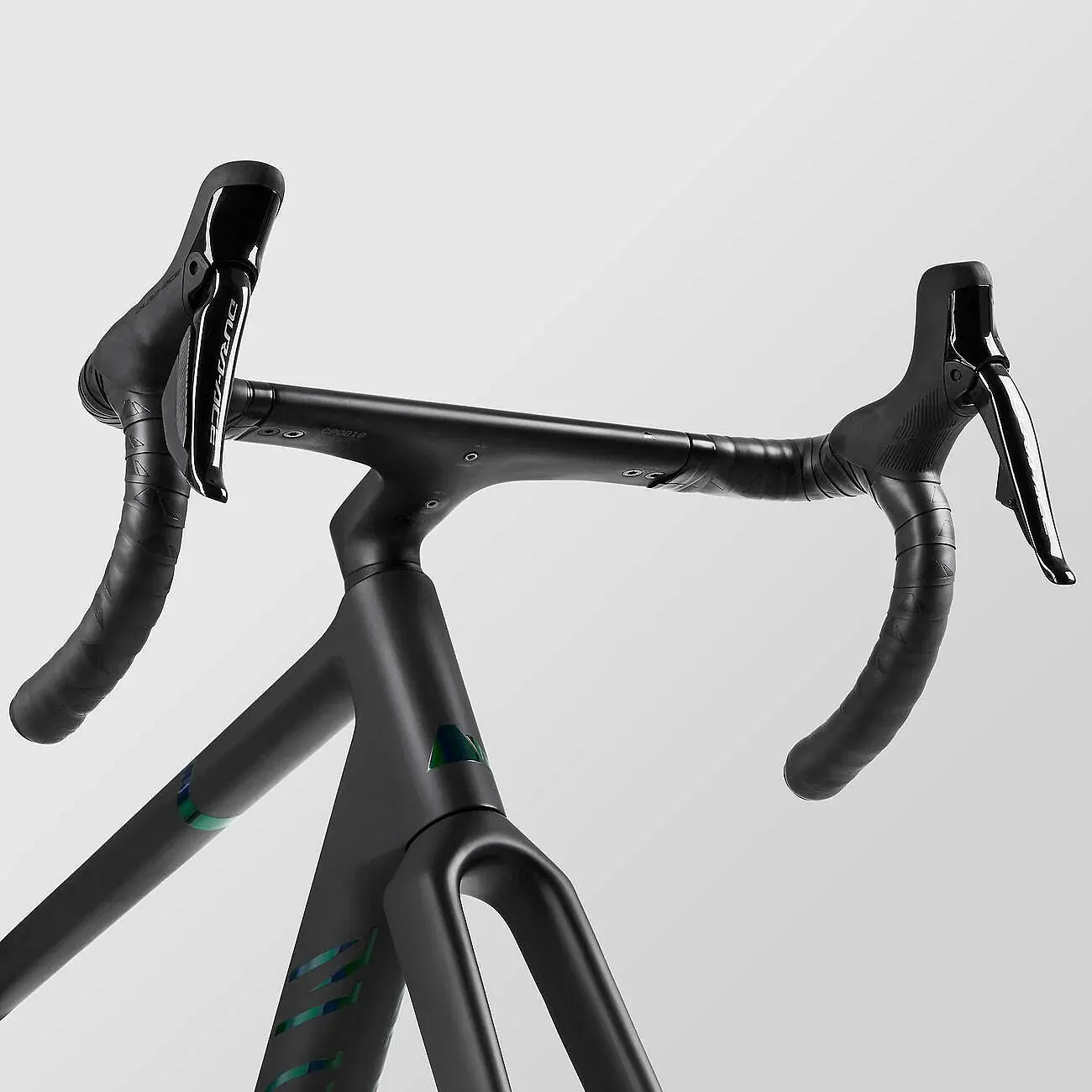

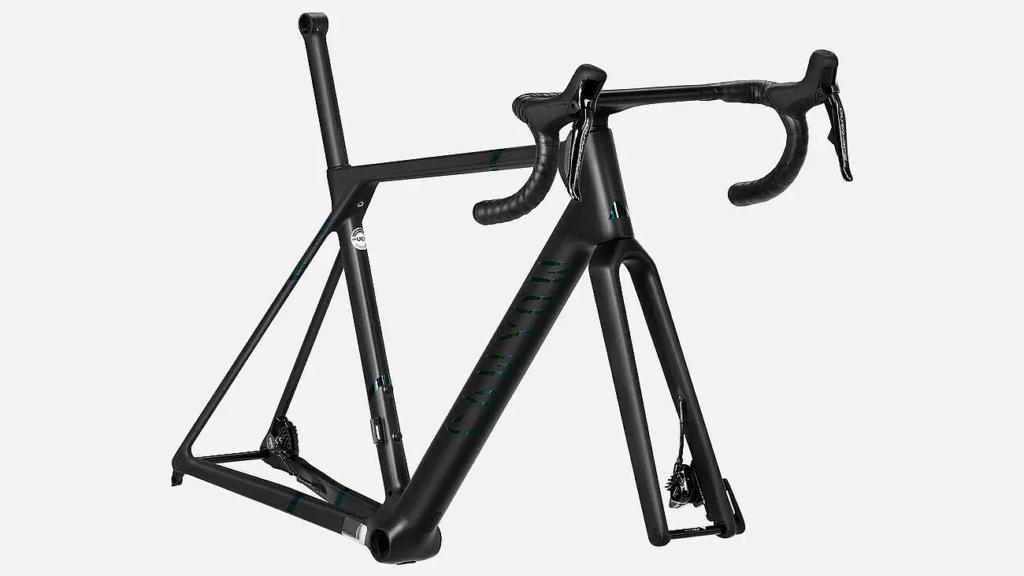

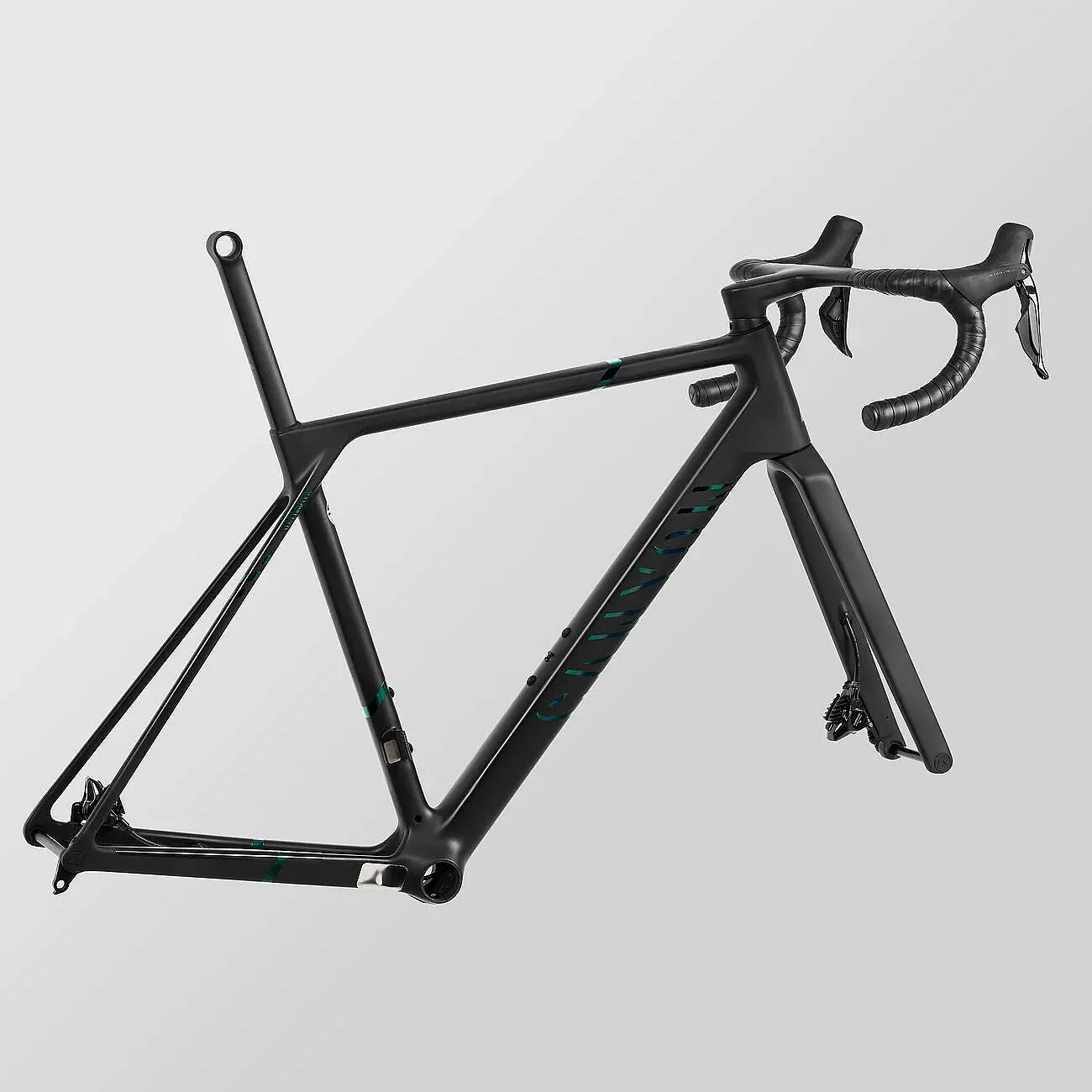

The Ultimate CFR frameset comes with a carbon aero cockpit and seatpost, full-carbon fork, and pre-mounted Shimano Dura-Ace disc brakes. The Ultimate basis for your next world-class build. Latest-generation Canyon aero cockpit You can effortlessly adjust the Ultimate cockpit to your needs and fit. It’s simple thanks to complete cable and line integration, and height and width adjustment without needing to cut your fork shaft. A WorldTour ... Read More
