Frame Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: Lifetime
Limited warranty website average: 3.12 years
Released: 2025
The frame was released 1 years ago
Frame Type: Road
This is the style of frame
Frame Spec
Weight: 900 grams (Avg)
Website average: 1006g
Material: Carbon Fiber
The material the frame is constructed from
Max Tire Size: 48 mm
This is the max tire size you can use
Bottom Bracket: BSA 68mm threaded BB
The type of bottom bracket to install
Cables: Internally Routed
Cables are completely hidden in the frame
UCI Approved: Yes
You can use for official races
Brake Type: Disc Brake
Welcome to the future!
Brake Mount:
How the calipers are mounted
Colours Available: 1
The Amount of colours to choose from
Custom Paint: No
No custom paint option available
Integrated Bar and Stem: No
Standard stem and bars
Axel Type: Thru-axle
How the wheels are secured to the frame

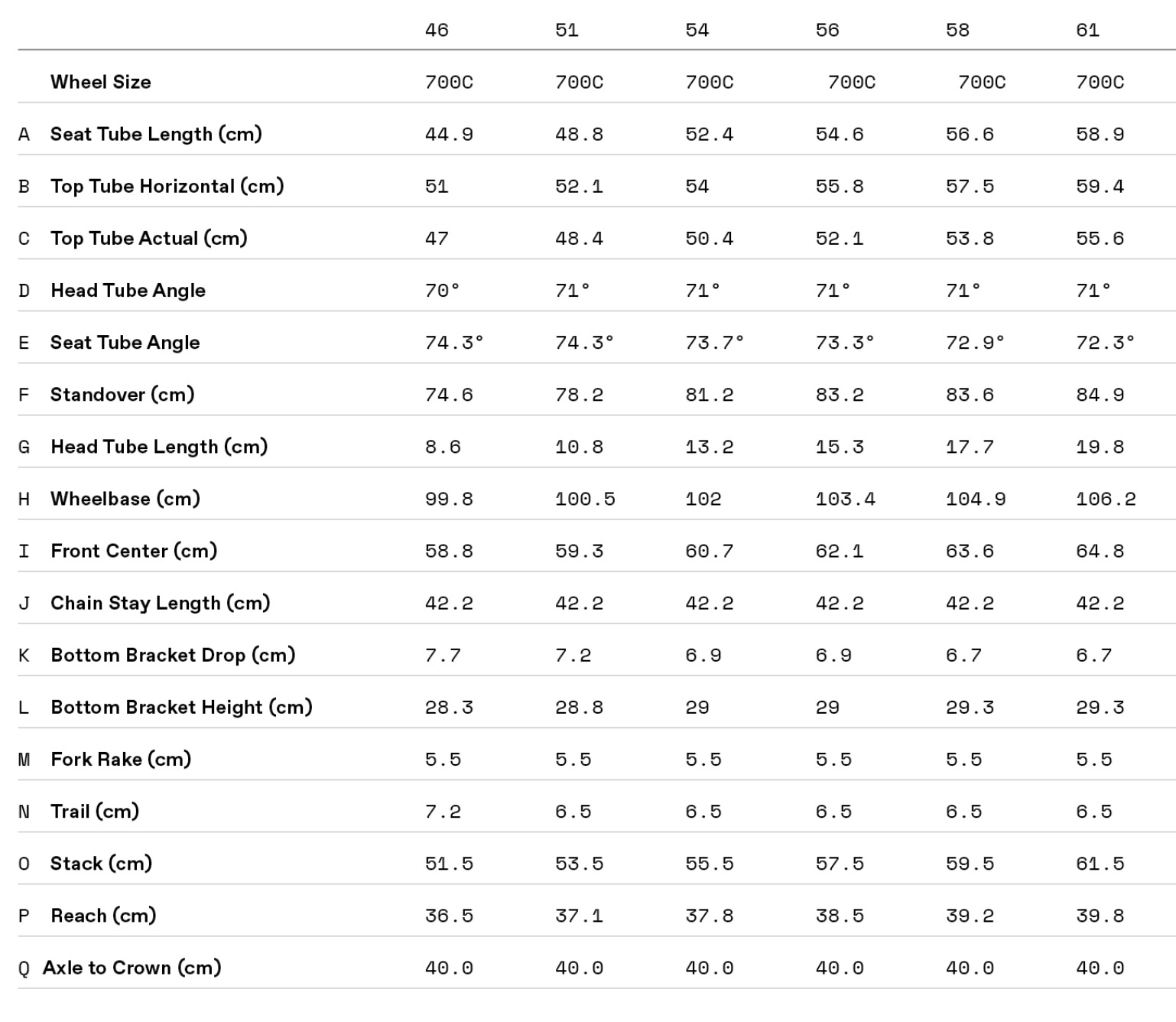

Sizes
This frame comes in 6 sizes, this is 0.44 more sizes than the website average.
Fork Details
Forks
Lab71 SuperX, Series 0 carbon construction, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/2" Delta steerer, 55mm offset
Fork Material: Carbon Fiber
The material the forks are constructed from
Fork Weight: Unknown
Fork weight unknown
Fork Steerer length: Unknown
Fork steerer tube length unknown
Seat Post
Seat Post
Cannondale C1 Aero 27 Carbon, 0mm offset (46cm), 20mm offset (51-61cm)
Material: Carbon Fiber
The material the seat post is constructed from
Weight: Unknowng
Seat post weight unknown
Seat Tube Length: Unknown
Seat tube length unknown
Manufactures Description
All In to Go All Out To build the gravel race bike of your dreams, start with the ultimate gravel race frameset. Model Description The LAB71 Frameset is where race dreams begin. Engineered from our lightest Series 0 carbon with Proportional Response construction, this frameset is designed for uncompromising speed, smoothness, and agility. Add your dream build kit and experience the unmatched precision and efficiency that makes SuperX LAB71 t ... Read More
