eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2026
The bike was released this year
Screen
Bosch System Controller BRC3100, smart system Bosch Sys
Lights Included
No
Weight (inc battery): 25.28 kg
The website average for electric bikes is 24.55 kg. This electric bike is 0.72 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Bosch Performance Line CX (Gen 5)
Motor Power
600 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
800 wh
Claimed Max Range
65 miles (104.6 km)
Charge Time
6h 45m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS | S 155–165 cm (5′1″–5′5″) | M 165–176 cm (5′5″–5′9″) | L 177–188 cm (5′10″–6′2″) | XL 188–195 cm (6′2″–6′5″)
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Bontrager Line Comp 30, Tubeless Ready (29" front / 27.5" rear on M-XL)
Wheelset Size
27.5 inch
Tires
Bontrager Gunnison Comp, 29 x 2.50"
Frame Info
Frame Material
Aluminium
Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
136 kg (299.8 lbs)
Drivechain Details
Groupset details
Shimano Deore M6100 12-speed
Drivechain type
Chain drive
Shifters
Shimano Deore M 6100, 12-speed
Amount of gears
12 Gears
Rear Derailleur
Shimano Deore M 6100
Front Derailleur
N/A
Cassette
Shimano Deore M 6100, 10-51 T, 12-speed
Cranks
Ethirteen Espec Plus (length varies by frame size: S/M 160 mm, L/XL 165 mm)
Chain
Shimano Deore M 6100, 12-speed
Bottom Bracket
Integrated in Bosch Drive Unit
Brakes
Brakes
Shimano MT4100 lever with MT420 4-piston hydraulic disc calipers and Shimano RT66 203 mm rotors
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
203 mm rotors front and rear
Shifters
Shimano Deore M 6100, 12-speed
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

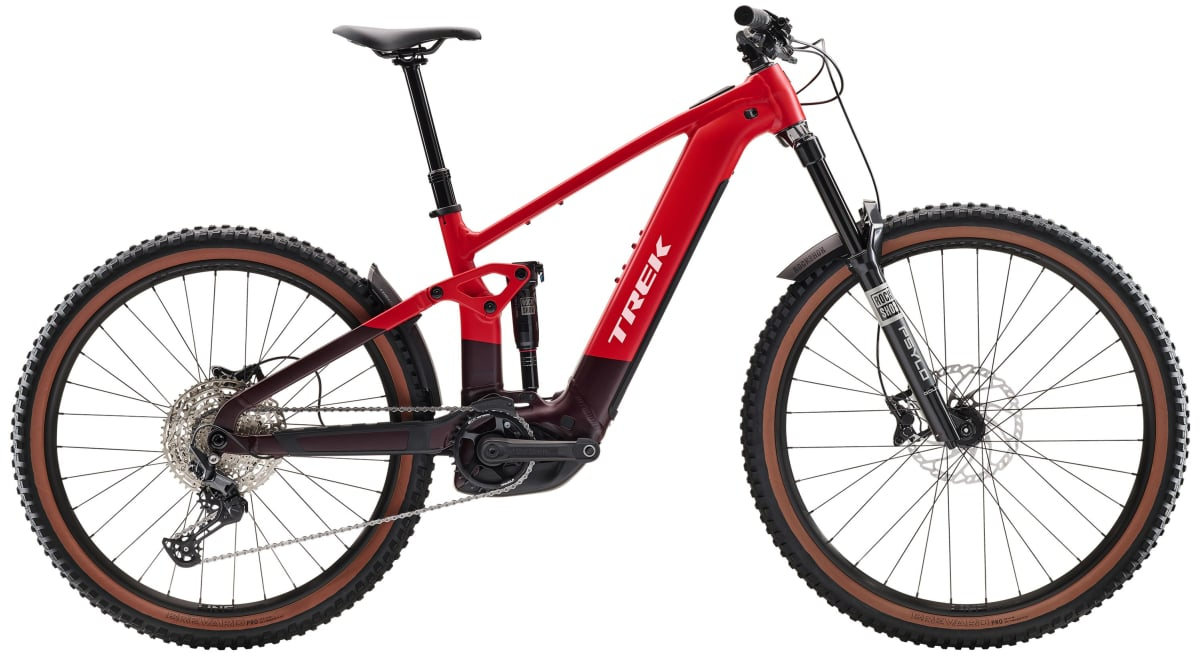

The Rail+ 5 is an alloy enduro e-bike that delivers huge value for big adventures. Its rugged Alpha Platinum Aluminium frame partners with a RockShox Deluxe Select+ RT shock and Psylo Gold RC fork (160 mm rear/front) to charge through the roughest terrain on the mountain. A Shimano Deore 12-speed drivetrain and 4-piston MT4100 brakes deliver clean shifting and brake modulation that doesn't break the bank. It's topped with a TranzX dropper post an ... Read More
