eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2026
The bike was released this year
Screen
Bosch Intuvia 100, smart system Bosch Intuvia 100, smar
Lights Included
Yes
Weight (inc battery): 26 kg
The website average for electric bikes is 24.55 kg. This electric bike is 1.44 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Bosch Performance Line Cruise (Smart System)
Motor Power
600 watts
Motor Torque
75 N.m
Sensor Type
Torque Sensor
Battery Capacity
545 wh
Claimed Max Range
60 miles (96.6 km)
Charge Time
4h 45m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS | S 155–165 cm (5'1"–5'5") | M 165–176 cm (5'5"–5'9") | L 174–187 cm (5'8"–6'2") | XL 185–197 cm (6'1"–6'6")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Bontrager Connection double-walled alloy rims
Wheelset Size
27.5 inch
Tires
Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
136 kg (299.8 lbs)
Drivechain Details
Groupset details
Shimano Nexus C7000 5-speed
Drivechain type
Chain drive
Shifters
Shimano Nexus Revo twist shifter
Amount of gears
5 Gears
Rear Derailleur
None
Front Derailleur
None
Cassette
Gates CDX 32 T stainless steel sprocket
Cranks
Aluminium, 170 mm length with Gates CDX 46 T chainring
Chain
Gates CDX Carbon Fiber Belt
Bottom Bracket
Integrated with the Bosch drive unit
Brakes
Brakes
Shimano MT200 hydraulic disc brakes with Shimano EM300 / RT10 160 mm rotors
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
Hydraulic Disc
Shifters
Shimano Nexus Revo twist shifter
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

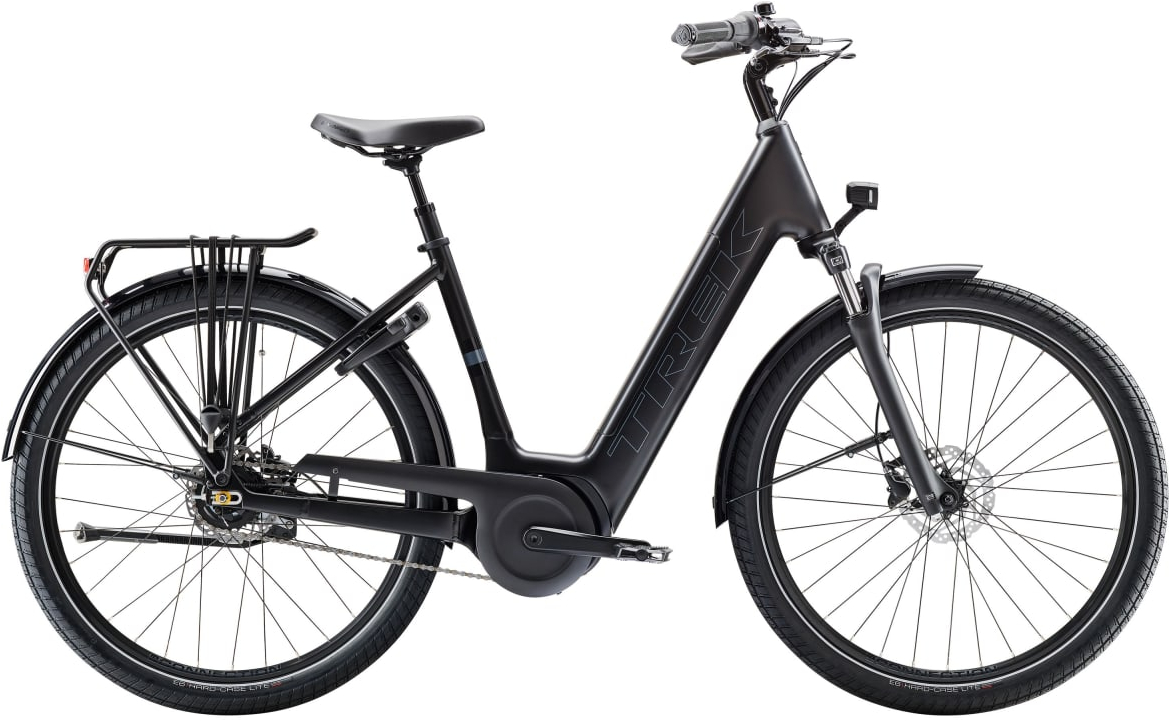

Embrace everyday cycling in supreme style and comfort on the District+ 4 Guard Lowstep, a top-end urban e-bike designed by TREK. Its innovative design aesthetic incorporates semi-integrated batteries inside the downtube, offering you a selection of four battery capacity options from 400 to 800 Wh. The best part? You get to choose the battery capacity as per your commuting requirements. Experience unparallel convenience with the District+. It feat ... Read More
