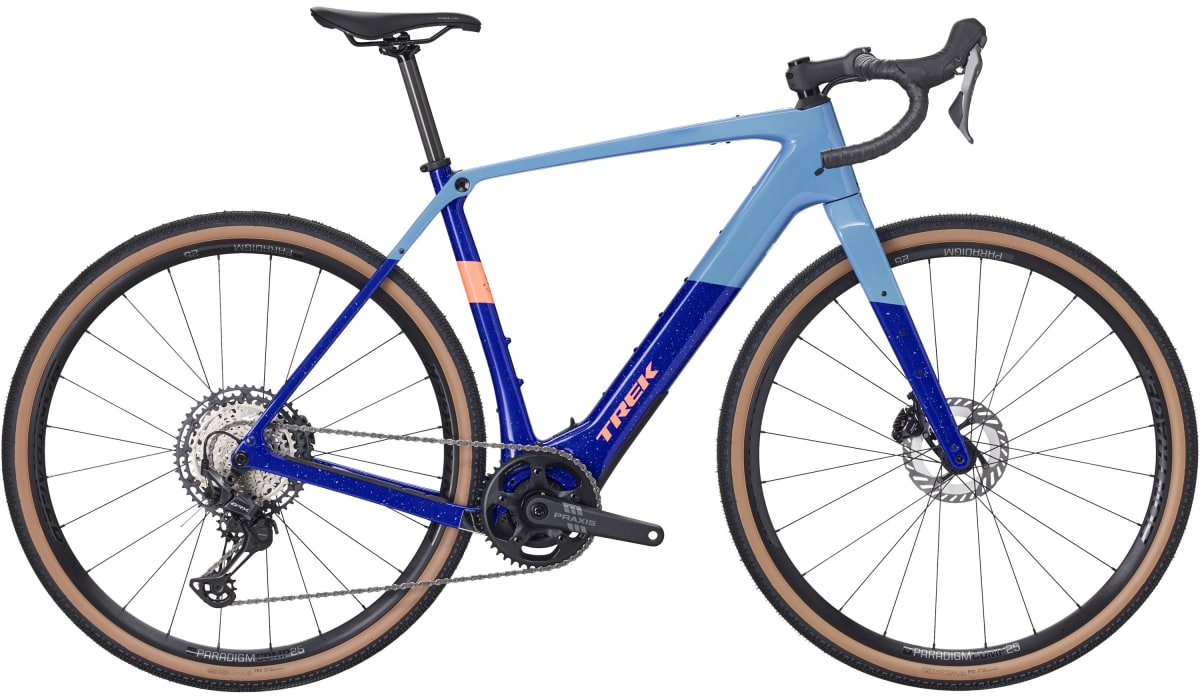

Trek Checkpoint+ SL 5 2026 electric bike image 01

Overview

The Trek Checkpoint+ SL 5 is a versatile all-terrain e-bike that balances everyday practicality with smooth motor support for mixed-surface riding. Its efficient battery use delivers a useful range, while the hydraulic disc brakes provide confident stopping power on varied terrain. The carbon frame keeps the bike feeling lively for its weight, and the torque sensor ensures a natural power delivery. However, the lack of suspension means rough roads and potholes may feel harsher, and the non-removable battery means you'll need to keep the whole bike near a charging point.

Where to buy

Compared with similar all terrain e-bikes on Bikkerr, this model sits £1,188.61 above average

Lowest price now: £4,500.00 Best price ever seen: £4,500.00 Prices update every ~24 hours
Joint best deal
£4,500.00
Tredz
Trek Checkpoint+ SL 5
View deal
Joint best deal
£4,500.00
Leisure Lakes Bikes
Trek Checkpoint+ SL 5
View deal
Joint best deal
£4,500.00
Trek
Trek Checkpoint+ SL 5
View deal

eBike Overview

Icon 1

eBike Type: All Terrain

The style of riding intended for this bike

Icon 1

Released: 2026

The bike was released this year

Icon 1

Screen

TQ LED display with Bluetooth & ANT+ connectivity

Icon 1

Lights Included

No

Weight Icon

Weight (inc battery): 13.81 kg

The website average for electric bikes is 24.55 kg. This electric bike is 10.75 kg under the average. Total bike weight may vary depending on frame size.

Esystem & Battery

Icon 1

Motor Name

TQ-HPR 60

Icon 1

Motor Power

300 watts

Icon 1

Motor Torque

60 N.m

Icon 1

Sensor Type

Torque Sensor

Icon 1

Battery Capacity

360 wh

Icon 1

Claimed Max Range

60 miles (96.6 km)

Icon 1

Charge Time

3h 30m

Icon 1

Removable Battery

No

Sizing & Geometry

Icon 1

Min / Max Rider Height

XS | S | M | L | XL

Icon 1

Adjustable Sizing

Adjustable saddle height

Icon 1

Folded Dimensions

n/a

Wheel & Tire Details

Icon 1

Wheelset Name

Bontrager Paradigm Comp 25, Tubeless Ready, 25 mm rim width

Icon 1

Wheelset Size

700c

Icon 1

Tires

Bontrager Girona Pro, Tubeless Ready, GR puncture protection, aramid bead, 60 tpi, 700x42 mm

Frame Info

Icon 1

Frame Material

Carbon Fiber

Icon 1

Suspension Type

No suspension

Icon 1

Foldable Frame

No

Icon 1

Max Payload

136 kg (299.8 lbs)

Drivechain Details

Icon 1

Groupset details

Shimano GRX RX820 12-speed

Icon 1

Drivechain type

Chain drive

Icon 1

Shifters

Shimano GRX RX 820, 12-speed

Icon 1

Amount of gears

12 Gears

Icon 1

Rear Derailleur

Shimano GRX RX 822

Icon 1

Front Derailleur

None

Icon 1

Cassette

Shimano XT M 8200, 10-51 T, 12-speed

Icon 1

Cranks

Praxis Alloy (length varies by frame size: XS/S 165 mm, M/ML 170 mm, L/XL 172.5 mm)

Icon 1

Chain

Shimano XT M 8100, 12-speed

Icon 1

Bottom Bracket

Integrated internal bearing system for the TQ motor

Brakes

Icon 1

Brakes

Shimano GRX RX820 hydraulic disc brakes with Shimano CL800 160 mm CentreLock rotors

Hydraulic Disc Brake

Brake Type: Hydraulic Disc Brake

Hydraulic operated discs brakes (Very good)

Icon 1

Brake Rotors

Shimano CL 800 Center Lock, 160 mm (supports up to 180 mm front/rear)

Icon 1

Shifters

Shimano GRX RX 820, 12-speed

Other Components

Icon 1

Saddle

Unknown

Icon 1

Handlebars

Unknown

Icon 1

Bar Tape

Unknown

Manufactures Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

The Checkpoint+ SL 5 is an electric gravel bike built to take you the distance. You get a TQ HPR60 motor with a smooth and quiet boost and a 360 Wh battery that keeps going on your biggest rides. It comes ready to roll with an OCLV Carbon frame, durable alloy wheels, 12-speed Shimano GRX 1x shifting and endurance geometry to keep you comfortable for the long haul. Powerful and discreet e-system The industry-leading TQ HPR 60 harmonic pin ring mot ... Read More
