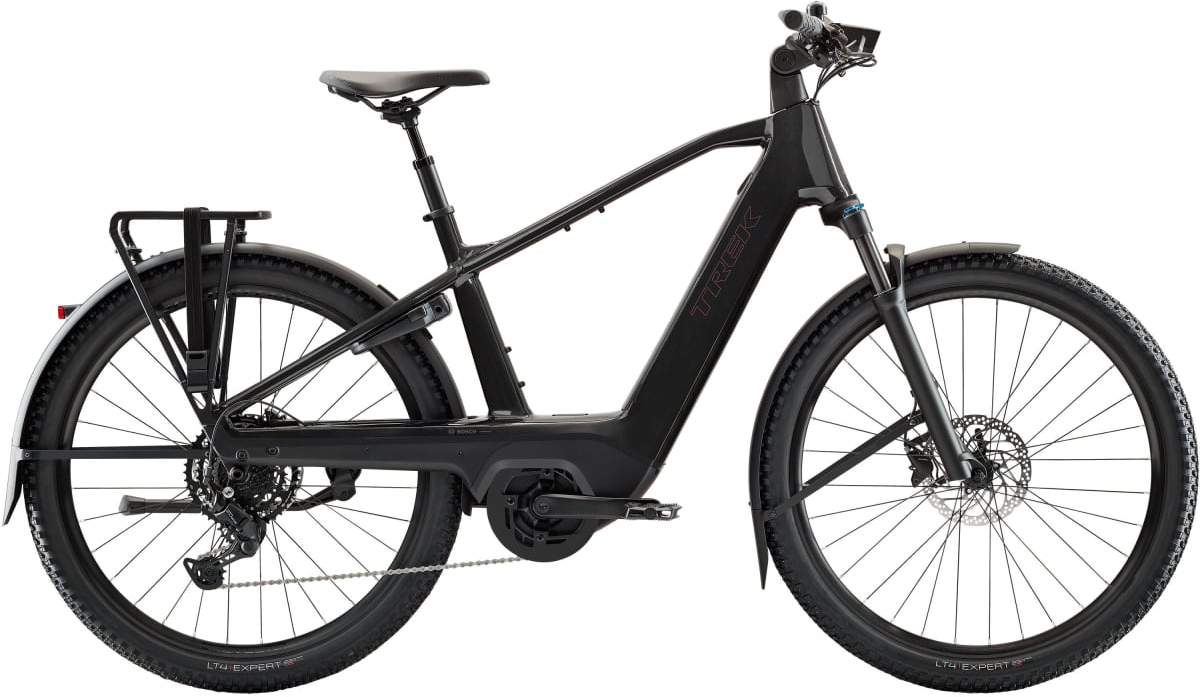

Trek Charter+ 4 Trail 540 Wh – 540Wh 2026 electric bike image 01

Overview

The Trek Charter+ 4 Trail is a versatile all-terrain e-bike that balances everyday practicality with off-road capability, making it a solid choice for mixed-surface riding. With a powerful 600W motor and 75Nm of torque, it delivers smooth and responsive support, while the efficient 540Wh battery provides a useful range for most daily commutes or light adventures. The hydraulic disc brakes offer confident stopping power, and the removable battery adds convenience for charging and storage. However, the bike's weight may make it slightly harder to lift, and its range is modest for longer rides, so planning is needed for extended trips.

Where to buy

Compared with similar all terrain e-bikes on Bikkerr, this model sits £86.39 below average

Lowest price now: £3,225.00 Best price ever seen: £3,225.00 Prices update every ~24 hours
Best deal
£3,225.00
Trek
Trek Charter+ 4 Trail 540 Wh – 540Wh
View deal

eBike Overview

Icon 1

eBike Type: All Terrain

The style of riding intended for this bike

Icon 1

Released: 2026

The bike was released this year

Icon 1

Screen

Bosch Purion 200

Icon 1

Lights Included

Yes

Weight Icon

Weight (inc battery): 26.8 kg

The website average for electric bikes is 24.55 kg. This electric bike is 2.24 kg over the average. Total bike weight may vary depending on frame size.

Esystem & Battery

Icon 1

Motor Name

Bosch Performance Line (Smart System)

Icon 1

Motor Power

600 watts

Icon 1

Motor Torque

75 N.m

Icon 1

Sensor Type

Torque Sensor

Icon 1

Battery Capacity

540 wh

Icon 1

Claimed Max Range

60 miles (96.6 km)

Icon 1

Charge Time

4h 30m

Icon 1

Removable Battery

Yes

Sizing & Geometry

Icon 1

Min / Max Rider Height

XS | S | M | L | XL

Icon 1

Adjustable Sizing

Adjustable handlebar height, Adjustable saddle height

Icon 1

Folded Dimensions

n/a

Wheel & Tire Details

Icon 1

Wheelset Name

Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width

Icon 1

Wheelset Size

27.5 inch

Icon 1

Tires

Bontrager Connection Elite, reflective strip, wire bead, 60 tpi, 27.5x2.40"

Frame Info

Icon 1

Frame Material

Aluminium

Icon 1

Suspension Type

Front Suspension

Icon 1

Foldable Frame

No

Icon 1

Max Payload

200 kg (440.9 lbs)

Drivechain Details

Icon 1

Groupset details

Shimano CUES U4000 9-speed

Icon 1

Drivechain type

Chain drive

Icon 1

Shifters

Shimano CUES U 4000, 9-speed

Icon 1

Amount of gears

9 Gears

Icon 1

Rear Derailleur

Shimano CUES U 4000

Icon 1

Front Derailleur

None

Icon 1

Cassette

Shimano CUES LG 300, Link Glide, 11-46 T, 9-speed

Icon 1

Cranks

FSA CK-220 (standard Bosch interface), 170 mm length

Icon 1

Chain

Shimano LG 500 (Link Glide specific)

Icon 1

Bottom Bracket

Integrated within the Bosch Performance Line motor unit

Brakes

Icon 1

Brakes

Shimano MT200 hydraulic disc brakes with Shimano EM300 180 mm CentreLock rotors

Hydraulic Disc Brake

Brake Type: Hydraulic Disc Brake

Hydraulic operated discs brakes (Very good)

Icon 1

Brake Rotors

180 mm rotors front and rear

Icon 1

Shifters

Shimano CUES U 4000, 9-speed

Other Components

Icon 1

Saddle

Unknown

Icon 1

Handlebars

Unknown

Icon 1

Bar Tape

Unknown

Manufactures Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

The Charter+ Trail 540 Wh is an adventure-ready city e-bike designed to give you a boost wherever you explore. It comes ready to ride off the beaten track with a 9-speed Shimano CUES drivetrain, 80 mm coil-sprung fork, off-road ready wheels and tyres, and flat handlebars with 5 mm of rise for control getting up and over potholes and kerbs. A Bosch Performance Line motor with 540 Wh battery gives you the power you need for commutes and weekend adv ... Read More
