eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2025
The bike was released 1 years ago
Screen
Bosch Purion 200
Lights Included
Yes
Weight (inc battery): 22.3 kg
The website average for electric bikes is 24.55 kg. This electric bike is 2.26 kg under the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Bosch Performance Line CX (Smart System)
Motor Power
600 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
500 wh
Claimed Max Range
70 miles (112.7 km)
Charge Time
5h 45m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS | S 155–165 cm (5'1"–5'5") | M 164–176 cm (5'5"–5'9") | L 174–187 cm (5'8"–6'2") | XL 185–197 cm (6'1"–6'6")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Bontrager Line TLR 30 tubeless-ready rims with Shimano hubs
Wheelset Size
27.5 inch
Tires
Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
136 kg (299.8 lbs)
Drivechain Details
Groupset details
Shimano CUES U6000 10-speed
Drivechain type
Chain drive
Shifters
Shimano CUES U 6000
Amount of gears
10 Gears
Rear Derailleur
Shimano CUES U 6000 GS
Front Derailleur
N/A
Cassette
Shimano CUES LG 300, LINKGLIDE technology, 11-48 T
Cranks
Pro Wheel alloy (170 mm or 175 mm length depending on size)
Chain
Shimano LG 500
Bottom Bracket
Integrated into the Bosch Performance Line CX motor system
Brakes
Brakes
Shimano MT200 hydraulic disc brakes with Shimano RT30 / EM300 180 mm rotors
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
Shimano RT 30 or RT 26, Center Lock/6-bolt, 180 mm
Shifters
Shimano CUES U 6000
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

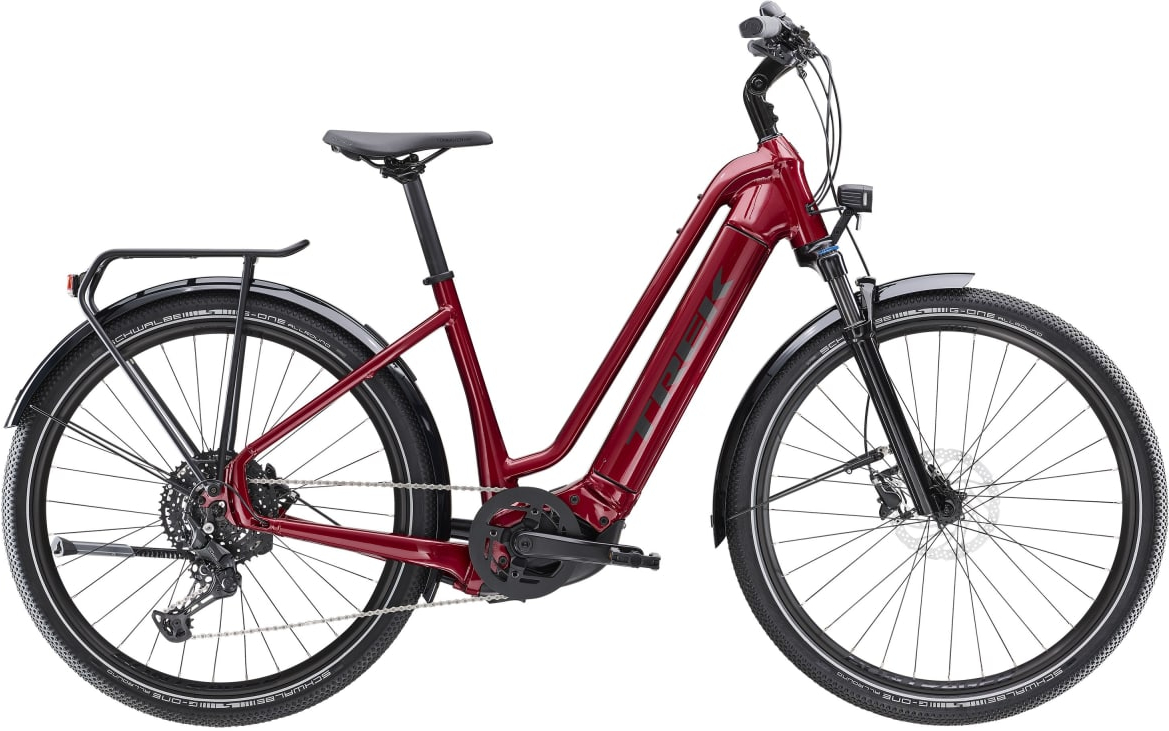

The 2024 Allant+ 7 Lowstep - 625Wh from TREK brilliantly combines sleek design with exceptional functionality, providing an unmatched biking experience. Engineered for the urban commuter, this bike offers stylish convenience thanks to the lowstep design, allowing for effortless mounting and dismounting. Crafted with a sturdy hydroformed aluminium frame, the e-bike is powered by the Bosch smart system. This intelligent setup includes a fully integ ... Read More
