eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2023
The bike was released 3 years ago
Screen
Bosch Kiox 300, smart system
Lights Included
Yes
Weight (inc battery): 23.1 kg
The website average for electric bikes is 24.55 kg. This electric bike is 1.46 kg under the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Bosch Performance Line CX (Smart System)
Motor Power
600 watts
Motor Torque
85 N.m
Sensor Type
Torque Sensor
Battery Capacity
725 wh
Claimed Max Range
75 miles (120.7 km)
Charge Time
6h 45m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS | S 155–165 cm (5'1"–5'5") | M 164–176 cm (5'5"–5'9") | L 174–187 cm (5'8"–6'2") | XL 185–197 cm (6'1"–6'6")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Bontrager Kovee double-wall, Tubeless Ready rims (23 mm width)
Wheelset Size
27.5 inch
Tires
Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
136 kg (299.8 lbs)
Drivechain Details
Groupset details
Shimano Deore M5130 10-speed
Drivechain type
Chain drive
Shifters
Shimano Deore M 5130, 10-speed
Amount of gears
10 Gears
Rear Derailleur
Shimano Deore M 5130
Front Derailleur
N/A
Cassette
Shimano CS-LG 400, 11-43, 10-speed
Cranks
Pro Wheel Alloy (170 mm for S/M, 175 mm for L)
Chain
Shimano LG 500
Bottom Bracket
Integrated within the Bosch drive unit (ISIS interface)
Brakes
Brakes
Shimano MT401 lever with MT420 4-piston hydraulic disc calipers and Shimano RT30 / EM300 rotors (203 mm front / 180 mm rear)
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
Shimano RT 30 (203 mm front) / Shimano EM 300 (180 mm rear)
Shifters
Shimano Deore M 5130, 10-speed
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

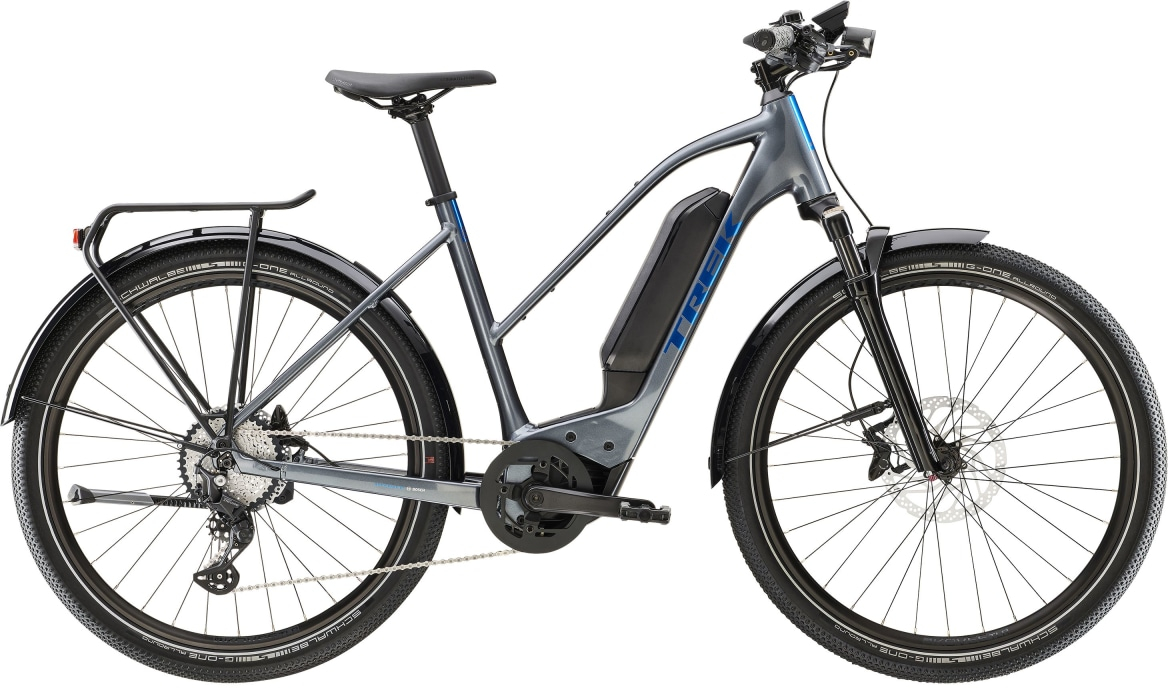

Experience luxury on wheels with the ultra-high performance TREK Allant+ 6 Stagger e-bike. Combining style, comfort and superior technology, this bike caters to the modern urban rider who values commuting pleasure just as much as speed and efficiency.The power of your ride lies in the latest generation Bosch Smart System, offering advanced digital connectivity for the avid cyclist. Sync your smartphone and enjoy features like route planning, acti ... Read More
