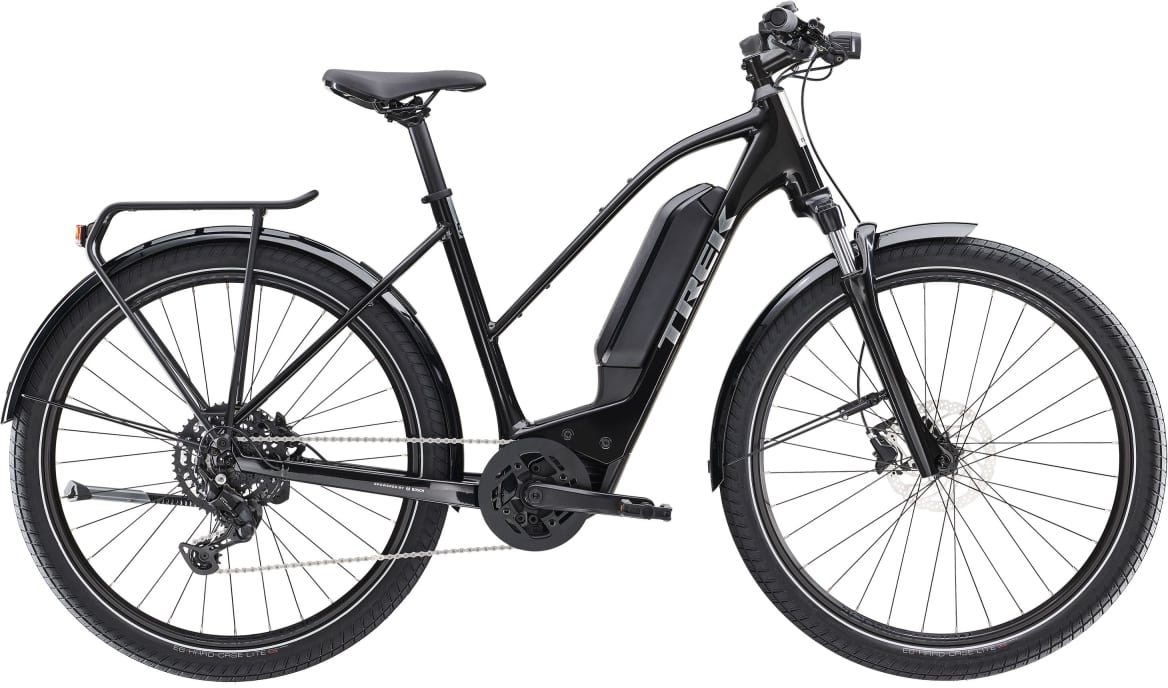

Trek Allant+ 5 Midstep – 800Wh 2025 electric bike image 01

Overview

The Trek Allant+ 5 Midstep - 800Wh is a well-rounded commuter bike designed for long, comfortable rides with strong support for hills and everyday practicality. Its 800Wh battery provides a generous range, making it ideal for daily commutes or longer trips without frequent recharging. The motor delivers smooth assistance with high torque, helping you tackle inclines with ease, while hydraulic disc brakes offer confident stopping power. However, the charging time is notably slower than average, and the bike's weight may make it slightly less convenient to lift or store in tight spaces. Despite these considerations, it's a solid choice for riders prioritizing range, comfort, and practical features for urban or suburban use.

Where to buy

Compared with similar commuter bike e-bikes on Bikkerr, this model sits £262.29 above average

Lowest price now: £3,600.00 Best price ever seen: £3,600.00 Prices update every ~24 hours
Best deal
£3,600.00
Trek
Trek Allant+ 5 Midstep – 800Wh
View deal

eBike Overview

Icon 1

eBike Type: Commuter Bike

The style of riding intended for this bike

Icon 1

Released: 2025

The bike was released 1 years ago

Icon 1

Screen

Bosch Purion 200

Icon 1

Lights Included

Yes

Weight Icon

Weight (inc battery): 24.5 kg

The website average for electric bikes is 24.55 kg. This electric bike is 0.06 kg under the average. Total bike weight may vary depending on frame size.

Esystem & Battery

Icon 1

Motor Name

Bosch Performance Line CX (Smart System)

Icon 1

Motor Power

600 watts

Icon 1

Motor Torque

85 N.m

Icon 1

Sensor Type

Torque Sensor

Icon 1

Battery Capacity

800 wh

Icon 1

Claimed Max Range

85 miles (136.8 km)

Icon 1

Charge Time

6h 0m

Icon 1

Removable Battery

Yes

Sizing & Geometry

Icon 1

Min / Max Rider Height

XS | S 155–165 cm (5'1"–5'5") | M 164–176 cm (5'5"–5'9") | L 174–187 cm (5'8"–6'2") | XL 185–197 cm (6'1"–6'6")

Icon 1

Adjustable Sizing

Adjustable handlebar height, Adjustable saddle height

Icon 1

Folded Dimensions

n/a

Wheel & Tire Details

Icon 1

Wheelset Name

Bontrager Connection double-wall rims (32-hole, 20 mm width) with Shimano QC 300 hubs

Icon 1

Wheelset Size

27.5 inch

Icon 1

Tires

Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"

Frame Info

Icon 1

Frame Material

Aluminium

Icon 1

Suspension Type

Front Suspension

Icon 1

Foldable Frame

No

Icon 1

Max Payload

136 kg (299.8 lbs)

Drivechain Details

Icon 1

Groupset details

Shimano CUES U4000 9-speed

Icon 1

Drivechain type

Chain drive

Icon 1

Shifters

Shimano CUES U 4000, 9-speed

Icon 1

Amount of gears

9 Gears

Icon 1

Rear Derailleur

Shimano CUES U 4000

Icon 1

Front Derailleur

N/A

Icon 1

Cassette

Shimano LINKGLIDE LG 300, 11-46, 9-speed

Icon 1

Cranks

Pro Wheel alloy (170 mm length for S/M; 175 mm for L/XL)

Icon 1

Chain

Shimano LG 500, 9/10/11-speed

Icon 1

Bottom Bracket

Bosch press-fit

Brakes

Icon 1

Brakes

Shimano MT200 hydraulic disc brakes with Shimano RT30 / EM300 180 mm rotors

Hydraulic Disc Brake

Brake Type: Hydraulic Disc Brake

Hydraulic operated discs brakes (Very good)

Icon 1

Brake Rotors

180 mm front / 160 mm rear

Icon 1

Shifters

Shimano CUES U 4000, 9-speed

Other Components

Icon 1

Saddle

Unknown

Icon 1

Handlebars

Unknown

Icon 1

Bar Tape

Unknown

Manufactures Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

The TREK Allant+ 5 Stagger is an innovative electric city bike, superbly engineered for both urban commuters and adventurous riders. This dynamic e-bike is designed with a staggered frame profile, enabling effortless mounting and dismounting. Facilitated by the advanced Bosch smart system, this bike allows seamless integration with your smartphone for convenient route planning, distance tracking and an overall enhanced commuting experience. This ... Read More
