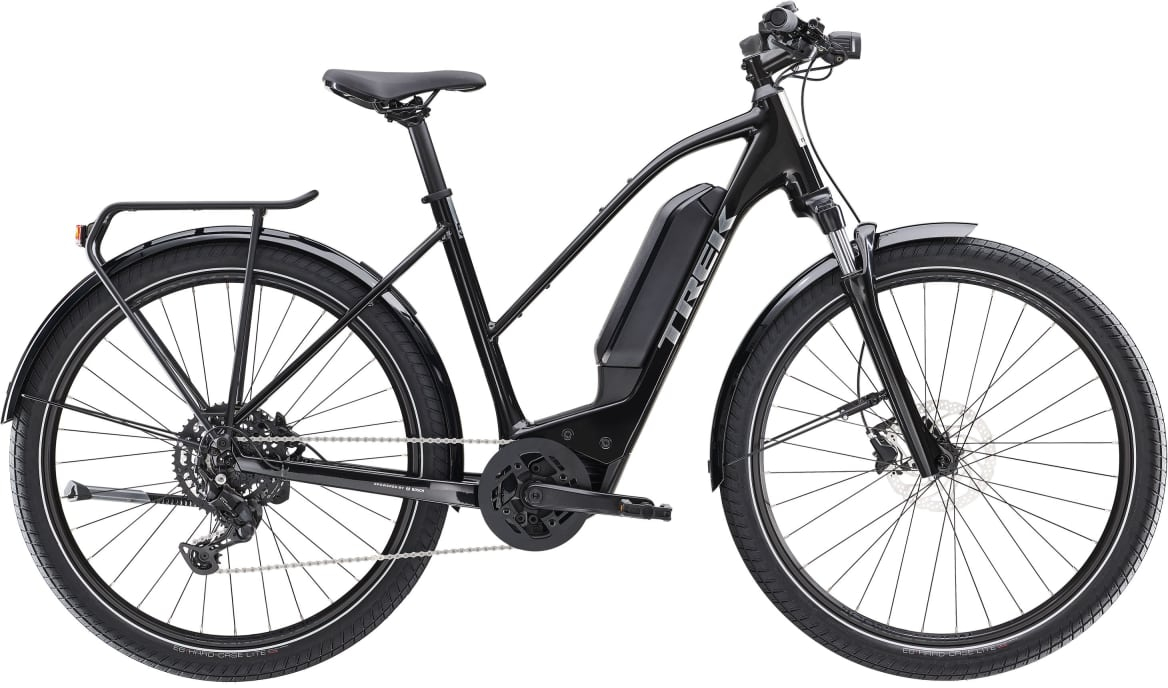

Trek Allant+ 5 Midstep – 545Wh 2025 electric bike image 01

Overview

The Trek Allant+ 5 Midstep is a well-rounded commuter e-bike designed for daily urban travel, offering smooth motor support and strong hill-climbing ability thanks to its powerful 600W motor and high torque. With a 545Wh battery that delivers a 60km range, it makes good use of its power for typical commutes, and the removable battery adds convenience for charging and storage. Hydraulic disc brakes provide confident stopping power, while the front suspension helps keep the ride comfortable on rough roads. However, the bike's average weight and battery capacity may require some planning for longer rides, and its non-foldable design means storage depends on space availability.

Where to buy

Compared with similar commuter bike e-bikes on Bikkerr, this model sits £112.71 below average

Lowest price now: £3,225.00 Best price ever seen: £3,225.00 Prices update every ~24 hours
Best deal
£3,225.00
Trek
Trek Allant+ 5 Midstep – 545Wh
View deal

eBike Overview

Icon 1

eBike Type: Commuter Bike

The style of riding intended for this bike

Icon 1

Released: 2025

The bike was released 1 years ago

Icon 1

Screen

Bosch Purion 200

Icon 1

Lights Included

Yes

Weight Icon

Weight (inc battery): 24.5 kg

The website average for electric bikes is 24.55 kg. This electric bike is 0.06 kg under the average. Total bike weight may vary depending on frame size.

Esystem & Battery

Icon 1

Motor Name

Bosch Performance Line CX (Smart System)

Icon 1

Motor Power

600 watts

Icon 1

Motor Torque

85 N.m

Icon 1

Sensor Type

Torque and Cadence Sensor

Icon 1

Battery Capacity

545 wh

Icon 1

Claimed Max Range

60 miles (96.6 km)

Icon 1

Charge Time

3h 30m

Icon 1

Removable Battery

Yes

Sizing & Geometry

Icon 1

Min / Max Rider Height

XS | S 155–165 cm (5'1"–5'5") | M 164–176 cm (5'5"–5'9") | L 174–187 cm (5'8"–6'2") | XL 185–197 cm (6'1"–6'6")

Icon 1

Adjustable Sizing

Adjustable handlebar height, Adjustable saddle height

Icon 1

Folded Dimensions

n/a

Wheel & Tire Details

Icon 1

Wheelset Name

Bontrager Connection, double-wall, 32-hole rims with Shimano hubs (HB-QC 300 front/FH-QC 300 rear)

Icon 1

Wheelset Size

27.5 inch

Icon 1

Tires

Bontrager E6 Hard-Case Lite, reflective strip, 27.5x2.40"

Frame Info

Icon 1

Frame Material

Aluminium

Icon 1

Suspension Type

Front Suspension

Icon 1

Foldable Frame

No

Icon 1

Max Payload

136 kg (299.8 lbs)

Drivechain Details

Icon 1

Groupset details

Shimano CUES U6000 10-speed

Icon 1

Drivechain type

Chain drive

Icon 1

Shifters

Shimano U 4000, 9-speed

Icon 1

Amount of gears

10 Gears

Icon 1

Rear Derailleur

Shimano CUES U 4000

Icon 1

Front Derailleur

N/A

Icon 1

Cassette

Shimano LINKGLIDE LG 300, 11-46, 9-speed

Icon 1

Cranks

Pro Wheel alloy, 170 mm or 175 mm length (size dependent)

Icon 1

Chain

Shimano LG 500, 9/10/11-speed

Icon 1

Bottom Bracket

Bosch Press Fit (integrated with the motor system)

Brakes

Icon 1

Brakes

Shimano MT200 hydraulic disc brakes with Shimano RT30 / EM300 180 mm rotors

Hydraulic Disc Brake

Brake Type: Hydraulic Disc Brake

Hydraulic operated discs brakes (Very good)

Icon 1

Brake Rotors

180 mm rotors

Icon 1

Shifters

Shimano U 4000, 9-speed

Other Components

Icon 1

Saddle

Unknown

Icon 1

Handlebars

Unknown

Icon 1

Bar Tape

Unknown

Manufactures Info

Worldwide Shipping: Yes

Delivery across the globe!

Icon 1

Warranty: 2 Years

Limited warranty website average: 3.12 years

The TREK Allant+ 5 Stagger is an innovative electric city bike, superbly engineered for both urban commuters and adventurous riders. This dynamic e-bike is designed with a staggered frame profile, enabling effortless mounting and dismounting. Facilitated by the advanced Bosch smart system, this bike allows seamless integration with your smartphone for convenient route planning, distance tracking and an overall enhanced commuting experience. This ... Read More
