eBike Overview
eBike Type: Commuter Bike
The style of riding intended for this bike
Released: 2022
The bike was released 4 years ago
Screen
Bosch Purion
Lights Included
Yes
Weight (inc battery): 19.2 kg
The website average for electric bikes is 24.55 kg. This electric bike is 5.36 kg under the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Bosch Performance Line CX (Gen 4)
Motor Power
600 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
500 wh
Claimed Max Range
55 miles (88.5 km)
Charge Time
5h 0m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
XS | S 155–165 cm (5'1"–5'5") | M 164–176 cm (5'5"–5'9") | L 174–187 cm (5'8"–6'2") | XL 185–197 cm (6'1"–6'6")
Adjustable Sizing
Adjustable handlebar height, Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Alex MD 35 double-walled alloy rims (32-hole) on Shimano MT 400 hubs
Wheelset Size
27.5 inch
Tires
Schwalbe G-One, Performance, RaceGuard, with reflective strip, 57-584
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
136 kg (299.8 lbs)
Drivechain Details
Groupset details
Shimano Altus M2010 9-speed
Drivechain type
Chain drive
Shifters
Shimano Alivio M 3100, 9-speed
Amount of gears
9 Gears
Rear Derailleur
Shimano Alivio M 3100
Front Derailleur
None
Cassette
Shimano HG 200, 11-36, 9-speed
Cranks
Pro Wheel alloy, 170 mm-175 mm (depending on frame size) with a 40 T steel chainring
Chain
KMC E 9 S
Bottom Bracket
Part of the integrated Bosch Performance CX motor system
Brakes
Brakes
Shimano MT200 hydraulic disc brakes with Shimano RT26 180 mm rotors
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm Shimano RT 10 centerlock rotors
Shifters
Shimano Alivio M 3100, 9-speed
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

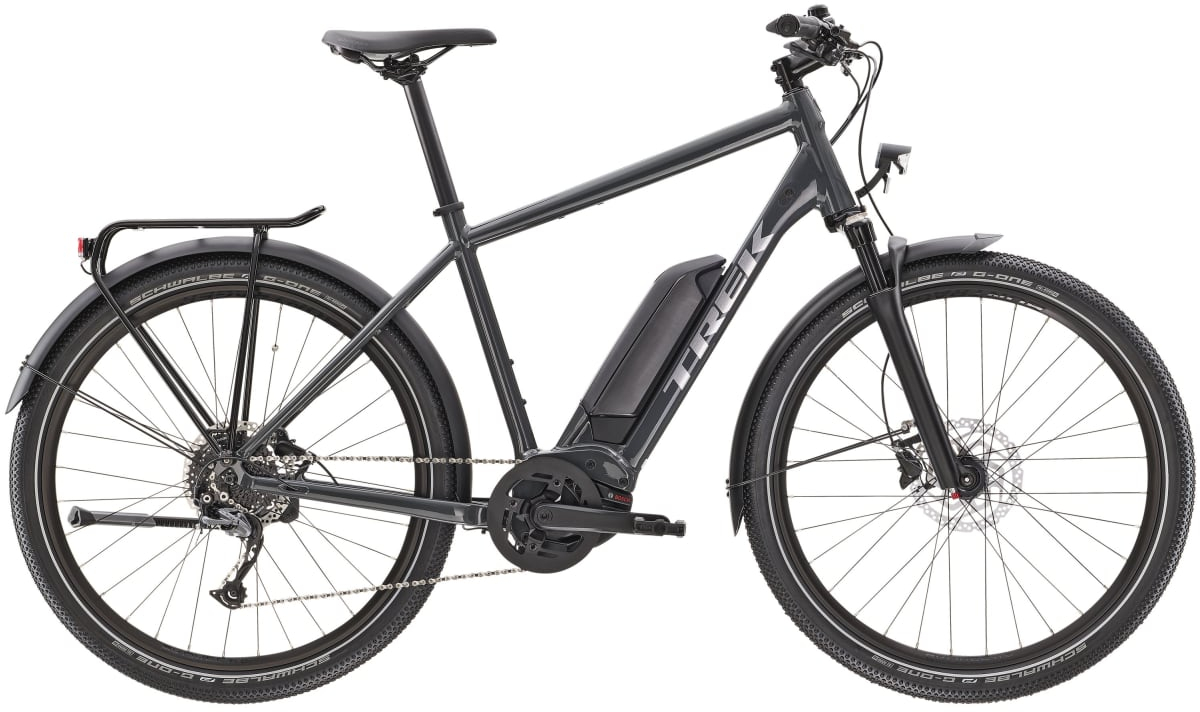

Introducing the 2022 Allant+ 5 - 500Wh, a state-of-the-art e-bike straight from the innovative halls of TREK. This versatile piece of machinery has been designed with both everyday commuters and weekend warriors in mind. Boasting a dependable Bosch drive system that offers assistance up to a swift 20mph (25km/h in Europe), it’s perfect for those challenging hill climbs or simply getting you to work on time, every time.Coupled with robust 27.5" ... Read More
