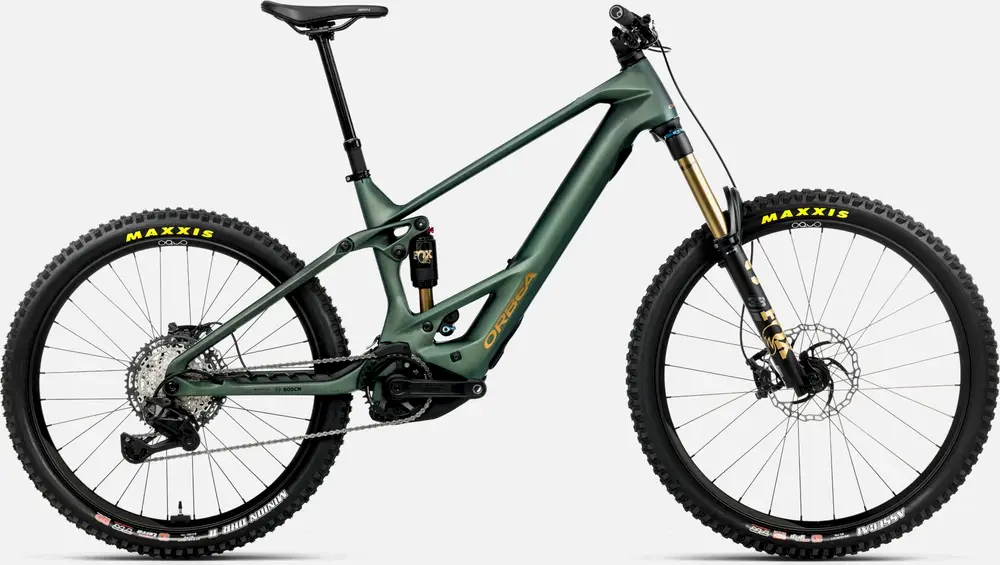

eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2025
The bike was released 1 years ago
Screen
Bosch System Module Kiox 400C
Lights Included
No
Weight (inc battery): 23.72 kg
The website average for electric bikes is 22.99 kg. This electric bike is 0.72 kg over the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
S: 150–175 cm, M: 160–185 cm, L: 170–195 cm, XL: 180–205 cm
Folded Dimensions
Unknown
Wheel & Tire Details
Wheelset Name
OQUO Mountain Control MC 32 TEAM Power alloy wheels (29" front / 27.5" rear)
Wheelset Size
29 inch
Tires
Maxxis Minion 2.40" 120 TPI 3CT/DD/TR MaxxTerra
Frame Info
Frame Material
Carbon Fiber
Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
XT Di2
Drivechain type
Chain drive
Shifters
Shimano XT M 8100 I-Spec EV
Amount of gears
12 Gears
Rear Derailleur
Shimano XT M 8100 SGS Shadow Plus
Front Derailleur
None
Cassette
Shimano CS-M 8100 10-51 t (12-speed)
Cranks
e*thirteen Plus Alu e-spec crankarms paired with a 34 T chainring
Chain
Shimano M 8100
Bottom Bracket
Integrated into the internal chassis shell of the Bosch Performance Line CX Gen 5 motor casing
Brakes
Brakes
Shimano XT Hydraulic Disc
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
Galfer Wave 203 mm DB 004 W
Shifters
Shimano XT M 8100 I-Spec EV
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping:
Warranty: None
Limited warranty website average: 3.12 years
