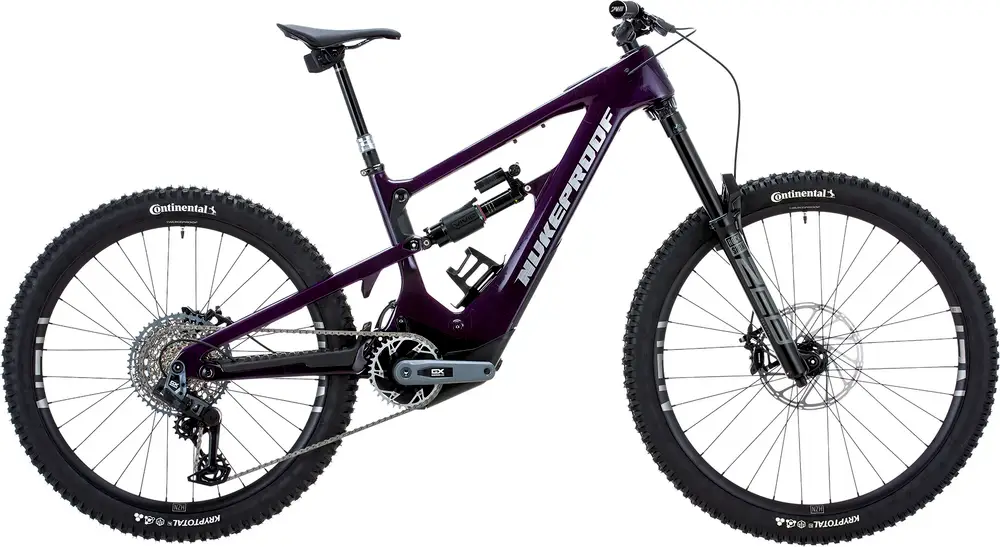

eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
SRAM Eagle Powertrain AXS Bridge Colour Display
Lights Included
No
Weight (inc battery): 24 kg
The website average for electric bikes is 22.99 kg. This electric bike is 1.00 kg over the average. Total bike weight may vary depending on frame size.
Sizing & Geometry
Min / Max Rider Height
SM: 160–170 cm, MD: 170–180 cm, LG: 180–190 cm, XL: 190–200 cm
Folded Dimensions
Unknown
Wheel & Tire Details
Wheelset Name
Nukeproof Horizon V 2 or DT Swiss HX 1700 high-strength aluminium wheelsets
Wheelset Size
29 inch
Tires
Front: Continental Kryptotal-F Downhill Super-Soft 29X2.4'' / Rear: Continental Kryptotal-R Downhill Soft 27.5X2.4''
Frame Info
Frame Material
Carbon Fiber
Suspension Type
Front and Rear suspension
Foldable Frame
No
Max Payload
135 kg (297.6 lbs)
Drivechain Details
Groupset details
GX Eagle Transmission
Drivechain type
Chain drive
Shifters
SRAM AXS Pod Controllers (mounted via Left & Right MMX bridge clamps)
Amount of gears
12 Gears
Rear Derailleur
SRAM GX AXS T-Type 12-Speed Eagle
Front Derailleur
None
Cassette
SRAM GX CS 1275 T-Type 12-Speed Cassette (10-52 T)
Cranks
SRAM GX Eagle E-MTB Cranks (155 mm length arm to maximize ground clearance, equipped with a 36 T direct-mount chainring)
Chain
SRAM GX T-Type 12-Speed Eagle Flattop Chain
Bottom Bracket
Integrated
Brakes
Brakes
SRAM G 2 RE
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
220 mm front rotor and 200 mm rear rotor
Shifters
SRAM AXS Pod Controllers (mounted via Left & Right MMX bridge clamps)
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping:
Warranty: None
Limited warranty website average: 3.12 years
