eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2022
The bike was released 4 years ago
Screen
Shimano SC-EN610
Lights Included
Yes
Weight (inc battery): 28 kg
The website average for electric bikes is 24.55 kg. This electric bike is 3.44 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano STEPS EP 6
Motor Power
500 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
630 wh
Claimed Max Range
45 miles (72.4 km)
Charge Time
5h 30m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Comp TK rims (20 mm inner width) laced to Shimano MT 400 (front) and Alivio (rear) hubs
Wheelset Size
28 inch
Tires
Continental Ride Cruiser
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
140 kg (308.6 lbs)
Drivechain Details
Groupset details
Shimano Deore M5120 / M4100
Drivechain type
Chain drive
Shifters
Shimano Deore M 4100 (Right-hand trigger shifter)
Amount of gears
10 Gears
Rear Derailleur
Shimano Deore M 5120 Shadow+
Front Derailleur
None
Cassette
Shimano M 4100; 11-46 teeth; 10-speed
Cranks
Shimano FC-EM 600; 165 mm length with a 38 T chainring
Chain
KMC e 10 S
Bottom Bracket
Integrated within the Shimano EP 6 drive unit
Brakes
Brakes
Shimano MT-200
Brake Type: Hydraulic Disc Brakes
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm front and rear
Shifters
Shimano Deore M 4100 (Right-hand trigger shifter)
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

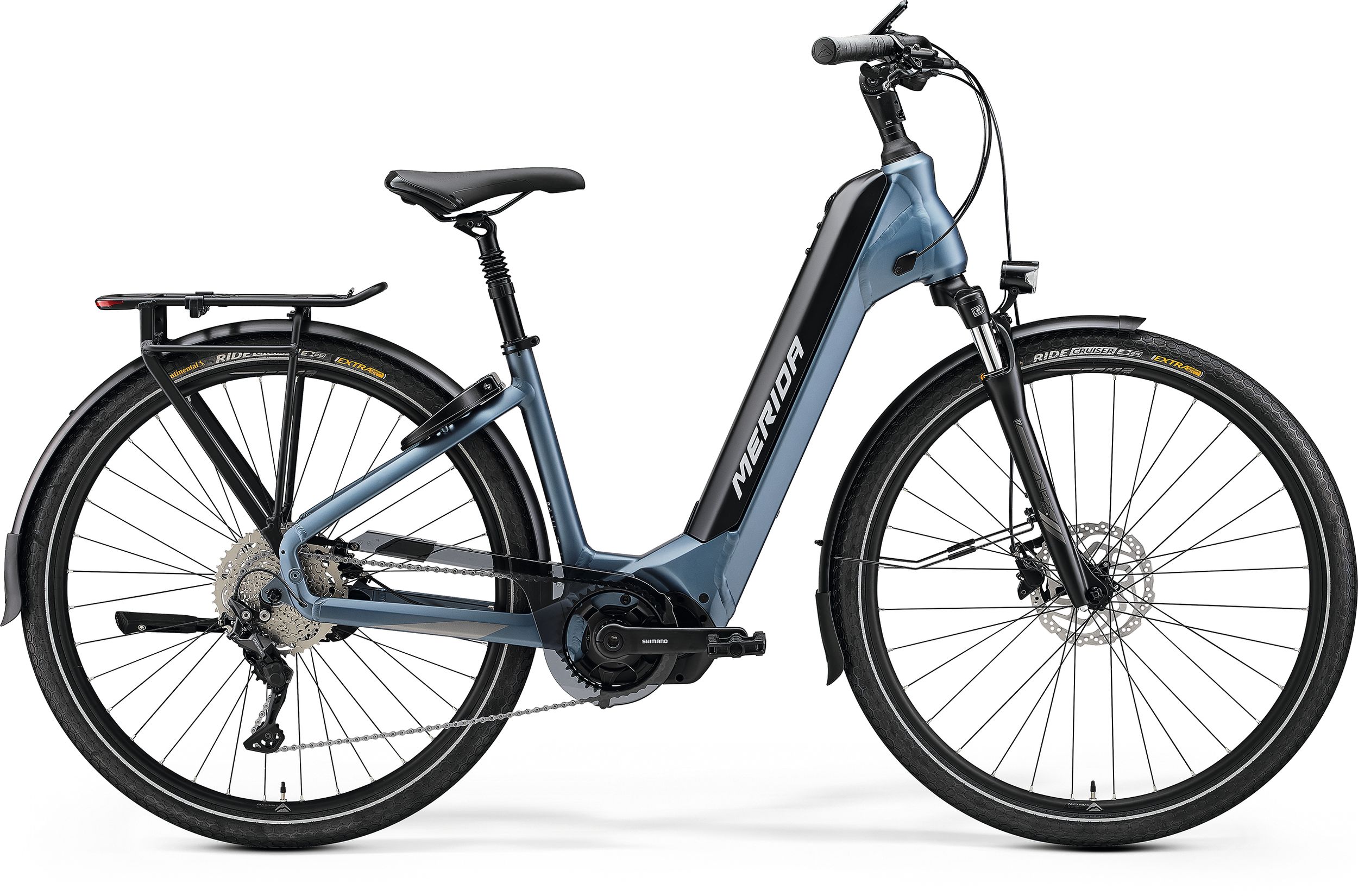

Practicality doesn't have to be boring. The eSPRESSO CITY 500 EQ manages to pack a smart-looking low step-through frame design with plenty of function thanks to internal 630 Wh battery and Shimano's new, powerful EP6 drive unit. It's fully equipped as standard, with our sleek rear rack, mudguards, lights, lock and kickstand. The crisp Shimano 10-speed drivetrain delivers the perfect shift, every time plus powerful hydraulic disc brakes are on han ... Read More
