eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
Shimano SC-EN610
Lights Included
Yes
Weight (inc battery): 28.57 kg
The website average for electric bikes is 24.55 kg. This electric bike is 4.01 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano STEPS EP 6 (EP 600)
Motor Power
500 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
750 wh
Claimed Max Range
55 miles (88.5 km)
Charge Time
6h 0m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Comp TK rims (20 mm inner width) laced to Shimano QC 300 (front) and Shimano TC 500-MS (rear) hubs
Wheelset Size
28 inch
Tires
Maxxis Crossmark II
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
140 kg (308.6 lbs)
Drivechain Details
Groupset details
Shimano CUES U6000 / LG400 with Samox crank
Drivechain type
Chain drive
Shifters
Shimano CUES U 6000-11 R (11-speed)
Amount of gears
11 Gears
Rear Derailleur
Shimano CUES U 6000 GS
Front Derailleur
None
Cassette
Shimano LG 400 Link Glide; 11-50 teeth; 11-speed
Cranks
Shimano FC-EM 600; 165 mm arms with a Shimano CRE 70-B 38 T chainring
Chain
Shimano LG 500 (Link Glide specific)
Bottom Bracket
Integrated into the Shimano EP 6 drive unit
Brakes
Brakes
Shimano MT410-3A
Brake Type: Hydraulic Disc Brakes
Hydraulic operated discs brakes (Very good)
Brake Rotors
180 mm front / 160 mm rear
Shifters
Shimano CUES U 6000-11 R (11-speed)
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

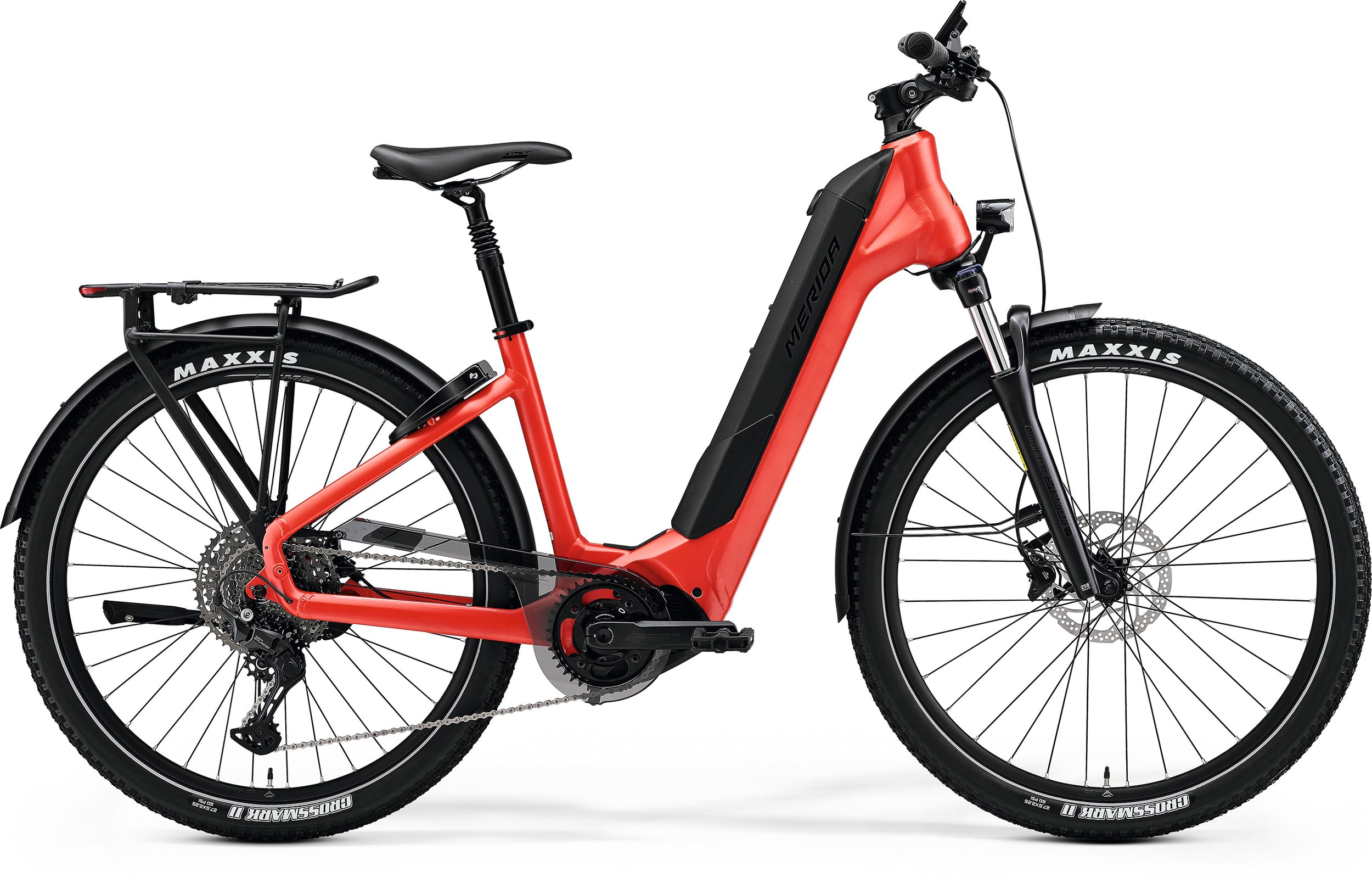

The eSPRESSO CC 675 EQ is able to cut it on the mean streets but also handle the sort of terrain that'd scare a regular city e-bike silly. That's because we've paired our stiff, low-step-through ENERGY CRADLE frame design with tough 650b wheels and off-road-ready tyres for extra cushion and grip. With a SR Suntour suspension fork and the powerful assistance of the new Shimano EP6 drive unit and 750 Wh internal battery, it'll keep you going in com ... Read More
