eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
Shimano SC-EN500
Lights Included
Yes
Weight (inc battery): 27.98 kg
The website average for electric bikes is 24.55 kg. This electric bike is 3.42 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano Steps EP 6 (EP 600 series)
Motor Power
500 watts
Motor Torque
85 N.m
Sensor Type
Torque and Cadence Sensor
Battery Capacity
750 wh
Claimed Max Range
55 miles (88.5 km)
Charge Time
6h 0m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Comp TK rims (20 mm inner width) laced to Shimano QC 300/MT 400 hubs
Wheelset Size
28 inch
Tires
Maxxis Crossmark II
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
140 kg (308.6 lbs)
Drivechain Details
Groupset details
Shimano CUES U6000 / LG300 with Samox crank
Drivechain type
Chain drive
Shifters
Shimano CUES U 6000 (Rapidfire Plus)
Amount of gears
10 Gears
Rear Derailleur
Shimano CUES U 6000
Front Derailleur
None
Cassette
Shimano LG 300 11-48T
Cranks
Shimano FC-EM 600; 170 mm length with a Shimano CRE 70-B 38-tooth chainring
Chain
Shimano LG 500 (Linkglide specific)
Bottom Bracket
Integrated within the Shimano EP 6 drive unit
Brakes
Brakes
Shimano MT-200
Brake Type: Hydraulic Disc Brakes
Hydraulic operated discs brakes (Very good)
Brake Rotors
Shimano RT 10 rotors (180 mm front and rear)
Shifters
Shimano CUES U 6000 (Rapidfire Plus)
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

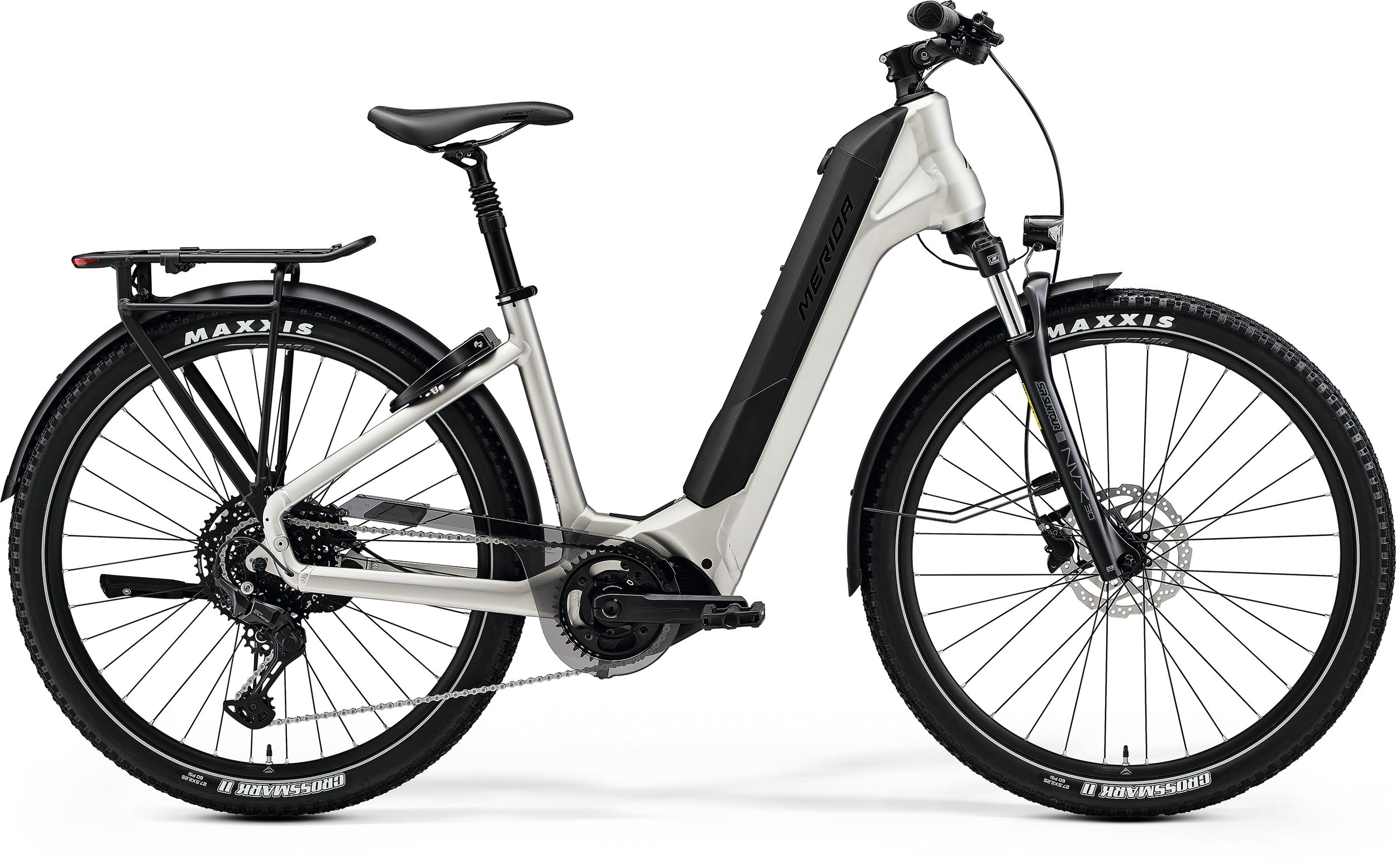

Rugged enough for the countryside, tough enough for the city. The eSPRESSO CC 575 EQ pairs the new, powerful Shimano EP6 drive unit with a high-capacity 750 Wh battery that sits in our ENERGY CRADLE frame design. It combines the convenience of an external battery with the looks of an internal battery in order to keep the handling safe and secure. We've also fitted tough 650b wheels with comfortable and grippy high-volume tyres that help take the ... Read More
