eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
Shimano SC-EN500
Lights Included
Yes
Weight (inc battery): 28.86 kg
The website average for electric bikes is 24.55 kg. This electric bike is 4.30 kg over the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
Shimano EP 6 (DU-EP 600)
Motor Power
500 watts
Motor Torque
85 N.m
Sensor Type
Torque Sensor
Battery Capacity
504 wh
Claimed Max Range
40 miles (64.4 km)
Charge Time
4h 30m
Removable Battery
Yes
Sizing & Geometry
Min / Max Rider Height
S 160–170 cm (5'3"–5'7") | M 170–180 cm (5'7"–5'11") | L 180–190 cm (5'11"–6'3") | XL 190–200 cm (6'3"–6'7")
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Comp TK rims (20 mm inner width) laced to Shimano QC 300 hubs (front) and Shimano TC 500-HM hubs (rear)
Wheelset Size
28 inch
Tires
Maxxis Crossmark II
Frame Info
Frame Material
Aluminium
Suspension Type
Front Suspension
Foldable Frame
No
Max Payload
140 kg (308.6 lbs)
Drivechain Details
Groupset details
Shimano CUES U4000 / LG300 with Samox crank
Drivechain type
Chain drive
Shifters
Shimano CUES U 4000 9-speed
Amount of gears
10 Gears
Rear Derailleur
Shimano CUES U 4000
Front Derailleur
None
Cassette
Shimano LG 300; 11-46 teeth; 9-speed
Cranks
Shimano FC-EM 600; 170 mm with a Shimano CRE 70-B 38 T chainring
Chain
Shimano LG 500
Bottom Bracket
Integrated into the Shimano EP 6 drive unit
Brakes
Brakes
Shimano MT-200
Brake Type: Hydraulic Disc Brakes
Hydraulic operated discs brakes (Very good)
Brake Rotors
Shimano RT 10 180 mm rotors
Shifters
Shimano CUES U 4000 9-speed
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

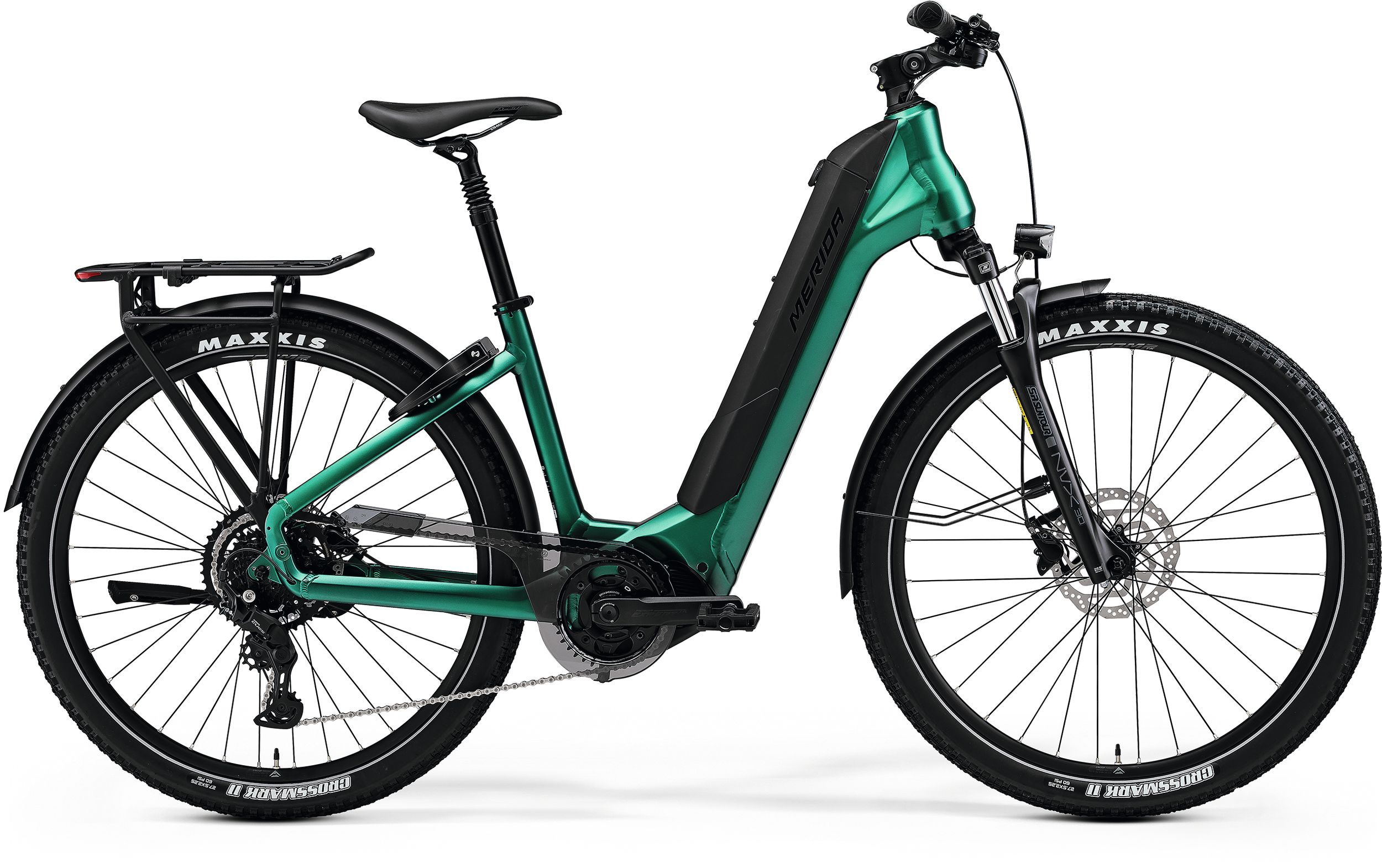

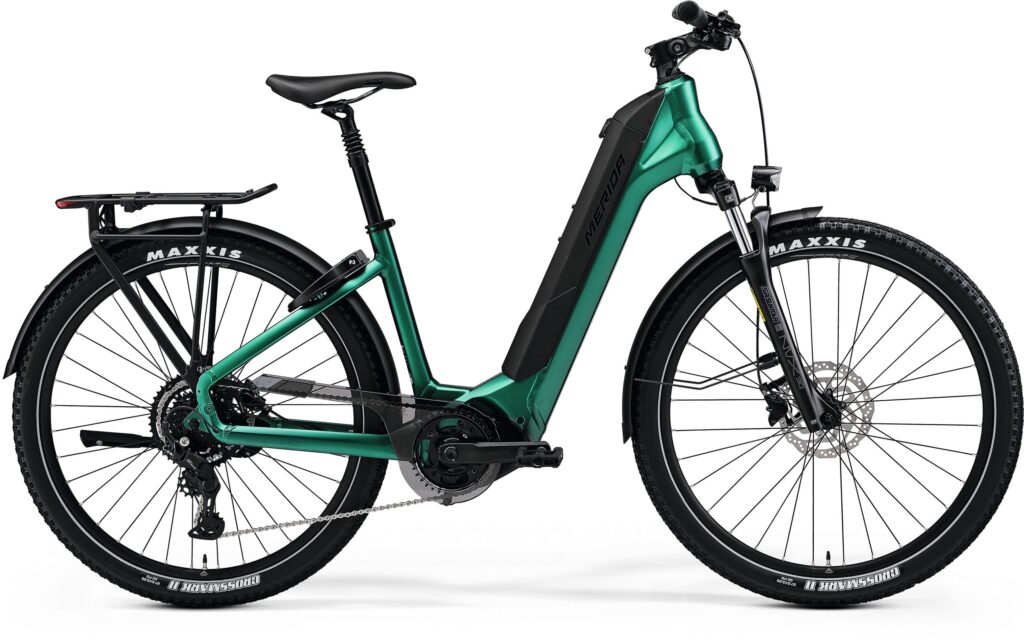

Whether your commute takes in forest trails and gravel tracks or you just want the freedom to explore at weekends, the eSPRESSO CC 400 EQ delivers all the convenience of a city e-bike with added off-road ability. That's because our low step-through ENERGY CRADLE frame is stiff enough to cope with dirt tracks while also housing an internal 504 Wh battery and the latest Shimano EP6 drive unit. While the suspension fork and seat post help keep you c ... Read More
