eBike Overview
eBike Type: Mountain Bike
The style of riding intended for this bike
Released: 2024
The bike was released 2 years ago
Screen
MAHLE One Remote-C
Lights Included
Yes
Weight (inc battery): 12.68 kg
The website average for electric bikes is 24.55 kg. This electric bike is 11.88 kg under the average. Total bike weight may vary depending on frame size.
Esystem & Battery
Motor Name
MAHLE ebikemotion X 35+
Motor Power
250 watts
Motor Torque
40 N.m
Sensor Type
Cadence Sensor
Battery Capacity
250 wh
Claimed Max Range
35 miles (56.3 km)
Charge Time
4h 0m
Removable Battery
No
Sizing & Geometry
Min / Max Rider Height
S 155–165 cm (5'1"–5'5") | M 165–175 cm (5'5"–5'9") | L 175–185 cm (5'9"–6'1") | XL 185–195 cm (6'1"–6'5")
Adjustable Sizing
Adjustable saddle height
Folded Dimensions
n/a
Wheel & Tire Details
Wheelset Name
Merida Comp SL; 17 mm inner width; 22 mm depth; aluminium
Wheelset Size
700c
Tires
Continental Contact Urban
Frame Info
Frame Material
Aluminium
Suspension Type
No suspension
Foldable Frame
No
Max Payload
150 kg (330.7 lbs)
Drivechain Details
Groupset details
Shimano CUES U3020 / LG300
Drivechain type
Chain drive
Shifters
Shimano CUES U 4000, Rapidfire Plus
Amount of gears
9 Gears
Rear Derailleur
Shimano CUES U 4000
Front Derailleur
None
Cassette
Shimano LG 300; 11-41 teeth; 9-speed
Cranks
Merida Expert TK; 170 mm length; 42 tooth chainring
Chain
Shimano LG 500 (Linkglide)
Bottom Bracket
Part of the MAHLE sensor assembly (ISIS or square taper depending on motor version)
Brakes
Brakes
Shimano MT-200 / UR300
Brake Type: Hydraulic Disc Brake
Hydraulic operated discs brakes (Very good)
Brake Rotors
160 mm rotors front and rear
Shifters
Shimano CUES U 4000, Rapidfire Plus
Other Components
Saddle
Unknown
Handlebars
Unknown
Bar Tape
Unknown
Manufactures Info
Worldwide Shipping: Yes
Delivery across the globe!
Warranty: 2 Years
Limited warranty website average: 3.12 years

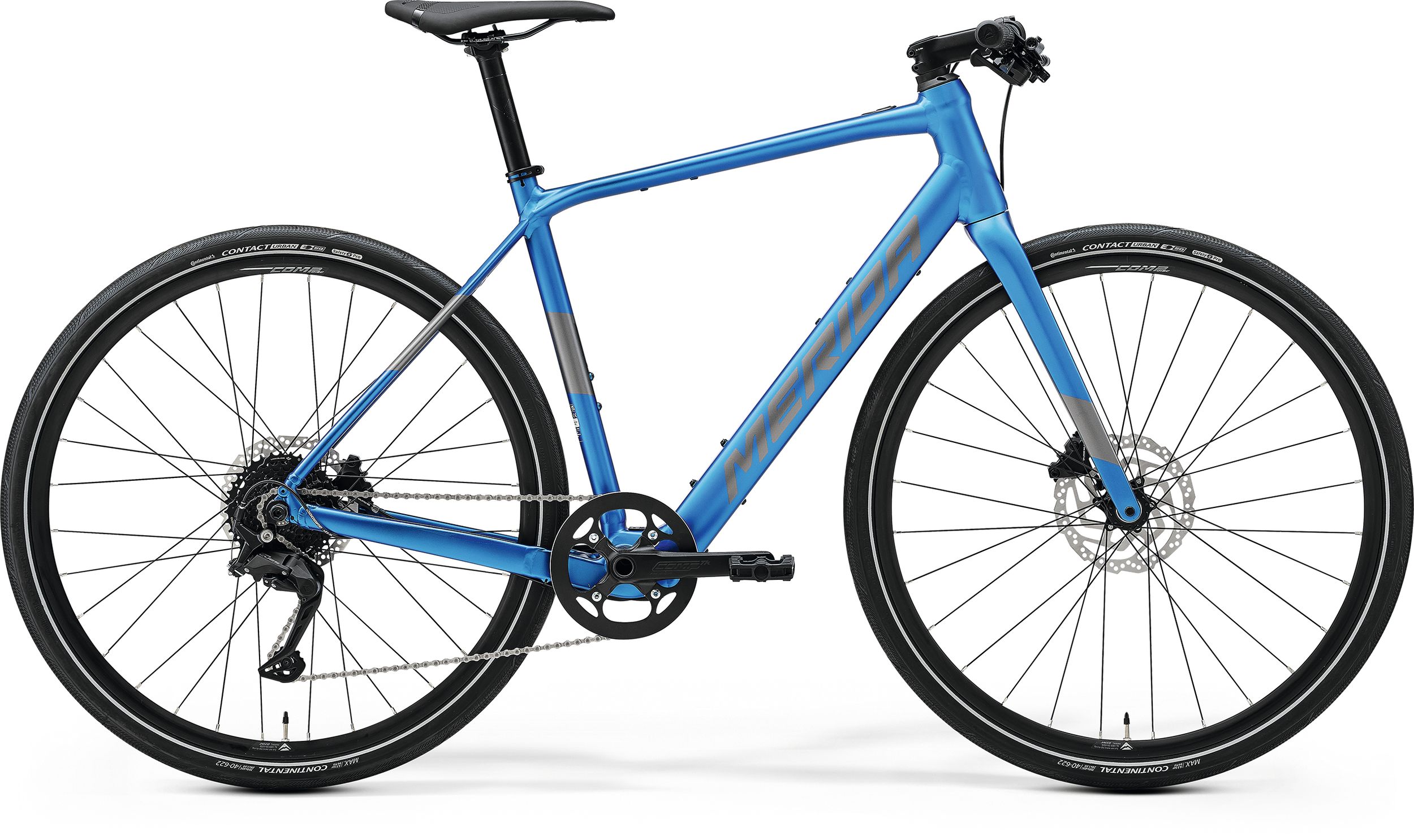

The eSPEEDER 200 marries the sporty handling and comfortable, more upright riding position of our regular SPEEDER with a natural-feeling, low-drag hub drive motor and low-profile internal battery, giving the rider a little boost whenever they need it. Smooth Shimano drivetrain and powerful hydraulic brakes deliver refined control, while the lightweight design means it's the perfect urban companion. Our normal SPEEDER is all about urban and fitnes ... Read More
